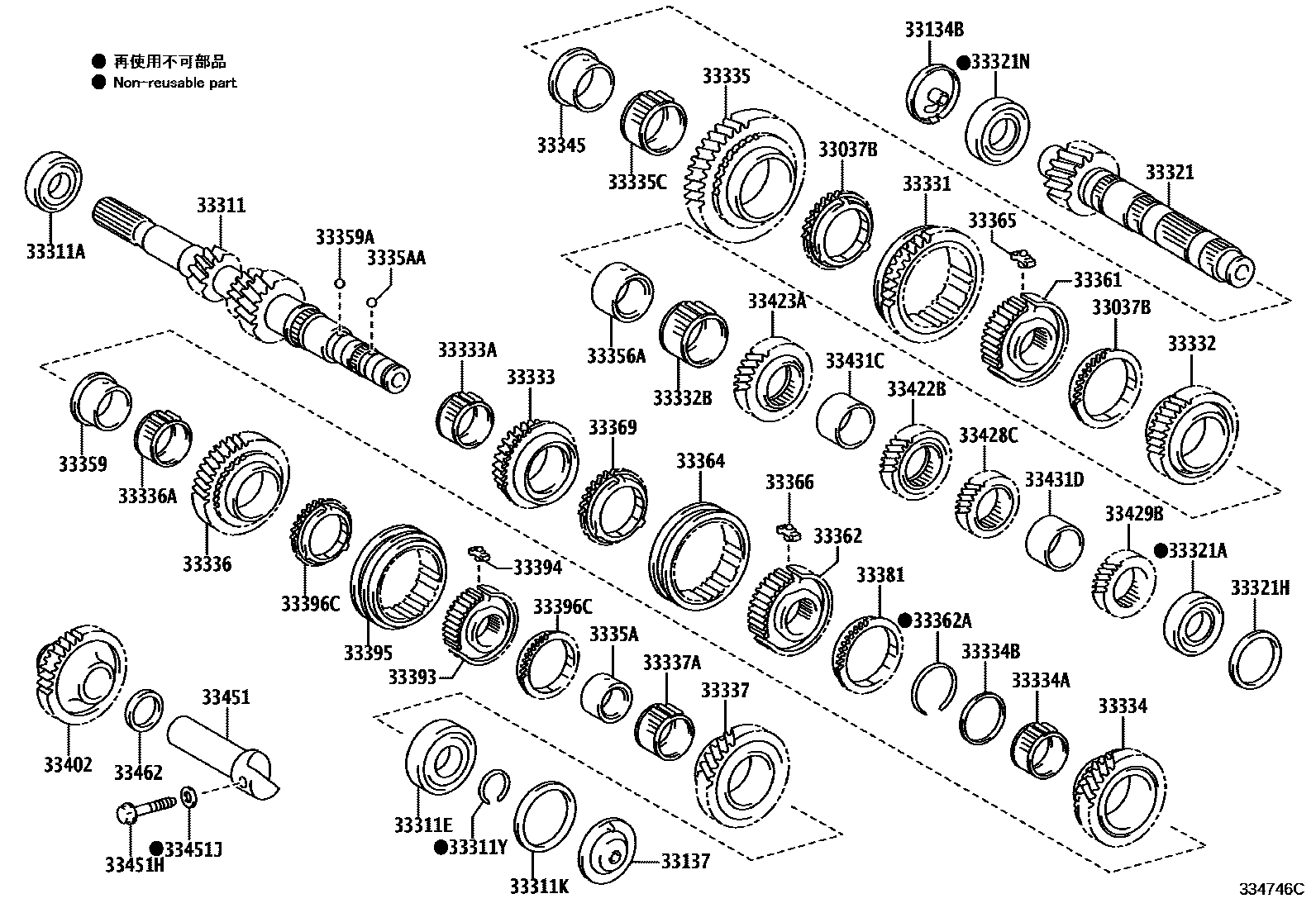

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-02030 · 33037-05020 · 33037-20100 |
| 33134B | Output shaft cover (MTM) | 33134-0D050 · 33134-20040 |
| 33137 | Input shaft cover (MTM) | 33137-0D010 · 33137-20020 |
| 33311 | input shaft | 33311-05030 · 33311-05031 · 33311-12281 · 33311-20240 · 33311-20241 |
| 33311A | Bearing (for front input shaft) | 90363-25081 · 90363-W0010 · 90363-W0015 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-28014 · 90363-28016 · 90363-28020 · 90363-W0011 · 90363-W0013 · 90363-W0014 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-54103 · 90564-54104 · 90564-54105 · 90564-54106 · 90564-54107 · 90564-54108 · 90564-54109 · 90564-54110 · 90564-54111 · 90564-54112 · 90564-54113 · 90564-54114 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-25059 · 90520-25062 · 90520-25063 · 90520-25064 · 90520-25065 · 90520-25066 · 90520-25067 · 90520-25068 · 90520-25069 · 90520-25070 · 90520-25071 · 90520-25072 · 90520-25074 · 90520-25075 |
| 33321 | output shaft | 33321-02080 · 33321-02090 · 33321-02121 · 33321-02131 · 33321-12301 · 33321-74020 · 33321-74021 |
| 33321A | Bearings (for rear output shaft) | 90366-30096 · 90366-W0025 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-45153 · 90564-45154 · 90564-45155 · 90564-45156 · 90564-45157 · 90564-45158 · 90564-45159 · 90564-45160 · 90564-45161 · 90564-45162 · 90564-45163 · 90564-45164 · 90564-45165 · 90564-45166 · 90564-45167 · 90564-45168 · 90564-45169 · 90564-45170 · 90564-45171 · 90564-45172 · 90564-45173 · 90564-45174 · 90564-45175 · 90564-45176 · 90564-45177 · 90564-45178 · 90564-45179 · 90564-45180 · 90564-45181 · 90564-45182 · 90564-45183 · 90564-45184 · 90564-45185 · 90564-45186 · 90564-45187 · 90564-45188 · 90564-45189 · 90564-45190 · 90564-45191 · 90564-45192 · 90564-45193 · 90564-45194 · 90564-45195 |
| 33321N | Bearing (for front output shaft) | 90366-28016 · 90366-28019 · 90366-W0028 |
| 33331 | reverse gear | 33331-05030 · 33331-20090 |
| 33332 | Second gear | 33332-02060 · 33332-05040 · 33332-12170 · 33332-20160 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-47011 · 90364-W0006 · 90364-W0008 |
| 33333 | Third gear | 33034-05030 · 33034-05040 · 33034-0F020 · 33034-12220 · 33034-20120 |
| 33333A | Needle roller bearing (for third gear) | 90364-37015 · 90364-W0007 |
| 33334 | fourth gear | 33035-05050 · 33035-05051 · 33035-05060 · 33035-05061 · 33035-0F010 · 33035-0F011 · 33035-12160 · 33035-20210 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-37015 · 90364-W0007 |
| 33334B | Spacer (for fourth gear bearing) | 90560-37004 |
| 33335 | first gear | 33335-02080 · 33335-05030 · 33335-12190 · 33335-20160 |
| 33335C | Needle roller bearing (for first gear) | 90364-47010 · 90364-W0005 |
| 33336 | fifth gear | 33036-05030 · 33036-05040 · 33036-0F010 · 33036-12220 · 33036-52060 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-37015 · 90364-W0007 |
| 33337 | Sixth speed gear sub-assembly | 33037-05010 · 33037-05030 · 33037-0F010 · 33037-12060 · 33037-52020 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-35011 · 90364-W0004 |
| 33345 | First gear bushing | 33345-20030 |
| 33356A | Second gear gear bearing inner race | 33356-20050 |
| 33359 | Fifth gear gear bearing inner race | 33359-20010 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20010 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-05030 · 33361-20070 |
| 33362 | No. 2 transmission clutch hub | 33362-05030 · 33362-05031 · 33362-05032 · 33362-20040 · 33362-20041 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-35034 · 90520-35035 · 90520-35036 · 90520-35037 · 90520-35038 · 90520-35039 · 90520-35040 · 90520-35041 |
| 33364 | No. 2 transmission hub sleeve | 33364-05030 · 33364-12060 · 33364-20070 |
| 33365 | No. 1 synchromesh shift key | 33365-05010 · 33365-20080 |
| 33366 | No. 2 synchromesh shift key | 33365-05010 · 33365-20080 |
| 33369 | No. 3 synchronizer lock ring | 33369-20050 |
| 33381 | Second gear synchronizer outer locking ring | 33381-05010 · 33381-20020 |
| 33393 | No. 3 transmission clutch hub | 33393-05030 · 33393-05031 · 33393-20040 · 33393-20041 |
| 33394 | No. 3 synchromesh shift key | 33365-05010 · 33365-20080 |
| 33395 | No. 3 transmission hub sleeve | 33395-05030 · 33395-12040 · 33395-20060 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-05010 · 33396-20010 |
| 33402 | Reverse idler gear sub-assembly | 33402-05030 · 33402-20080 |
| 33422B | Fourth gear driven gear | 33422-05050 · 33422-05060 · 33422-0F010 · 33422-12110 · 33422-20070 |
| 33423A | Third gear driven gear | 33423-05030 · 33423-05040 · 33423-0F020 · 33423-12070 · 33423-20080 |
| 33428C | fifth speed driven gear | 33428-05030 · 33428-05040 · 33428-0F010 · 33428-12160 · 33428-52030 |
| 33429B | Sixth speed driven gear | 33429-05010 · 33429-05020 · 33429-0F010 · 33429-12040 · 33429-52020 |
| 33431C | Output gear spacer | 33431-20090 |
| 33431D | Output gear spacer | 33431-20090 |
| 33451 | Reverse gear idler shaft | 33451-05020 · 33451-20060 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 · 90105-W0271 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 · 90430-W0002 |
| 33462 | Reverse idler thrust washer | 33462-20070 · 33462-20090 |
