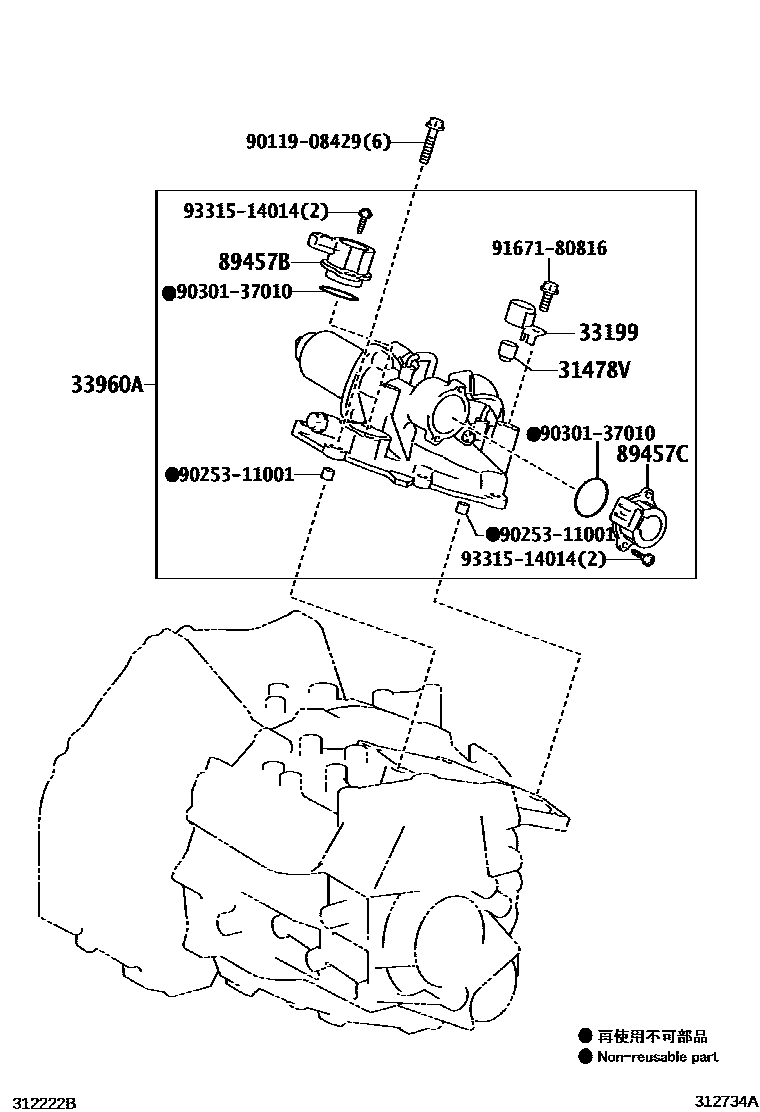

Toyota COROLLA 泵和执行器、顺序变速器或多模式手动传动桥 — Figure 3107
Toyota COROLLA EPC diagram 3107, 泵和执行器、顺序变速器或多模式手动传动桥, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478V | Vent plug cover | 31478-30020 |
| 33199 | ventilation shield | 33199-12010 |
| 33960A | Shift lever actuator assembly | 33960-12025 |
| 89457B | gear shift sensor | 89457-52020 |
| 89457C | gear selector travel sensor | 89457-12021 |
