Toyota COROLLA 文氏管 — Figure 2606

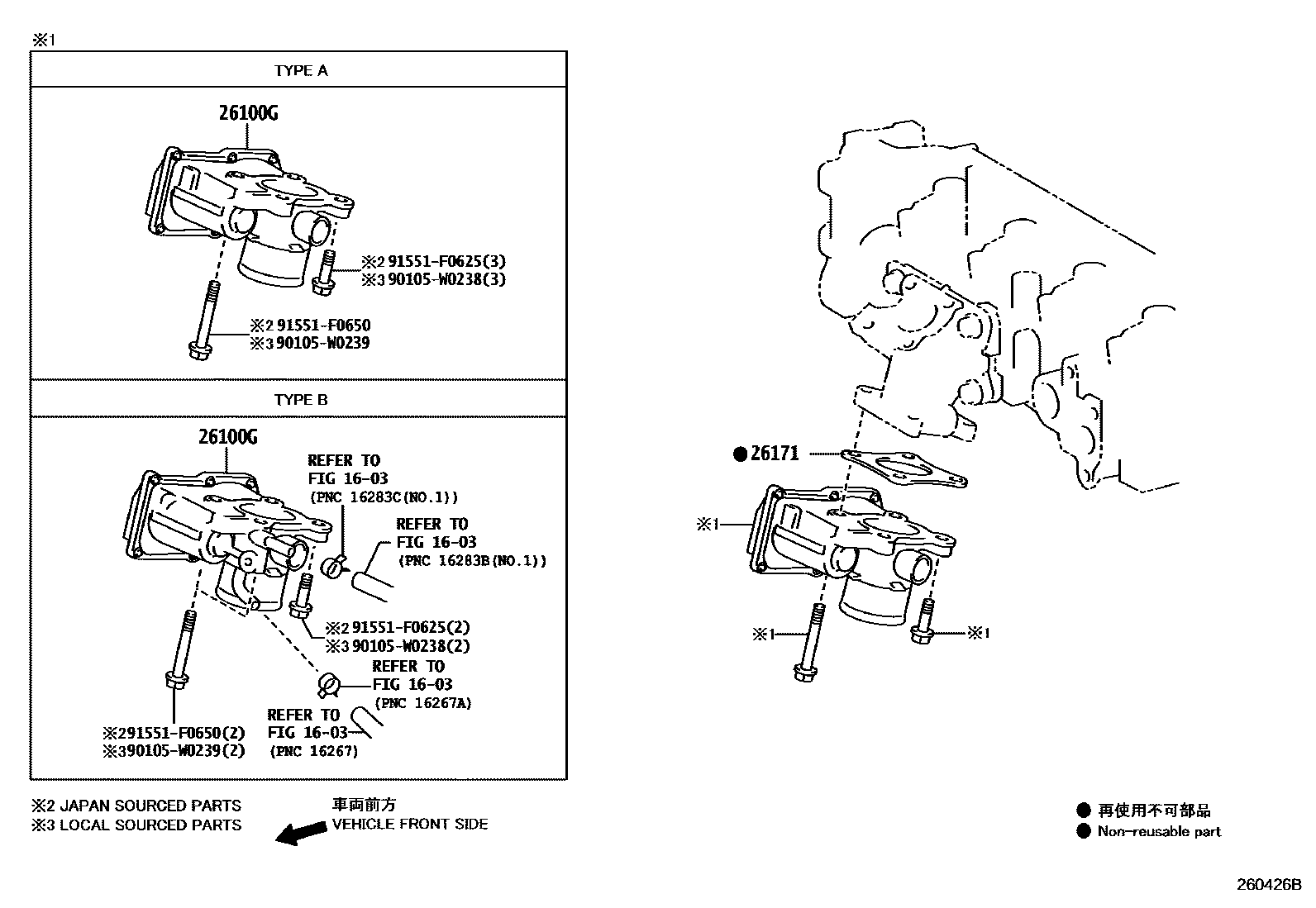

Toyota COROLLA EPC diagram 2606, 文氏管, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 26100G | Diesel engine throttle body assembly | 26100-0N020 · 26100-0N030 |
| 26171 | Venturi gasket | 26171-33030 |
