Toyota COROLLA fuel filter — Figure 2302

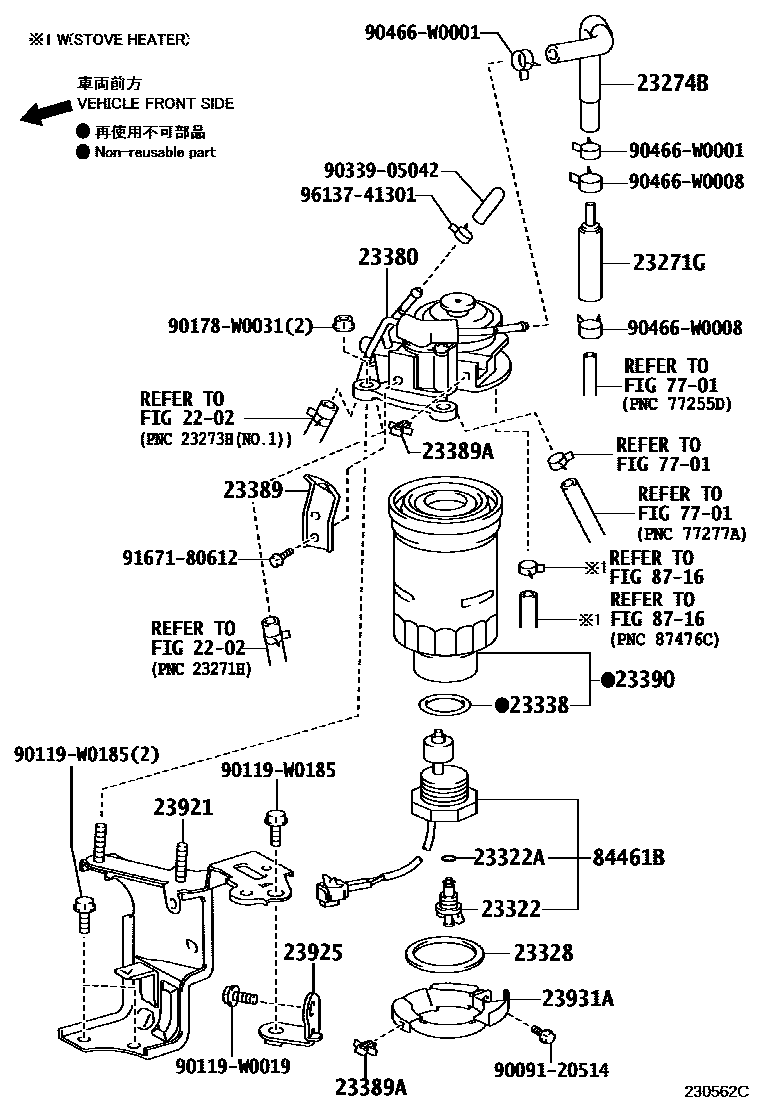

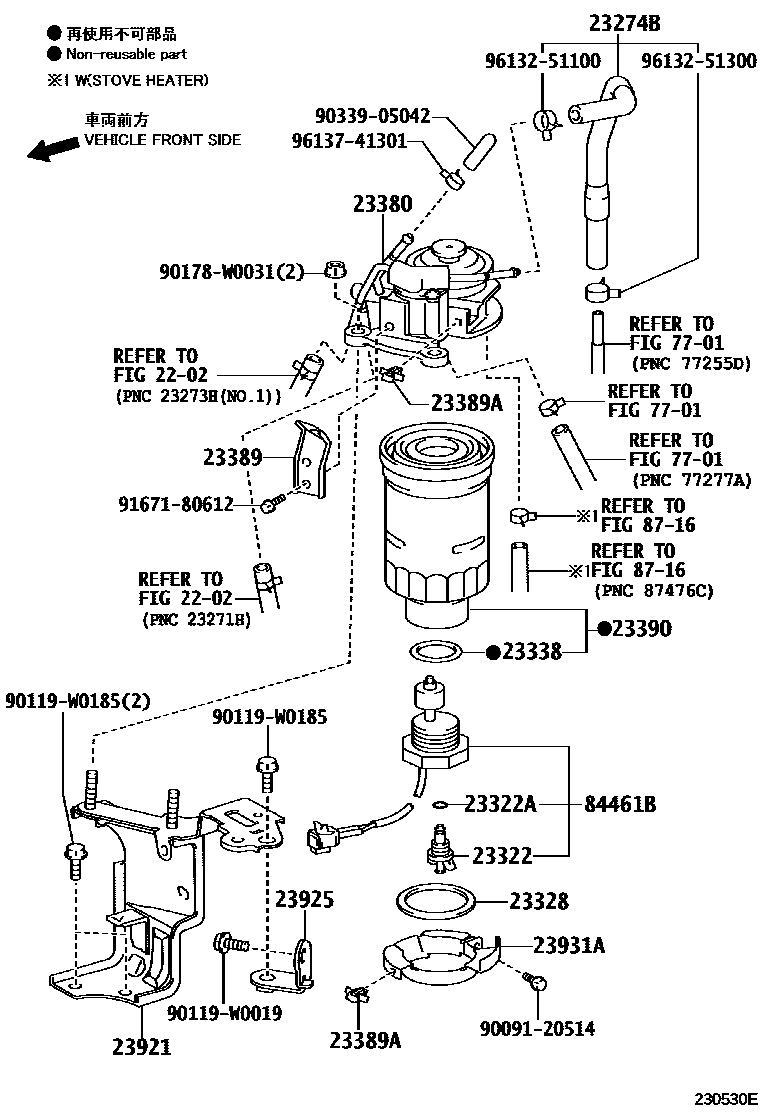

Toyota COROLLA EPC diagram 2302, fuel filter, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23271G | fuel hose | 23801-0N061 |
| 23274B | No. 3 fuel hose | 23274-0N040 · 23274-0T010 · 23274-26060 |
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23328 | Gasket (for fuel filter) | 23385-30160 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23380 | Fuel filter cover assembly | 23380-26161 · 23380-26171 |
| 23389 | fuel filter clip | 23389-26130 |
| 23389A | fuel filter clip | 23389-27130 |
| 23390 | Fuel filter element assembly | 23390-26160 |
| 23921 | Fuel filter support | 23921-0R010 |
| 23925 | fuel filter support stay | 23925-0R010 |
| 23931A | fuel filter cover | 23931-26031 |
| 84461B | Liquid level warning switch | 84461-60081 |
