Toyota COROLLA 喷油嘴 — Figure 2201

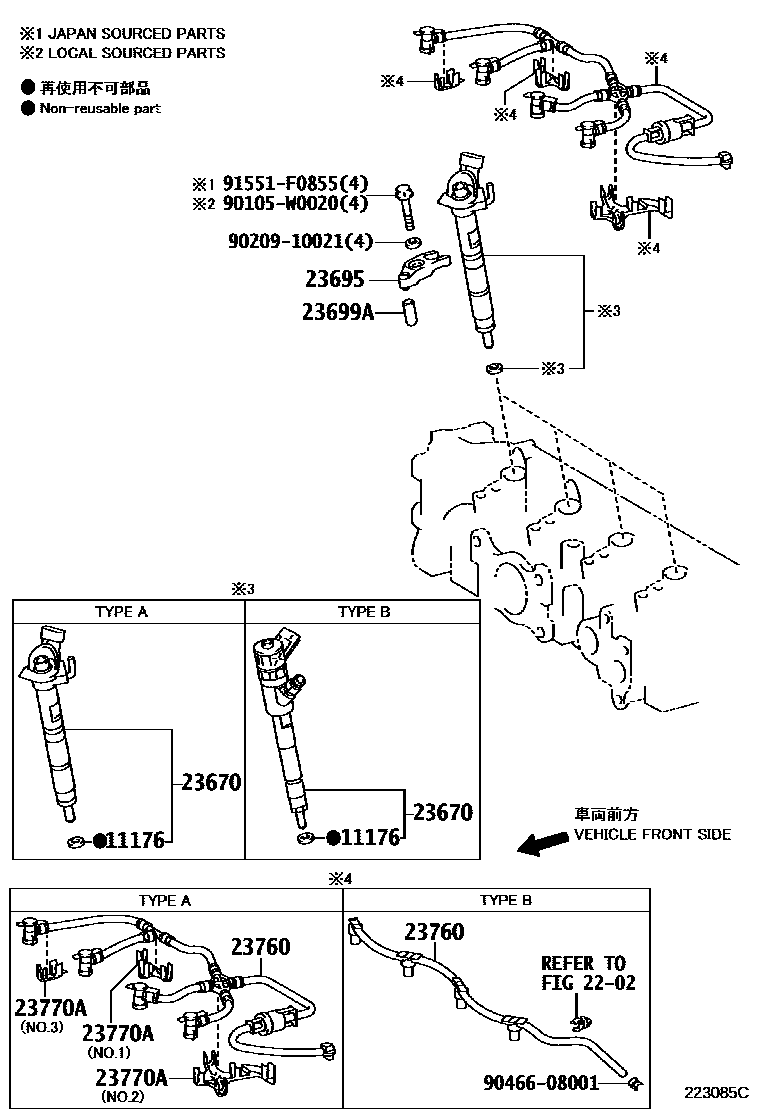

Toyota COROLLA EPC diagram 2201, 喷油嘴, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-33010 |
| 23670 | Fuel injector assembly | 23670-09390 · 23670-09410 |
| 23695 | No. 1 injector body clamp | 23695-33020 |
| 23699A | Injector body clamp seat | 23699-33020 |
| 23760 | Fuel injector overflow pipe assembly | 23760-0N030 · 23760-0W010 |
| 23770A | Clip or clip (for injector overflow pipe assembly) | 23841-33030 · 23841-33040 · 23841-33050 |
