Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01253 · 90919-01275 · 90919-W1006 · 90919-W1007 |

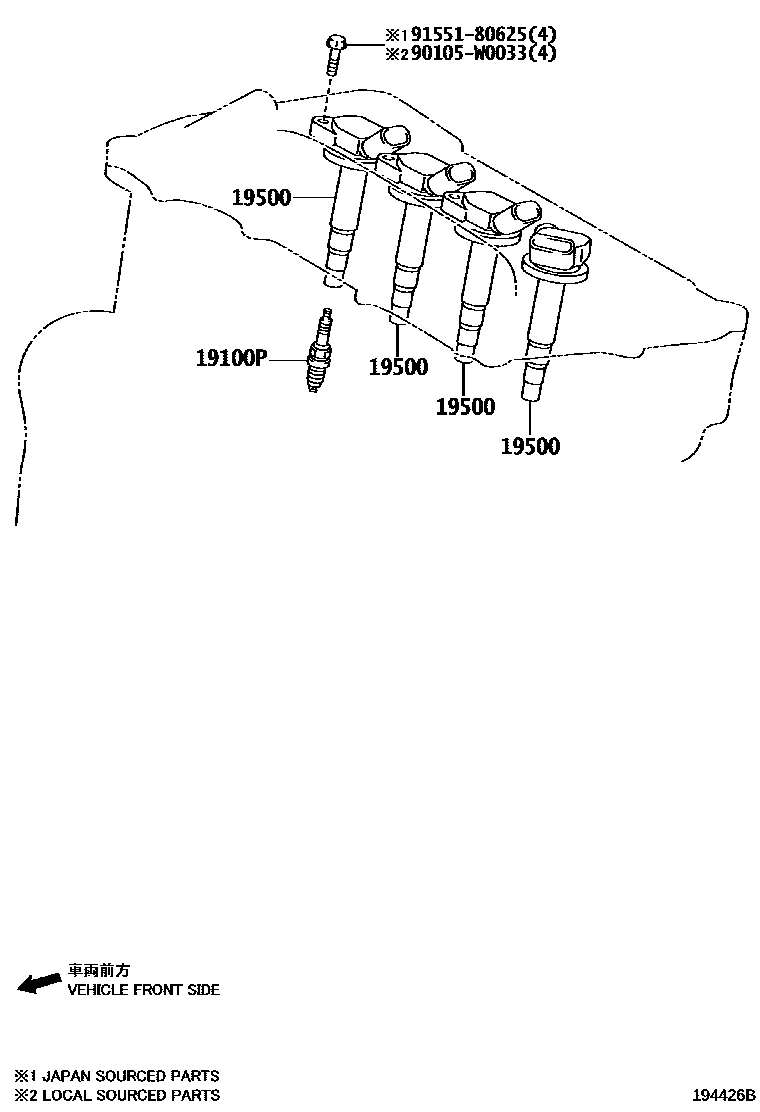

| 19500 | Ignition coil assembly | 90919-02258 |

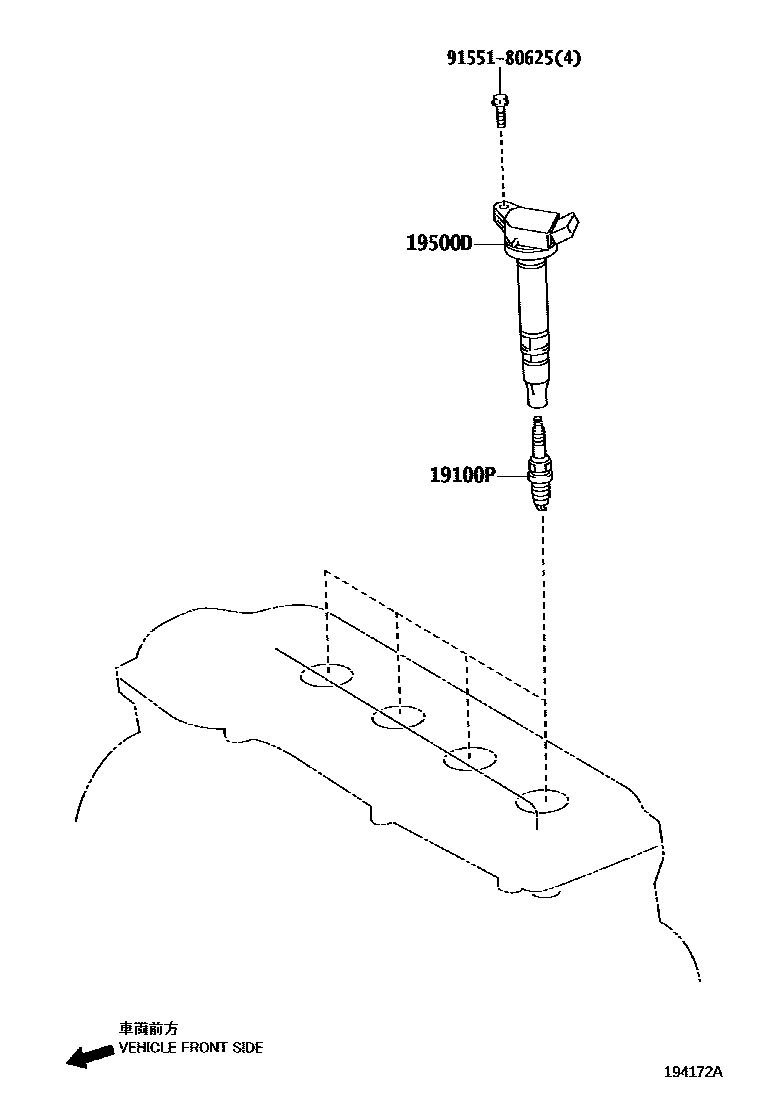

| 19500D | No. 1 ignition coil | 90919-02257 |

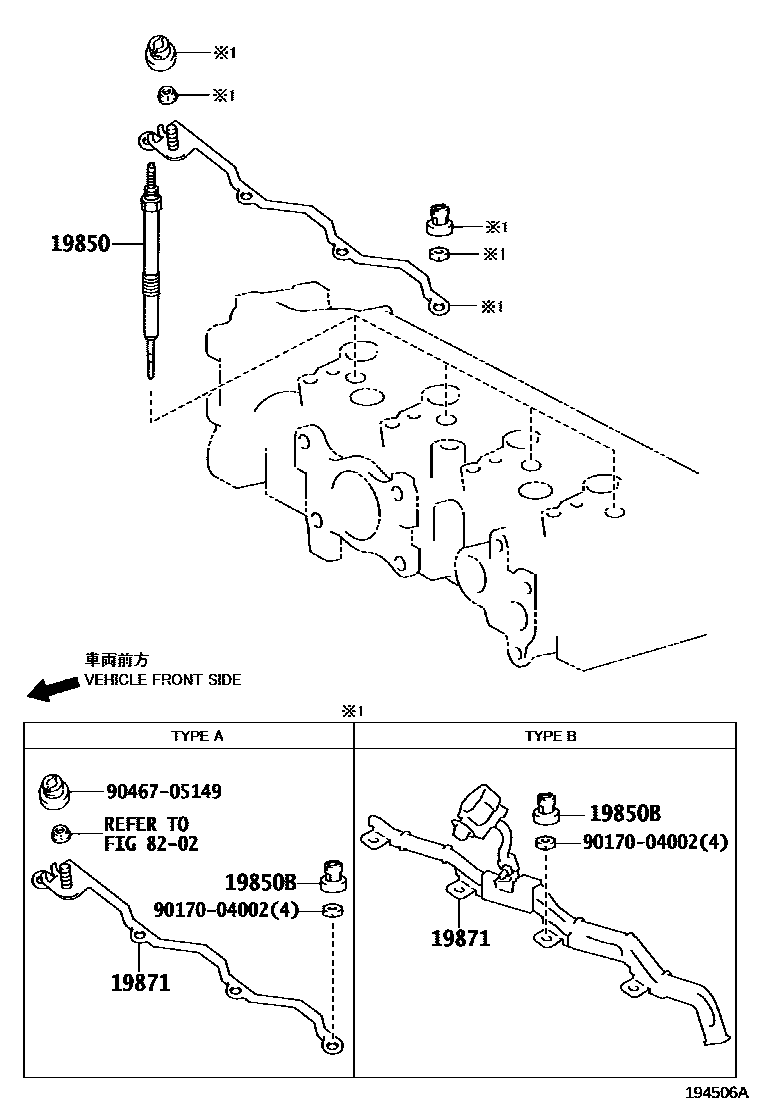

| 19850 | Glow plug assembly | 19850-33020 · 19850-33040 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-0N010 · 19871-33020 |
