Toyota COROLLA Air Cleaner — Figure 1703

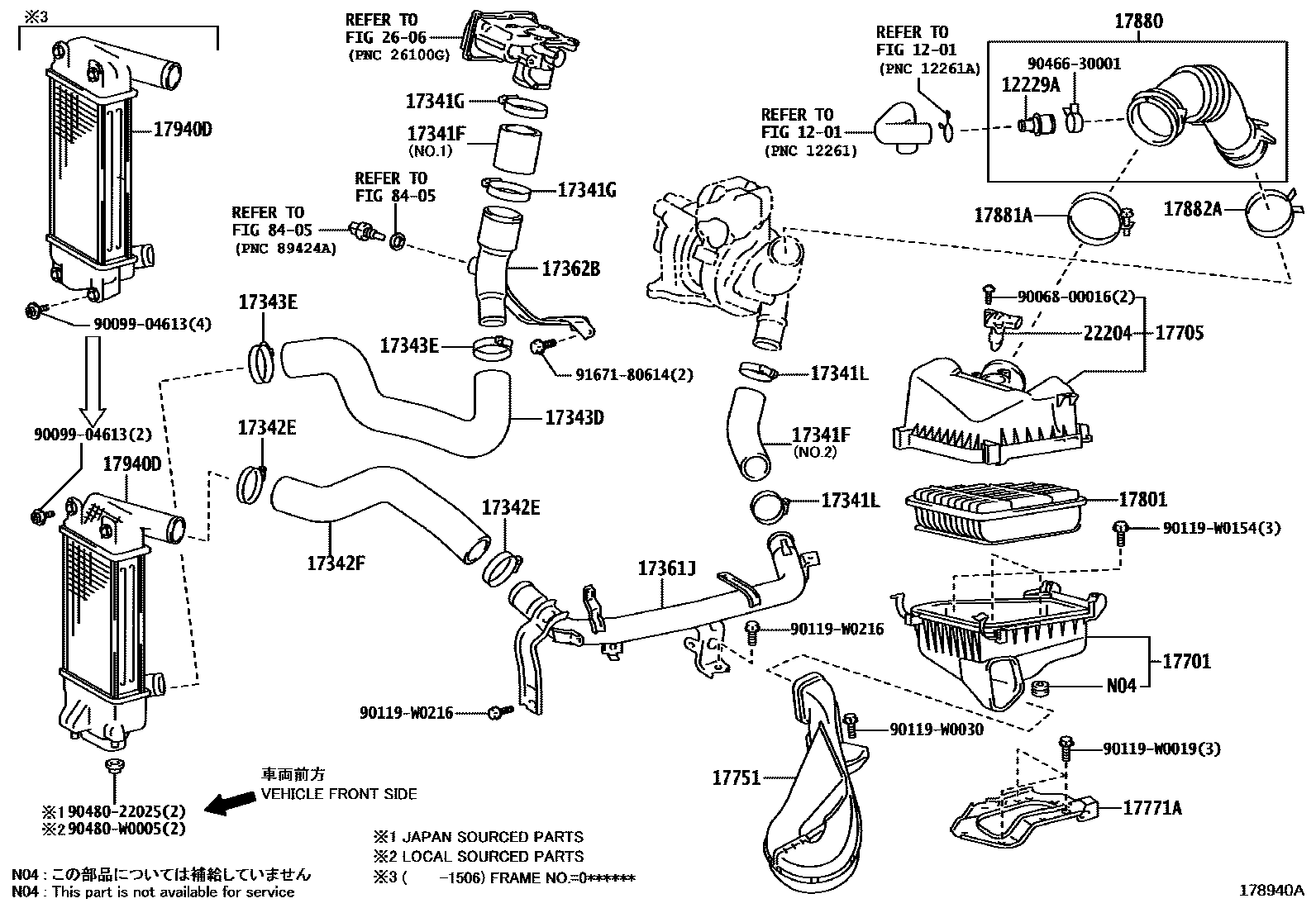

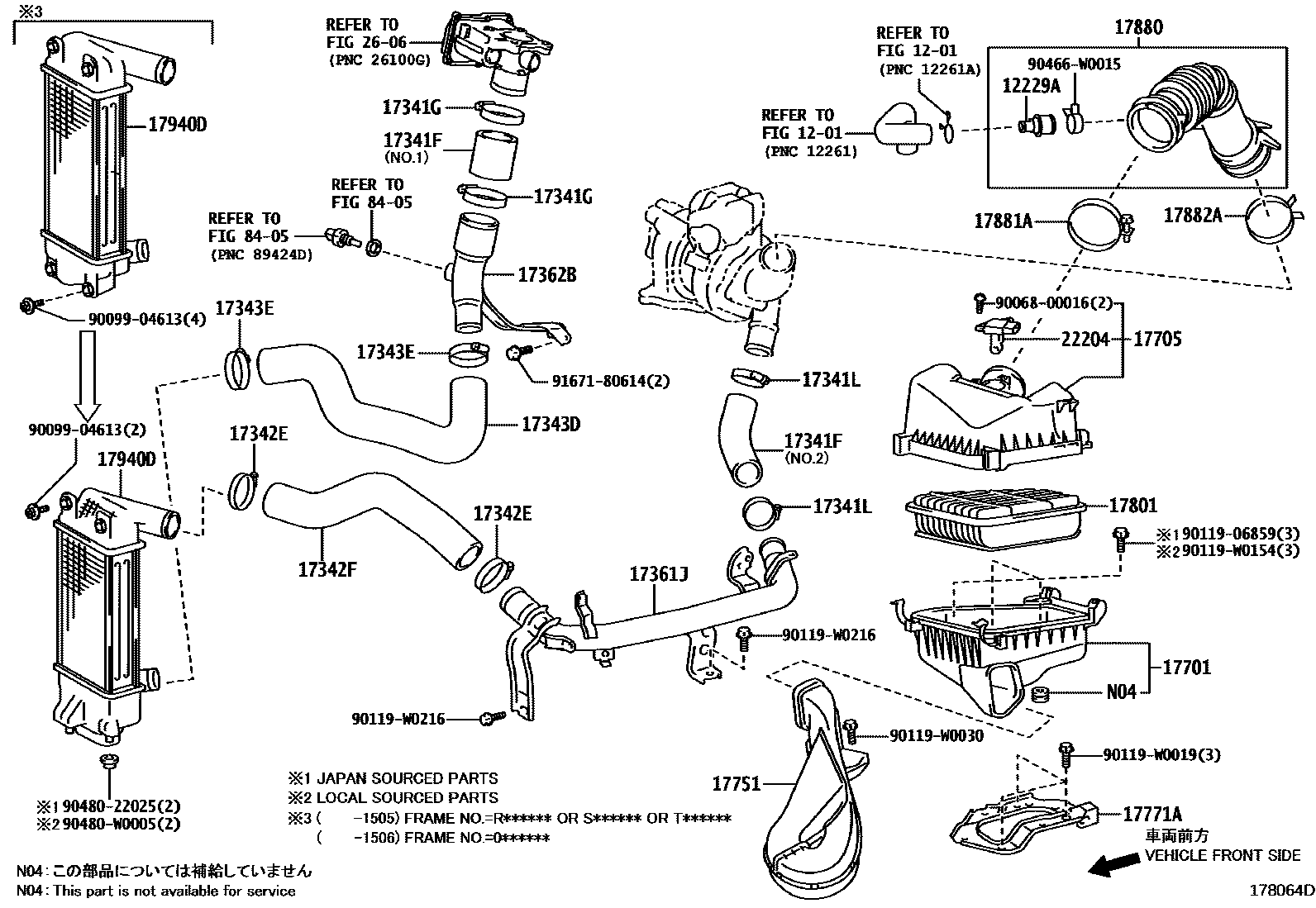

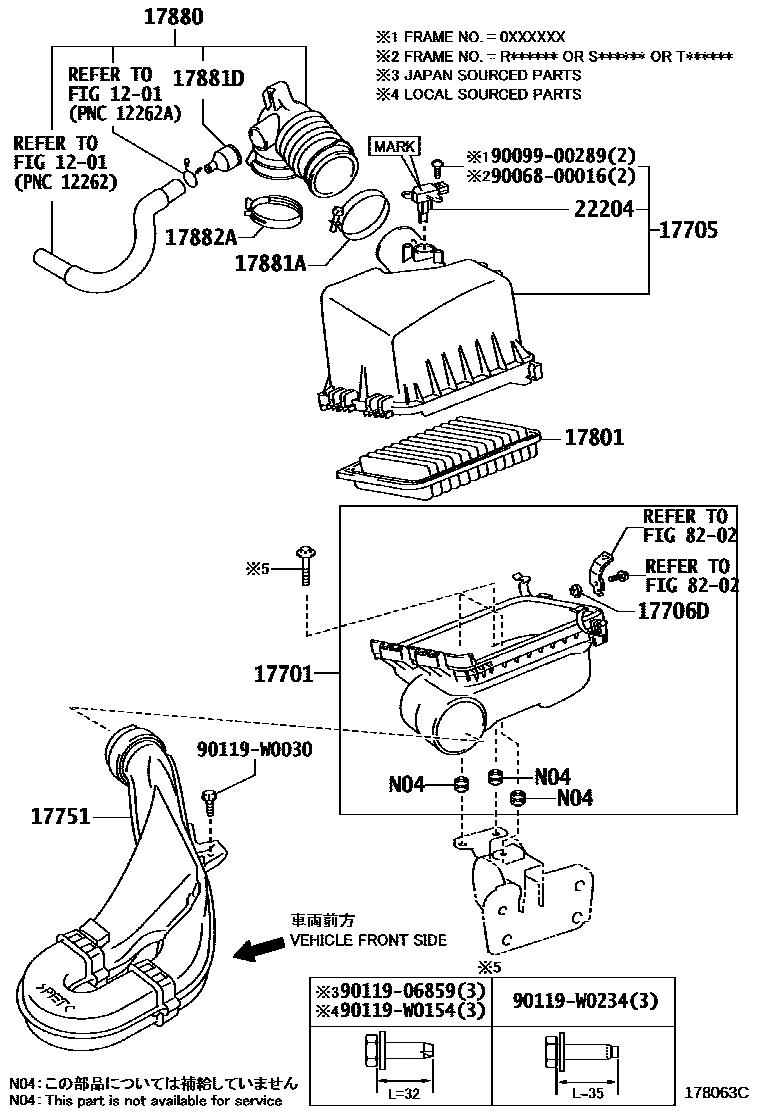

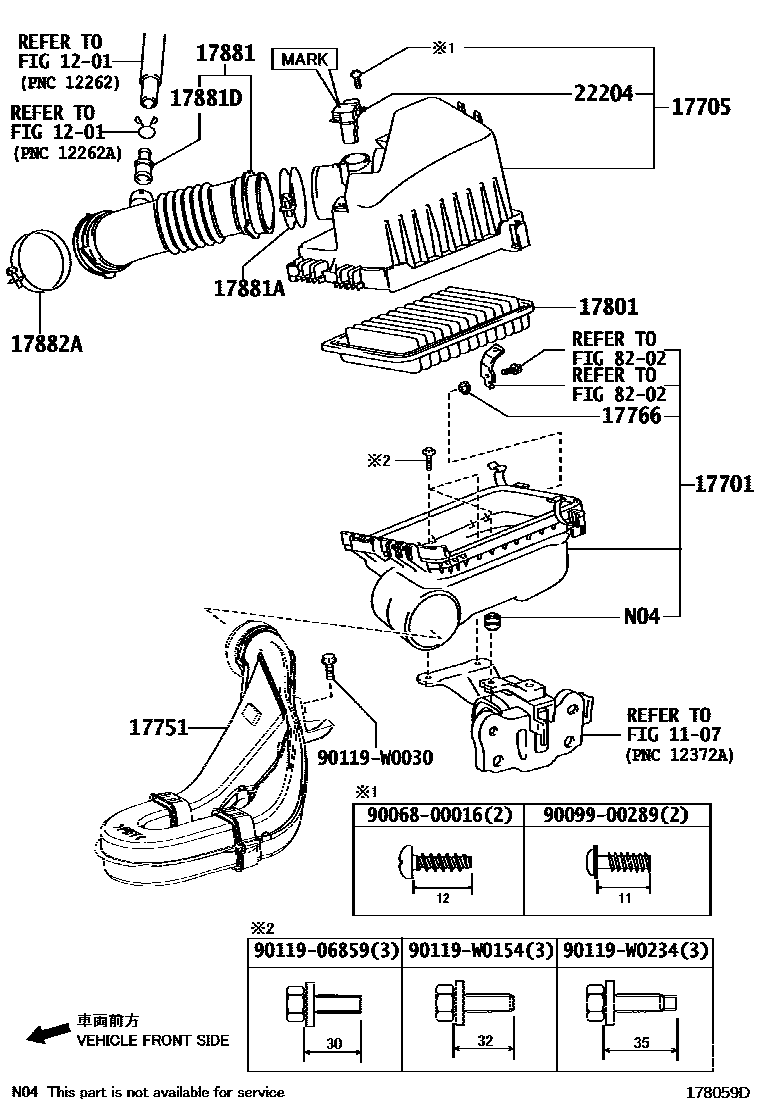

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-0N010 · 12229-33010 |
| 17341F | Air hose No. 1 | 17341-33060 · 17341-33070 · 17341-33080 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-63011 |
| 17341L | hose clamp | 90460-50005 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-60006 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-33120 |
| 17343D | No. 3 air hose | 17343-33100 · 17343-33220 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-50005 |
| 17361J | Air tube No. 1 | 17361-33020 · 17361-33100 |
| 17362B | No. 2 air pipe | 17362-33080 |
| 17701 | Air filter housing sub-assembly | 17701-0D160 · 17701-0R020 · 17701-0T080 |
| 17705 | Air filter cover sub-assembly | 17705-0N070 · 17705-0N071 · 17705-0N100 · 17705-0T051 · 17705-0T091 · 17705-0Y021 · 17705-0Y041 |
| 17706D | Air filter stay sub-assembly | 17706-21010 |
| 17751 | No. 1 air filter air inlet | 17751-0N080 · 17751-0Y120 |
| 17766 | No. 2 air filter stay | 17706-21010 |
| 17771A | air filter bracket | 17771-0R020 |
| 17801 | Air filter element sub-assembly | 17801-0D060 · 17801-0D090 · 17801-0R030 |
| 17880 | Air cleaner hose assembly | 17880-0N070 · 17880-0N090 · 17880-0Y020 |
| 17881 | No. 1 air cleaner hose | 17880-0D230 · 17880-0T070 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10850 |
| 17881D | Connector tube (for air cleaner hose) | 12229-21010 · 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-54002 · 90466-62002 · 96111-10780 |
| 17940D | Intercooler assembly | 17940-0N080 · 17940-0N150 |
| 22204 | Intake air flow meter assembly | 22204-0V010 · 22204-0V020 · 22204-26010 · 22204-28010 · 22204-30030 |
