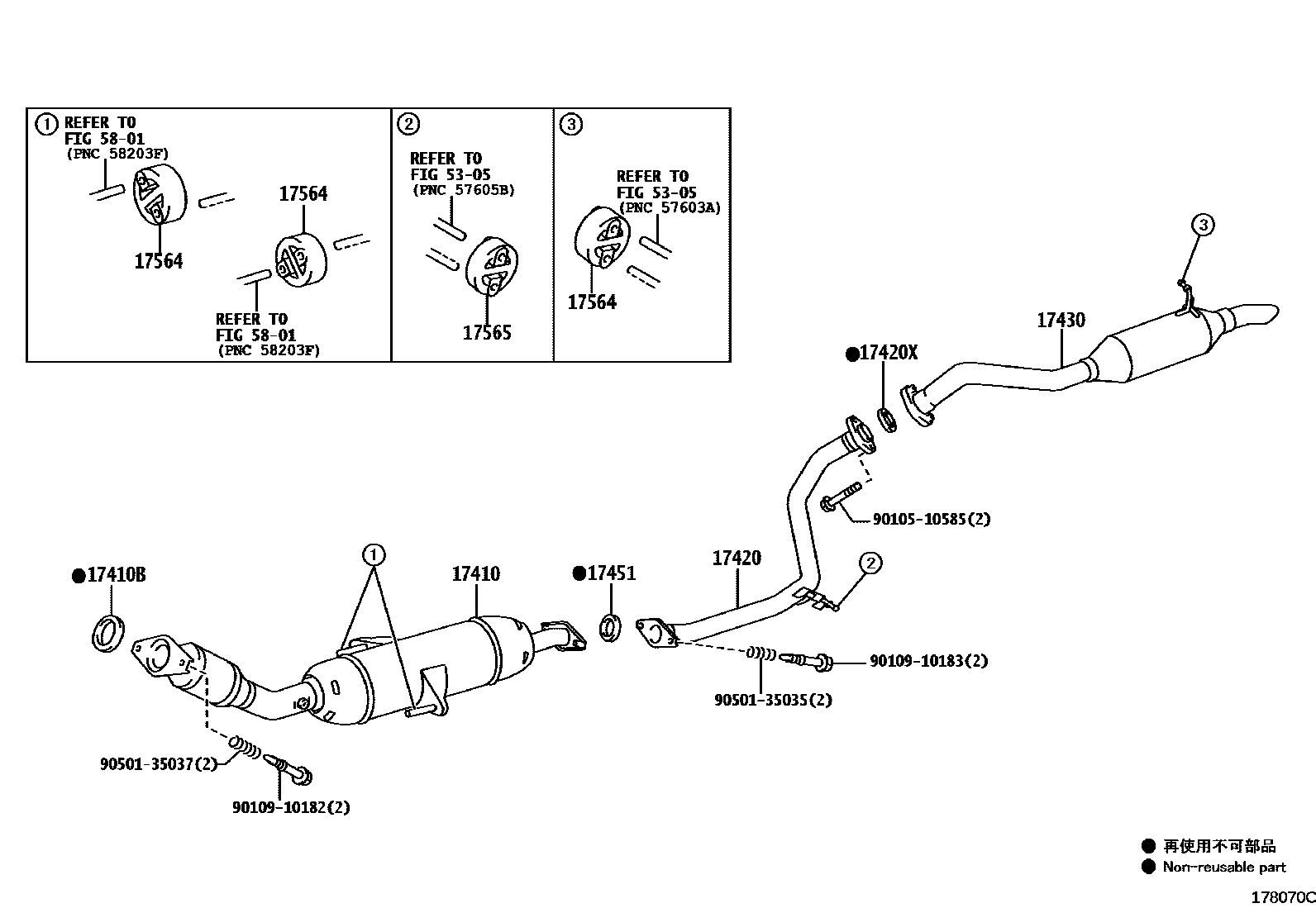

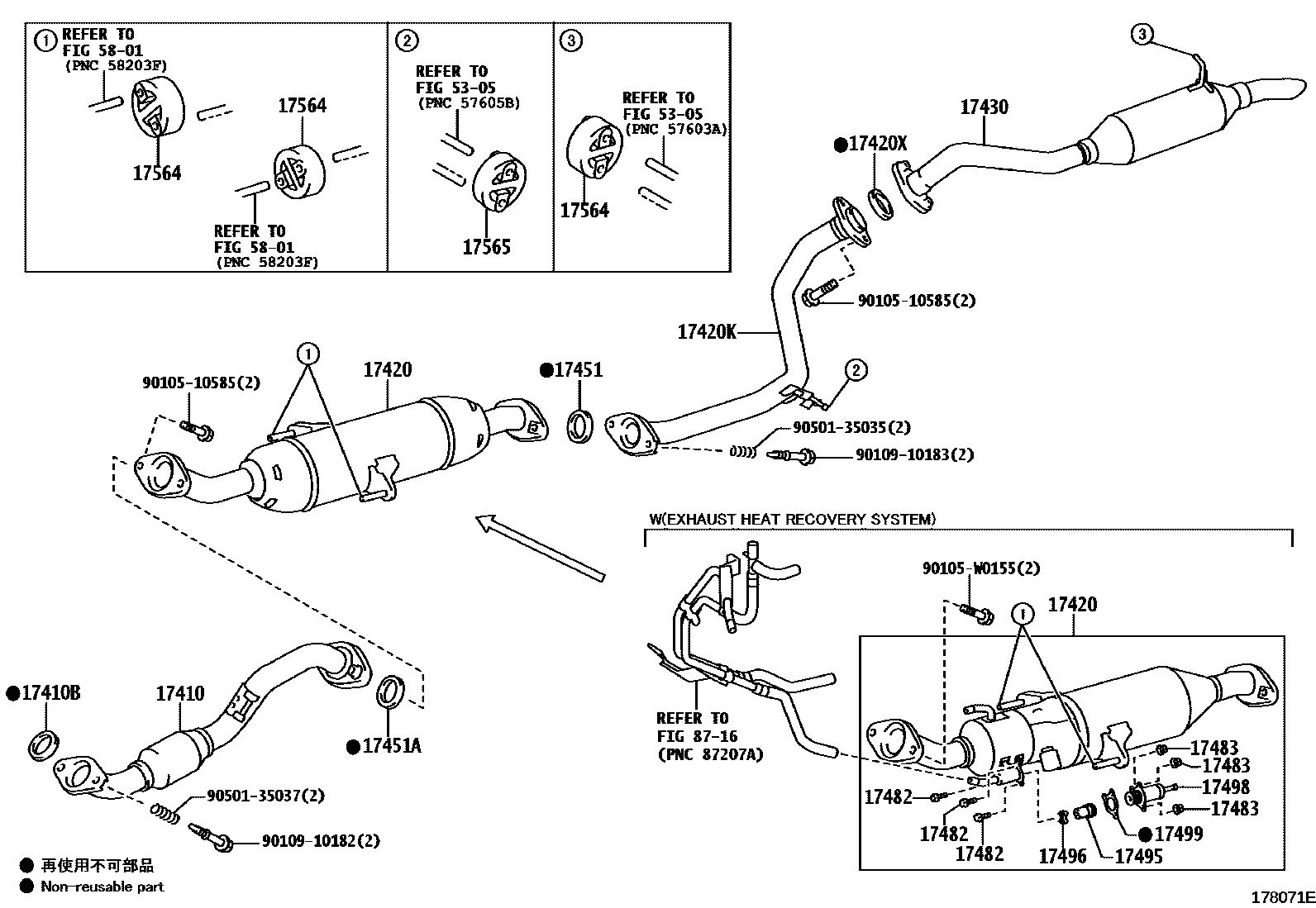

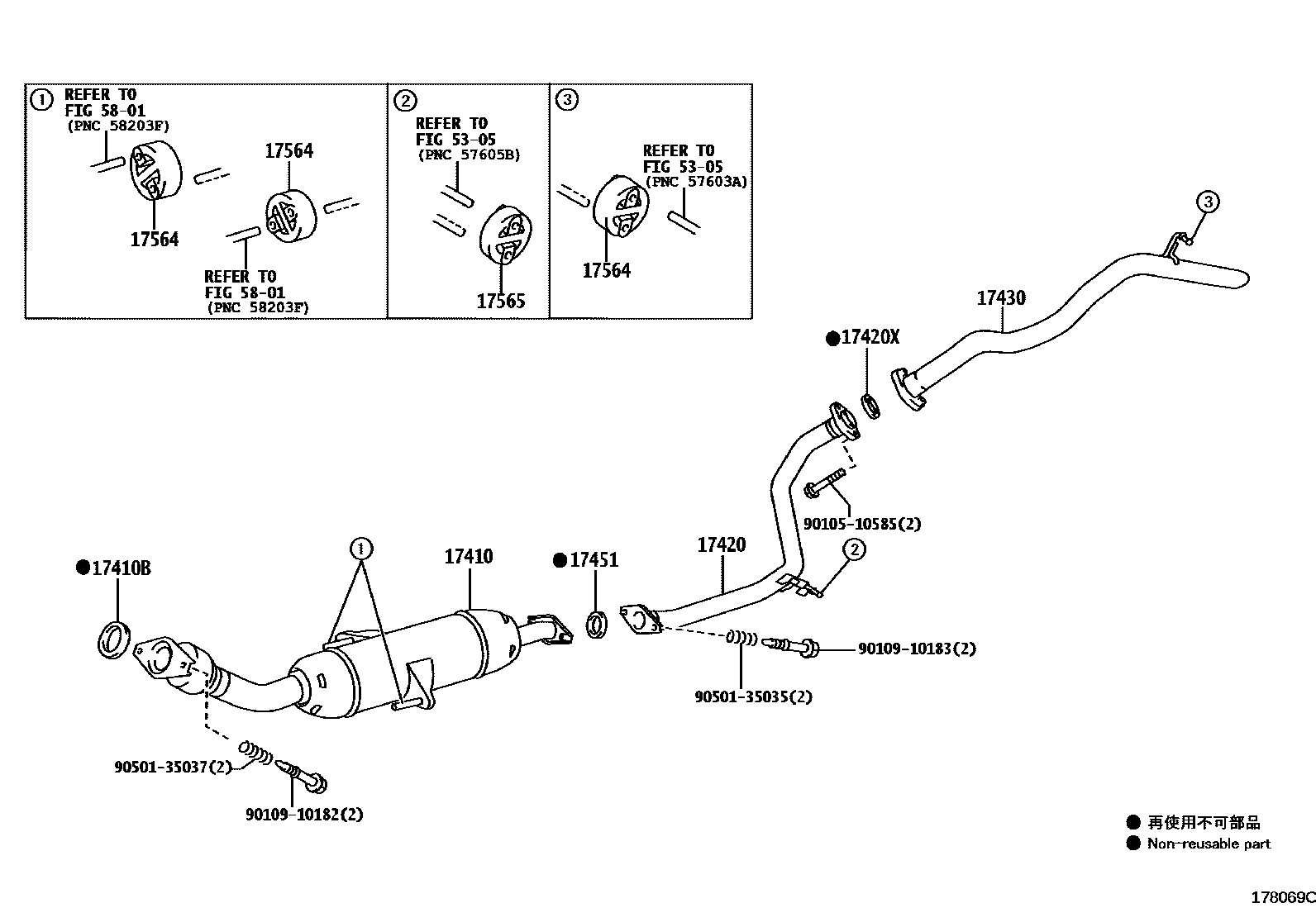

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0N080 · 17410-0N200 · 17410-0T110 · 17410-0T450 · 17410-0T570 · 17410-0TA80 · 17410-0Y080 |
| 17410B | Exhaust pipe gasket | 17451-0R010 · 17451-47020 |
| 17420 | Central exhaust pipe assembly | 17420-0N010 · 17420-0T030 · 17420-0Y010 · 17420-47080 |
| 17420K | No. 2 central exhaust pipe assembly | 17420-0T030 |
| 17420X | Center exhaust pipe liner | 90917-06089 |
| 17430 | Exhaust tailpipe assembly | 17430-0N120 · 17430-0T270 |
| 17451 | Exhaust pipe gasket | 17451-0D112 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06089 |
| 17482 | Exhaust pipe exhaust control actuator bolt | 17482-47010 |
| 17483 | Exhaust pipe exhaust control actuator nut | 17483-47010 |
| 17495 | Exhaust pipe exhaust control actuator | 17495-47010 |
| 17496 | Exhaust pipe exhaust control actuator block | 17496-47010 |
| 17498 | Exhaust pipe exhaust control actuator housing | 17498-47010 |
| 17499 | Exhaust pipe exhaust control actuator gasket | 17499-47010 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0J031 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0D100 |
