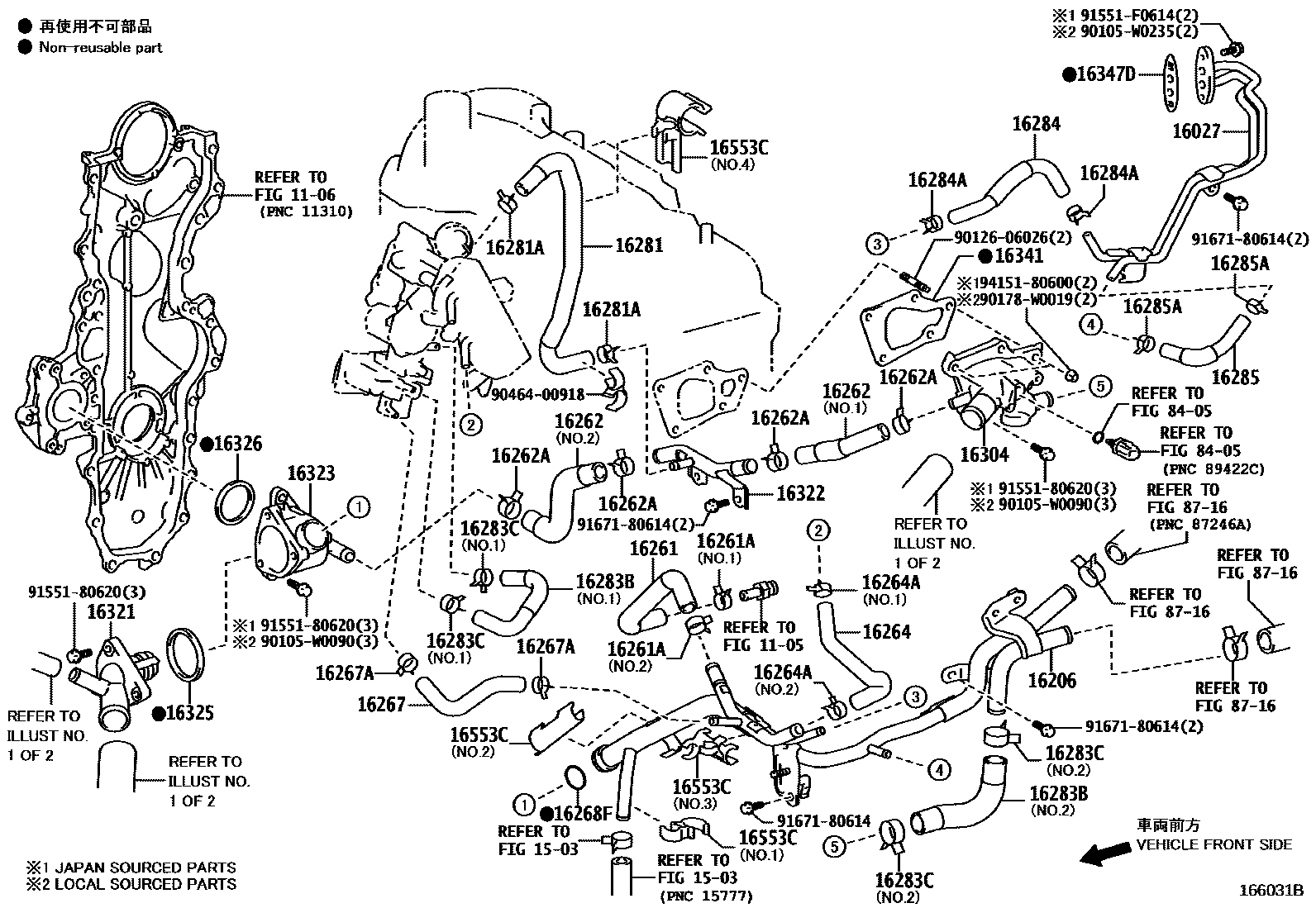

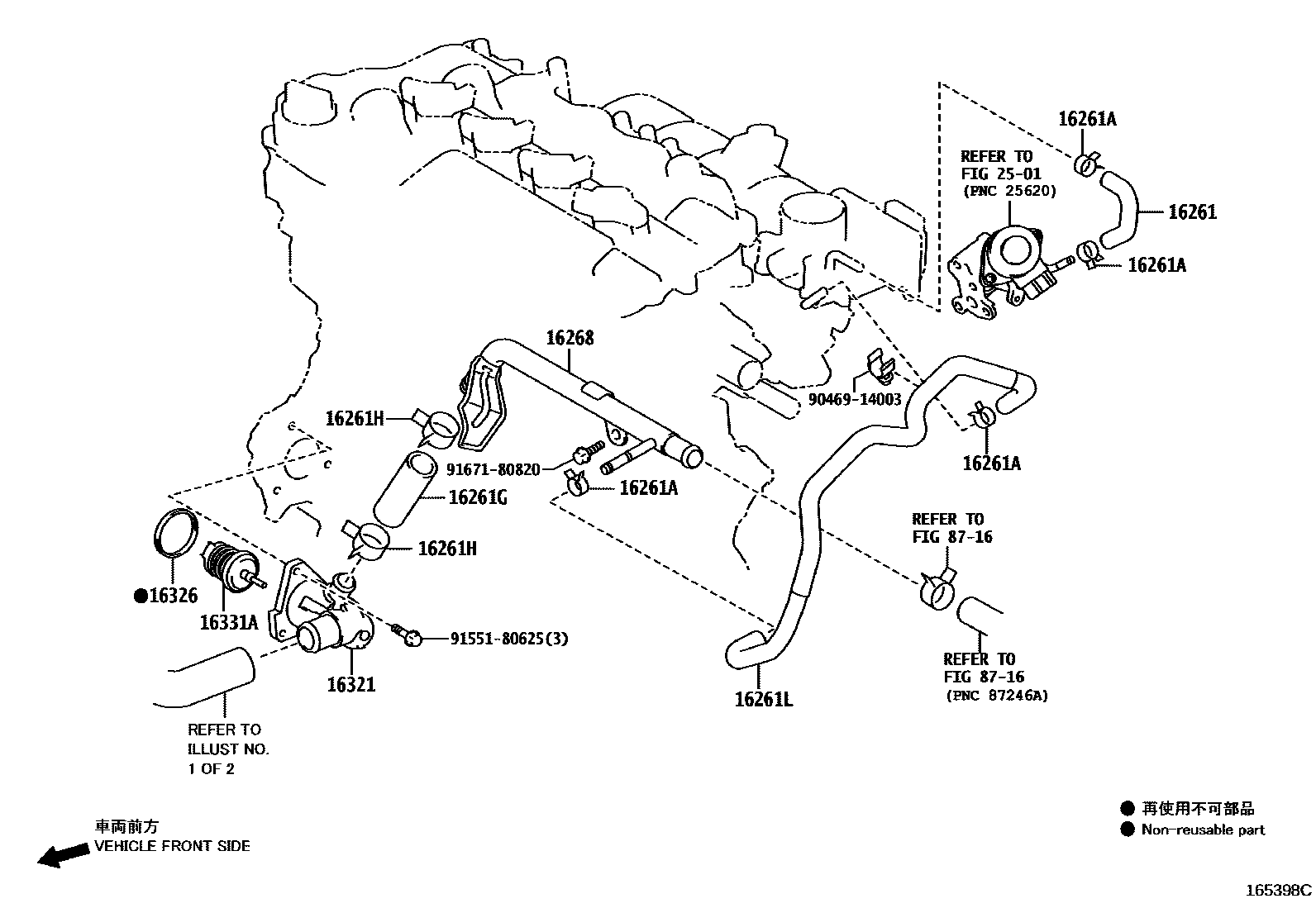

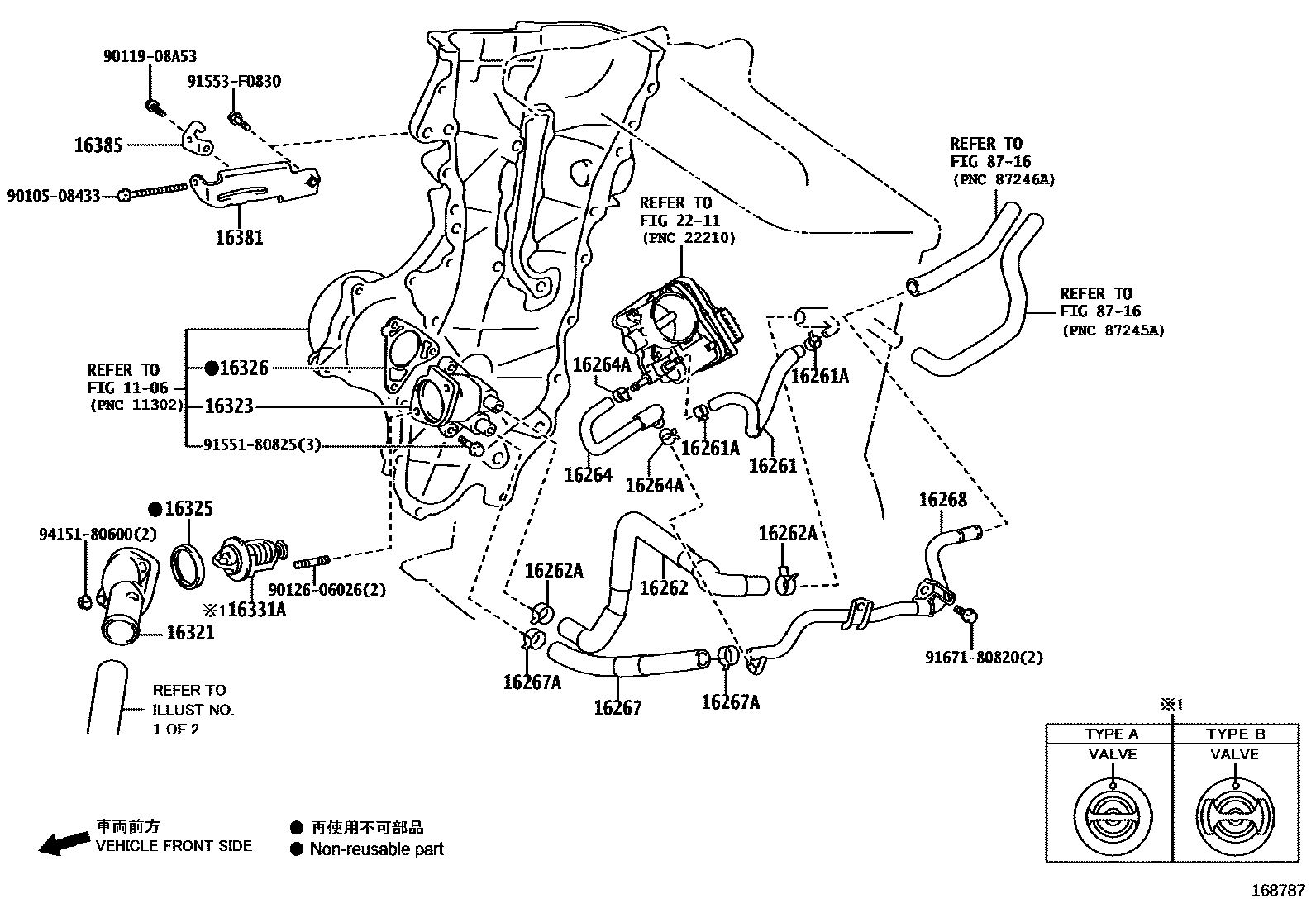

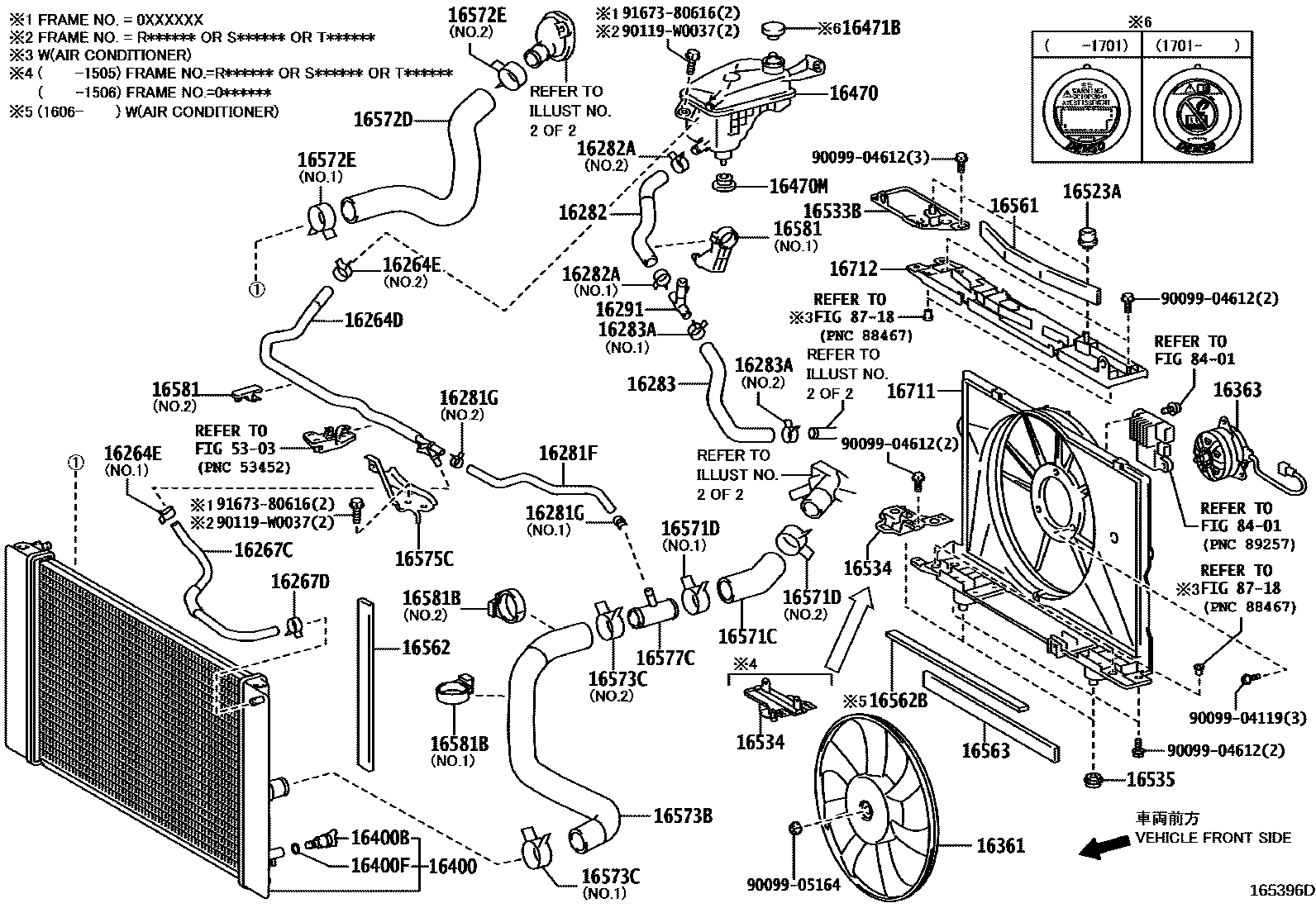

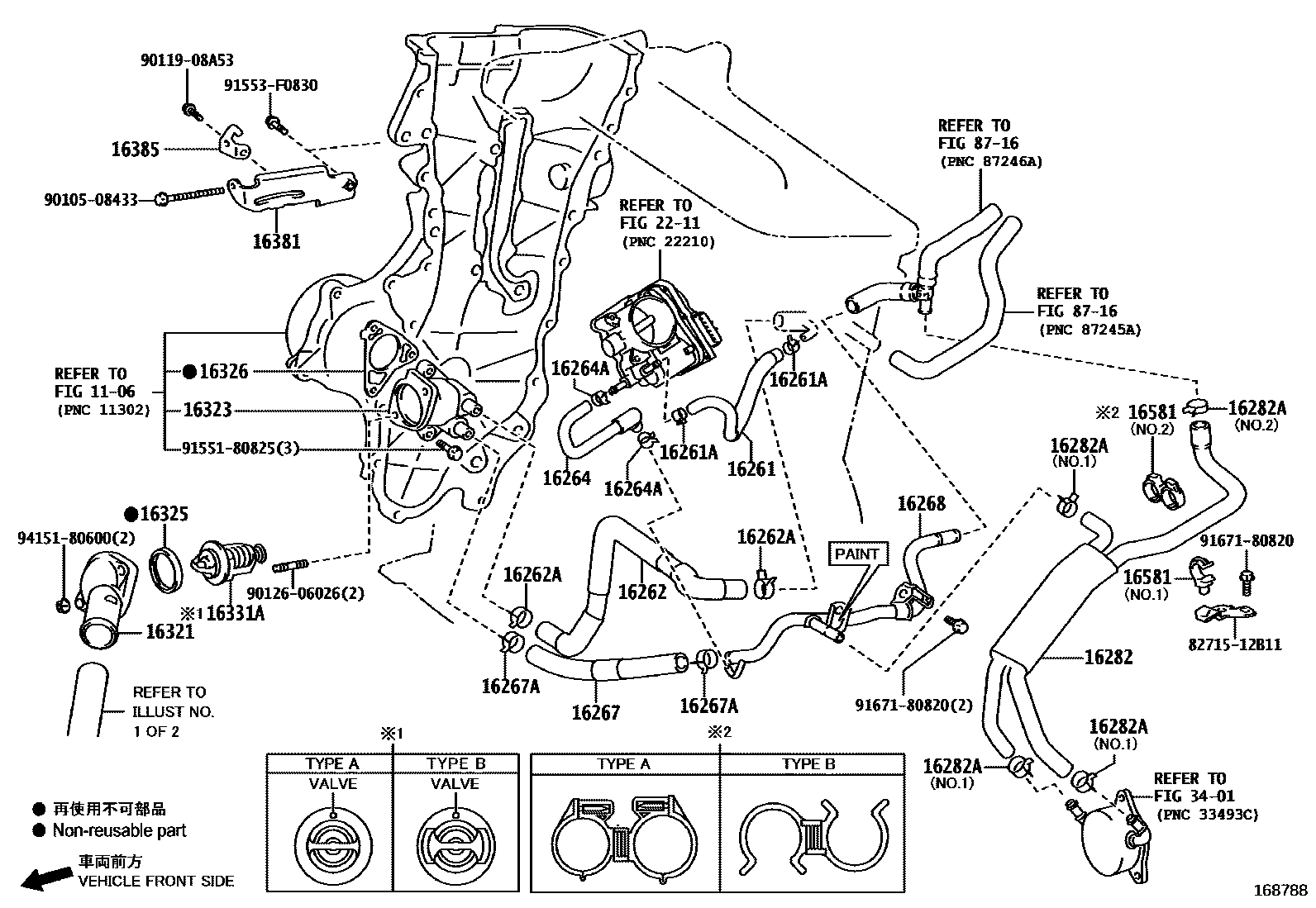

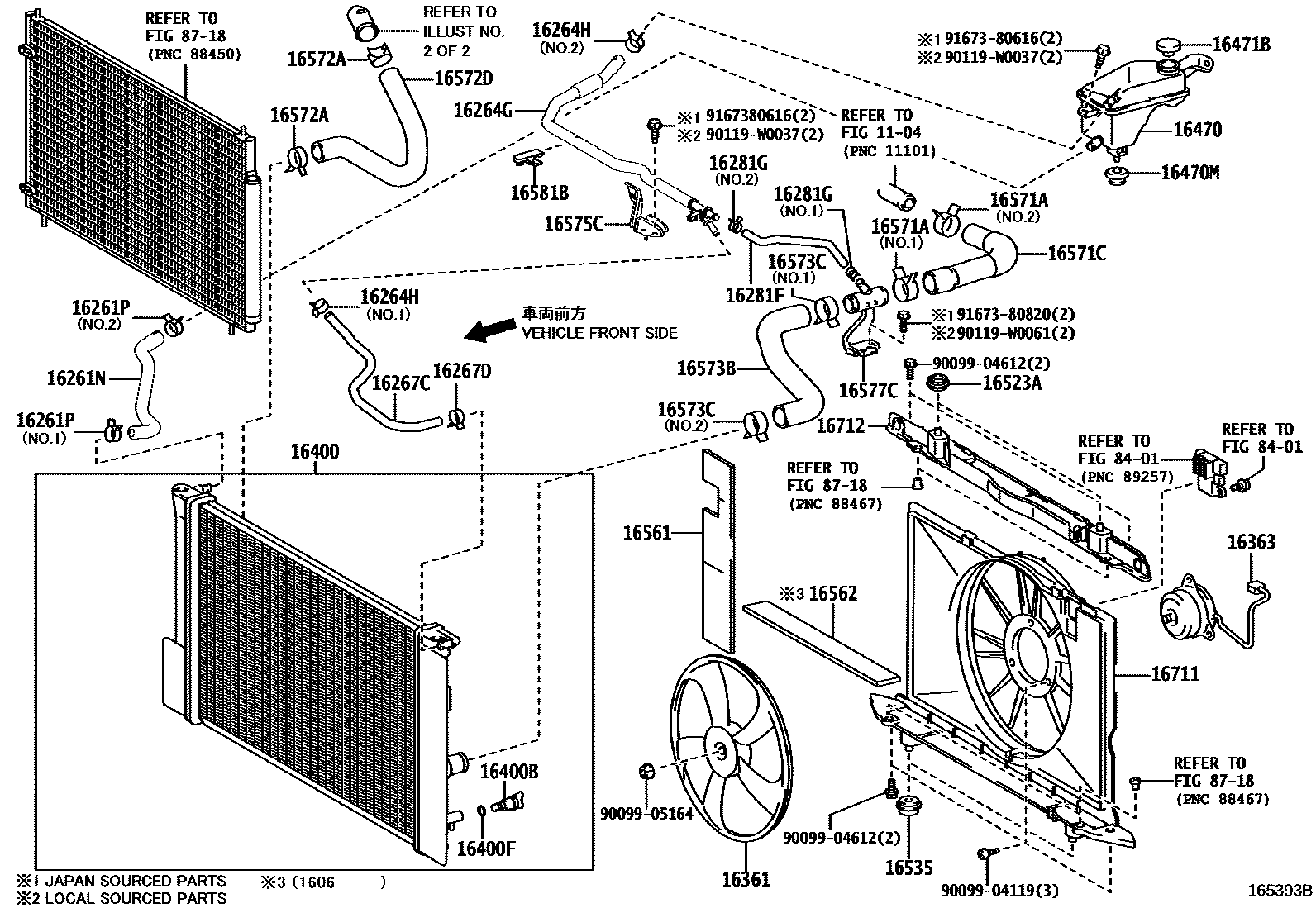

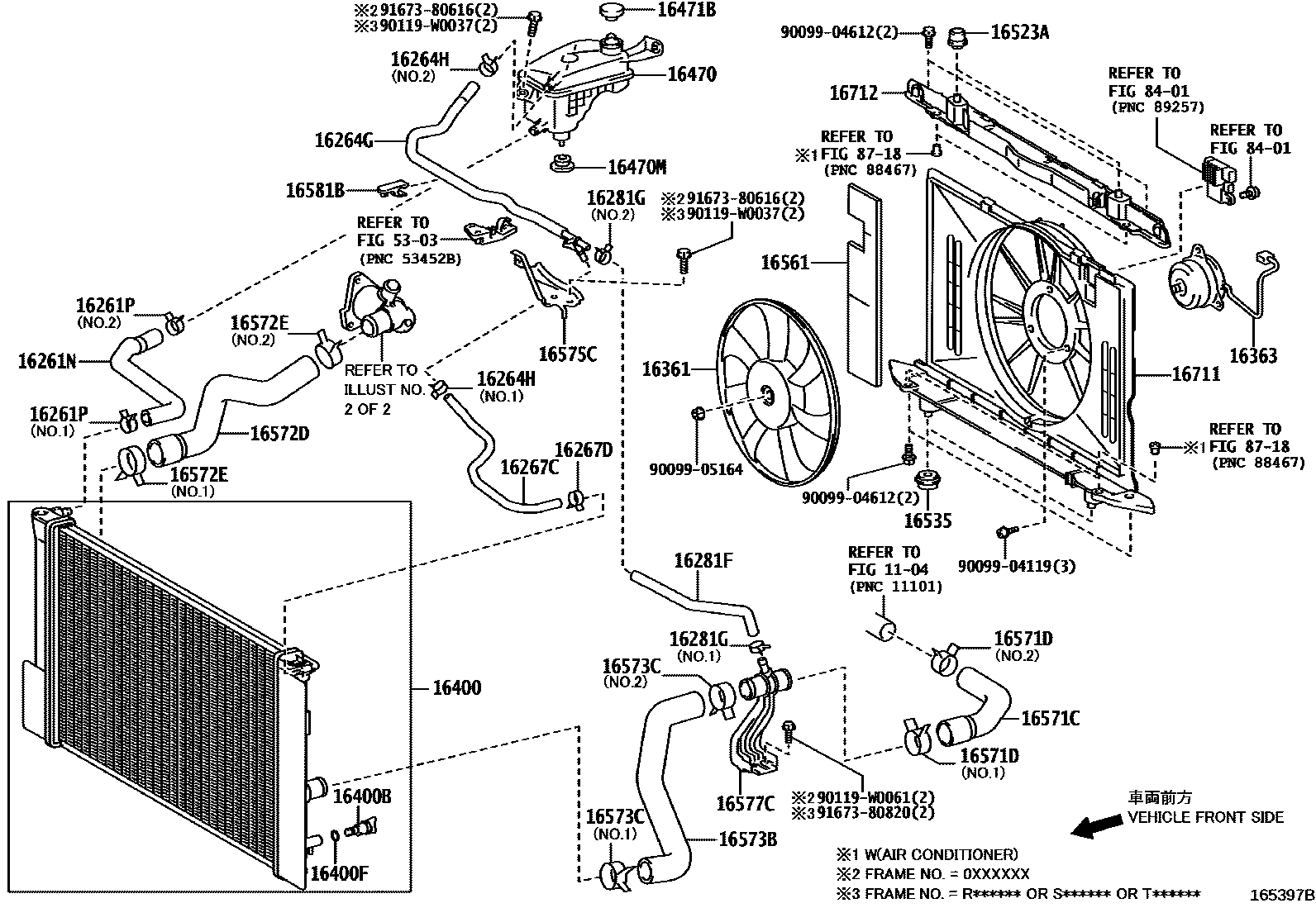

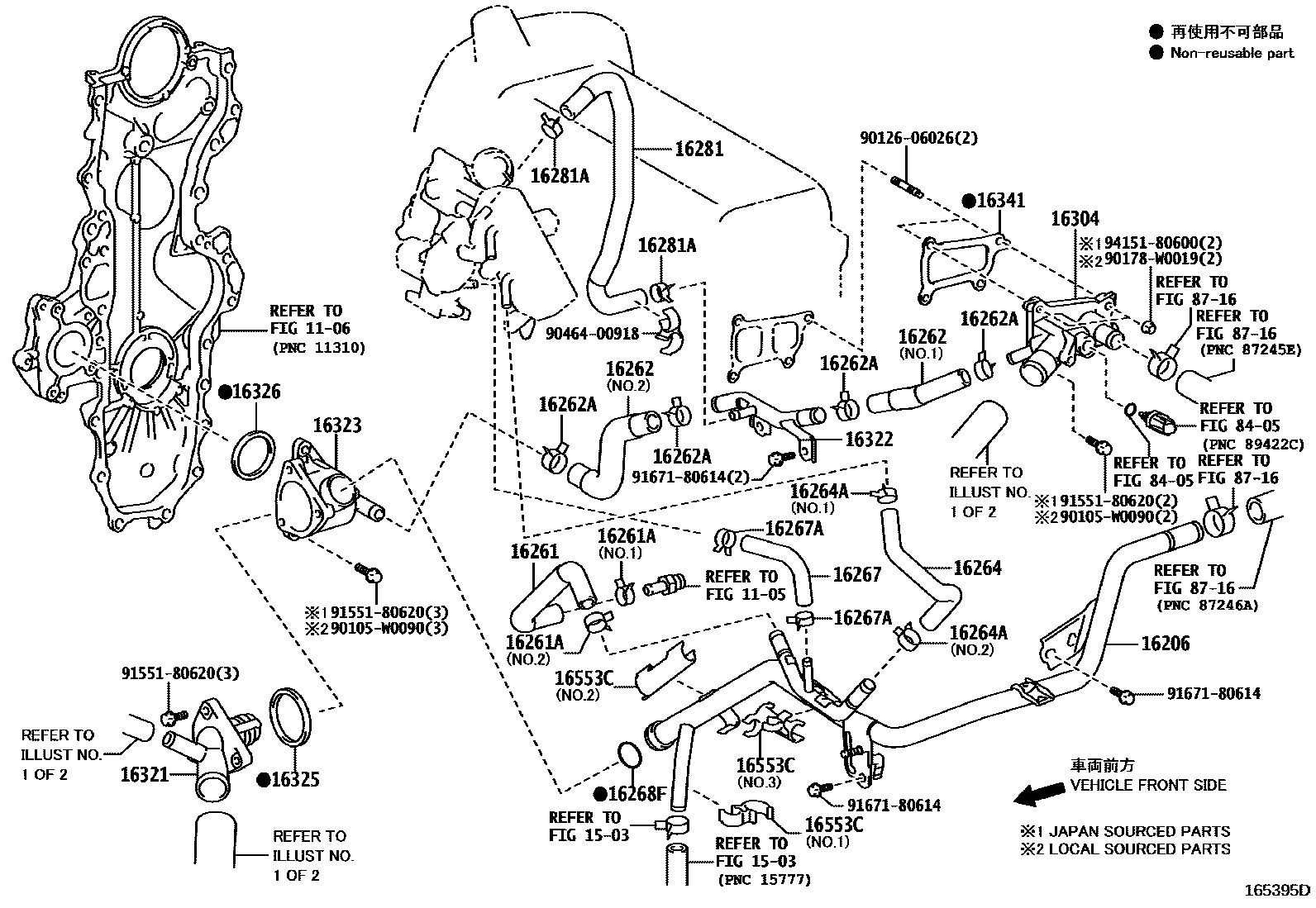

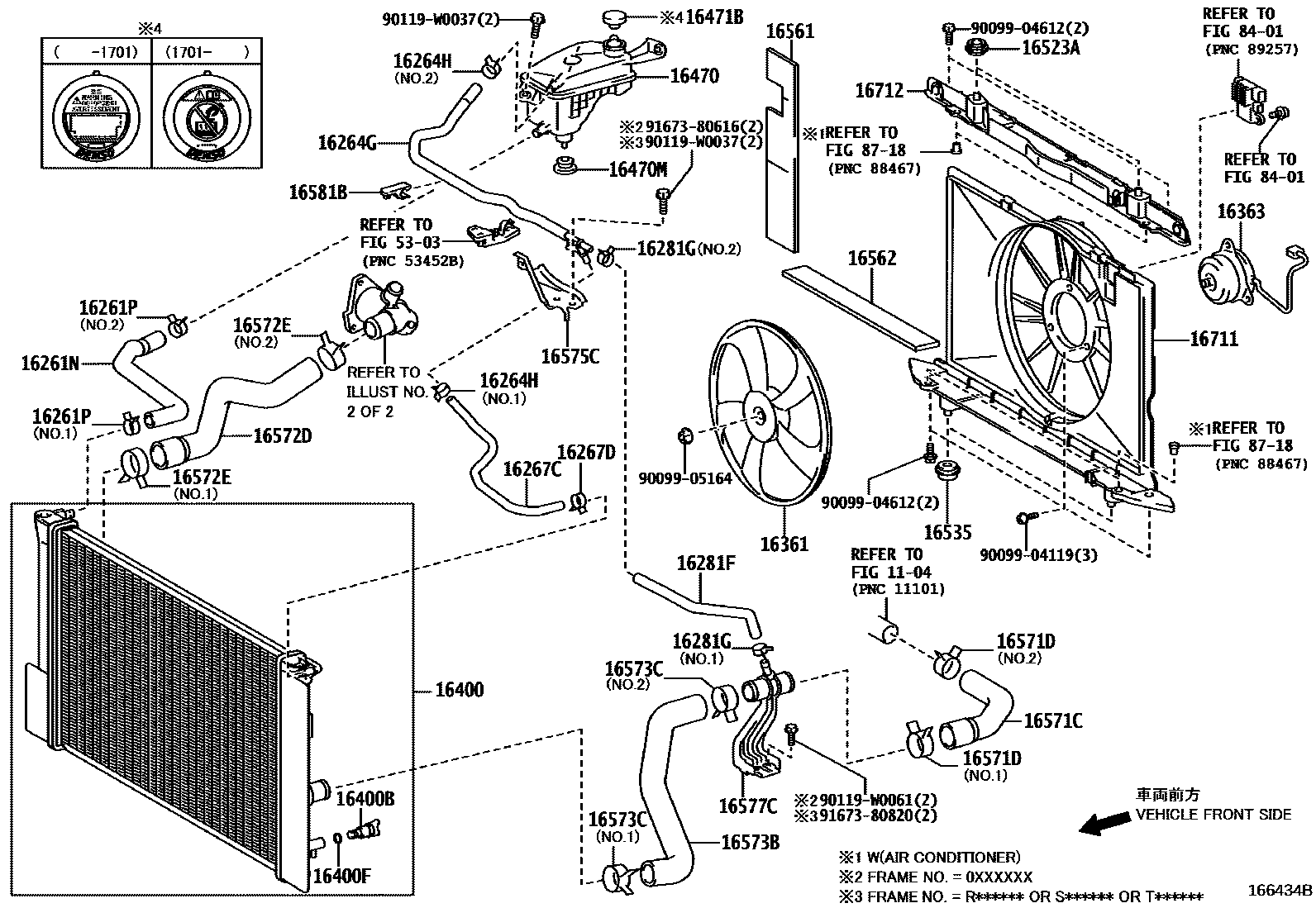

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 80 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-33010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-33070 · 16206-33080 · 16206-33081 |
| 16261 | HOSE, WATER BY-PASS | 16261-0N050 · 16261-0T240 · 16261-33050 · 16261-37022 · 16261-37052 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96136-41501 · 96137-41501 · 96137-41701 · 96137-41901 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0Y040 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-W0007 · 96136-42201 · 96136-42501 |
| 16262 | water inlet hose | 16262-0N011 · 16262-0T050 · 16262-33011 · 16262-37010 · 16263-0N010 · 16263-33030 |
| 16262A | Clamp (for water inlet hose) | 90466-W0007 · 96136-42501 · 96136-52201 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0N030 · 16264-33040 · 16264-37022 · 16264-37042 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 · 96137-41701 · 96137-41901 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0Y030 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96136-42101 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-0Y030 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90467-15022 · 96136-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0N050 · 16267-33030 · 16267-33040 · 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-W0007 · 96136-41501 · 96136-42501 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-0D020 · 16267-0N040 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90467-15022 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T020 · 16268-0T140 · 16268-37021 · 16268-37031 · 16268-37060 · 16268-37070 · 16268-47031 |
| 16268F | O-ring (for water bypass pipe) | 90301-20016 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0N070 · 16281-33030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96136-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-0N060 · 16281-0T050 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-17013 · 96136-41901 · 96136-42101 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-37010 · 16282-0N040 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-W0007 · 96136-42501 · 96136-52201 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0N010 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-W0007 · 96136-42501 |
| 16283B | HOSE, WATER BY-PASS | 16282-33090 · 16283-33070 |
| 16283C | Clip or clip (for water bypass hose) | 96136-41501 · 96136-52501 |
| 16284 | Turbine Water Hose No. 1 | 16284-33010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 96136-41501 |
| 16285 | Turbine Water Hose No. 2 | 16285-33010 |
| 16285A | Clamp (for No. 2 turbine water hose) | 96136-41501 |
| 16291 | water hose connector | 16291-33020 · 16291-47050 |
| 16304 | Water outlet sub-assembly | 16304-33011 · 16304-33030 |
| 16321 | water inlet | 16321-0T010 · 16321-33040 · 16321-37010 · 16321-47011 |
| 16322 | PIPE, WATER INLET | 16322-33010 |
| 16323 | HOUSING, WATER INLET | 16323-0T030 · 16323-33030 · 16323-37021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-33010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-33030 · 16326-37010 · 16326-47010 · 16326-47020 |
| 16331A | thermostat | 90916-03144 · 90916-03145 · 90916-03147 · 90916-A3003 |
| 16341 | GASKET, WATER OUTLET | 16341-33010 · 16341-33020 |
| 16347D | water bypass liner | 16347-33010 |
| 16361 | Fan | 16361-0D150 · 16361-0D170 · 16361-0N050 · 16361-0N070 |
| 16363 | cooling fan motor | 16363-0D120 · 16363-0D130 · 16363-0N020 · 16363-22120 |
| 16381 | Fan belt adjustment lever | 16381-37030 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-0D400 · 16400-0D430 · 16400-0N060 · 16400-0N070 · 16400-0T150 · 16400-0T160 |
| 16400B | Radiator drain switch screw plug | 16417-0D430 · 16417-0Q040 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-0D430 · 16492-21050 |
| 16470 | Radiator reservoir assembly | 16480-0D030 |
| 16470M | gasket | 90480-18010 |
| 16471B | Reservoir tank cover | 16475-28140 · 16475-37010 · 16475-37011 |
| 16523A | Radiator bracket cushion | 16523-0Y030 |
| 16533B | Radiator bracket No. 1 | 16505-0N010 · 16505-0N020 |
| 16534 | Radiator bracket No. 2 | 16506-0N010 · 16506-0N020 · 16506-0N040 |
| 16535 | Radiator lower support | 16535-0Y010 |
| 16553C | hose clamp | 16581-33040 · 16581-33050 · 16581-33120 · 16581-33140 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0N010 · 16561-22030 |
| 16562 | Seal No. 2 (radiator to bracket) | 16561-0N020 · 16561-0T240 |
| 16562B | JOINT, RADIATEUR AU SUPPORT, NO.4 | 16561-0N040 |
| 16563 | Seal No. 3 (radiator to bracket) | 16561-0N030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-W0016 · 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-0N080 · 16571-0T140 · 16571-0T150 · 16571-0Y070 |
| 16571D | No. 1 radiator hose clip | 90466-W0016 · 90467-33006 · 96136-43901 · 96136-44301 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-W0016 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-0D170 · 16572-0N080 · 16572-0Y050 |
| 16572E | No. 2 radiator hose clip | 90466-W0016 · 96136-43901 · 96136-44301 |
| 16573B | Radiator hose No. 3 | 16573-0N030 · 16573-0T070 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 90466-W0016 · 90467-33006 · 96136-44301 |
| 16575C | No. 1 water hose clamp bracket | 16575-0Y010 |
| 16577C | radiator pipe | 16577-0N010 · 16577-0T020 |
| 16581 | Hose clamp (for water hose) | 16581-0Y010 · 16581-21030 · 16581-21060 · 16581-36020 · 90464-00763 |
| 16581B | Hose clamp (for radiator hose) | 16581-33020 · 16581-33150 · 16581-36020 |
| 16711 | fan cover | 16711-0D190 · 16711-0D201 · 16711-0D210 · 16711-0N041 |
| 16712 | No. 2 fan cover | 16712-0D010 · 16712-0D020 · 16712-0D030 · 16712-0N010 · 16712-0N020 |
