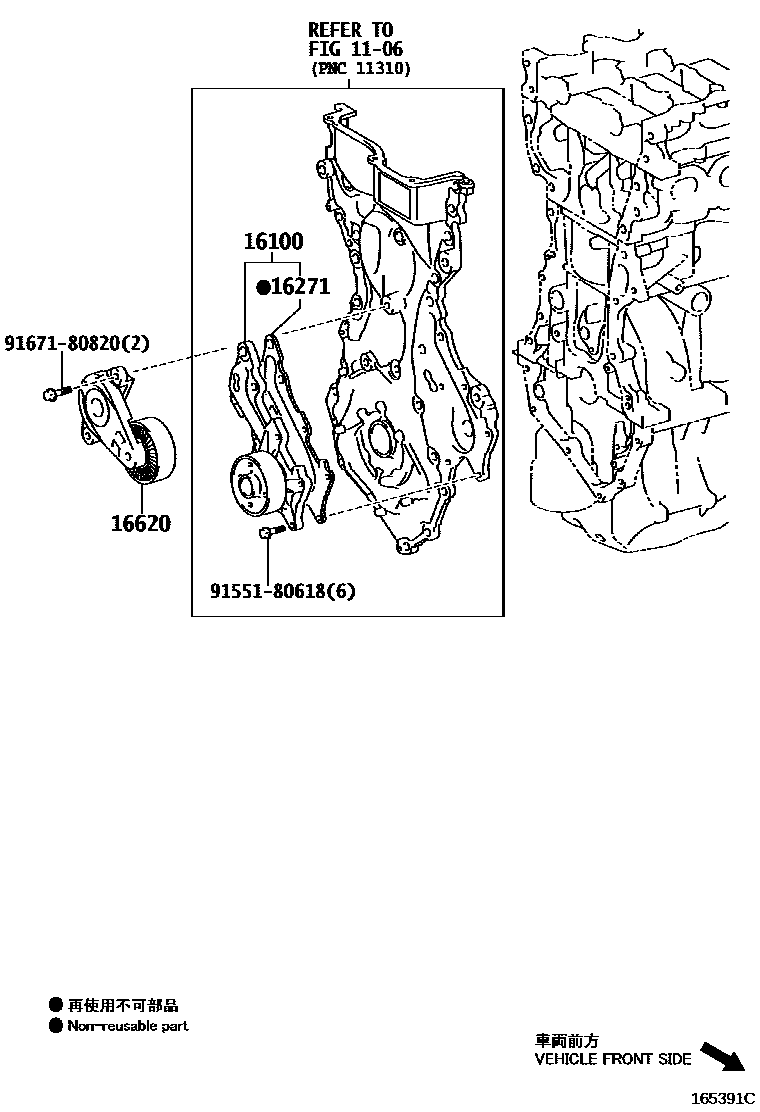

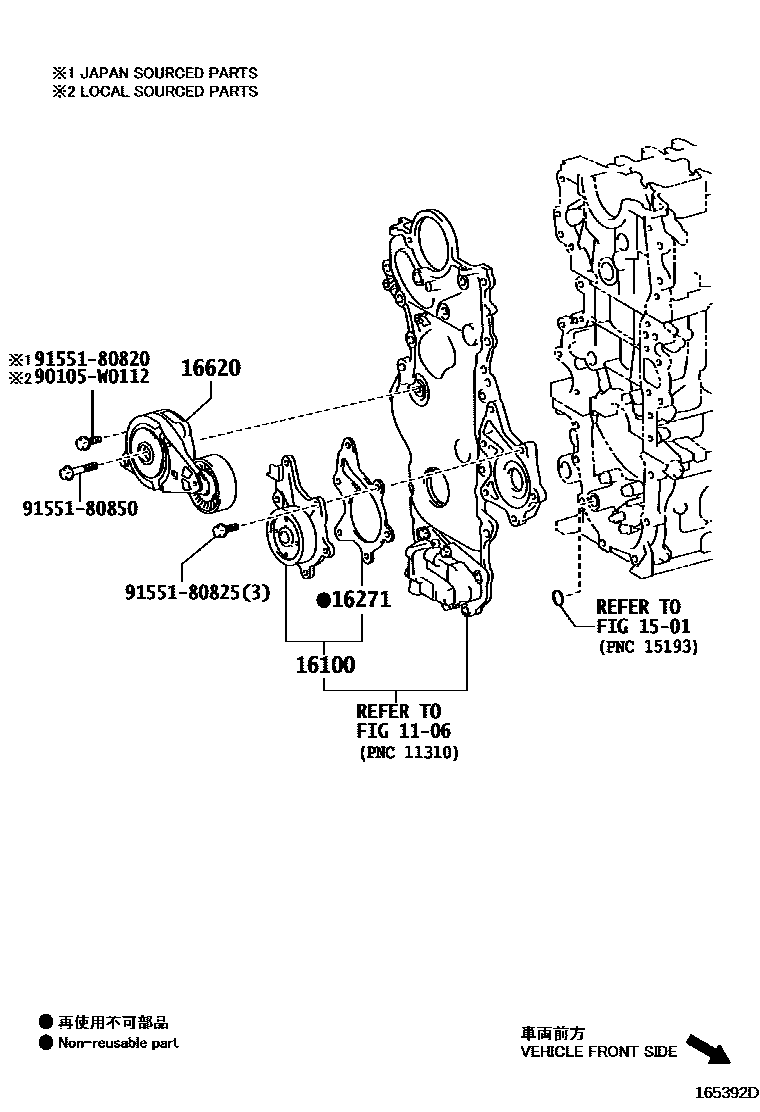

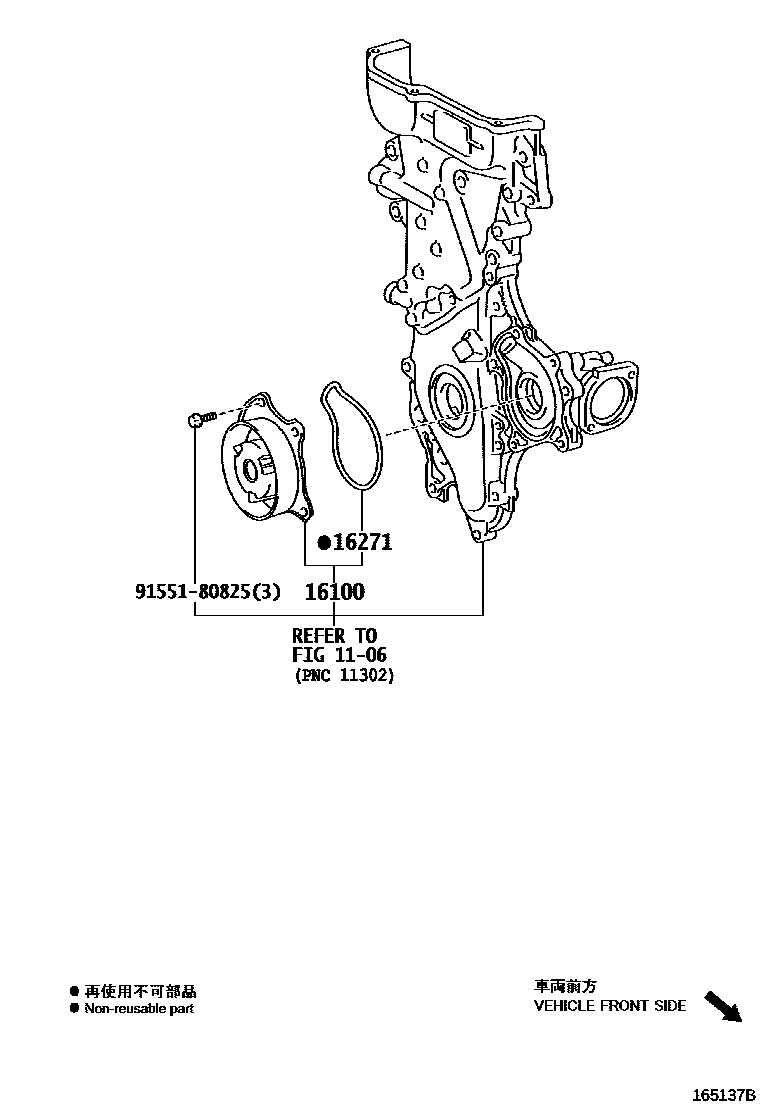

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09501 · 16100-09610 · 16100-09680 · 16100-39466 · 16100-80004 · 16100-80010 |
| 16271 | water pump gasket | 16271-33030 · 16271-37010 · 16271-47031 |
| 16620 | Poly V-belt tensioner assembly | 16620-0N010 · 16620-33040 · 16620-33041 · 16620-47030 |
