Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 14 PNC and OE references.

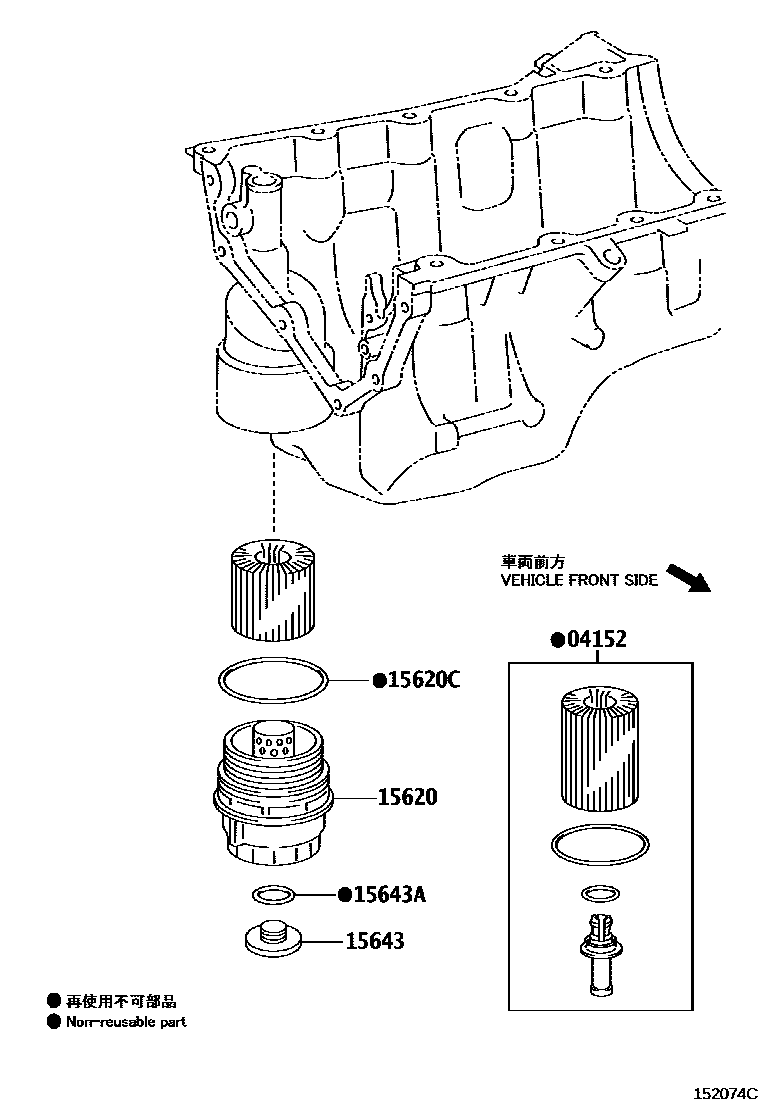

Toyota COROLLA Oil Filter EPC diagram — 152074C
Oil Filter — 152074C (201306 – 999999)

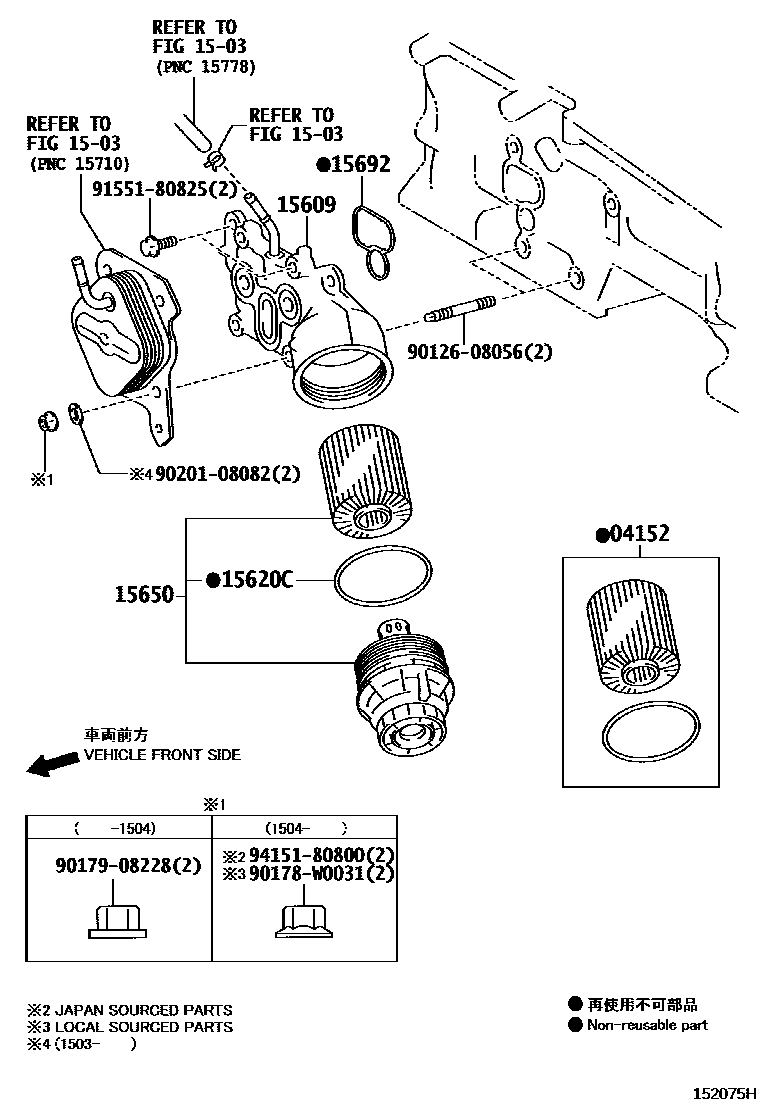

Toyota COROLLA Oil Filter EPC diagram — 152075H
Oil Filter — 152075H (201306 – 999999)

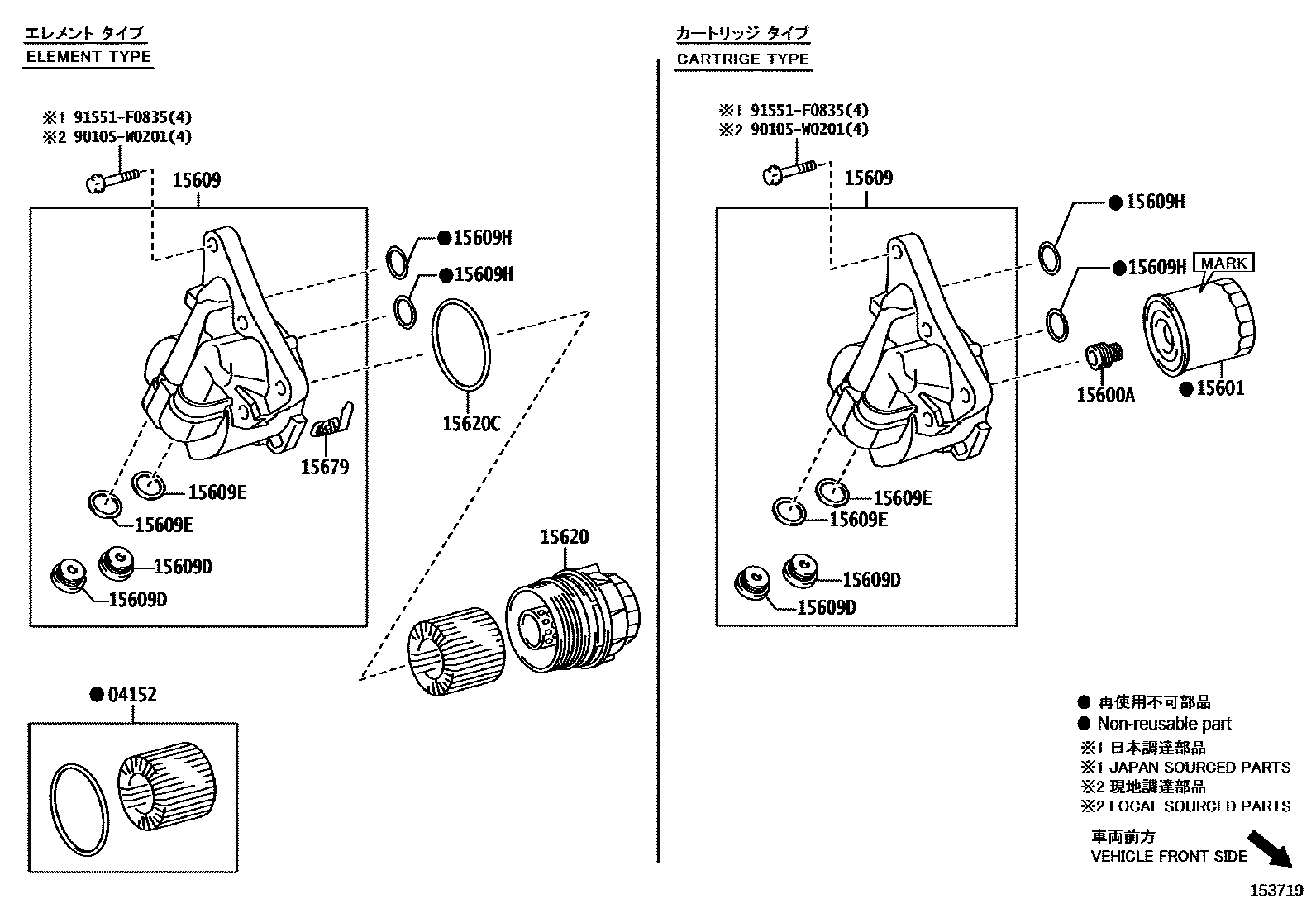

Toyota COROLLA Oil Filter EPC diagram — 153719
Oil Filter — 153719 (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-31110 · 04152-37010 · 04152-40060
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-CA003 · 90915-TA001
15609Oil filter bracket sub-assembly15609-0N010 · 15609-0T030 · 15609-0T080 · 15609-33030 · 15609-37040 · 15609-37041 · 15609-37060
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)96723-24020
15620Oil filter cover assembly15620-37010 · 15620-40030
15620CGasket (for oil filter cover)90301-69011 · 90301-79006
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15650Oil filter cover assembly with filter element15650-33010
15679Oil filter bracket clip15679-37010 · 15679-37011
15692Oil filter holder gasket15692-33010
