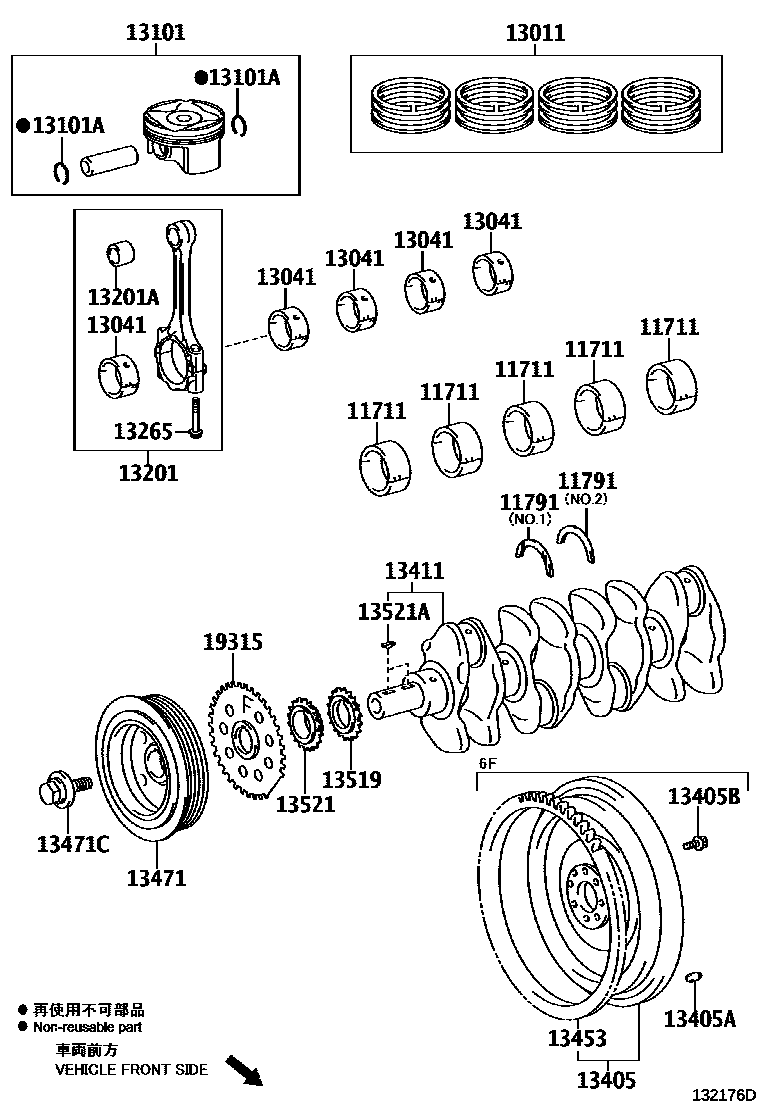

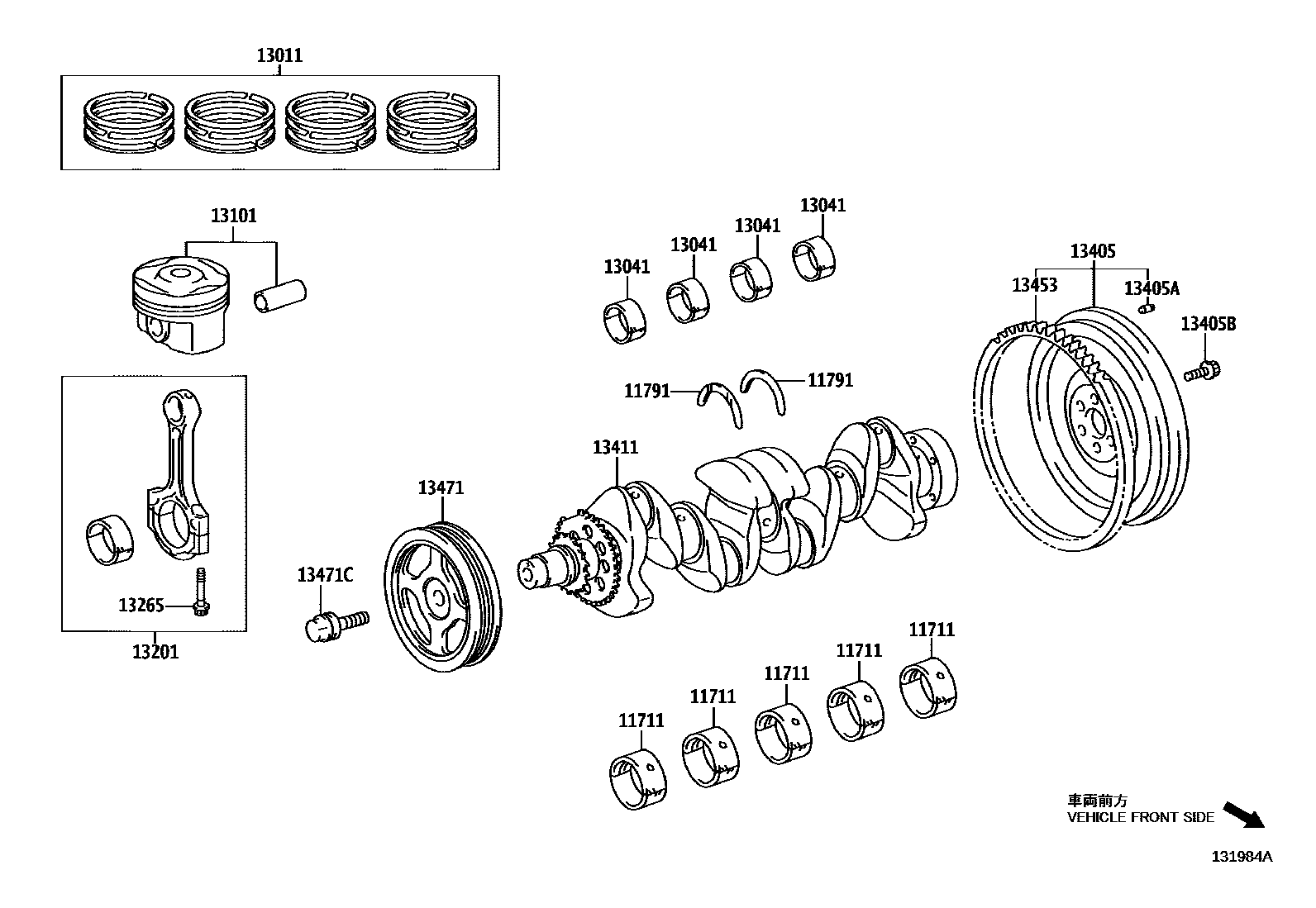

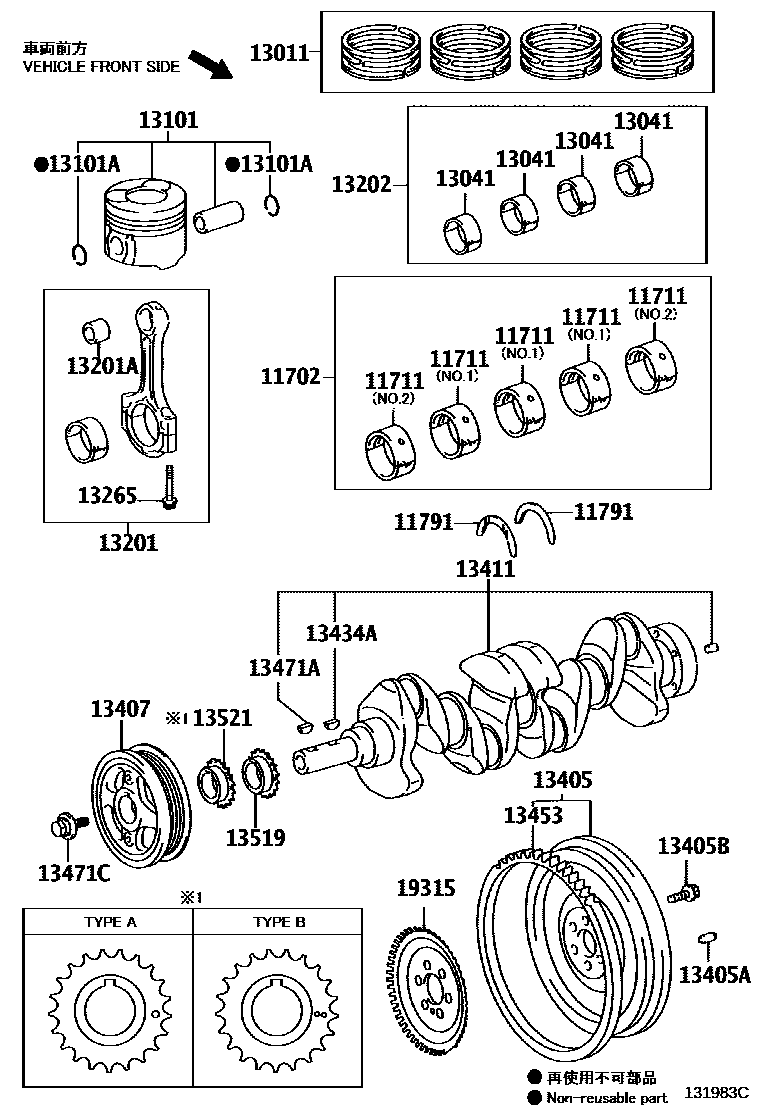

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21031 · 11704-33050 · 11704-33051 · 11704-33060 |
| 11791 | Thrust washer on crankshaft | 11791-22020 · 11791-33030 · 11791-37010 · 11791-47010 · 11791-47011 · 11792-33030 · 11793-33030 |
| 13011 | Piston ring assembly | 13011-0N010 · 13011-0T031 · 13011-0T090 · 13011-0T110 · 13011-33053 · 13011-33054 · 13011-37090 · 13011-37290 · 13011-37300 · 13011-47032 · 13011-47033 |
| 13101 | Piston sub-assembly with pin | 13101-0T050 · 13101-0T060 · 13101-0T080 · 13101-0T340 · 13101-0T350 · 13101-0T360 · 13101-37380 · 13101-47022 · 13101-47110 |
| 13101A | Bore snap ring (for piston pin) | 90080-52139 · 90520-20064 · 90520-W0003 |
| 13201 | Connecting rod sub-assembly | 13201-09A30 · 13201-09B50 · 13201-39055 · 13201-39185 · 13201-49086 · 13201-49087 |
| 13201A | Bushing (for connecting rod small end) | 90999-73147 · 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-33041 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 |
| 13405 | Flywheel sub-assembly | 13405-0N020 · 13405-0T050 · 13405-33030 · 13405-37050 · 13405-37051 · 13405-47030 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90913-01024 · 90913-01027 · 90913-01029 |
| 13407 | Crankshaft damper sub-assembly | 13407-0N020 · 13407-33050 |
| 13411 | crankshaft | 13401-0T050 · 13401-0T051 · 13401-0T060 · 13401-0T061 · 13401-33020 · 13401-33021 · 13401-37010 · 13401-37011 · 13401-37020 · 13401-37021 · 13401-47011 |
| 13434A | Key (for oil pump active spline) | 95161-30416 |
| 13453 | flywheel ring gear | 13453-0N020 · 13453-0T010 · 13453-10010 · 13453-55010 |
| 13471 | crankshaft pulley | 13470-37020 · 13470-37041 · 13470-37042 · 13470-47070 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30416 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-14106 · 90119-14175 · 90119-16004 |
| 13519 | Oil pump driving gear | 13519-33010 · 13519-33020 · 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0T030 · 13521-0T070 · 13521-33030 · 13521-33040 · 13521-37010 · 13521-37011 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-33021 · 19315-37020 |
