Toyota COROLLA Engine Mounting — Figure 1107

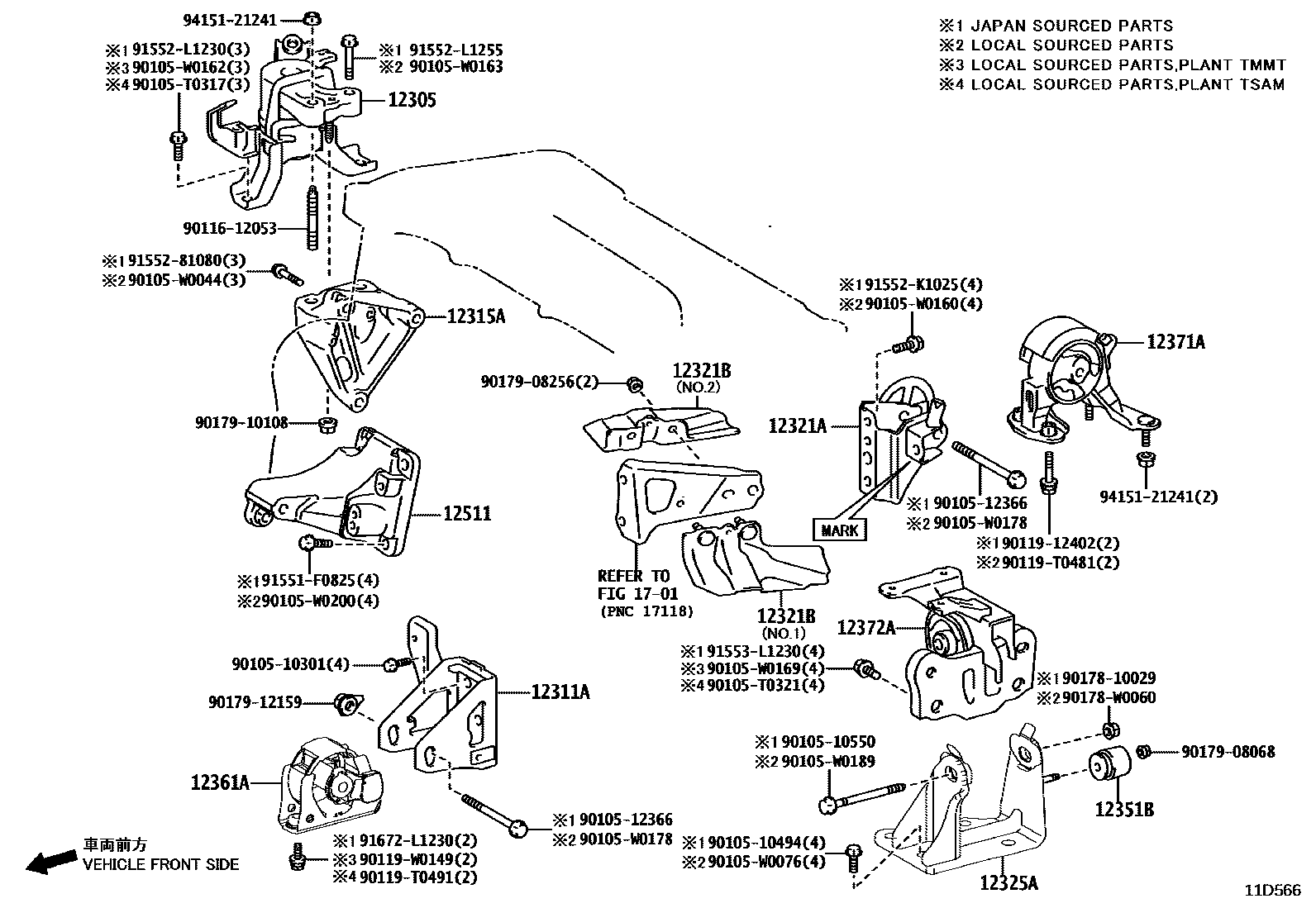

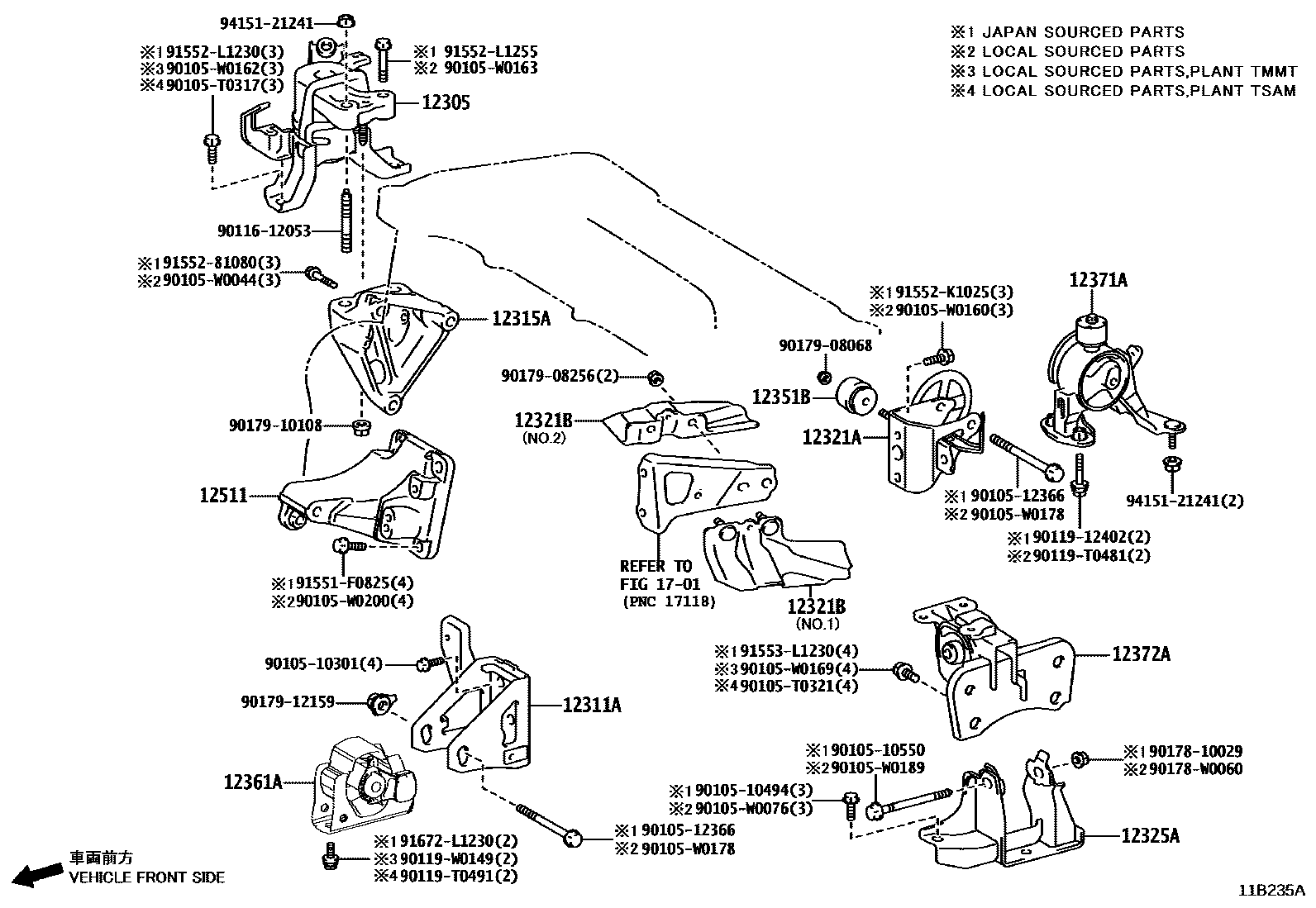

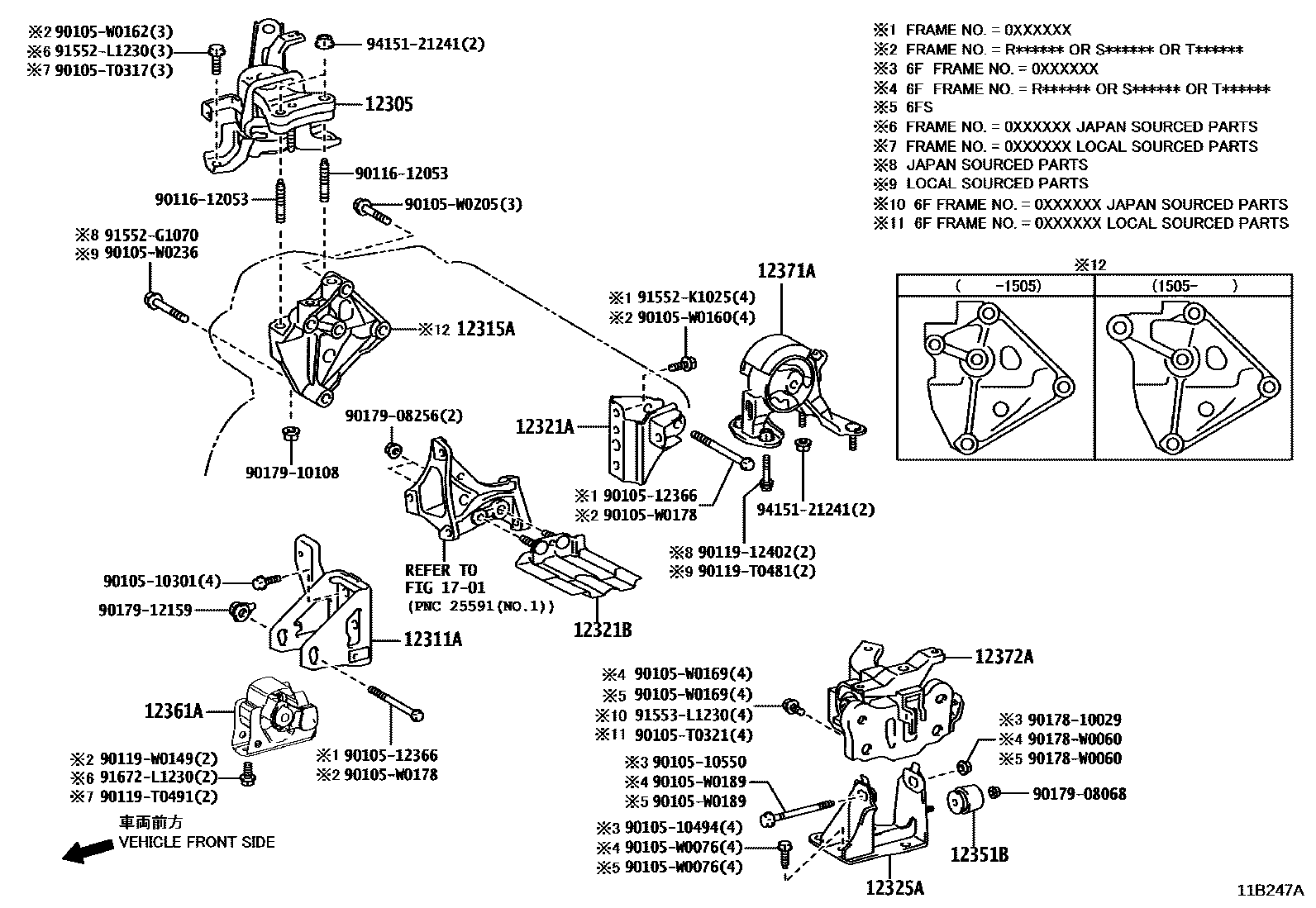

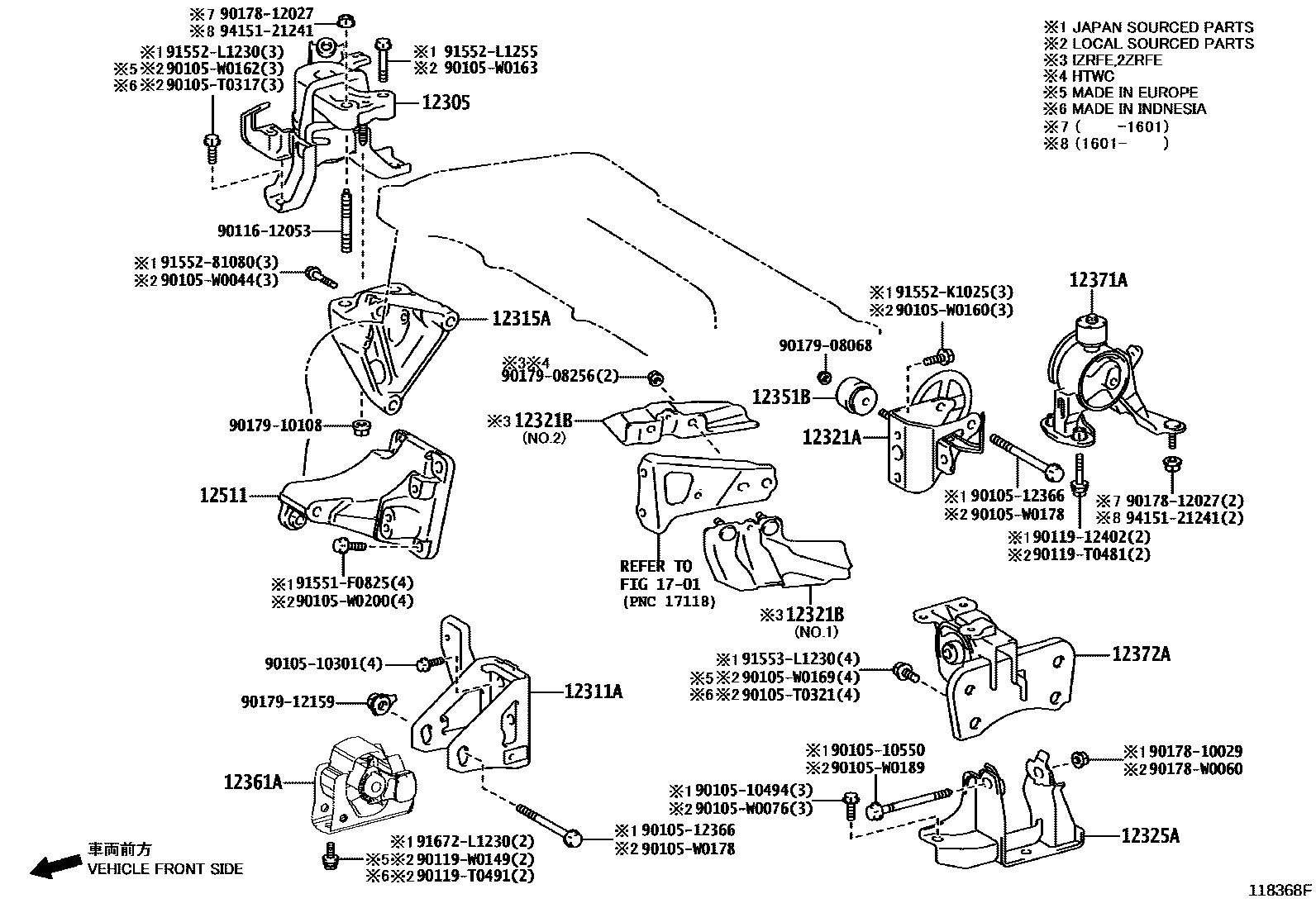

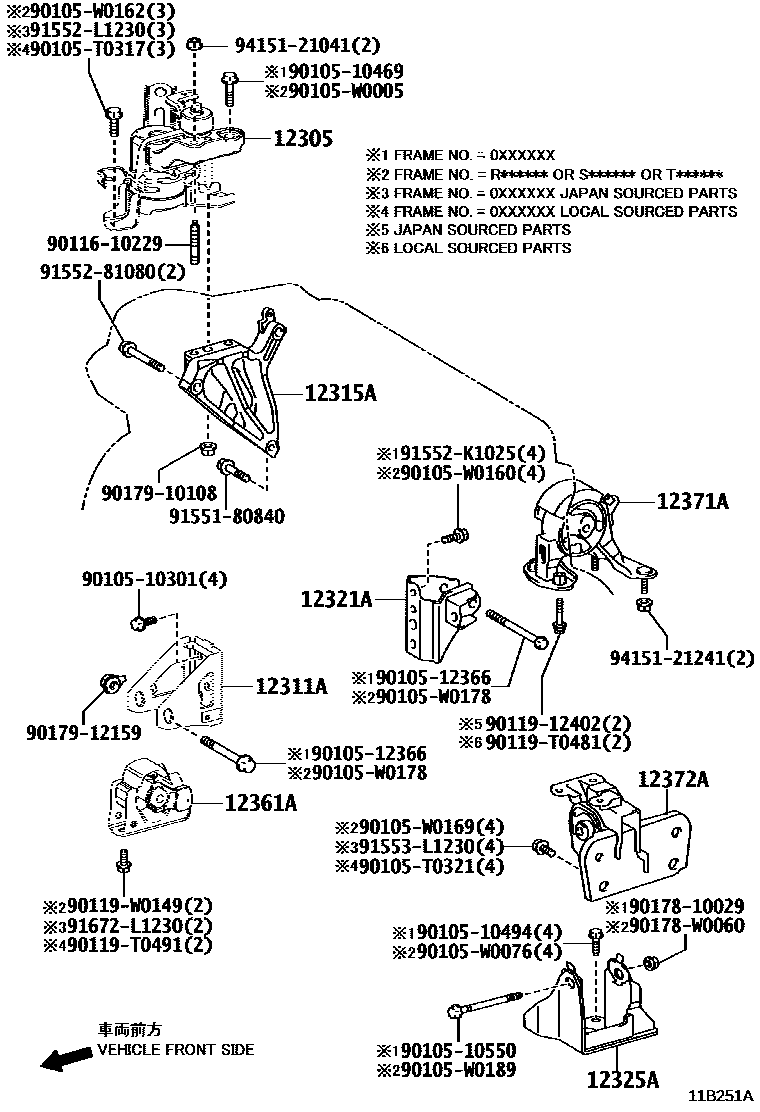

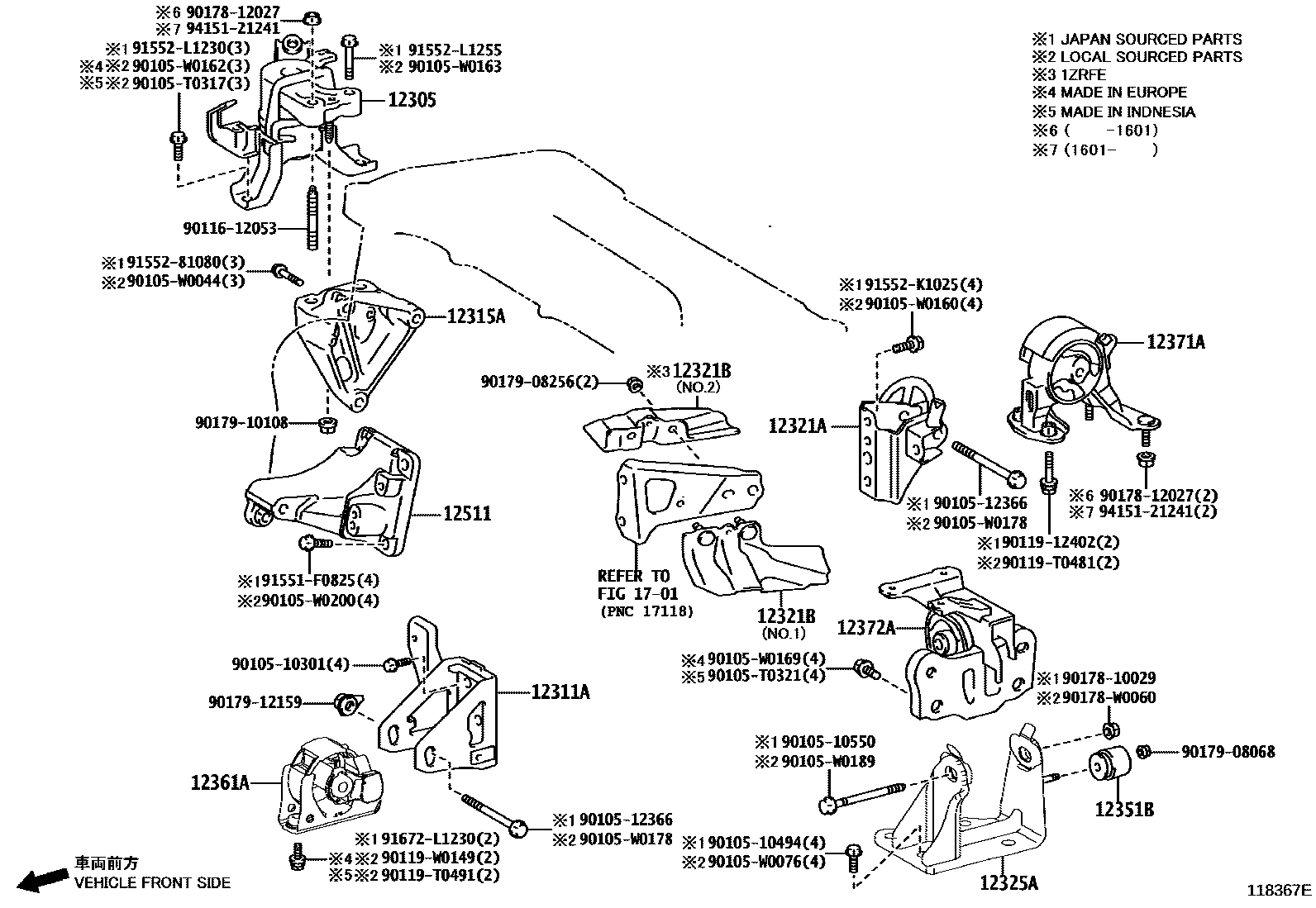

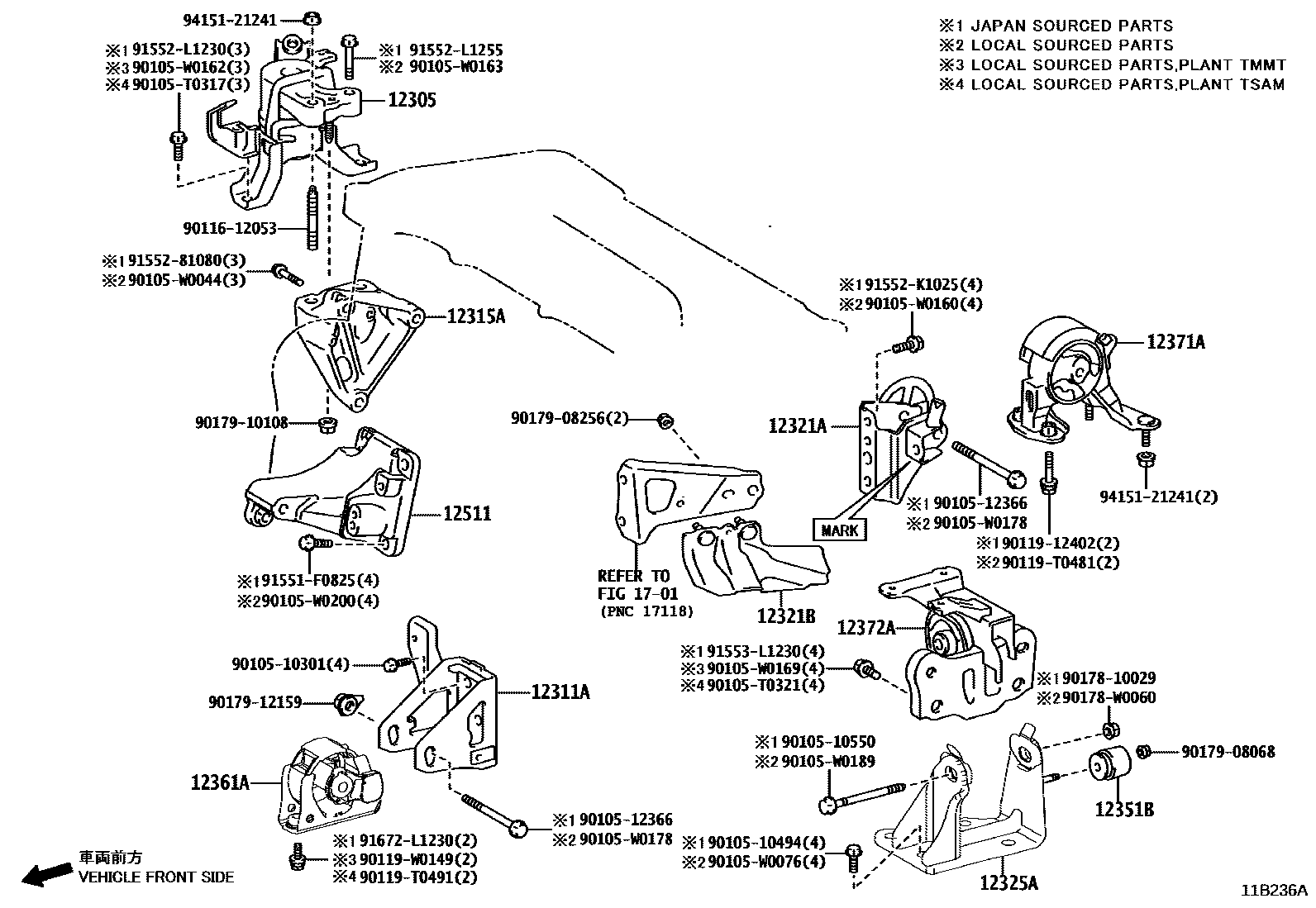

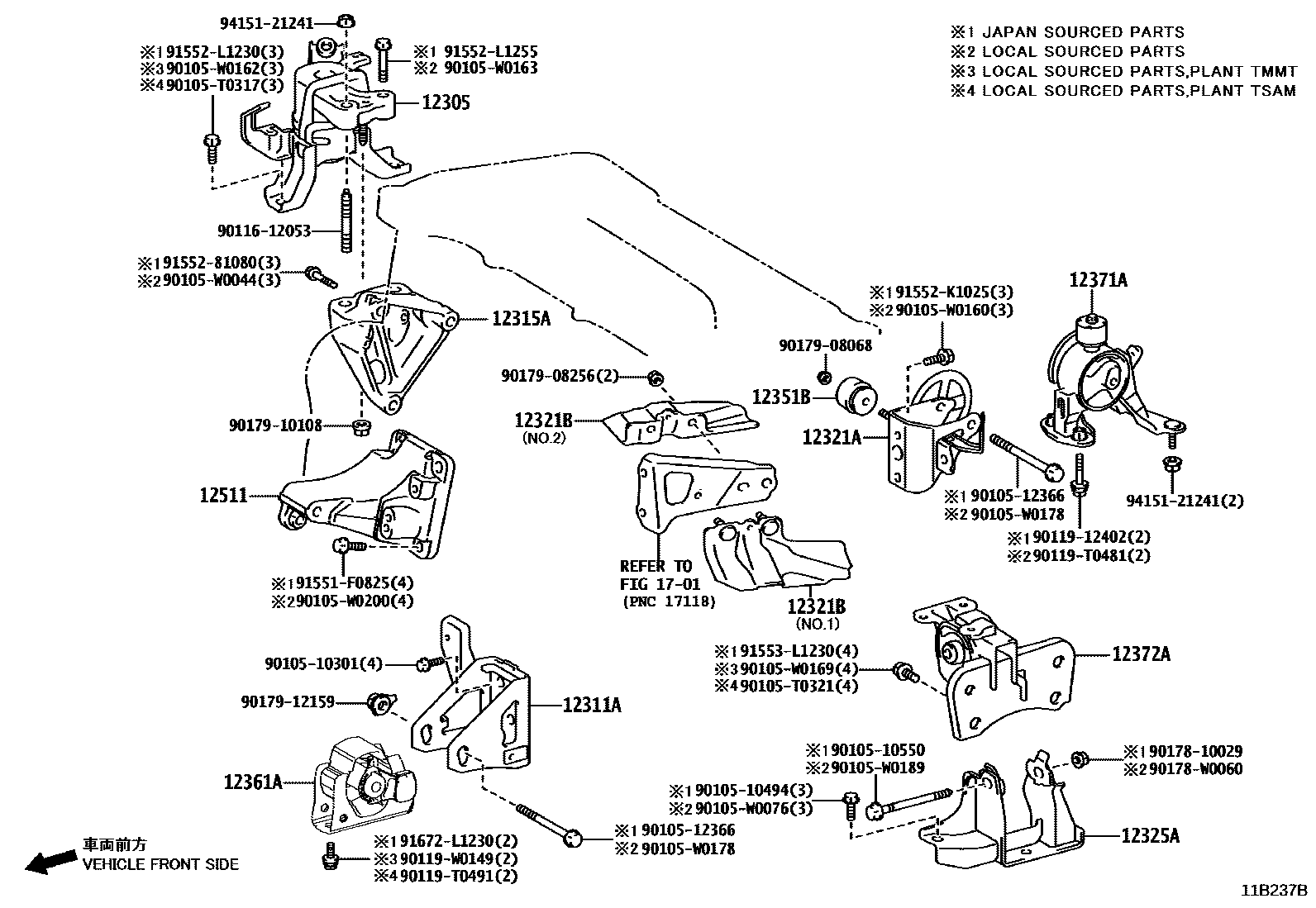

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 8 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0N090 · 12305-0T150 · 12305-0Y070 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0N070 · 12311-0N080 · 12311-0T340 · 12311-0T390 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0N010 · 12315-33050 · 12315-33080 · 12315-37030 · 12315-47040 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0T090 · 12321-0T130 · 12321-0T140 · 12321-0T150 · 12321-0Y010 · 12321-0Y020 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43409-52040 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T140 · 12325-0T150 · 12325-0T160 · 12325-0Y080 · 12325-0Y090 |
| 12351B | engine mount shock absorber | 12351-0D080 · 12351-0R010 · 12351-26010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0T170 · 12361-0T171 · 12361-0T180 · 12361-0T181 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0T200 · 12371-0T210 · 12371-0Y010 · 12371-37131 · 12371-37132 · 12371-37141 · 12371-37142 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0N100 · 12372-0N110 · 12372-0T270 · 12372-0T280 · 12372-0Y070 |
| 12511 | No. 1 generator bracket | 12511-0T020 · 12511-37010 |
