Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

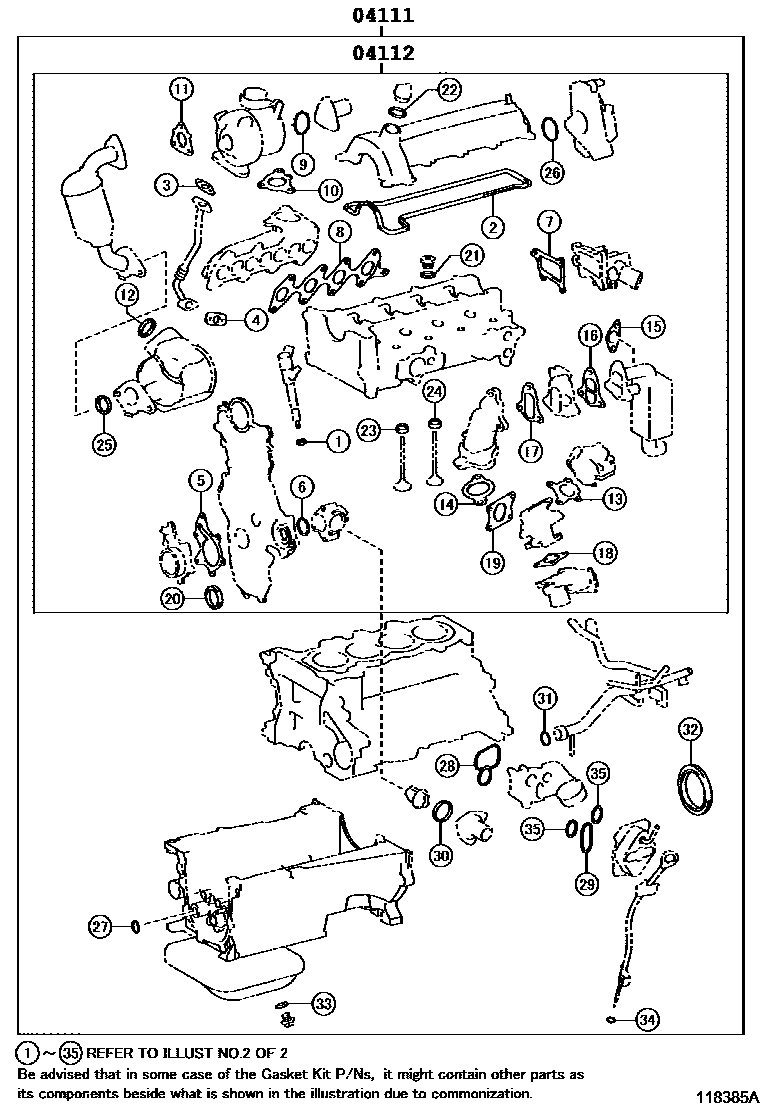

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118385A
Engine Overhaul Gasket Kit — 118385A (201306 – 999999)

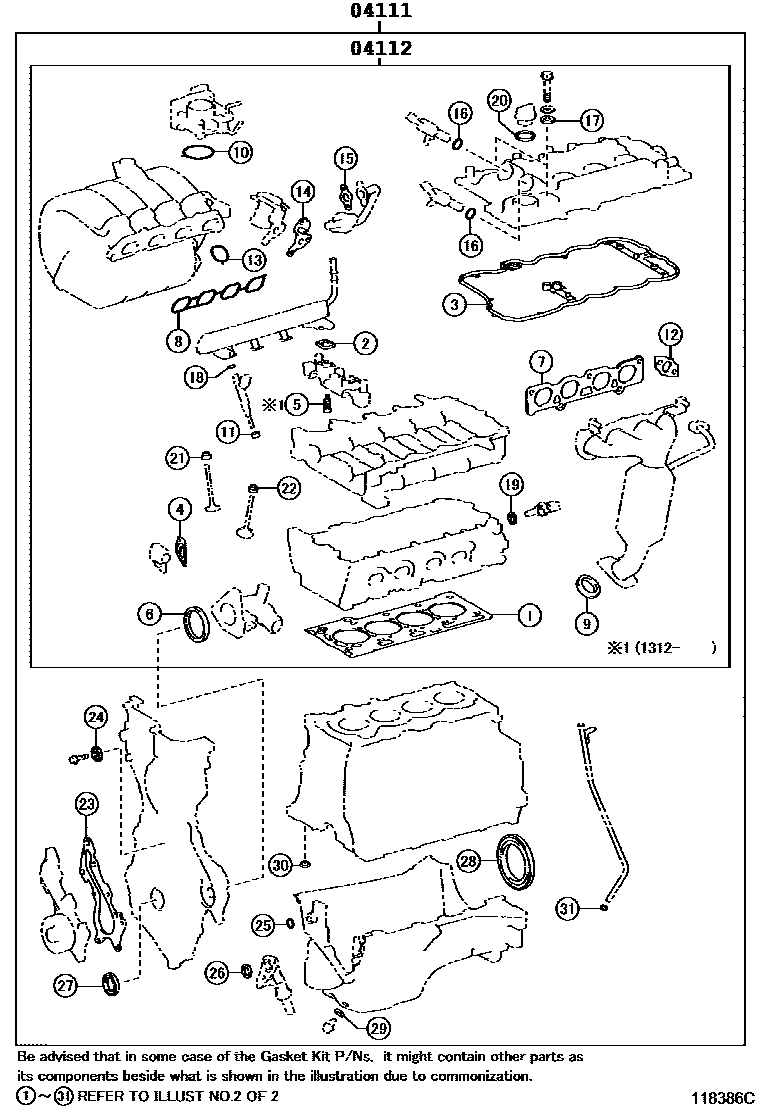

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118386C
Engine Overhaul Gasket Kit — 118386C (201306 – 999999)

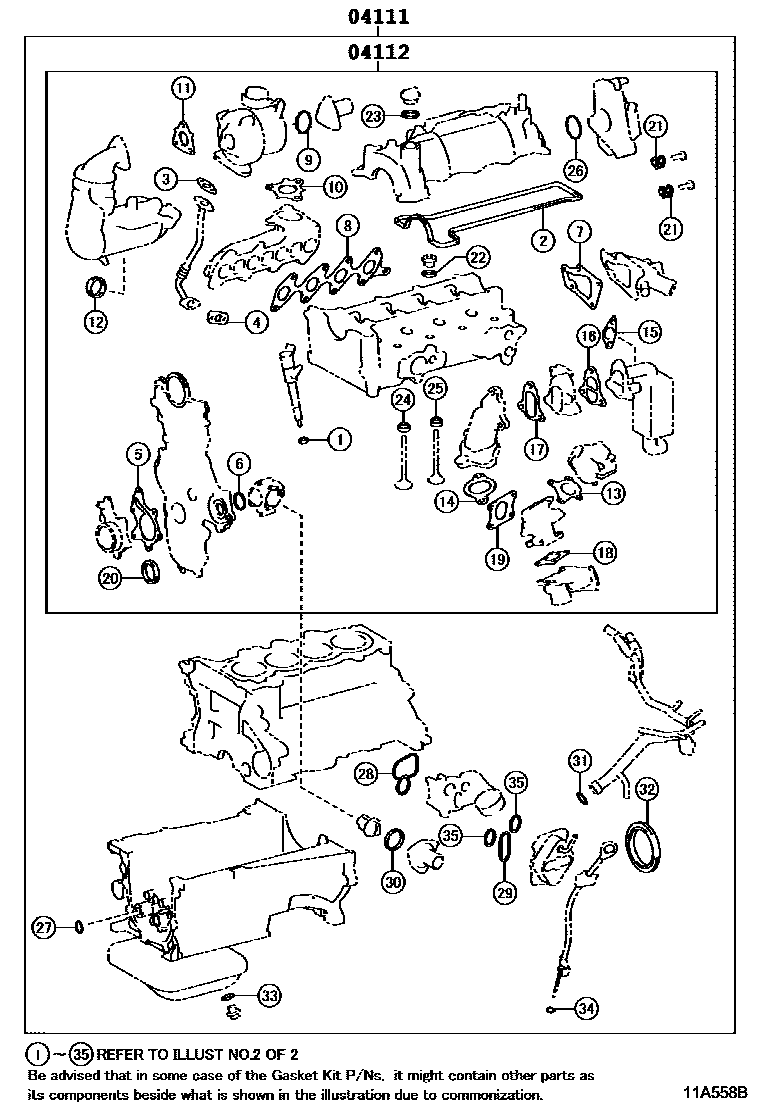

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A558B
Engine Overhaul Gasket Kit — 11A558B (201505 – 999999)

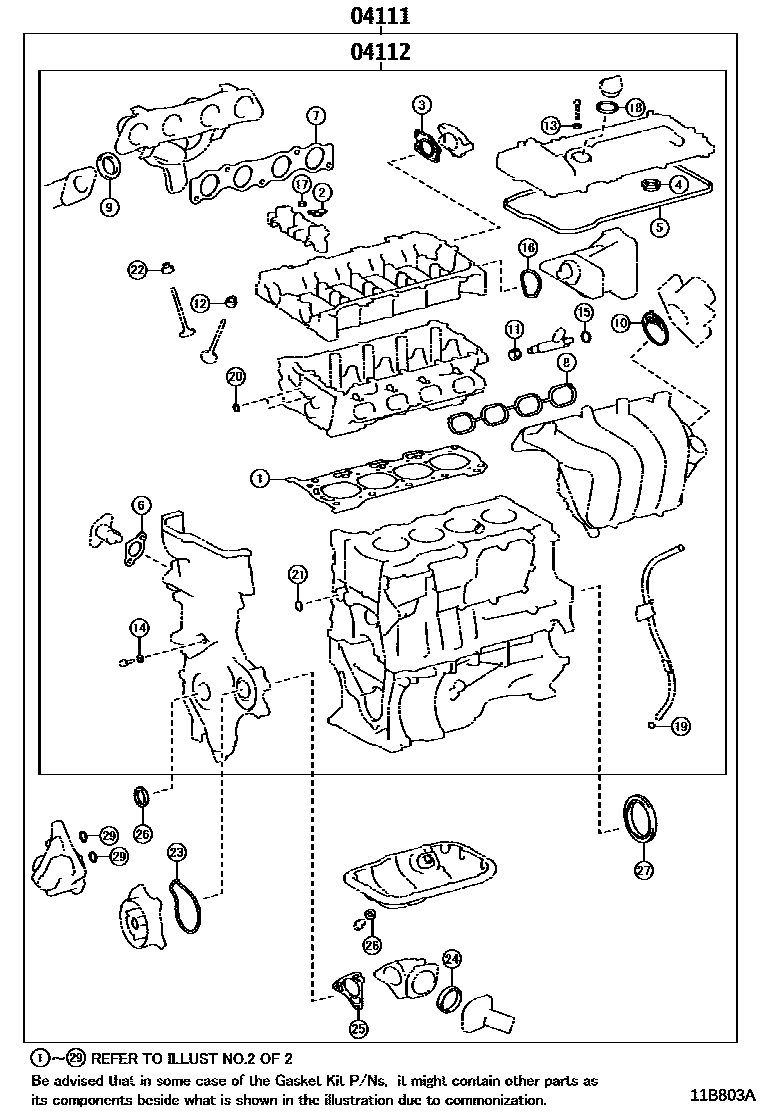

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B803A
Engine Overhaul Gasket Kit — 11B803A (201306 – 999999)

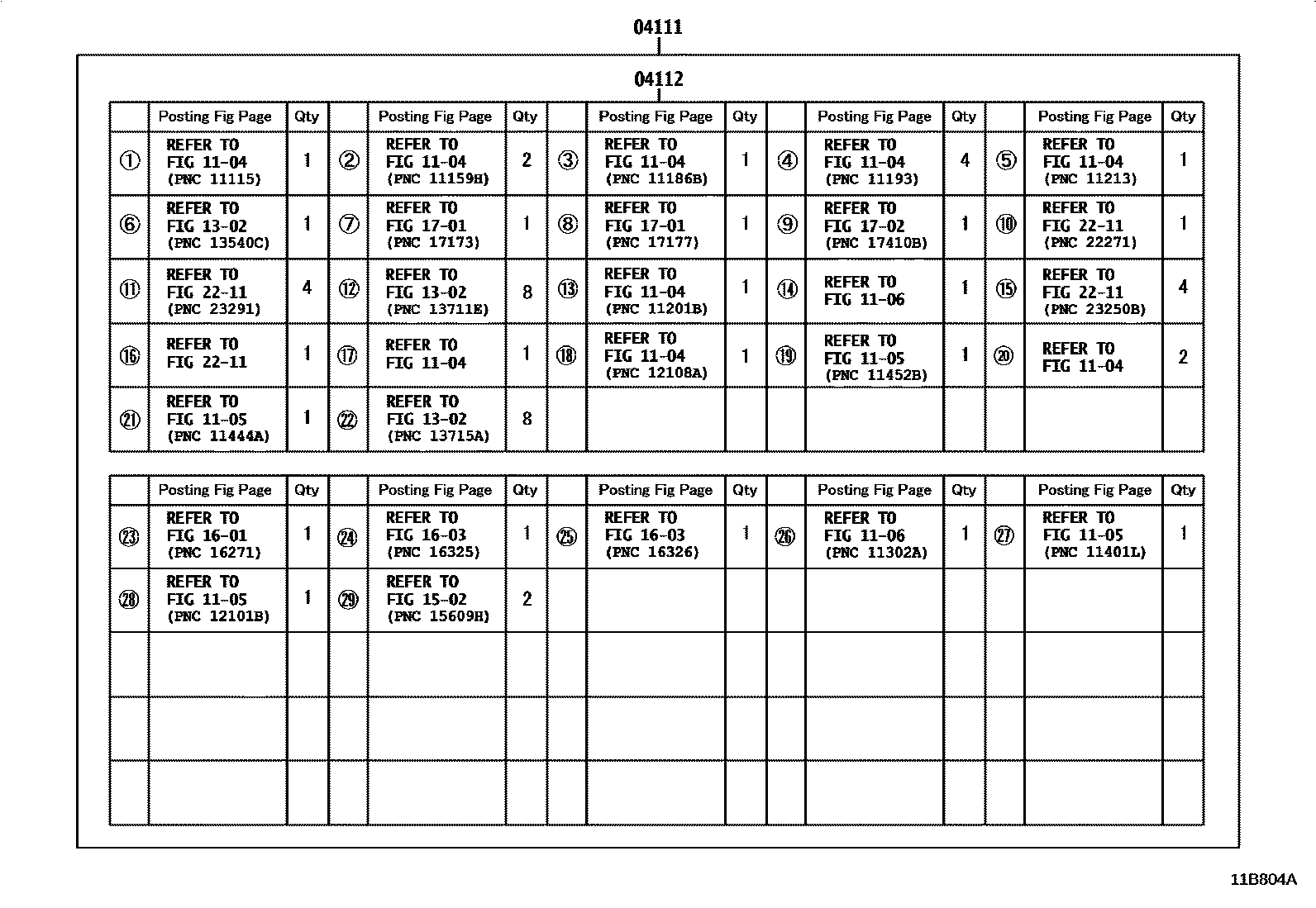

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B804A
Engine Overhaul Gasket Kit — 11B804A (201306 – 999999)

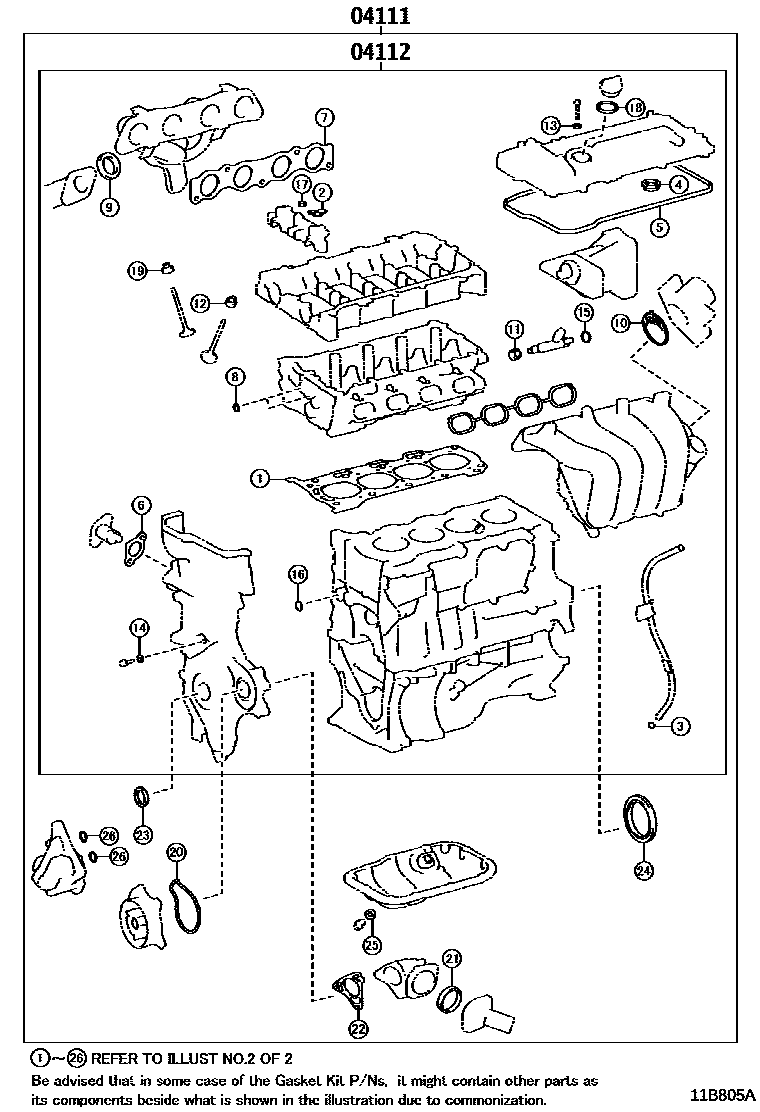

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B805A
Engine Overhaul Gasket Kit — 11B805A (201306 – 999999)

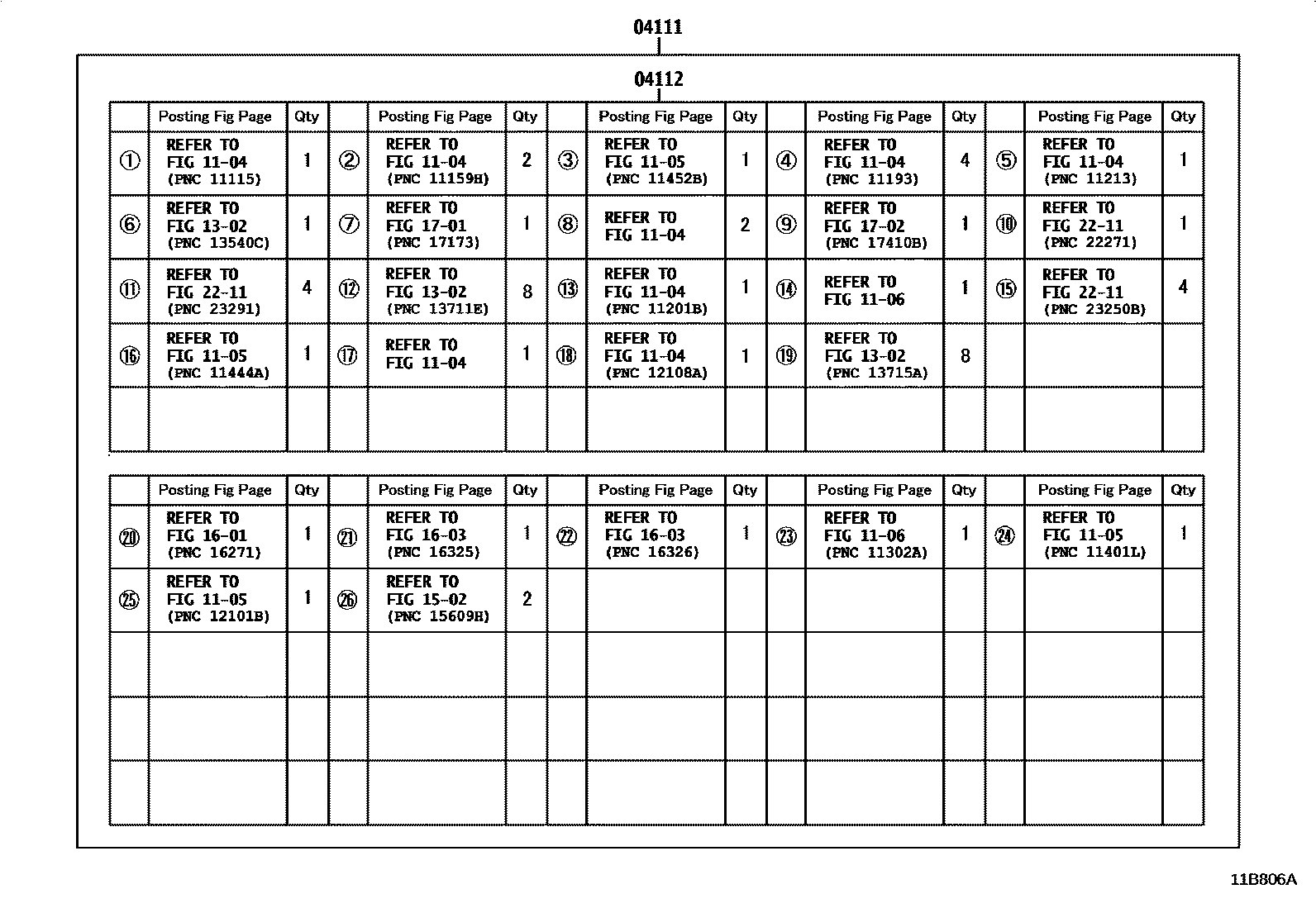

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B806A
Engine Overhaul Gasket Kit — 11B806A (201306 – 999999)

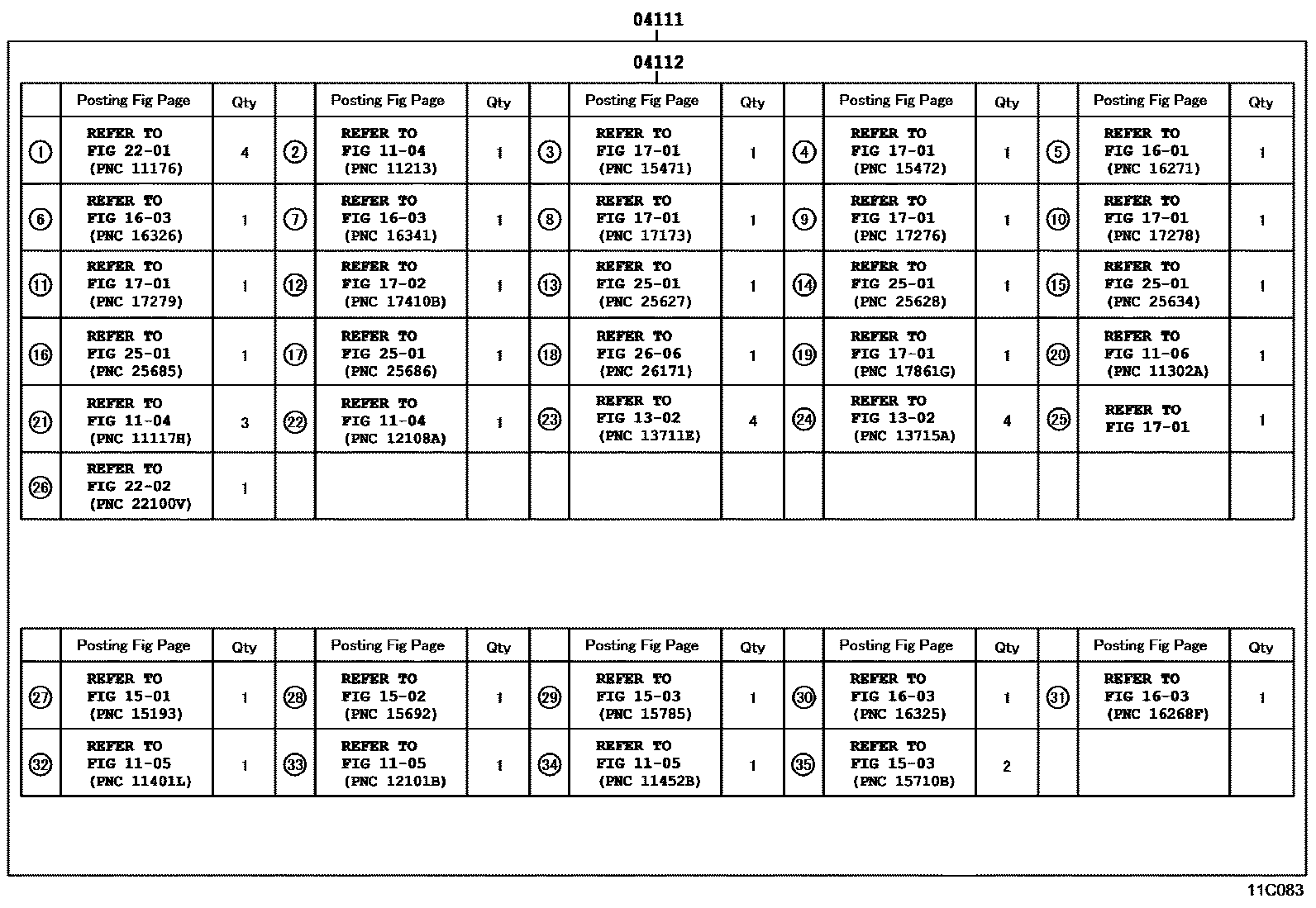

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C083
Engine Overhaul Gasket Kit — 11C083 (201306 – 999999)
Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C084
Engine Overhaul Gasket Kit — 11C084 (201505 – 999999)

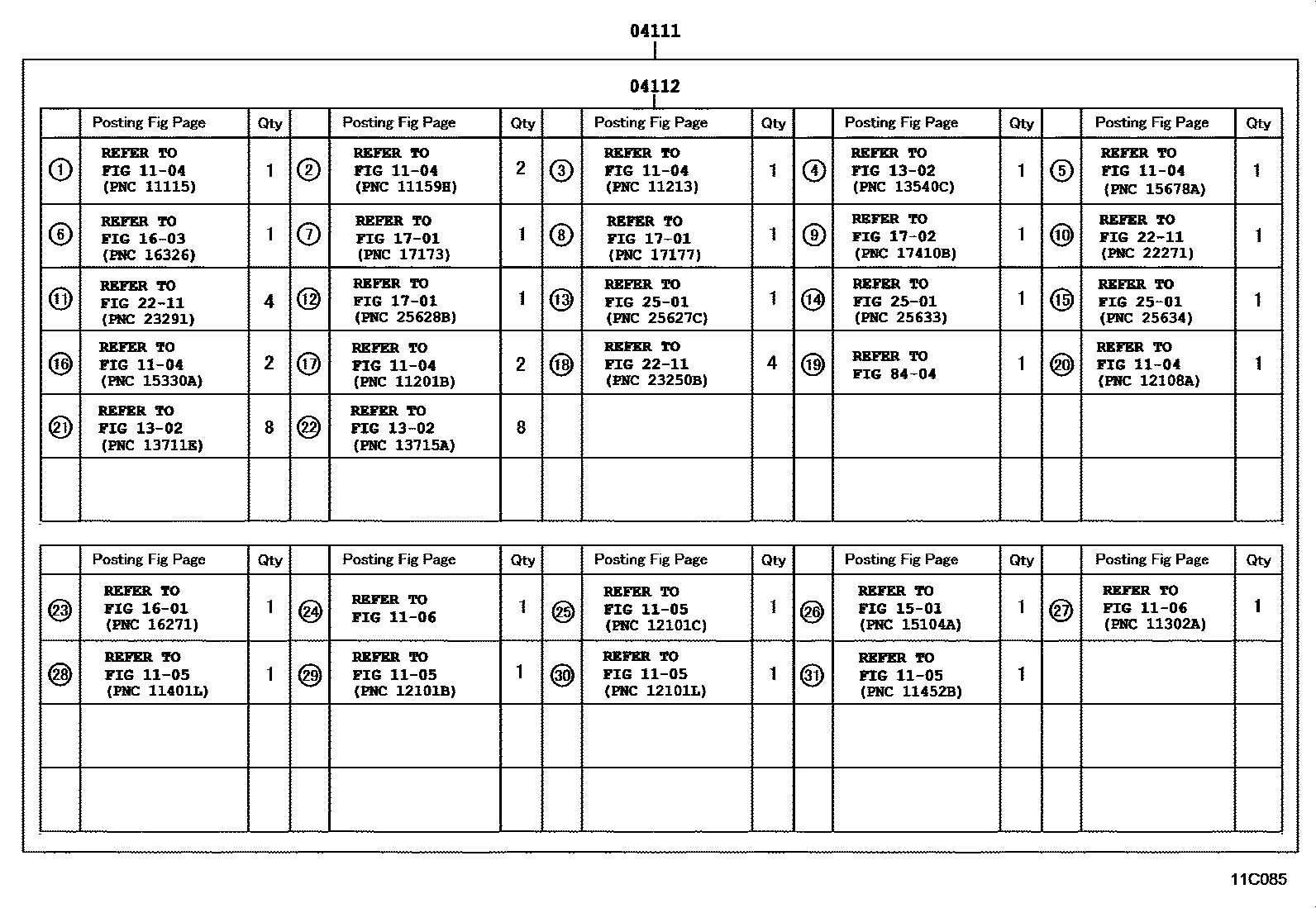

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C085
Engine Overhaul Gasket Kit — 11C085 (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T064 · 04111-0T065 · 04111-0T066 · 04111-0T067 · 04111-0T083 · 04111-0T084 · 04111-0T085 · 04111-33181 · 04111-33182 · 04111-33220 · 04111-33230 · 04111-47077 · 04111-47190
04112Engine valve grinding pad assembly04112-0T014 · 04112-0T015 · 04112-0T064 · 04112-0T065 · 04112-0T066 · 04112-33181 · 04112-33182 · 04112-33200 · 04112-33210 · 04112-47036 · 04112-47130
