Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

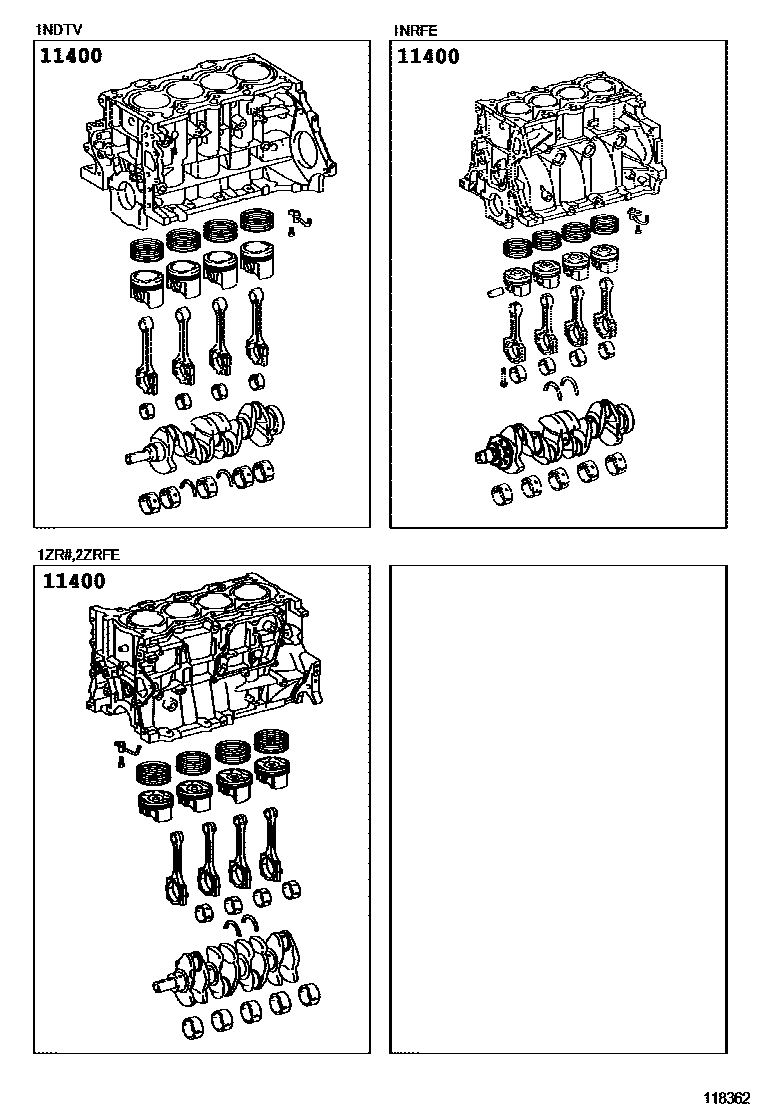

Toyota COROLLA Short Block Assembly EPC diagram — 118362
Short Block Assembly — 118362 (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0N070 · 11400-0N080 · 11400-0N090 · 11400-0N100 · 11400-0T011 · 11400-0T021 · 11400-0T061 · 11400-47091 · 11400-47140
