Toyota COROLLA Standard Tools — Figure 0901

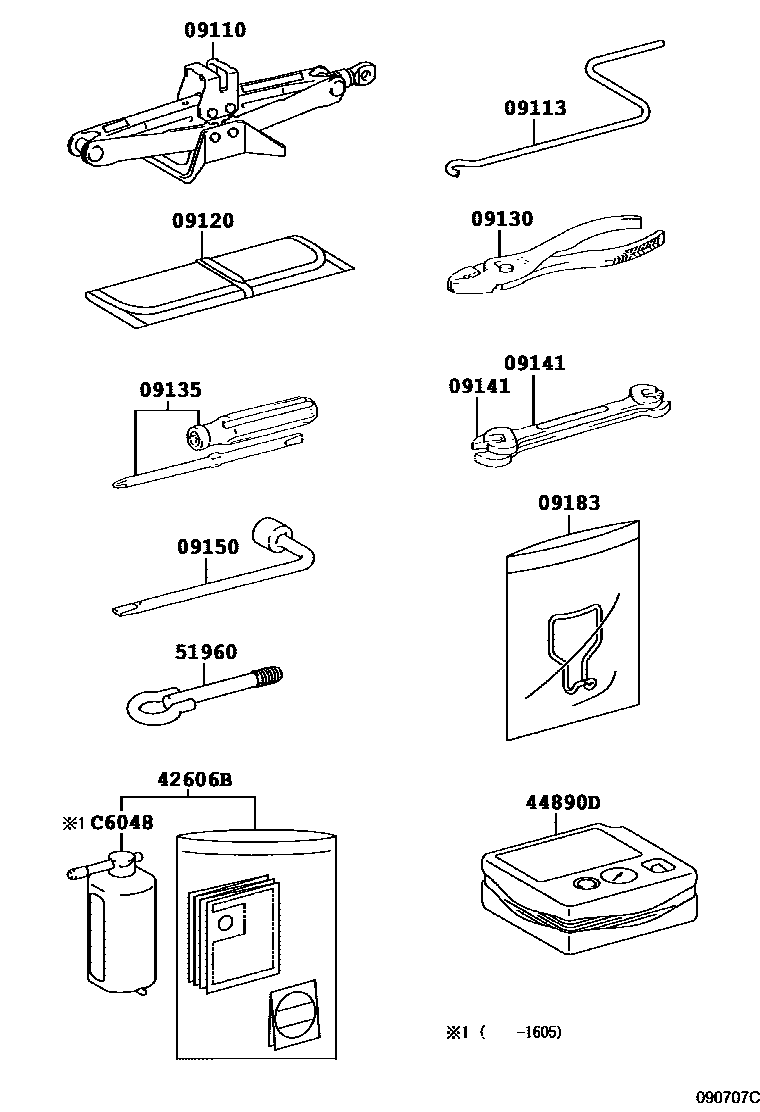

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-05050 |
| 09113 | Jack Handle | 09113-02051 |
| 09120 | Tool Bag | 09120-02130 |
| 09130 | Pliers | 90080-99009 |
| 09135 | Screwdriver | 90080-99008 |
| 09141 | Wrench | 90080-99010 · 90080-99011 |
| 09150 | Wheel Nut Wrench | 09150-02060 · 09150-05011 |
| 09183 | Wheel Cap Remover | 09183-0D010 |
| 42606B | Tubeless tire repair components | 42606-02010 · 42606-02011 |
| 44890D | Air Compressor Assembly | 42680-F4010 · 42680-F4011 · 44890-02010 |
| 51960 | Front Towing Hook Assembly | 51960-05010 |
| C6048 | Tire Repair Kit | C6048-02010 |
