Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

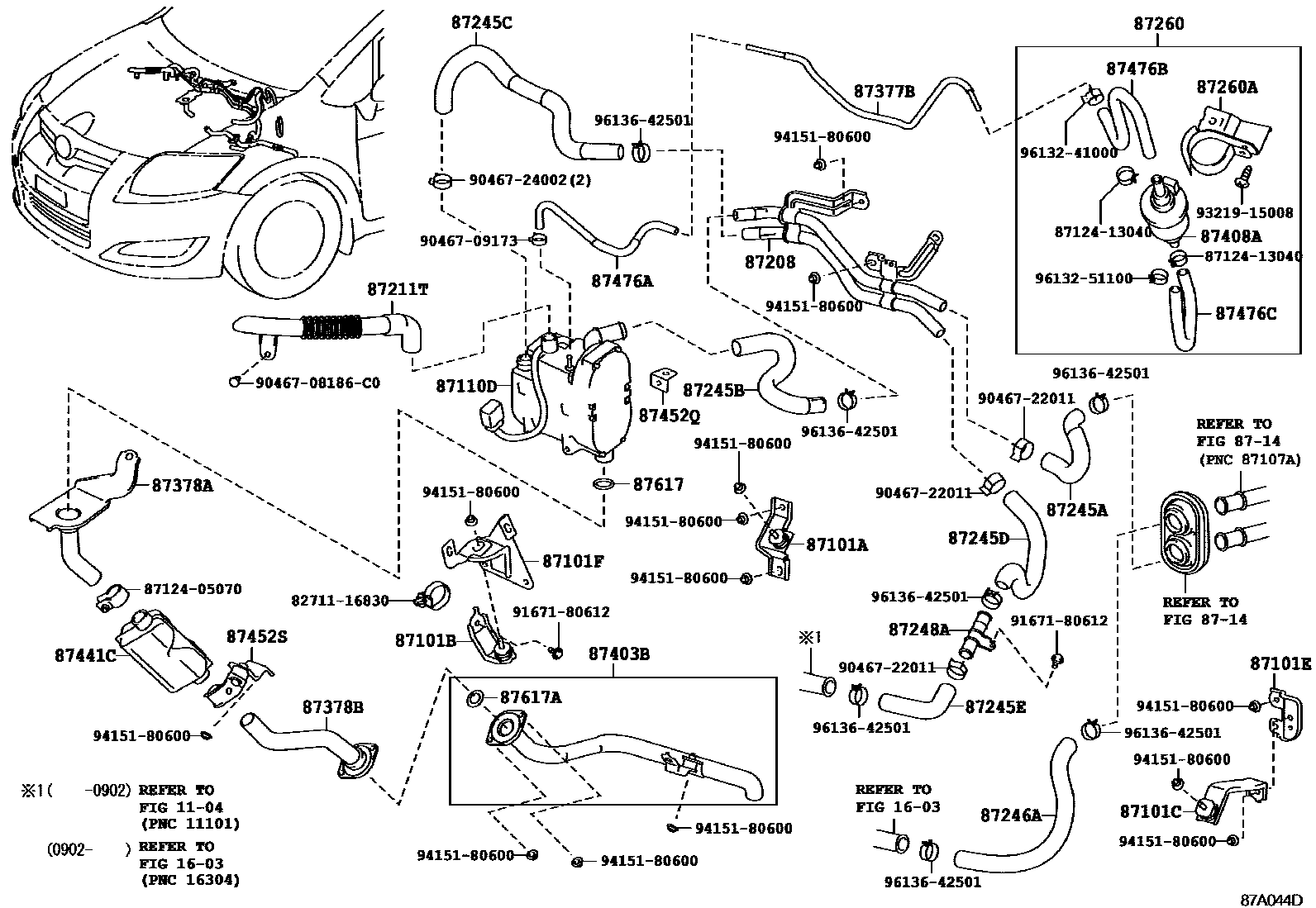

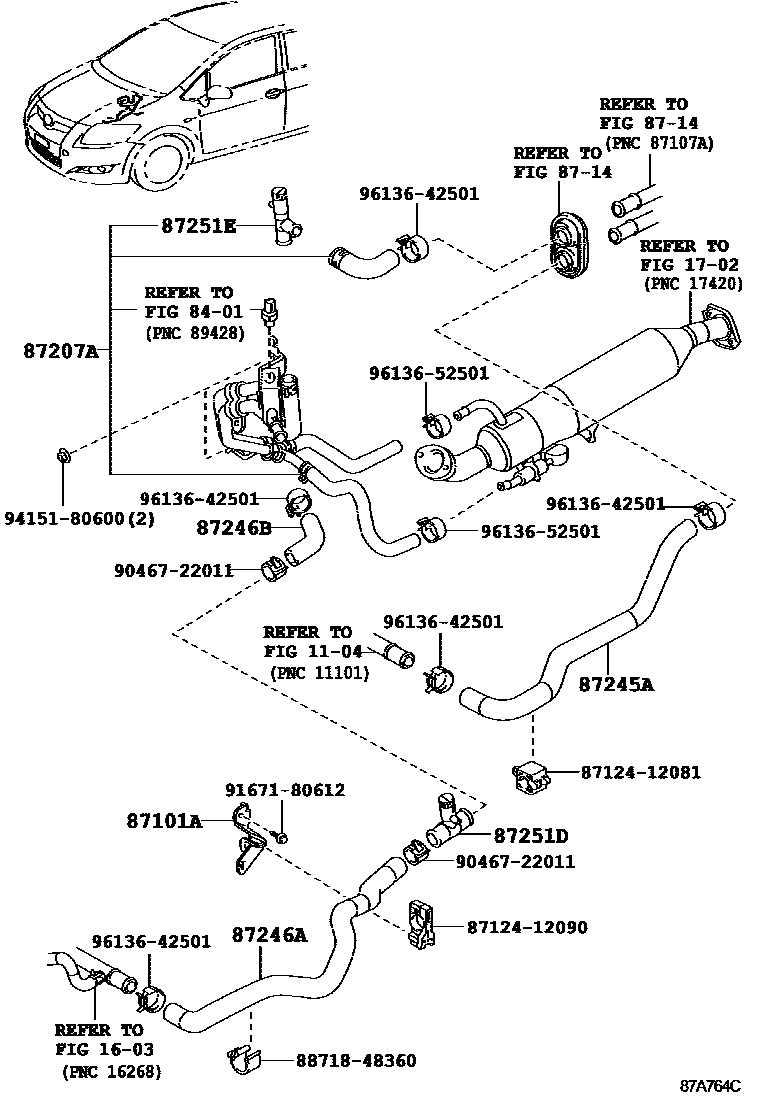

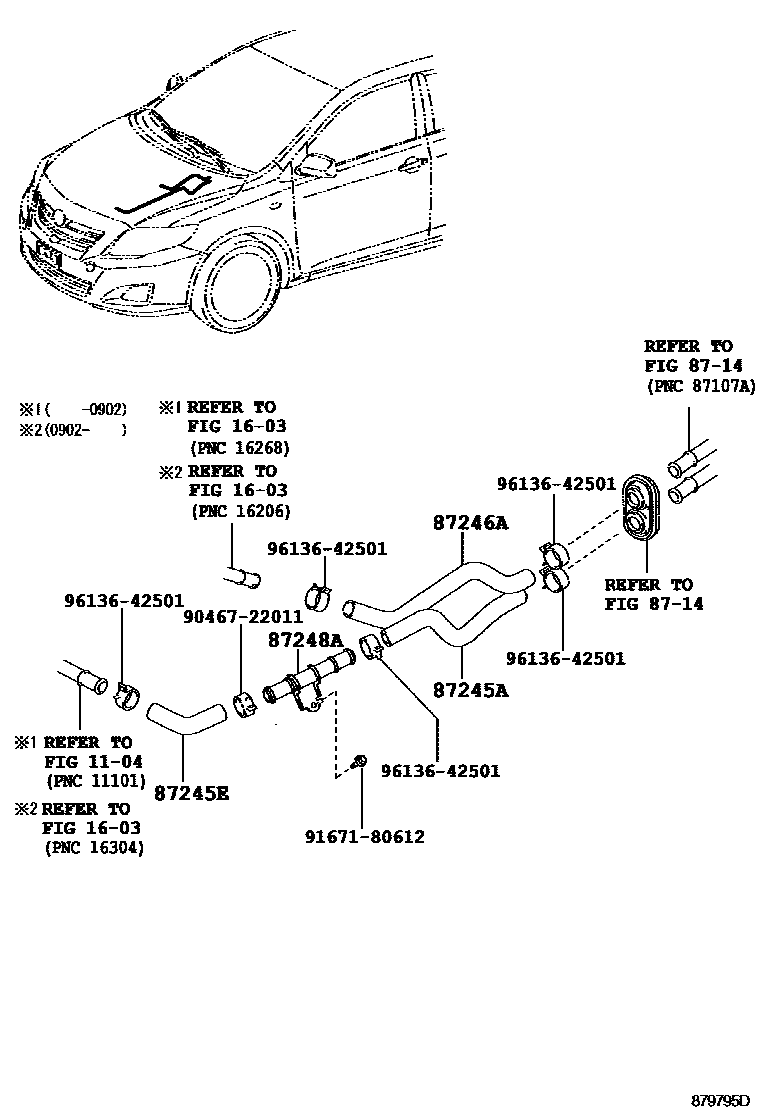

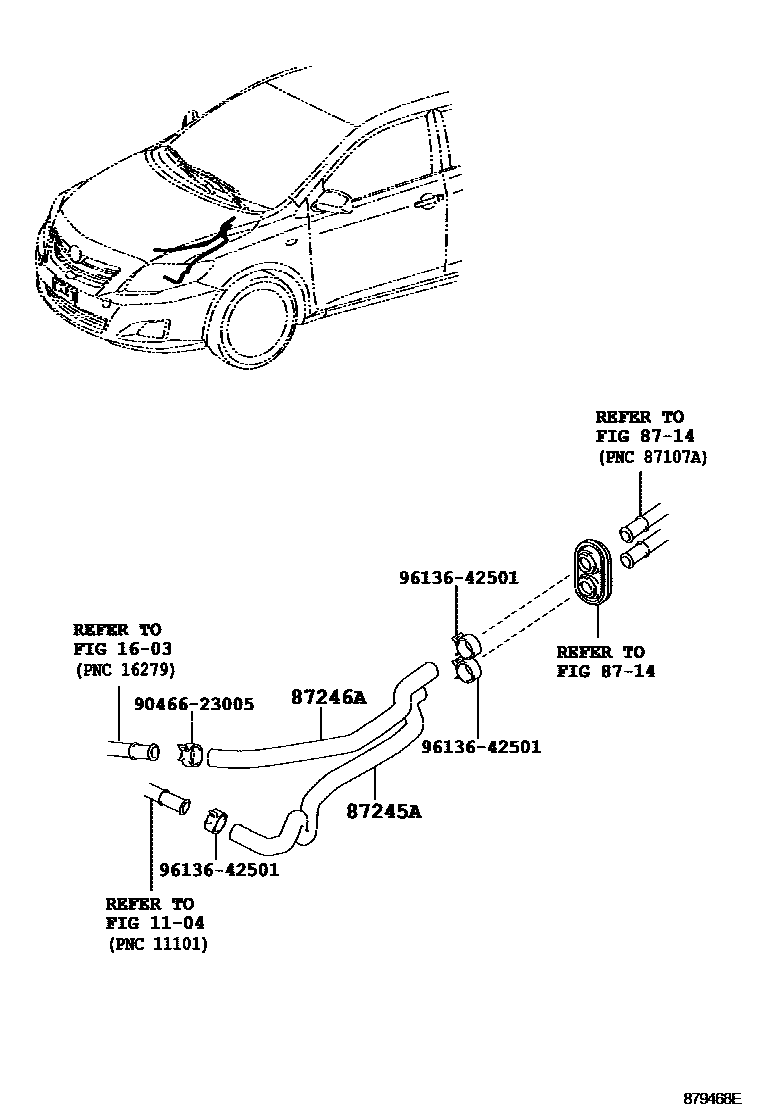

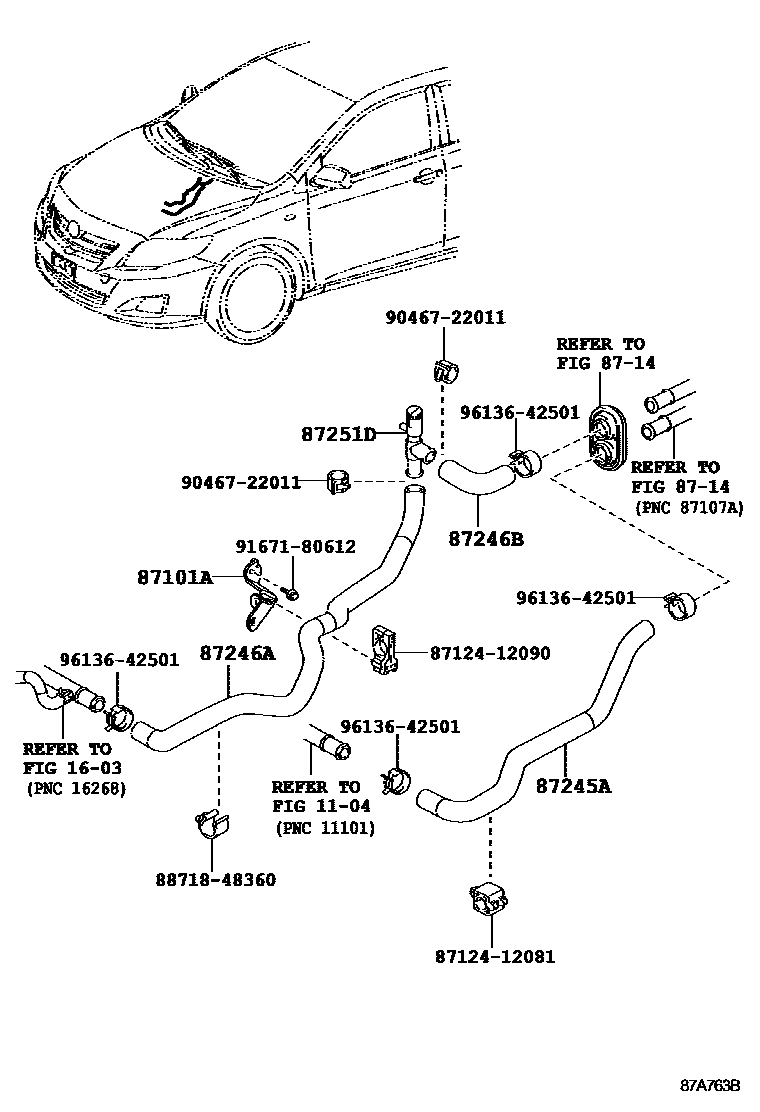

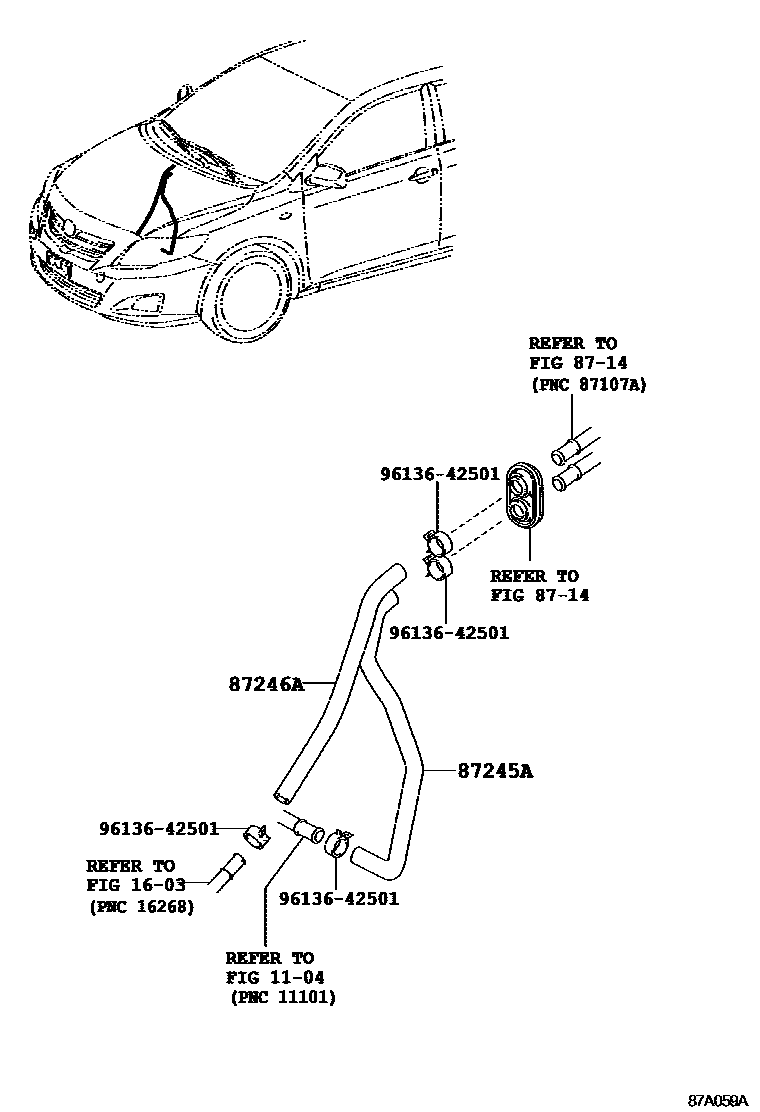

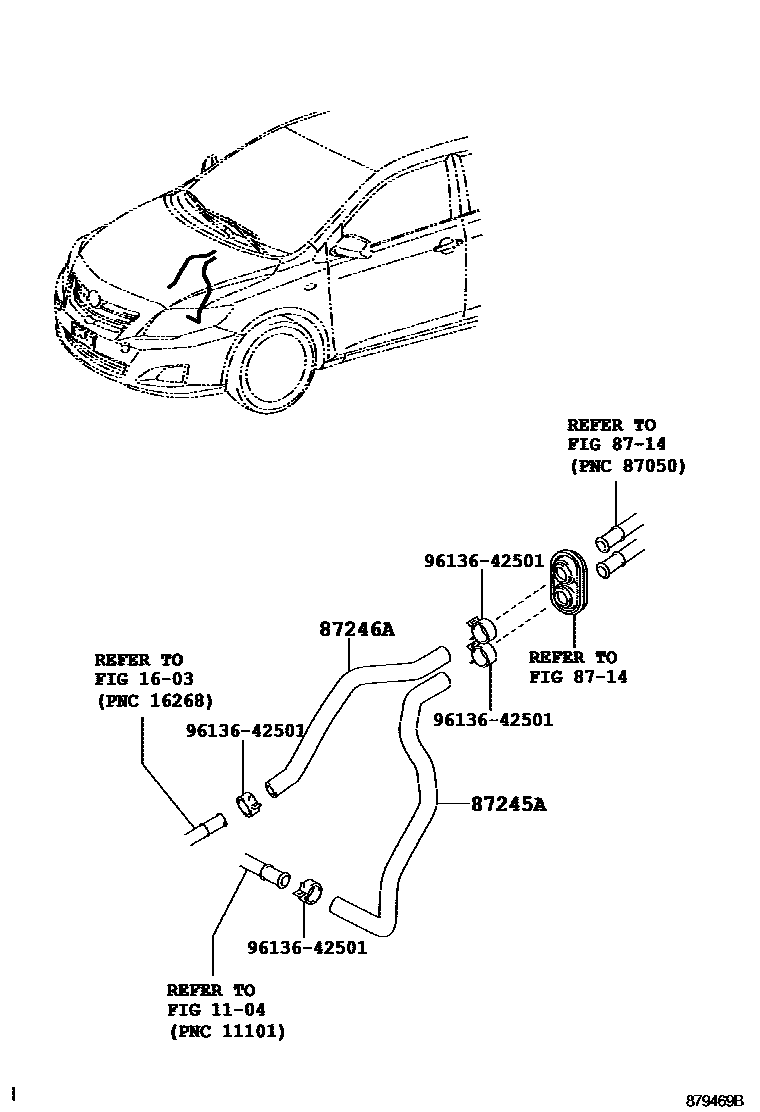

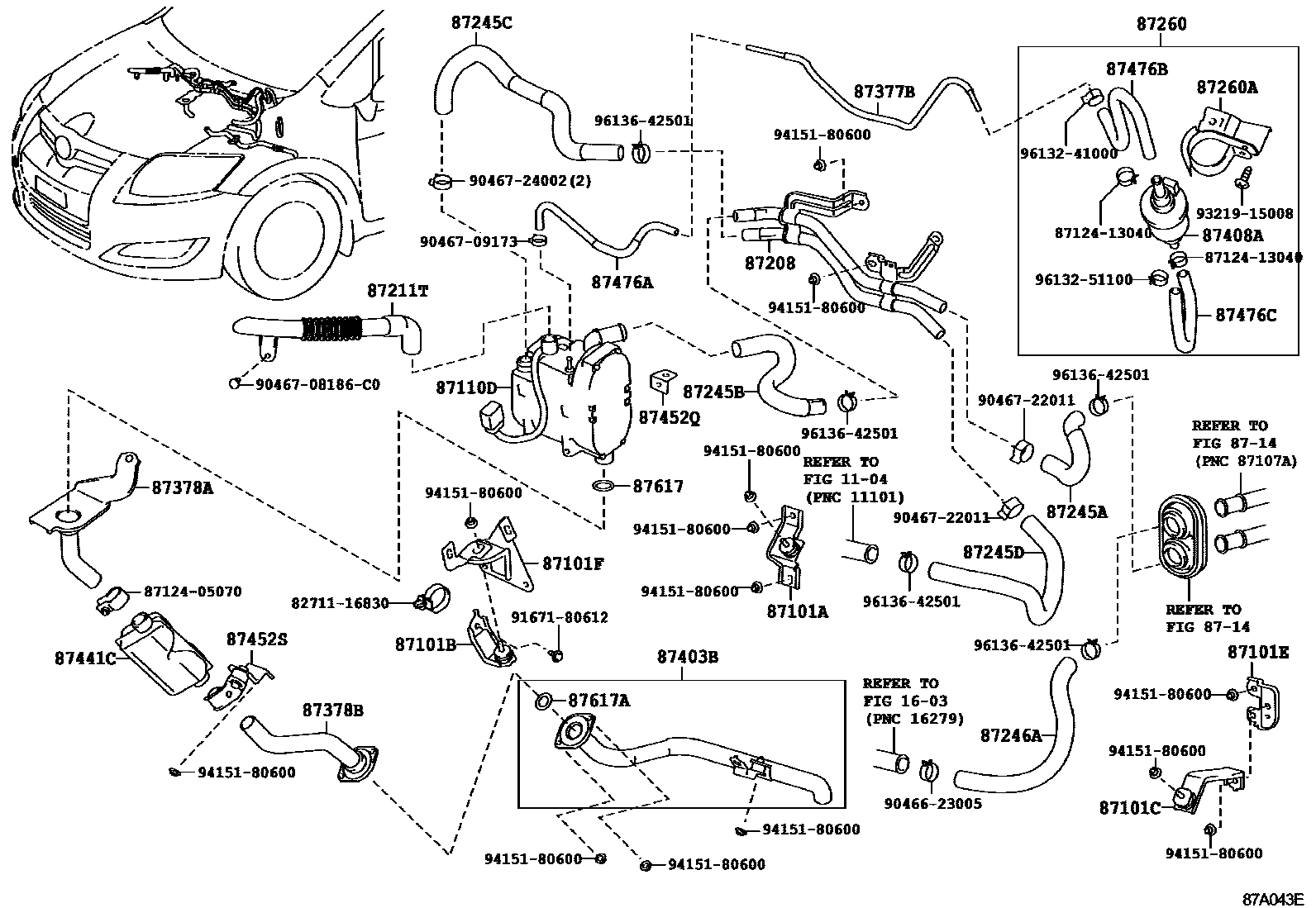

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 8 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-02060 · 87101-02110 |
| 87101B | No. 2 heater bracket sub-assembly | 87101-02070 |
| 87101C | No. 3 heater bracket sub-assembly | 87101-02080 · 87101-02081 |
| 87101E | No. 4 heater bracket sub-assembly | 87101-02100 |
| 87101F | No. 5 heater bracket sub-assembly | 87101-02090 · 87101-02120 |
| 87110D | heater assembly | 87110-02030 |
| 87207A | Water pipe and hose sub-assembly A | 87207-02030 · 87207-02031 |
| 87208 | Heater water pipe sub-assembly | 87208-02010 · 87208-02020 |
| 87211T | air duct | 87211-02250 |
| 87245A | Heater water inlet hose A | 87245-02640 · 87245-02B20 · 87245-12A00 · 87245-12A60 · 87245-12A90 · 87245-12B10 · 87245-12F10 · 87245-12F30 · 87245-12G10 |
| 87245B | Heater water inlet hose B | 87245-02B10 · 87245-02F20 |
| 87245C | Heater water inlet hose C | 87245-02B00 |
| 87245D | Heater water inlet hose D | 87245-02B30 · 87245-02B40 · 87245-02F30 · 87245-05720 |
| 87245E | Heater water inlet hose E | 87245-02A50 · 87245-02F00 |
| 87246A | Heater outlet hose A | 87245-02870 · 87245-02880 · 87245-12A10 · 87245-12A70 · 87245-12B00 · 87245-12B20 · 87245-12B21 · 87245-12F70 |
| 87246B | Heater outlet hose B | 87245-02G00 · 87245-02G10 |
| 87248A | Heater water inlet pipe A | 87248-02010 · 87248-02040 |
| 87251D | No. 1 water hose connector | 87251-12040 · 87251-12050 |
| 87251E | No. 2 water hose connector | 87251-12040 |
| 87260 | Heater pump assembly | 87260-02030 · 87260-02031 |
| 87260A | heater pump bracket | 87261-02010 |
| 87377B | fuel pipe | 87377-02010 |
| 87378A | Exhaust Pipe | 87378-02050 |
| 87378B | Exhaust pipe No. 2 | 87378-02060 |
| 87403B | Exhaust pipe sub-assembly | 87403-02020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
| 87441C | Silencer | 87441-05010 |
| 87452Q | Heater Bracket No. 1 | 87452-02090 |
| 87452S | Heater Bracket No. 2 | 87452-02100 |
| 87476A | Heater No. 1 fuel hose | 87476-02040 · 87476-02060 |
| 87476B | Heater No. 2 fuel hose | 87476-02050 · 87476-02051 |
| 87476C | Heater No. 3 fuel hose | 87476-02030 · 87476-02031 |
| 87617 | Heat exchanger unit gasket No. 1 | 87617-02040 |
| 87617A | Heat exchanger unit gasket No. 2 | 87617-02020 |
