Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

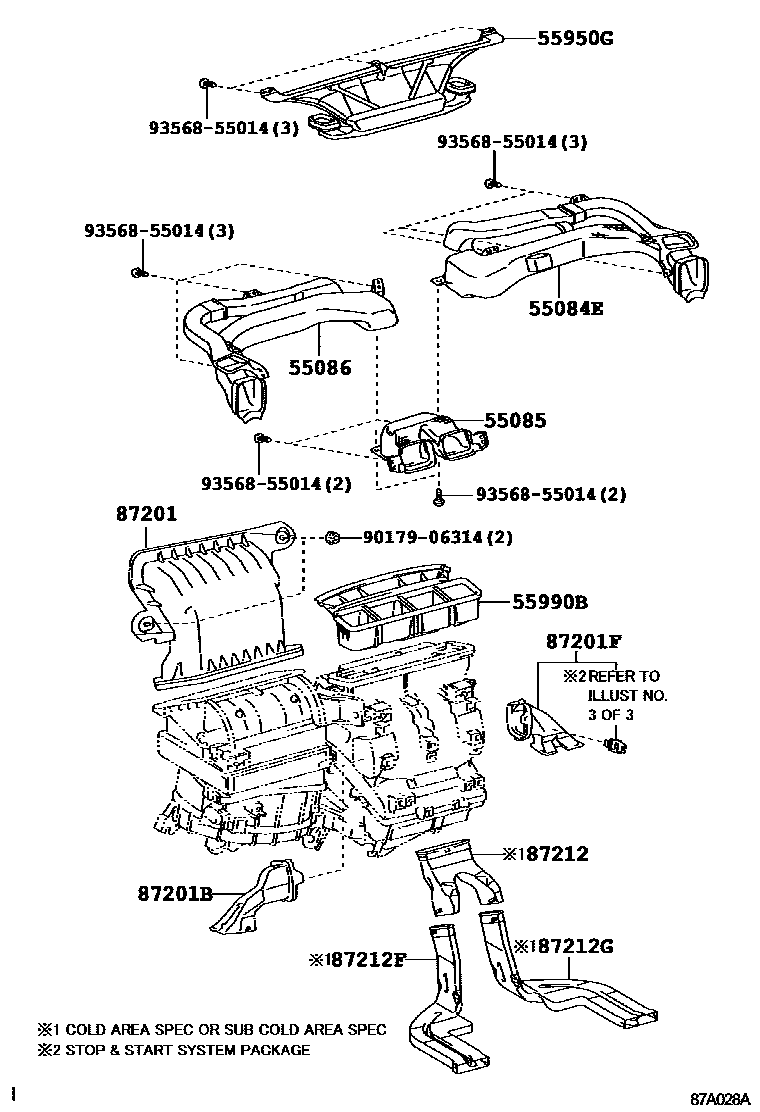

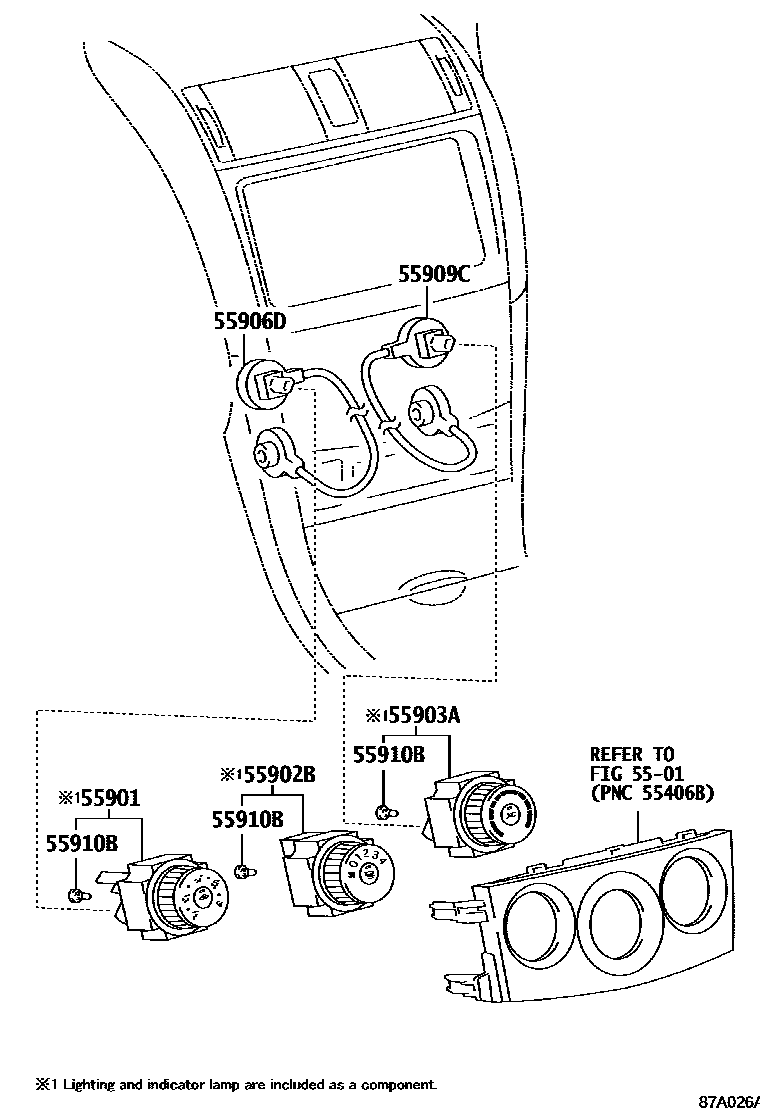

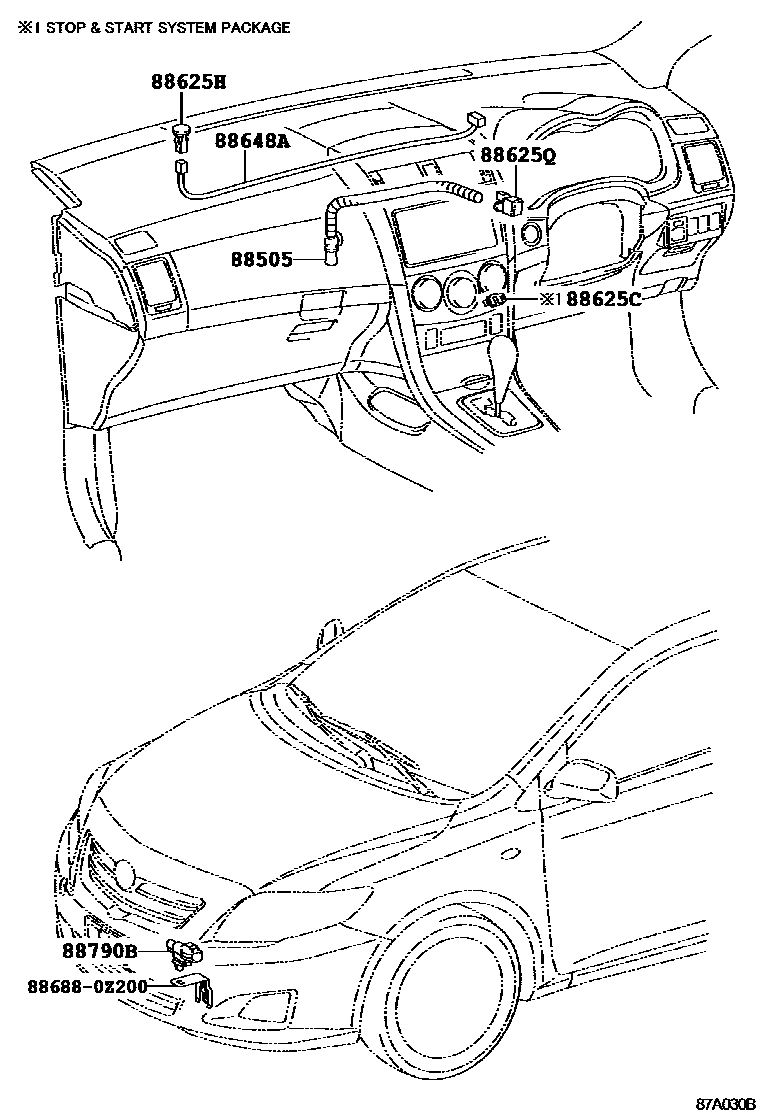

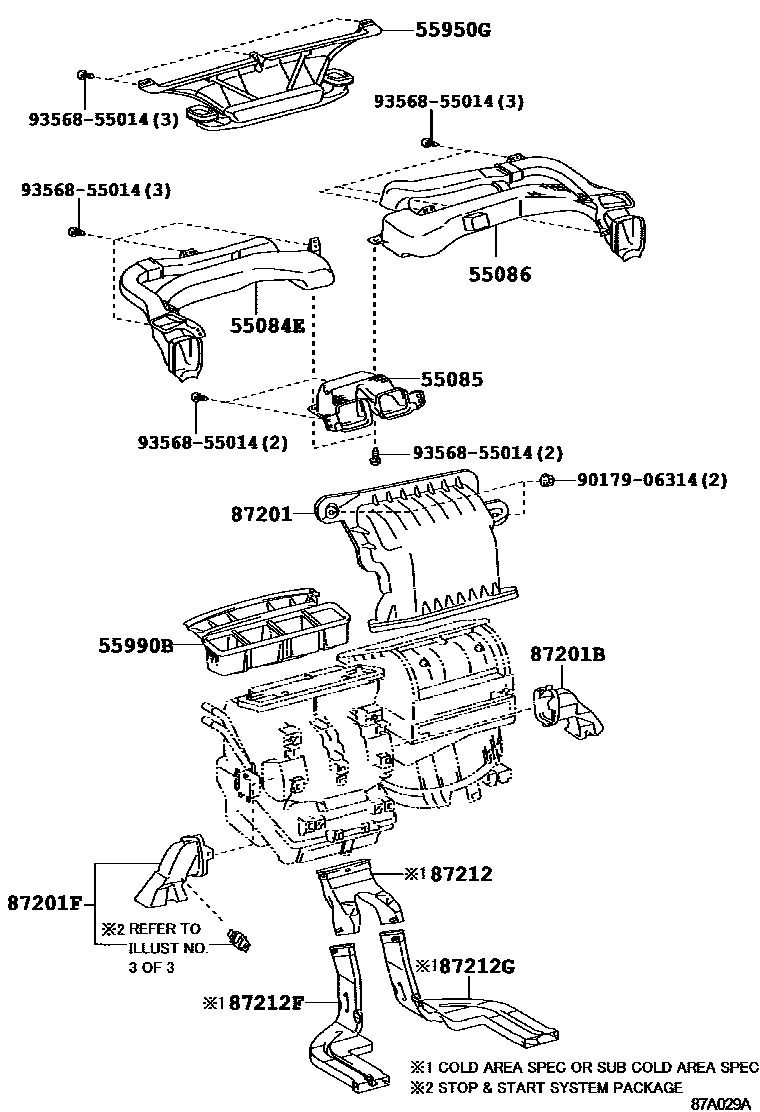

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02020 · 55084-02030 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02070 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-02060 · 55086-02070 |

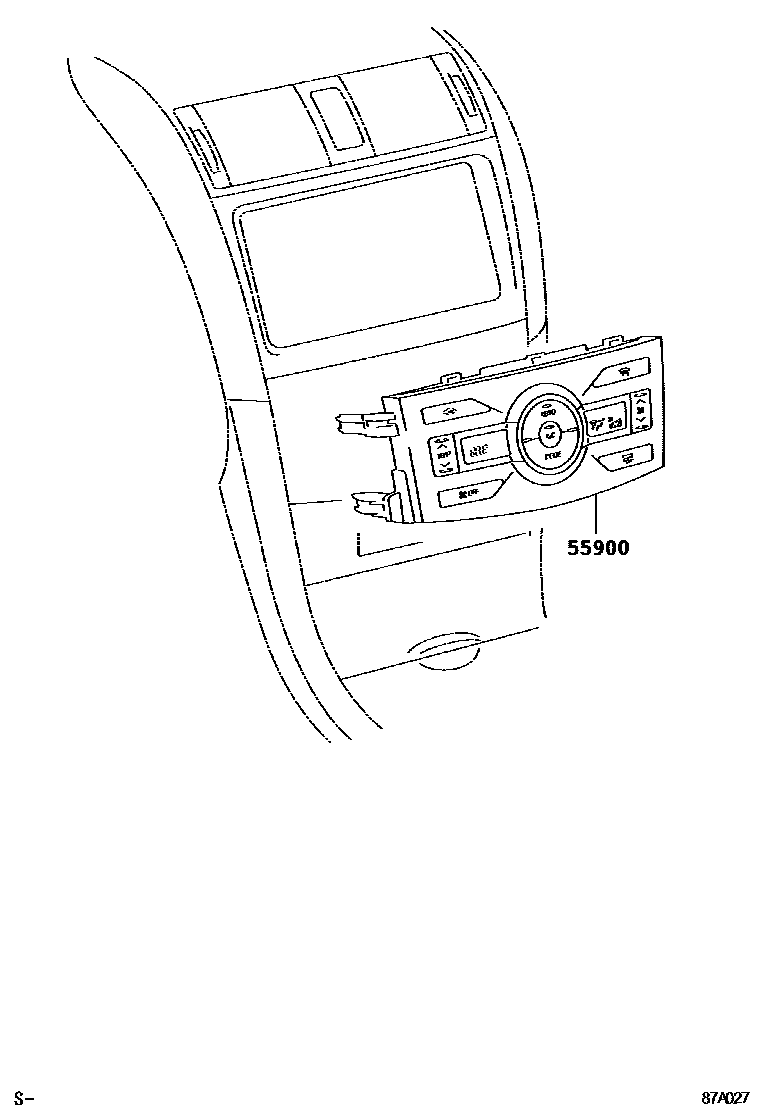

| 55900 | Air conditioning control assembly | 55900-12A60 |
| 55901 | Heater controller base sub-assembly | 55901-12140 · 55901-12210 |
| 55902B | Heater control sub-assembly | 55902-12060 · 55902-12070 · 55902-12120 · 55902-12130 |
| 55903A | No. 3 heater control sub-assembly | 55903-12010 · 55903-12020 · 55903-12030 · 55903-12040 · 55903-12220 · 55903-12230 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 · 55906-26060 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 · 55909-26080 |
| 55910B | heater control light bulb | 90010-01122 |
| 55950G | Defroster nozzle assembly | 55950-02160 |
| 55990B | Lower defroster nozzle assembly | 55990-02080 |
| 87201 | No. 1 air duct sub-assembly | 87220-02030 · 87220-02040 |
| 87201B | No. 2 air duct sub-assembly | 87211-02270 · 87211-02290 |
| 87201F | No. 3 air duct sub-assembly | 87201-02270 · 87201-02271 · 87201-02280 · 87201-02281 · 87211-02260 · 87211-02261 · 87211-02280 · 87211-02281 |
| 87212 | No. 1 rear air duct | 87215-02090 |
| 87212F | No. 2 rear air duct | 87213-02110 |
| 87212G | No. 3 rear air duct | 87212-02110 |
| 88505 | Air conditioning duct sub-assembly | 88505-02030 · 88505-02040 |
| 88625C | Cooler thermistor | 88625-50130 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-02280 |
| 88790B | Thermistor assembly | 88790-22131 |
