Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.

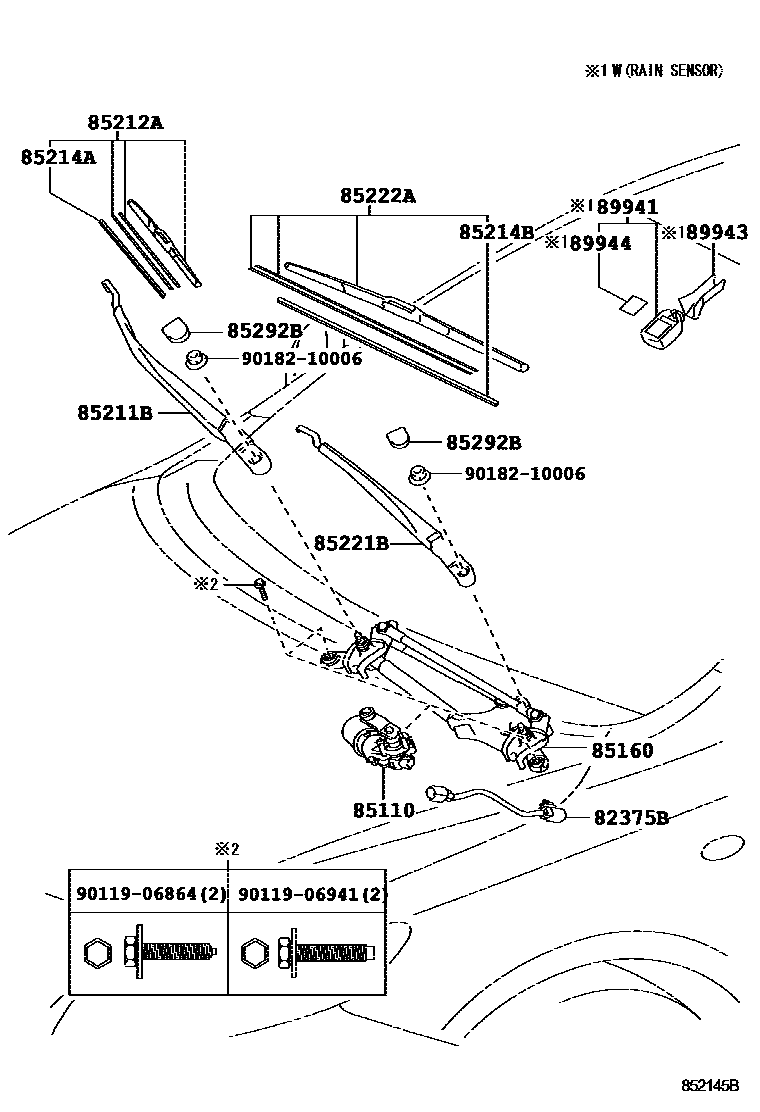

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 852145B
挡风玻璃刮水器 — 852145B (200802 – 999999)

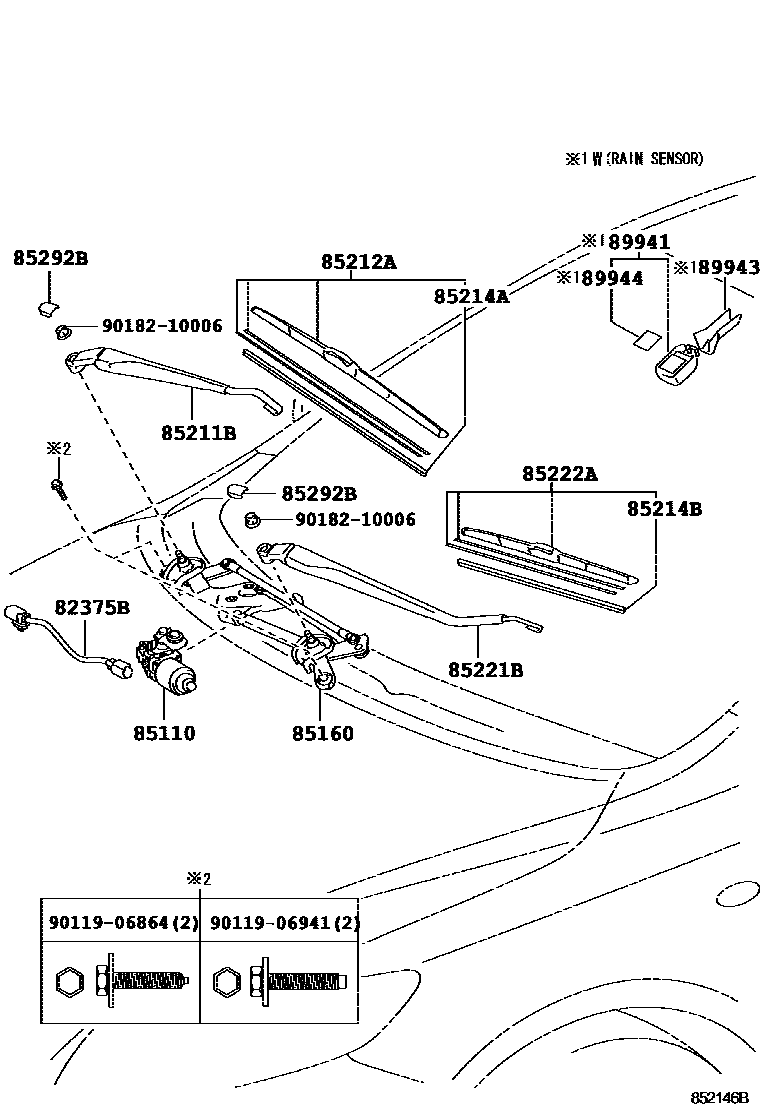

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 852146B
挡风玻璃刮水器 — 852146B (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-12310 · 82375-12311
85110Windshield wiper motor assembly85110-12A20 · 85110-12A30
85160Windshield wiper connecting rod assembly85150-02180 · 85150-02200
85211BRight front wiper arm85211-02190 · 85211-02210
85212ARight front wiper blade85212-12430 · 85212-12480
85214ARight wiper rubber strip85214-68020 · 85214-68030
85214BLeft wiper rubber strip85214-68020 · 85214-68030
85221BLeft front wiper arm85221-02200 · 85221-02220
85222ALeft front wiper blade85222-12830 · 85222-12860
85292BFront wiper arm cap85292-0F010
89941rain sensor89941-42010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
