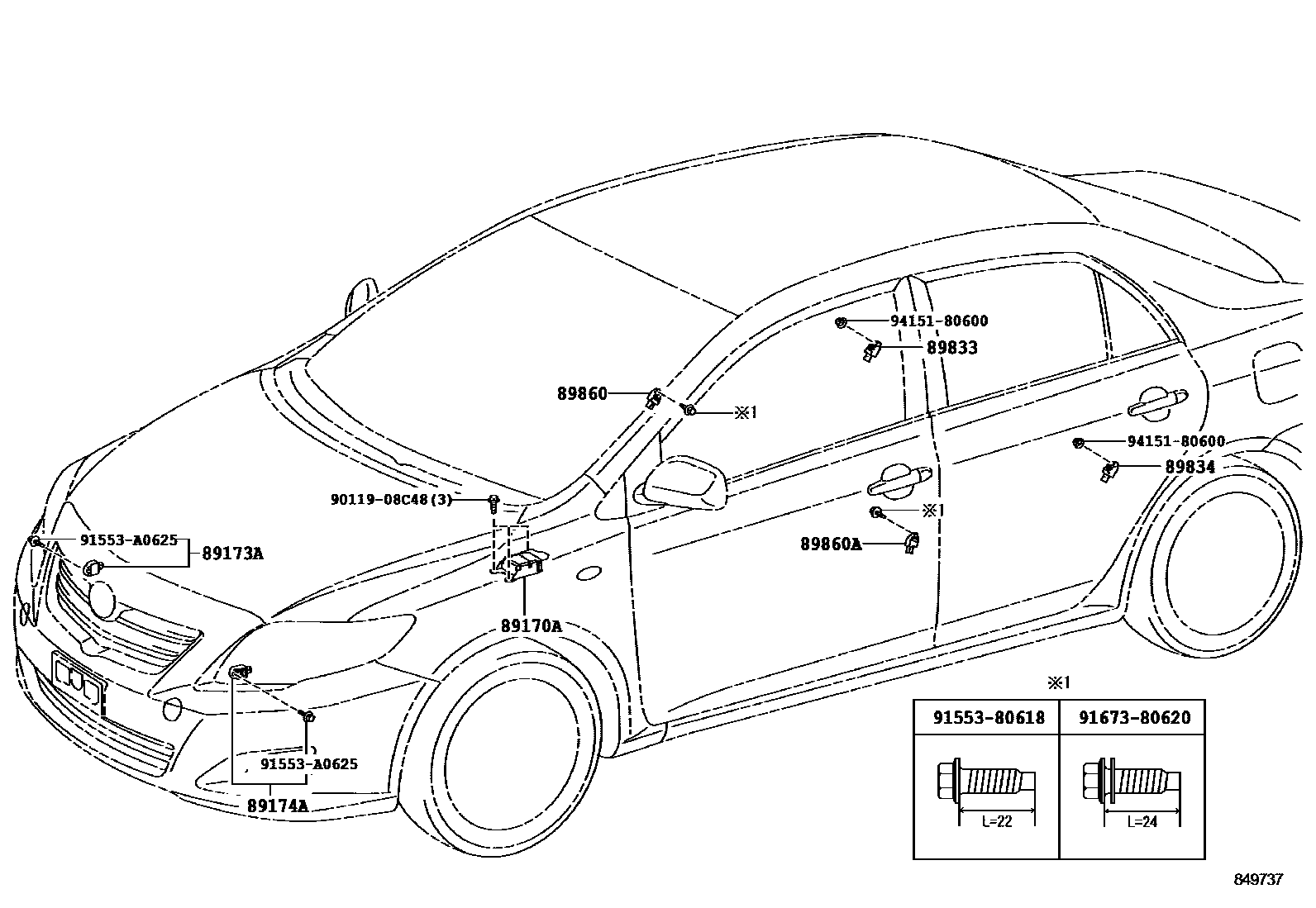

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-02600 · 89170-02620 · 89170-02660 · 89170-02680 · 89170-02A10 · 89170-02A20 · 89170-02A40 |
| 89173A | Right front air bag sensor | 89173-09410 · 89173-09630 |
| 89174A | Left front air bag sensor | 89173-09410 · 89173-09630 |
| 89833 | Right rear air bag sensor | 89831-02080 · 89831-0W060 |
| 89834 | Left rear air bag sensor | 89831-02080 · 89831-0W060 |
| 89860 | Right side airbag sensor assembly | 89831-02060 · 89831-02100 |
| 89860A | Left side air bag sensor assembly | 89831-02060 · 89831-02100 |
