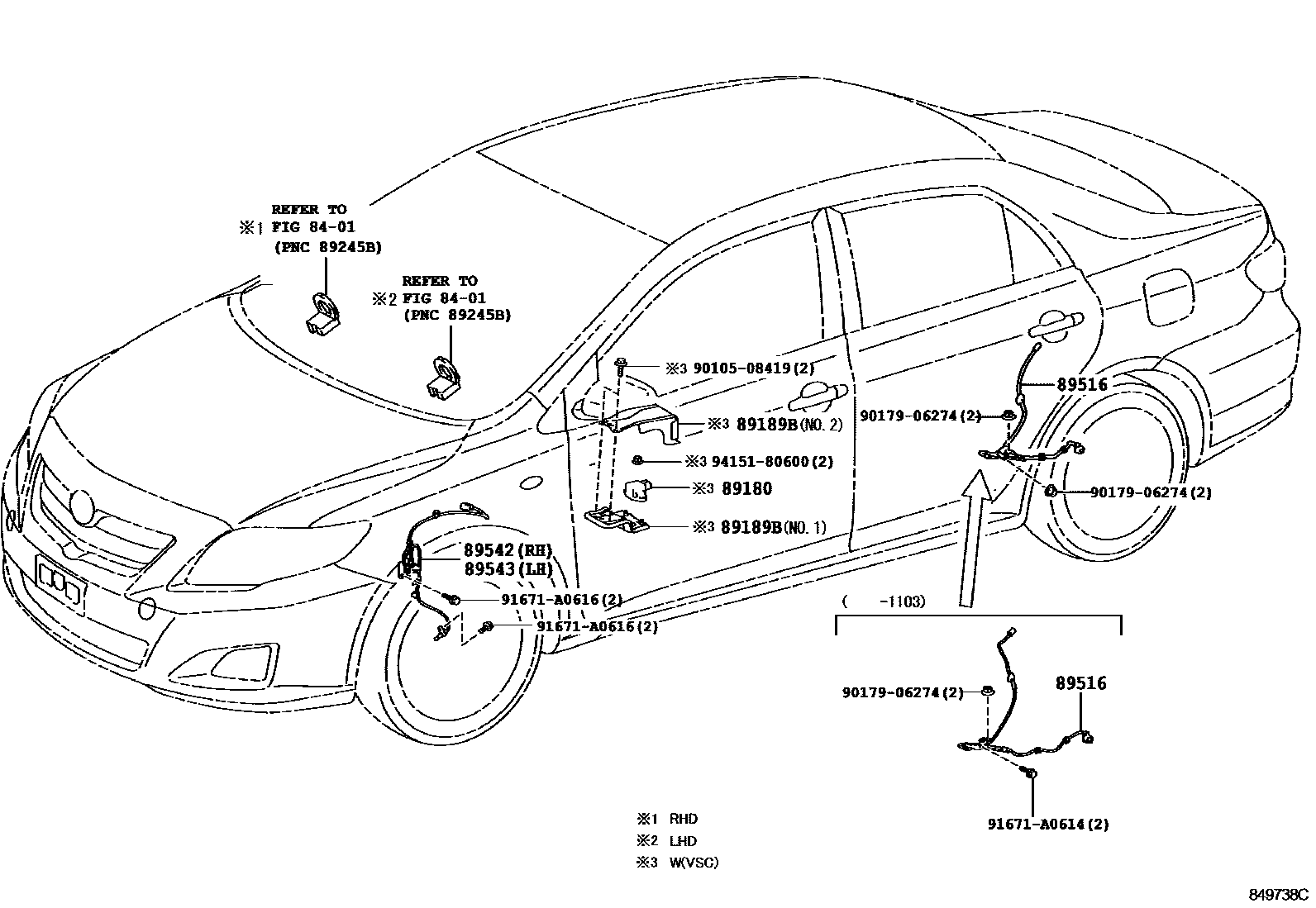

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89180 | Yaw rate sensor assembly | 89183-02030 |
| 89189B | Yaw rate sensor bracket | 89189-02050 · 89189-02060 |
| 89516 | Anti-skid control sensor wiring harness | 89516-02071 · 89516-02081 · 89516-02170 · 89516-02180 · 89516-02190 · 89516-02200 |
| 89542 | Right front wheel speed sensor | 89542-02120 |
| 89543 | Left front wheel speed sensor | 89543-02120 |
