Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-12090 |

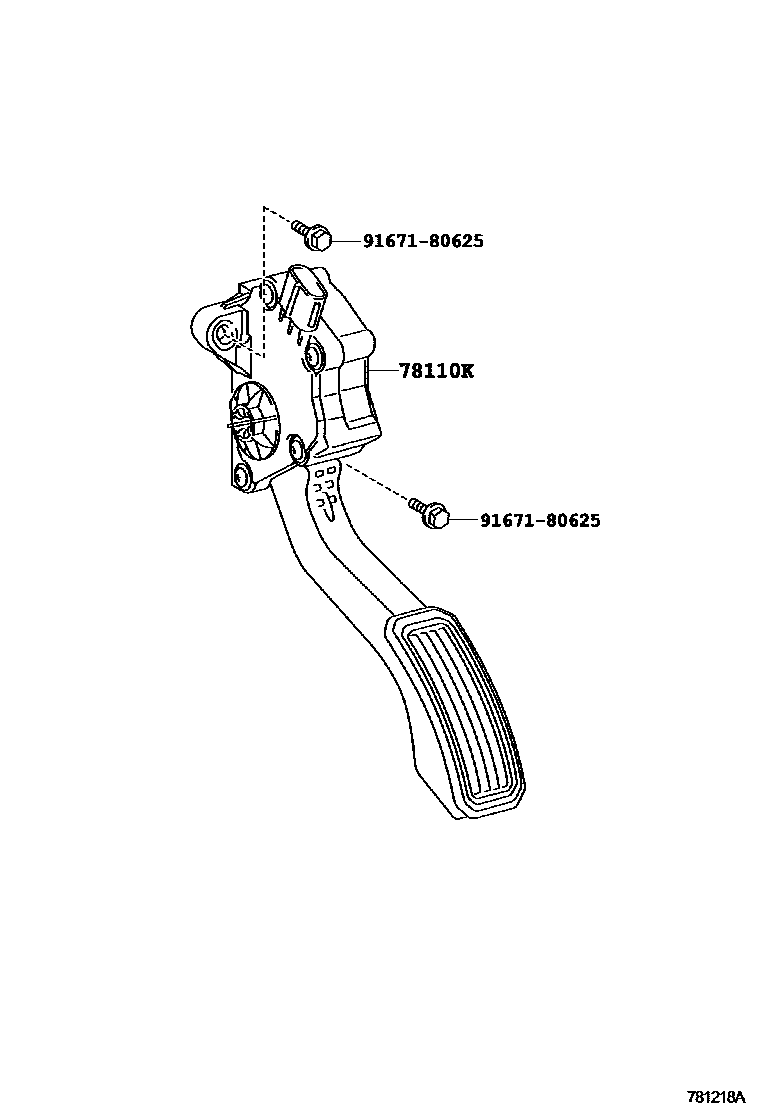

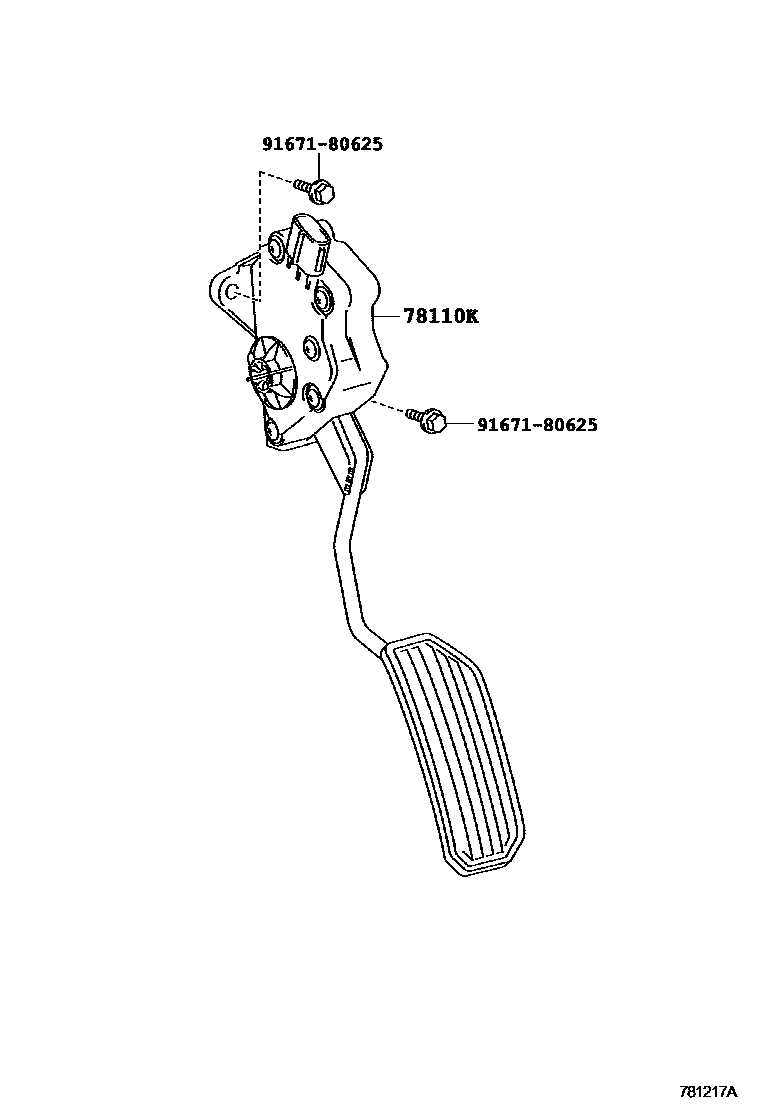

| 78110K | Accelerator pedal sensor assembly | 78110-02010 · 78110-02011 · 78110-02012 · 78110-02020 · 78110-02021 · 78110-02022 · 78110-02030 · 78110-02070 · 78110-02071 |
| 78120G | Accelerator pedal lever assembly | 78120-02130 · 78120-02140 |

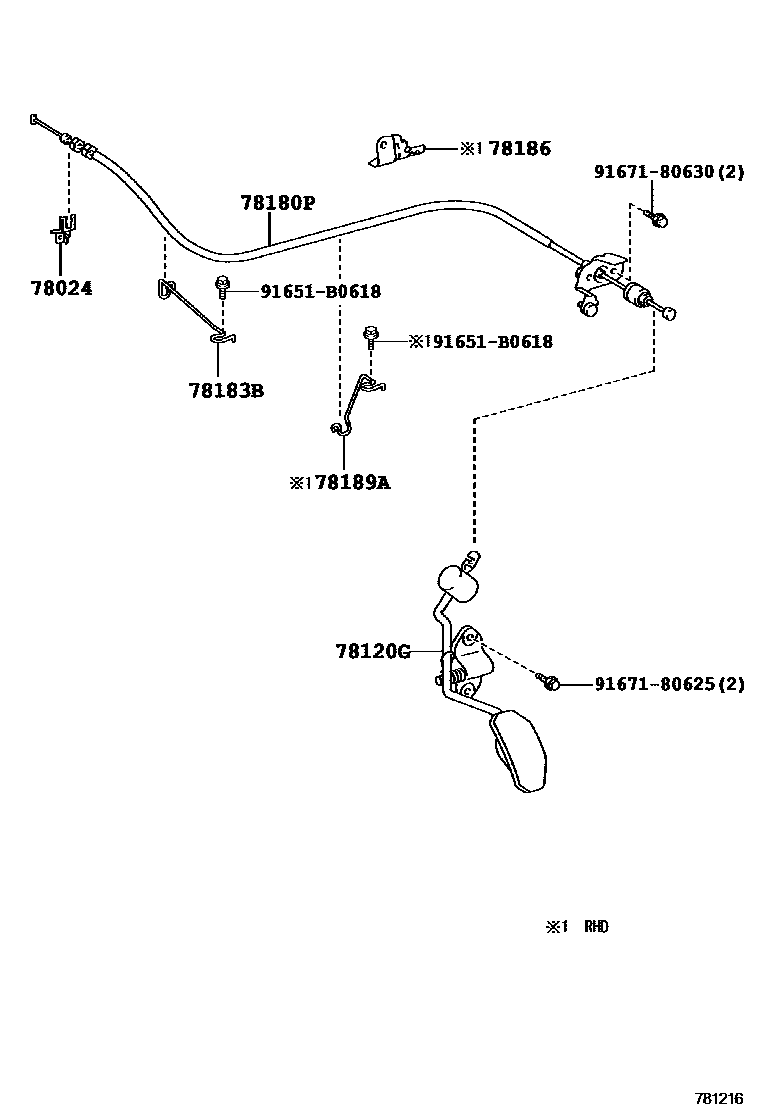

| 78180P | Accelerator pedal control cable assembly | 78180-12A00 · 78180-1A850 |
| 78183B | Accelerator pedal control cable clip | 78183-12270 · 78183-12280 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12440 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12170 |
