Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.

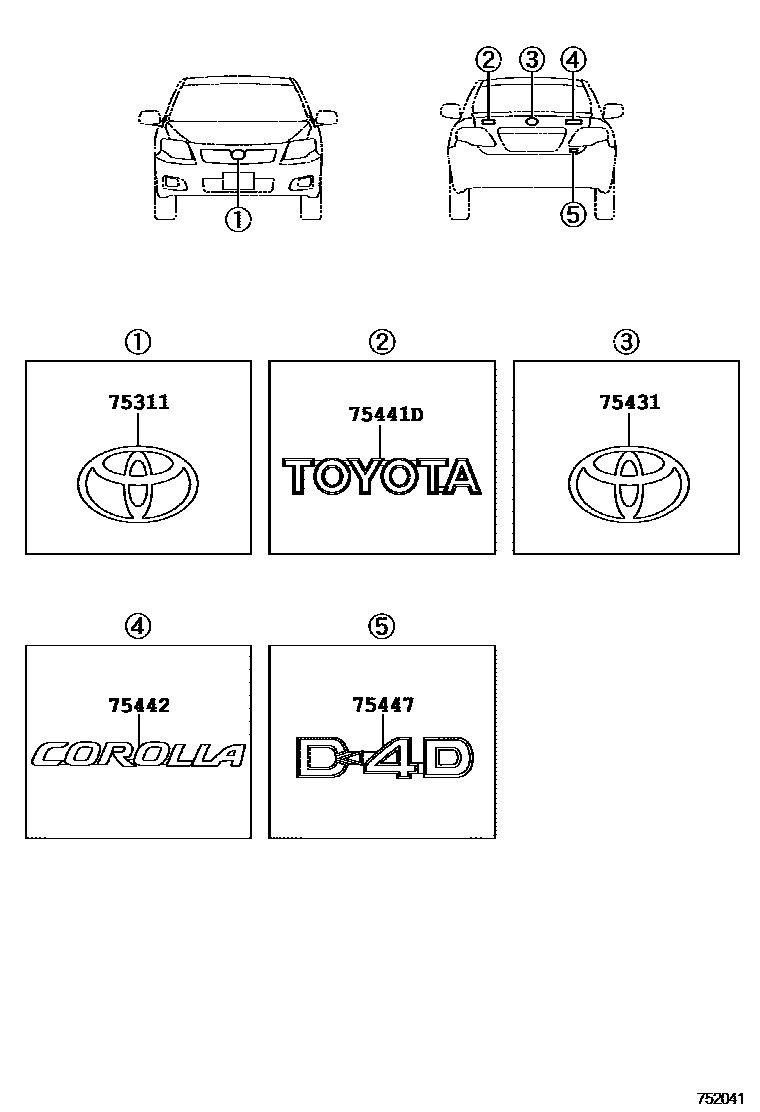

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 752041
丰田徽标和铭牌(车外和车内) — 752041 (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-02030
75431luggage compartment door sign75431-02040
75441DTrunk door No. 1 name plate75441-02120
75442Trunk door number plate No. 275442-02150
75447Trunk door No. 7 nameplate75447-02030
