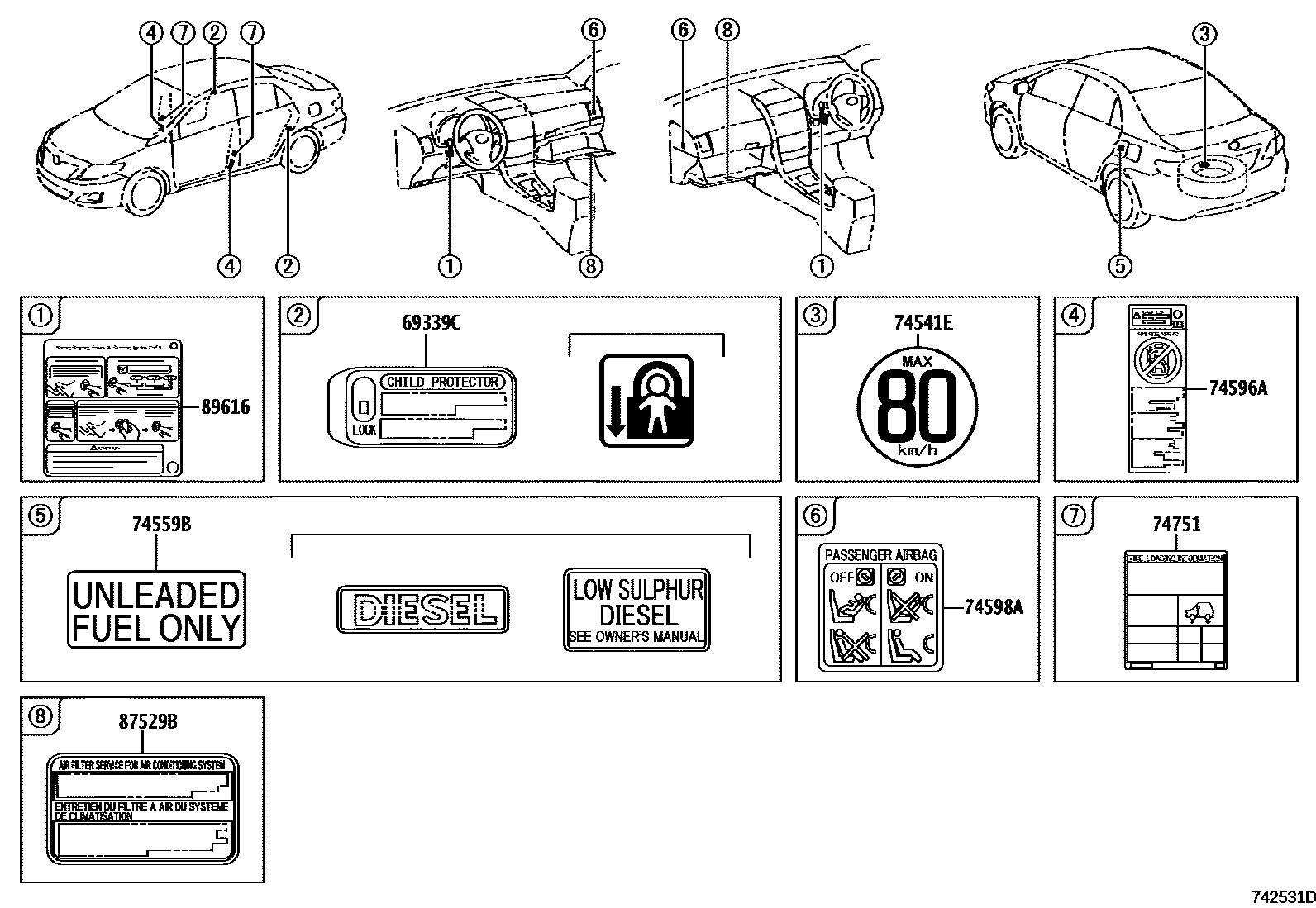

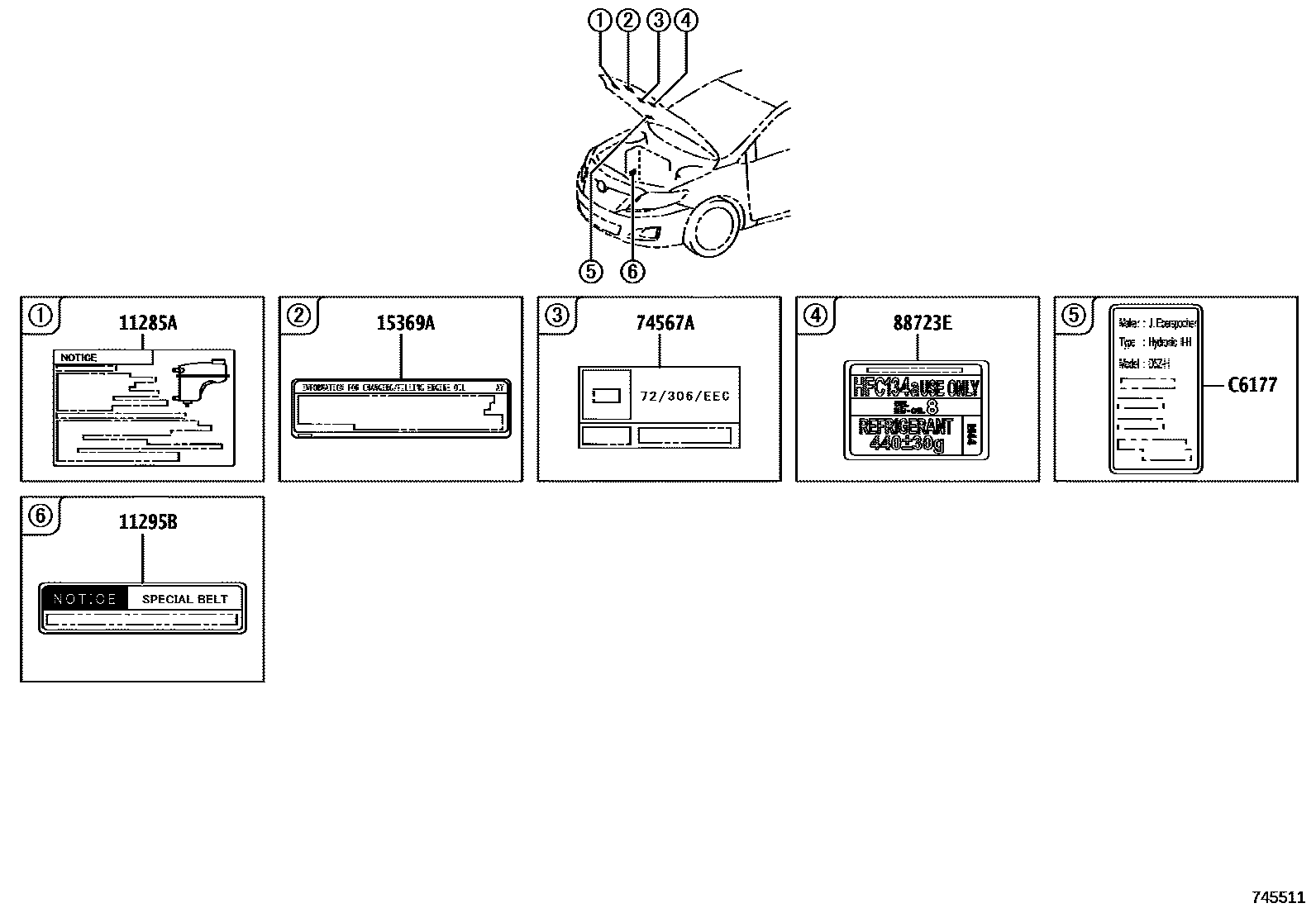

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-22080 · 11285-26010 · 11285-33030 · 11285-33040 |
| 11295B | ETIQUETTE, AVIS FONC MOTEUR NO.1 | 11295-33010 |
| 15369A | Engine oil information label | 15369-33010 |
| 69339C | Child Restraint Information Label | 69339-03010 · 69339-06060 |
| 74541E | Small spare tire warning plate | 42668-0D010 |
| 74559B | fuel information label | 74559-02010 · 74559-05010 · 74559-20120 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-25041 · 74567-26201 |
| 74596A | Side air bag warning label | 74596-53010 |
| 74598A | Passenger air bag warning label | 74598-0F010 |
| 74751 | tire pressure information label | 42661-02720 · 42661-02730 · 42661-02750 · 42661-02760 |
| 87529B | Cabin filter information label | 87529-02060 |
| 88723E | Cooler maintenance warning label | 88733-02010 |
| 89616 | Button start information label | 89616-30031 · 89616-30040 · 89616-30060 · 89616-52030 · 89616-52040 · 89616-52050 · 89616-52060 · 89616-52070 · 89616-52100 · 89616-53010 · 89616-53030 |
| C6177 | Heater Caution Label | C6177-05010 |
