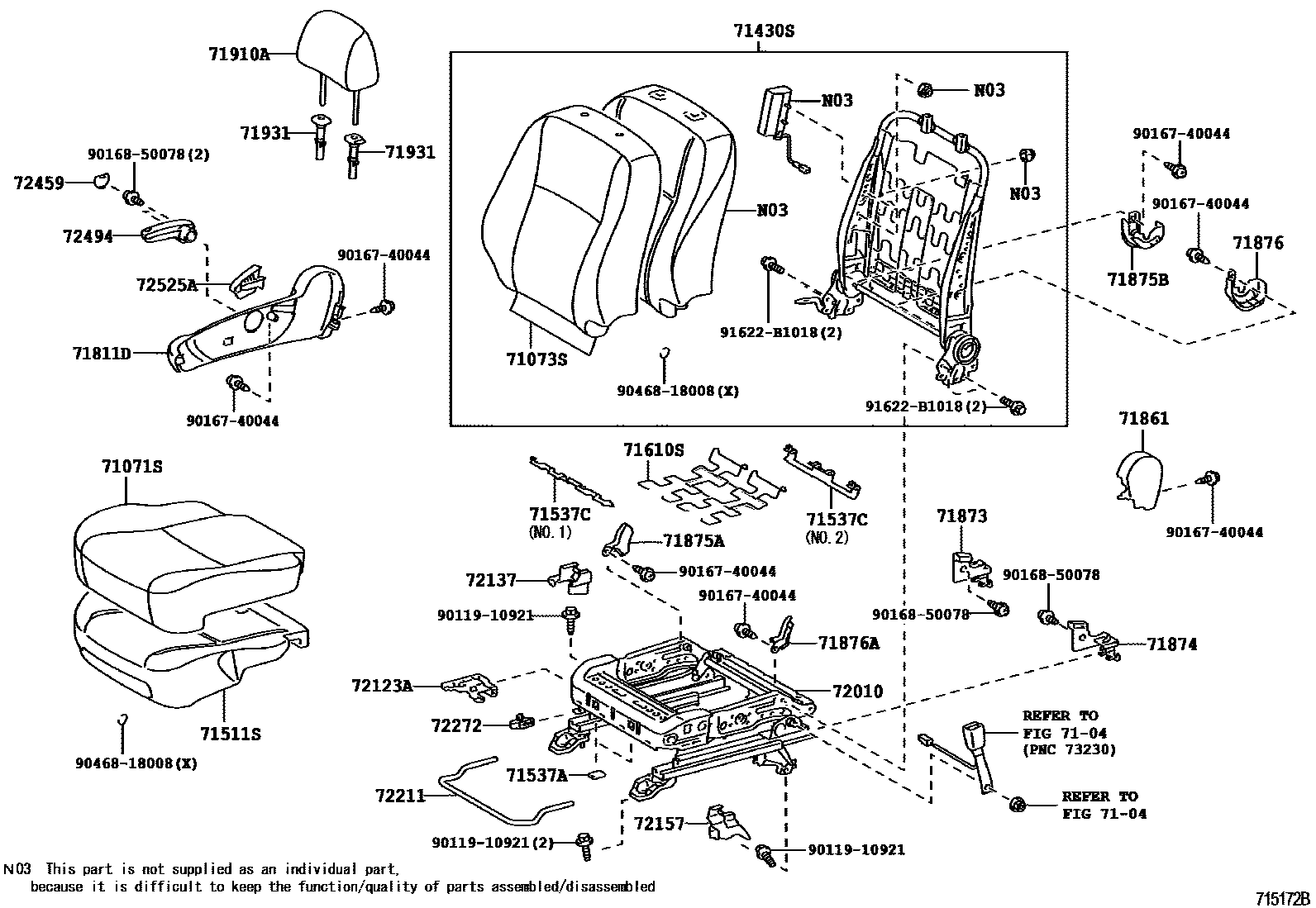

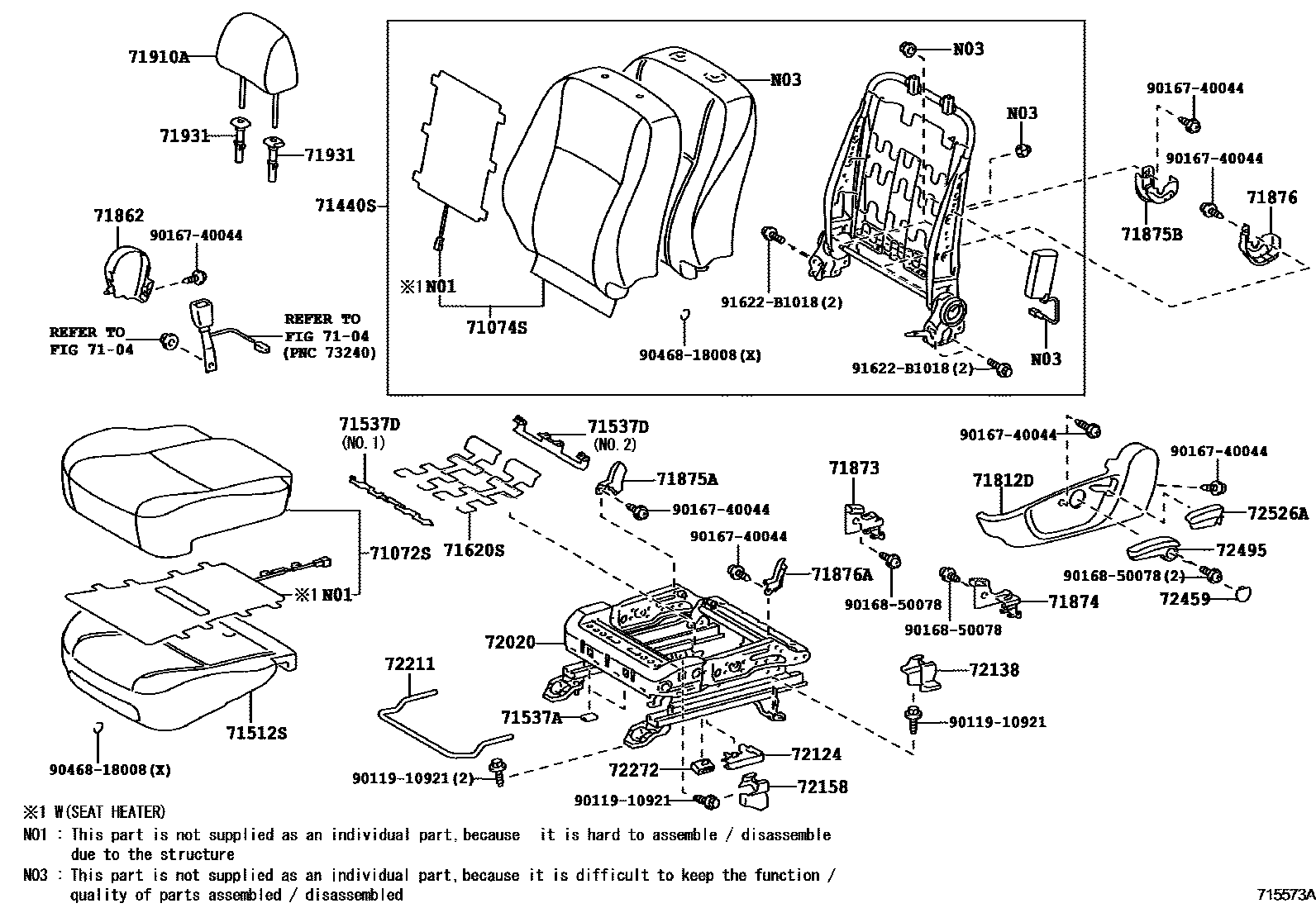

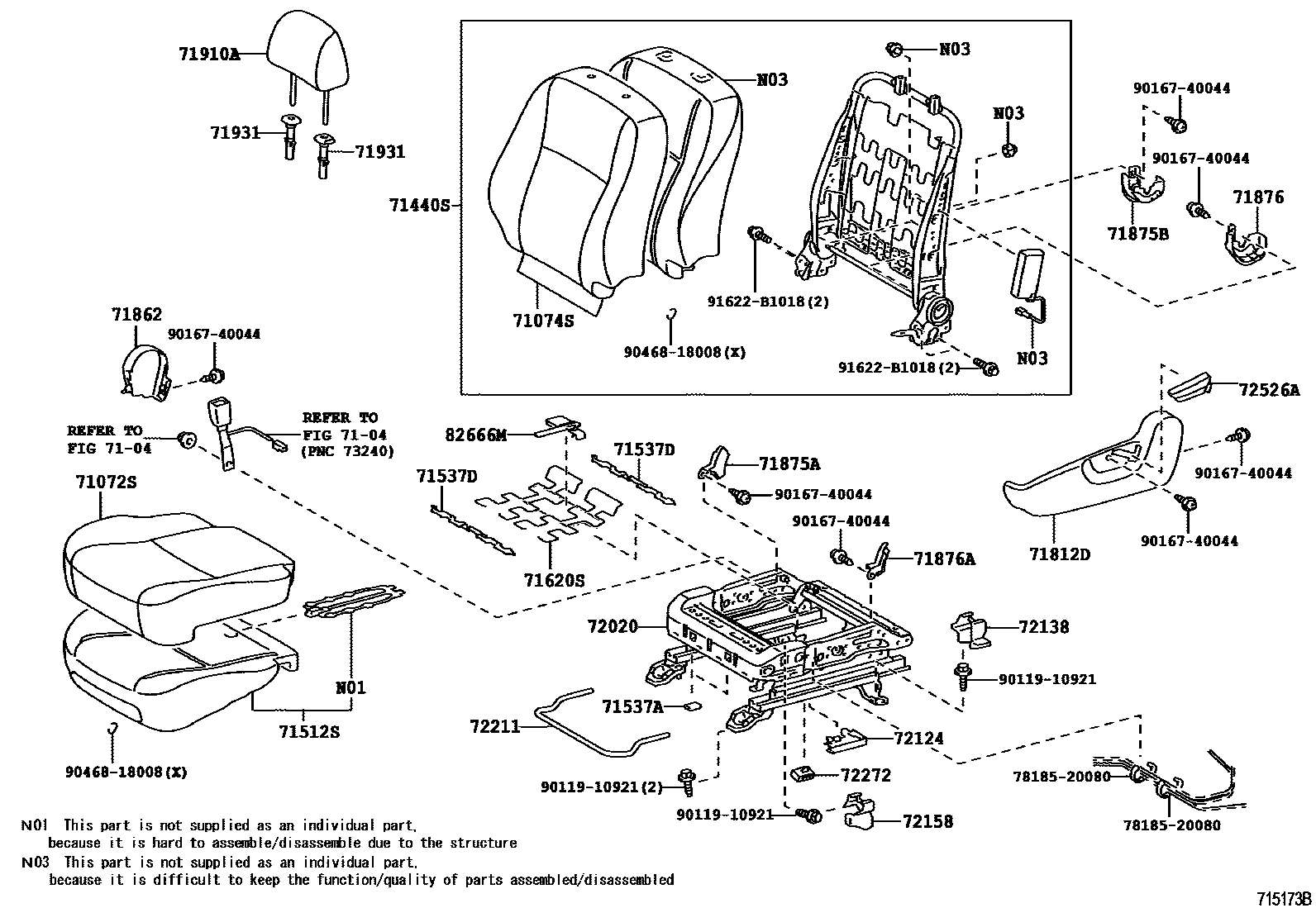

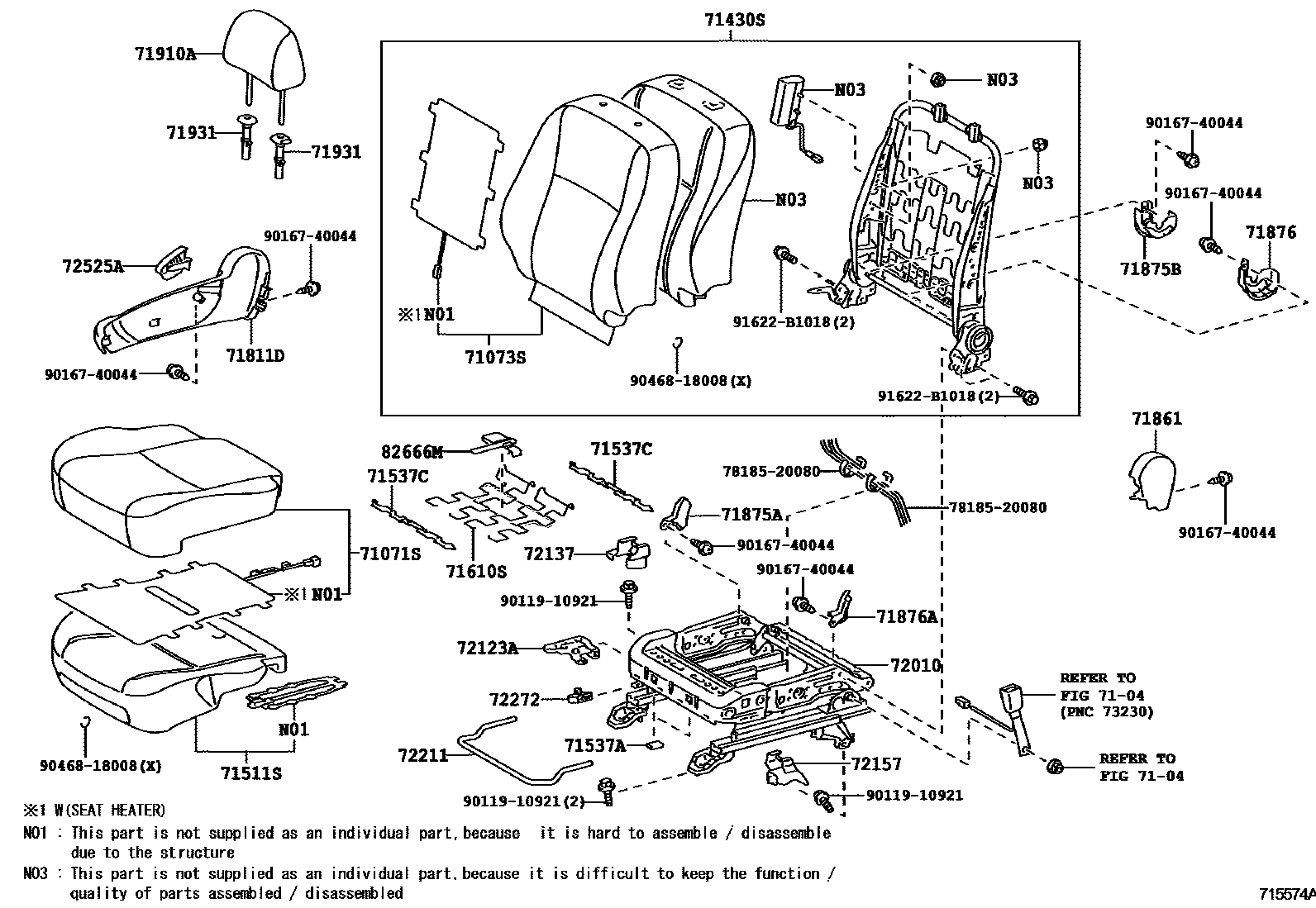

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02150 · 71511-02420 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02150 · 71512-02190 |
| 71537A | Front seat cushion protective cover | 71537-02020 |
| 71537C | Front right seat cushion edge protective cover | 71537-58010 · 71537-58020 |
| 71537D | Front left seat cushion edge protective cover | 71537-58010 · 71537-58020 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71051-02100 · 71051-02110 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71051-02100 · 71051-02110 |
| 71873 | Front right seat cushion lower guard panel | 71873-02060 |
| 71874 | Front left seat cushion lower guard | 71874-02060 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-02120 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-02110 |
| 72010 | Front right seat adjuster assembly | 72010-02370 · 72010-02380 |
| 72020 | Front left seat adjuster assembly | 72020-02350 · 72020-02360 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02020 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-02020 |
| 72211 | Seat slide adjustment handle | 72211-06020 |
| 72272 | Seat rail control cable clip | 72272-02050 |
| 82666M | Connector holder | 82666-21060 |
