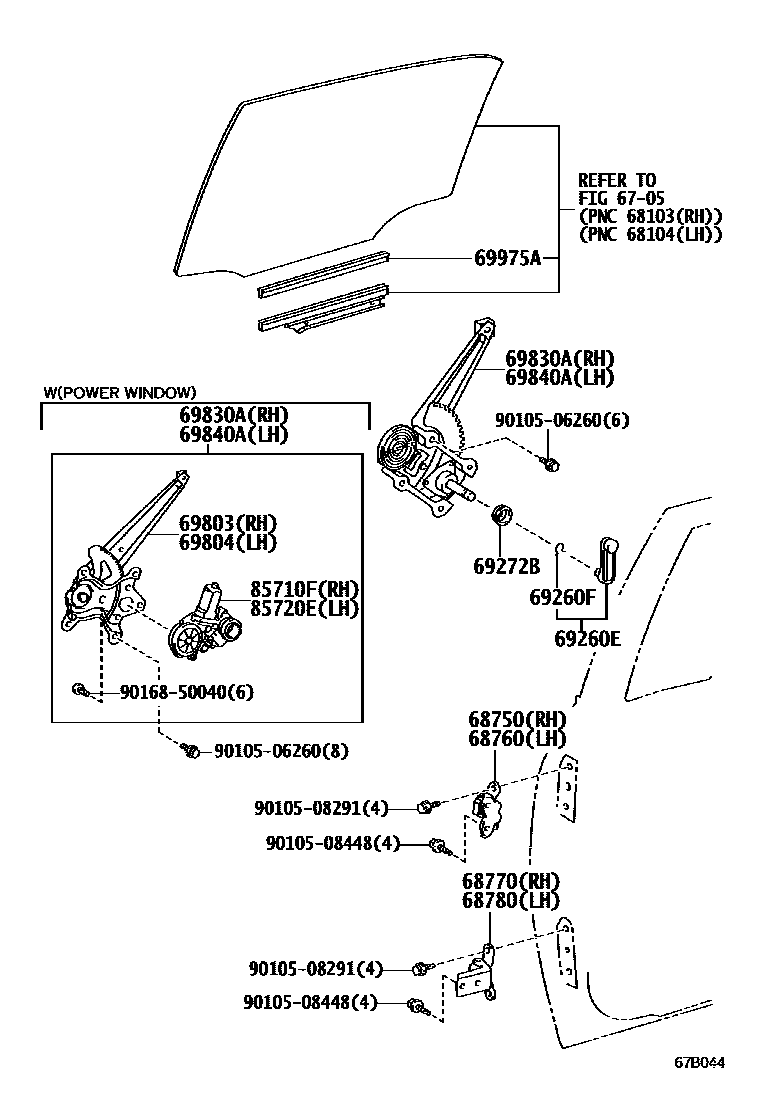

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02020 |
| 68760 | Left rear door upper hinge assembly | 68760-02020 |
| 68770 | Right rear door lower hinge assembly | 68770-02020 |
| 68780 | Left rear door lower hinge assembly | 68780-02020 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90080-52152 |
| 69272B | Rear door window regulator inner handle plate | 69268-02022 |
| 69803 | Right rear door window lifter sub-assembly | 69803-02160 |
| 69804 | Left rear door window lifter sub-assembly | 69804-02160 |
| 69830A | Right rear door window lift assembly | 69830-02220 · 69830-02230 |
| 69840A | Left rear door window lift assembly | 69840-02220 · 69840-02230 |
| 69975A | Rear door glass channel filler | 69975-12020 |
| 85710F | Right power window lift motor assembly | 85720-0D120 |
| 85720E | Left electric window lift motor assembly | 85710-0D100 |
