Toyota COROLLA 侧梁 — Figure 6101

Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 58 PNC and OE references.

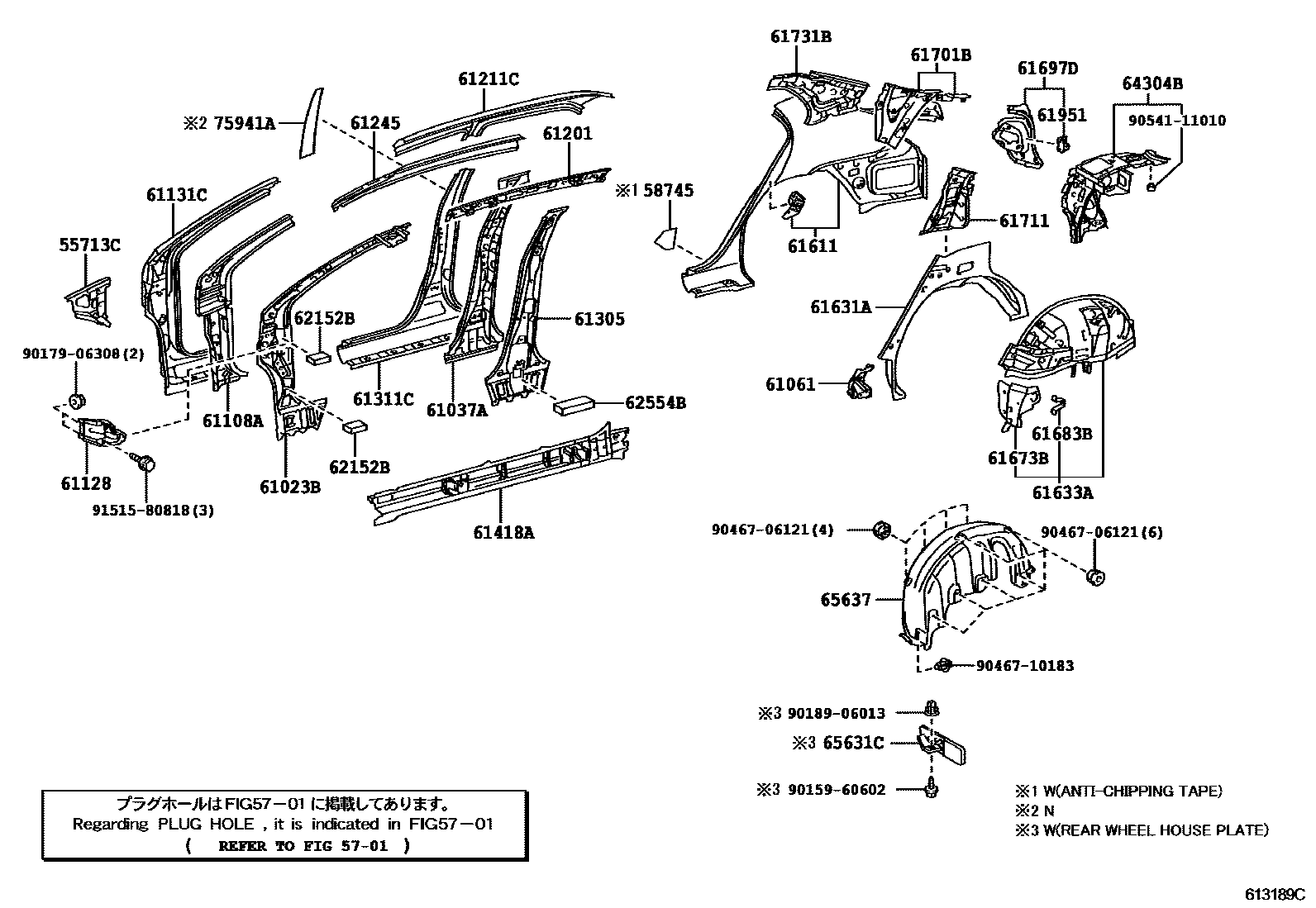

Toyota COROLLA 侧梁 EPC diagram — 613189C
侧梁 — 613189C (200802 – 999999)

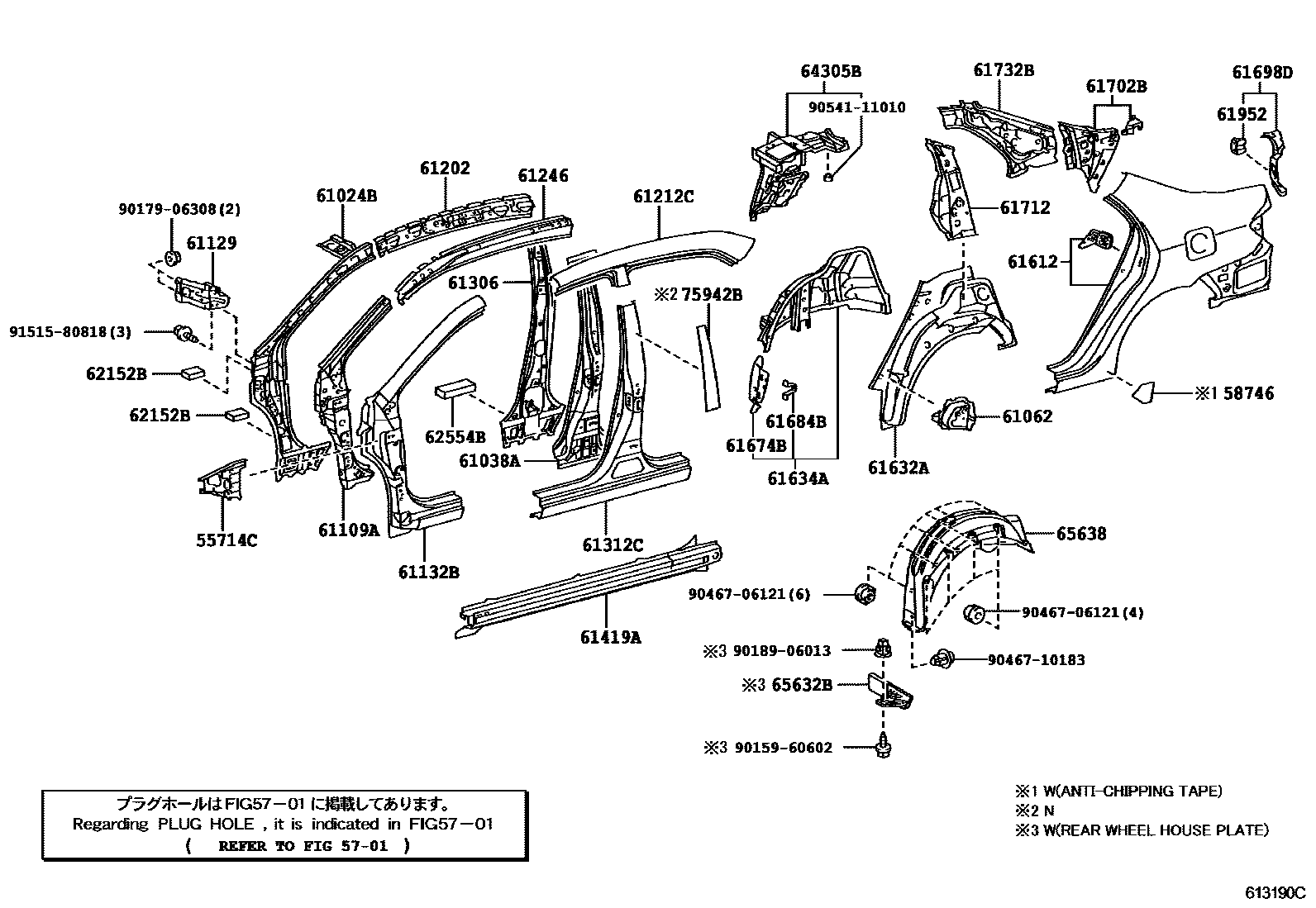

Toyota COROLLA 侧梁 EPC diagram — 613190C
侧梁 — 613190C (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
55713CRight front wall upper side panel55713-12130
55714CLeft front wall upper side panel55714-12130
58745Right front side panel protector58741-02120
58746Left front side panel protector58742-02120
61023BRight body inner front pillar sub-assembly61023-02260 · 61023-12370
61024BLeft body inner front pillar sub-assembly61024-02240 · 61024-12370
61037ARight body center pillar reinforcement sub-assembly61037-12310
61038ALeft body center pillar reinforcement sub-assembly61038-12300
61061Right wheel cover reinforcement sub-assembly61061-12010 · 61615-12010
61062Left wheel cover reinforcement sub-assembly61062-12010 · 61616-12020
61108ARight body front pillar lower reinforcement sub-assembly61108-02170 · 61108-12260
61109ALeft side body front pillar lower reinforcement sub-assembly61109-02170 · 61109-12250
61128Right front wall side panel reinforcement61103-12230
61129Left front wall side panel reinforcement61104-12260
61131CRight body outer front pillar61131-02200
61132BLeft body outer front pillar61132-02230
61201Roof right side longitudinal beam sub-assembly61201-02160 · 61201-12210
61202Roof left side longitudinal beam sub-assembly61202-02160 · 61202-12200
61211CRoof right side rail61211-02130
61212CRoof left side rail61212-02130
61245Roof right outer longitudinal beam reinforcement61245-12080
61246Roof left outer longitudinal beam reinforcement61246-12080
61305Right body center pillar lower reinforcement sub-assembly61305-02090 · 61305-12150
61306Left body center pillar lower reinforcement sub-assembly61306-02090 · 61306-12150
61311CRight rear body front outer panel61311-02160
61312CLeft rear body front outer panel61312-02160
61418ARight side door sill panel reinforcement61403-12070 · 61403-12071
61419ALeft side rocker panel reinforcement61404-12080 · 61404-12081
61611Right side hoarding61601-02220
61612left side panel61602-02230
61631ARight wheel cover outer panel61631-02090
61632ALeft side wheel cover outer panel61632-02090
61633ARight wheel housing lining panel61607-02948
61634ALeft side wheel housing lining panel61608-02938
61673BRight wheel housing lining panel reinforcement61673-12040
61674BLeft side wheel housing lining plate reinforcement61674-12070
61683BNo. 1 right rear fender external panel bracket61683-12050
61684BNo. 1 left rear fender external panel bracket61683-12050
61697DRight side enclosure end cover61697-02908
61698DLeft side enclosure end cover61698-02908
61701BRoof right inner upper panel sub-assembly61701-02020
61702BRoof left inner upper panel sub-assembly61702-02020
61711Roof right side outer panel61711-02030
61712Roof left outer panel61712-02030
61731BRoof right inner panel61731-02160
61732BRoof left inner panel61732-02160
61951Right trim part bracket61951-12010
61952Right trim part bracket61952-12010
62152BNo. 2 silencer pad on cowl side62152-02030
62554BNo. 4 column pad62554-02170
64304BGlove box bracket right reinforcement sub-assembly64304-02071 · 64304-02072
64305BGlove box bracket left reinforcement sub-assembly64305-02071 · 64305-02072
65631CRight rear wheel house front panel65631-02100 · 65631-02180
65632BLeft rear wheel house front panel65632-02100 · 65632-02180
65637Right rear wheel house lining65637-02050
65638Left rear wheel house lining65638-02050
75941ARight center pillar trim75941-02060
75942BLeft center pillar trim75942-02060
