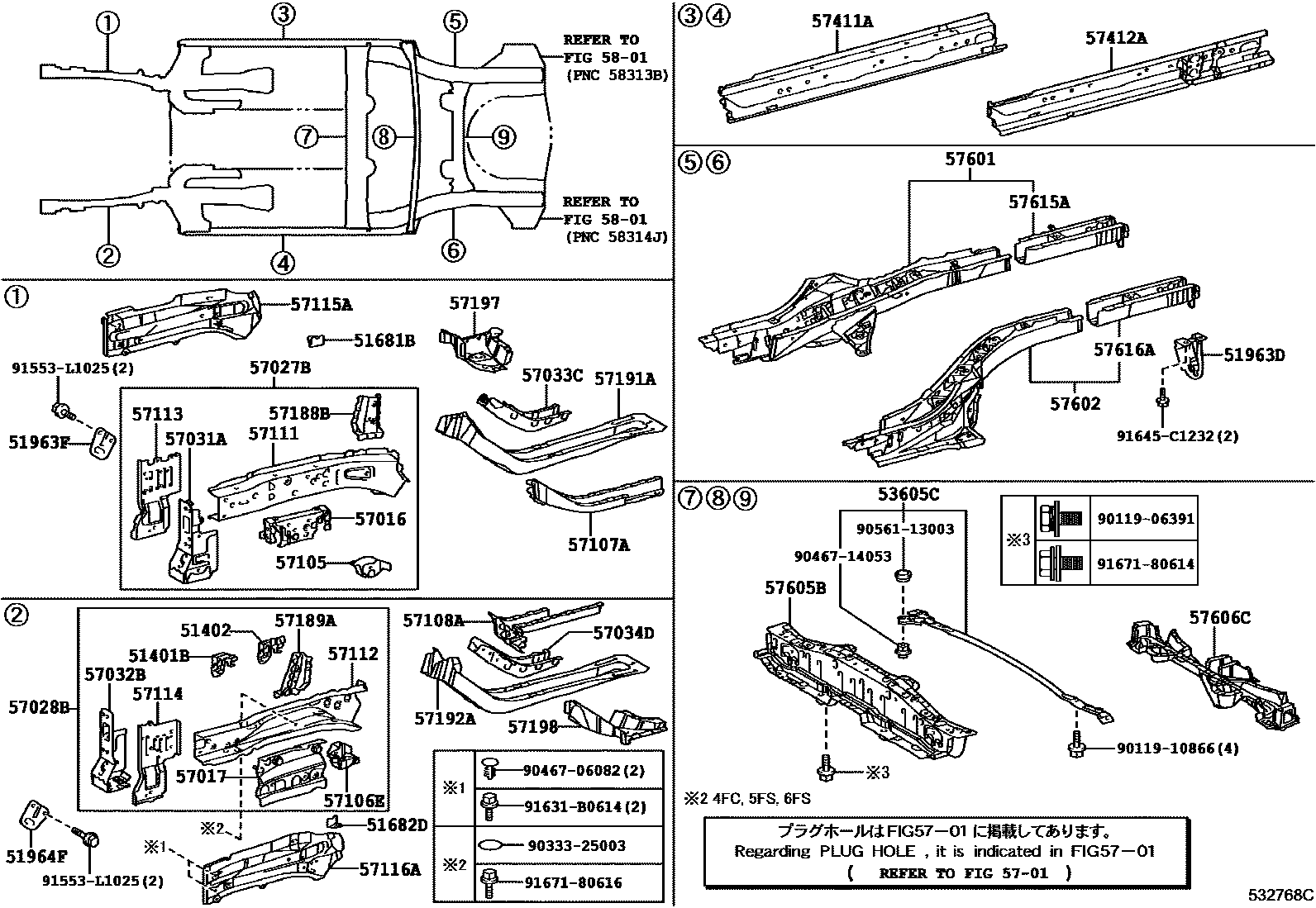

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51401B | Engine front mounting bracket sub-assembly | 51401-12020 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-12020 |
| 51681B | Right front wheel brake flexible hose support plate | 51681-12080 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-12080 |
| 51963D | Left rear transport hook | 51968-02100 |
| 51963F | transport hook | 51963-02100 |
| 51964F | left transport hook | 51964-02030 |
| 53605C | Rear floor longitudinal beam bracket sub-assembly | 53605-12020 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-12110 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-12070 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-02040 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-02030 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-12010 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-12010 |
| 57033C | No. 3 right front longitudinal beam reinforcement sub-assembly | 57033-12010 |
| 57034D | No. 3 left front longitudinal beam reinforcement sub-assembly | 57034-12010 |
| 57105 | Right front suspension cross member front mounting bracket sub-assembly | 57105-12160 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-12150 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-12120 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-12140 |
| 57111 | Right front longitudinal beam | 57111-02120 |
| 57112 | Left front longitudinal beam | 57112-02110 |
| 57113 | Right front longitudinal beam extension | 57113-02080 |
| 57114 | Left front longitudinal beam extension | 57114-02080 |
| 57115A | Right front longitudinal beam outer panel | 57115-02050 |
| 57116A | Left front longitudinal beam outer panel | 57116-02050 |
| 57188B | Right front longitudinal beam to spring bracket corner plate | 57188-12030 |
| 57189A | Left front longitudinal beam to spring bracket corner plate | 57189-12010 |
| 57191A | Right rear longitudinal member inside front floor | 57191-02110 |
| 57192A | Left rear longitudinal member inside front floor | 57192-02110 |
| 57197 | Right front torsion box section piece | 57197-12040 |
| 57198 | Left front anti-torsion box section piece | 57198-12040 |
| 57411A | Floor right inner longitudinal beam | 57401-02160 |
| 57412A | Floor left inner longitudinal beam | 57402-02160 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02929 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02928 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02140 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-02100 |
| 57615A | Rear floor right rear longitudinal member | 57603-02070 |
| 57616A | Rear floor left rear longitudinal member | 57604-02040 |
