Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

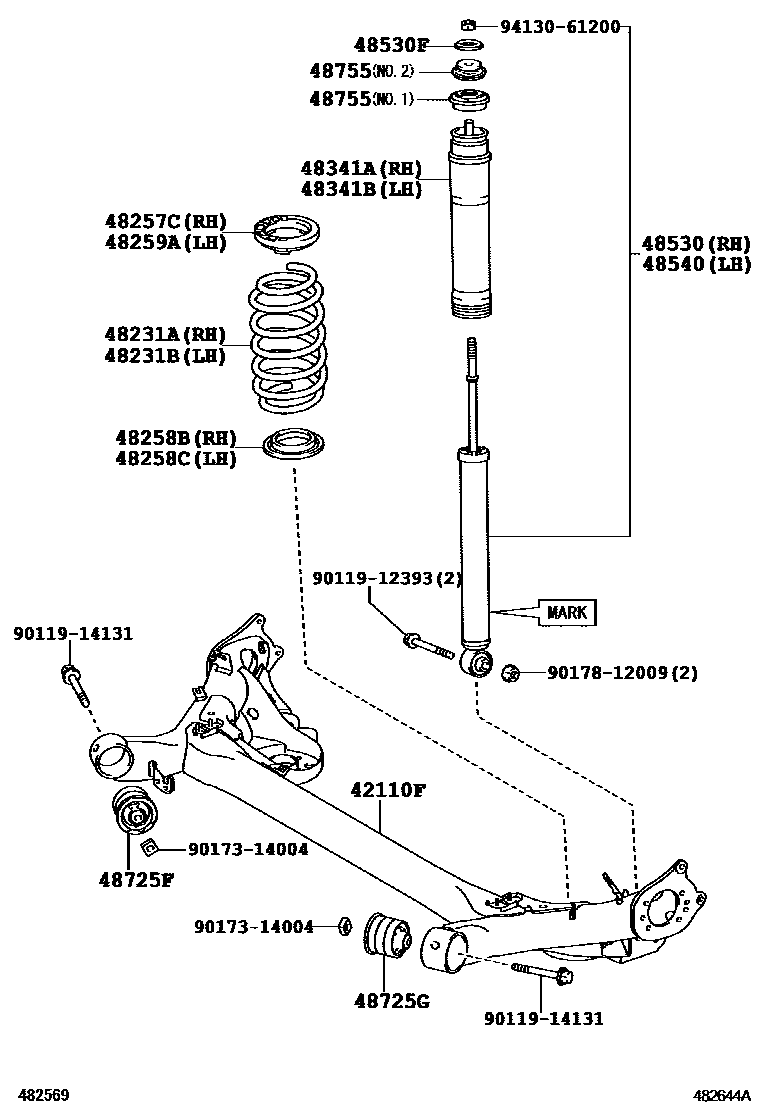

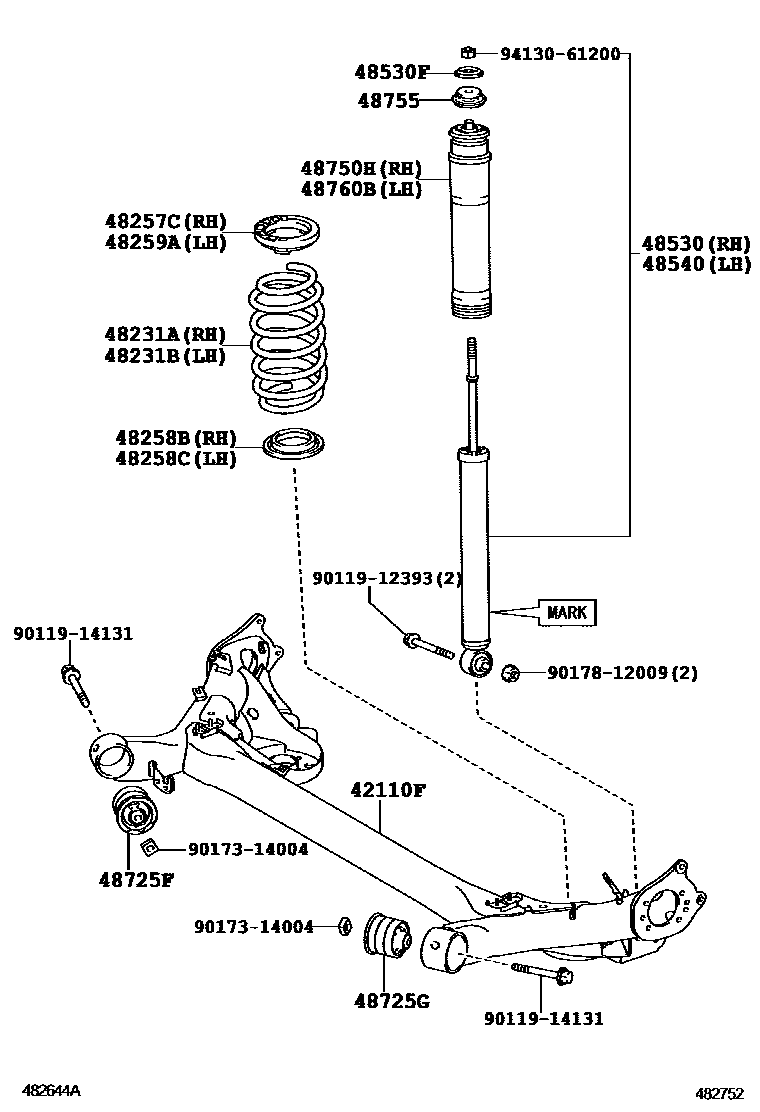

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-02270 · 42101-02300 |
| 48231A | Right rear coil spring | 48231-02610 · 48231-02620 |
| 48231B | Left rear coil spring | 48231-02610 · 48231-02620 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0D050 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0D050 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48341A | No. 1 right rear spring buffer block | 48341-02080 |
| 48341B | No. 1 left rear spring buffer block | 48341-02080 |
| 48530 | Right rear shock absorber assembly | 48530-09N70 · 48530-09N80 · 48530-09R00 · 48530-09R01 · 48530-09R10 · 48530-09R11 |
| 48530F | Rear shock absorber buffer pad | 90948-02159 |
| 48540 | Left rear shock absorber assembly | 48530-09N70 · 48530-09N80 · 48530-09R00 · 48530-09R01 · 48530-09R10 · 48530-09R11 |
| 48725F | Right rear axle bracket bushing | 48725-02200 |
| 48725G | Left rear axle bracket bushing | 48725-02200 |
| 48750H | Right rear suspension support assembly | 48750-02101 |
| 48755 | rear suspension mount | 48755-02121 · 48755-02131 |
| 48760B | Left rear suspension support assembly | 48750-02101 |
