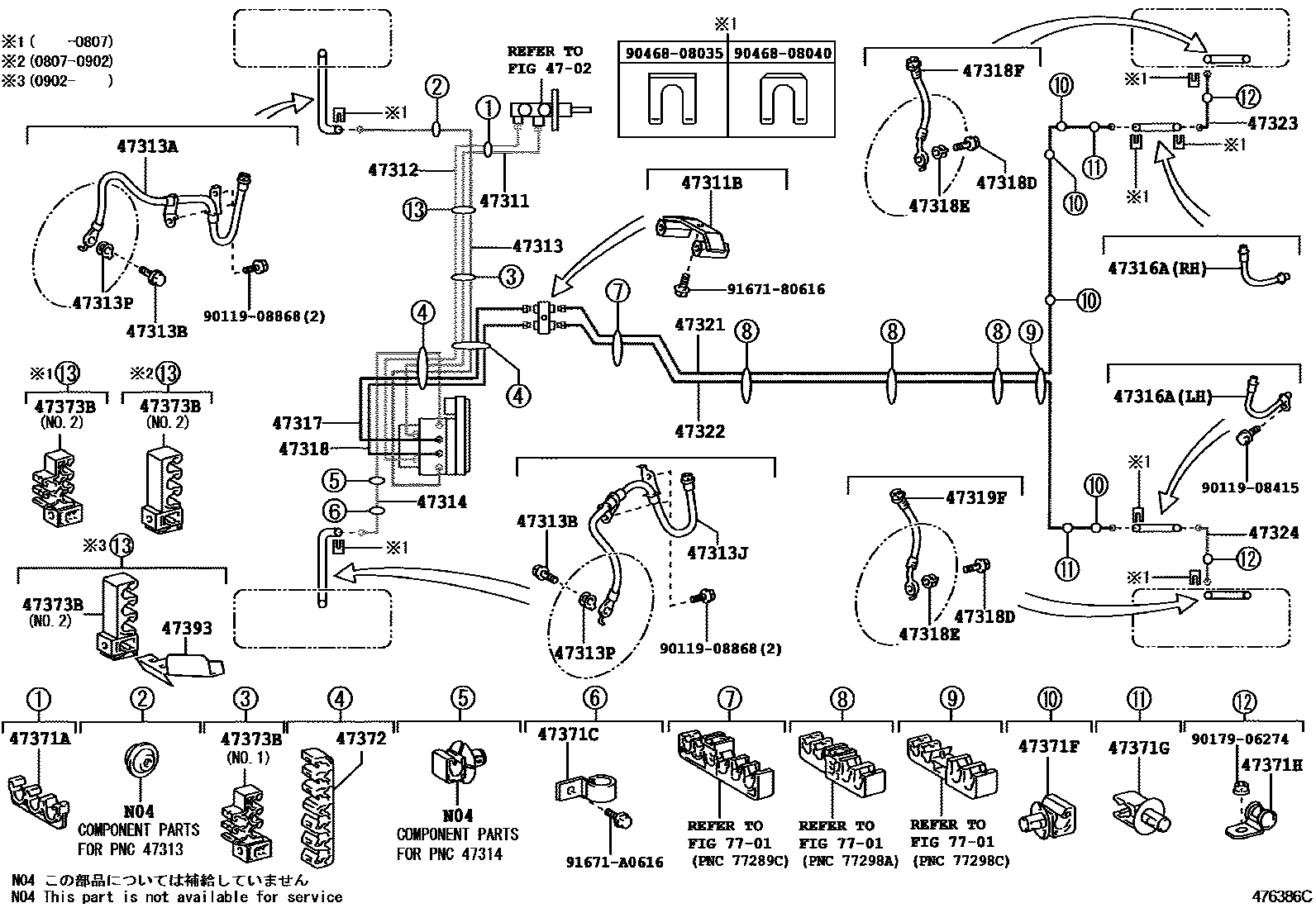

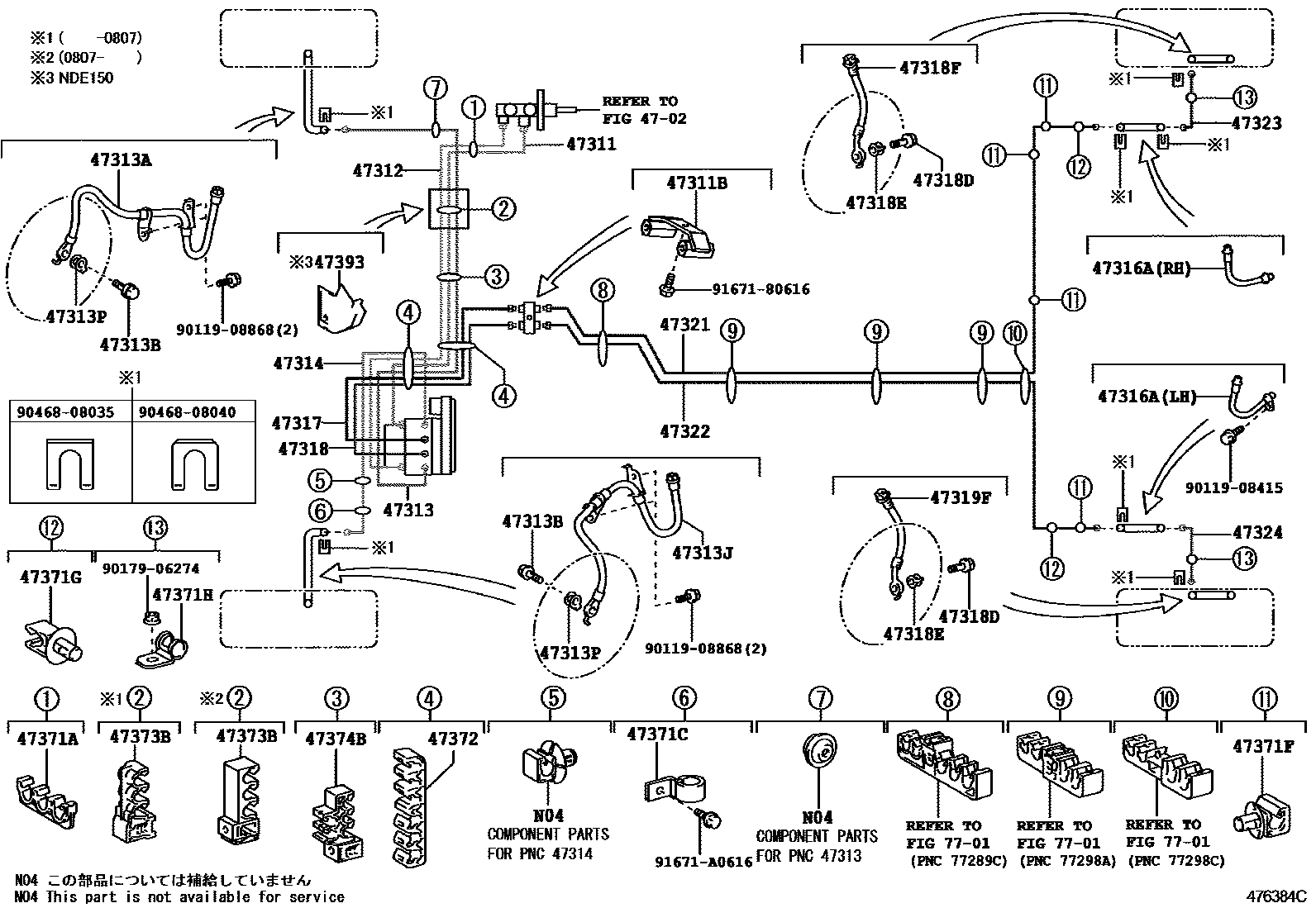

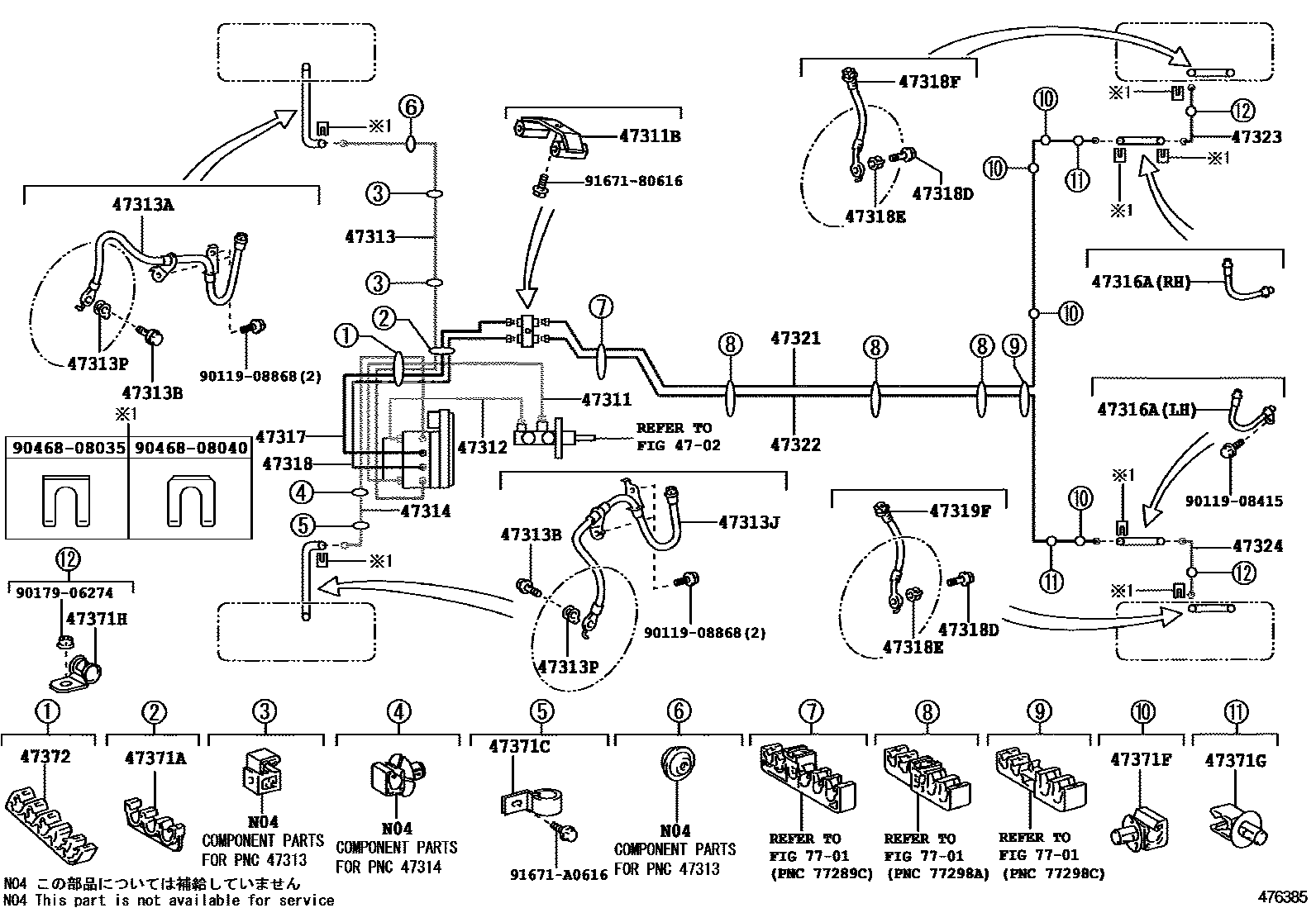

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

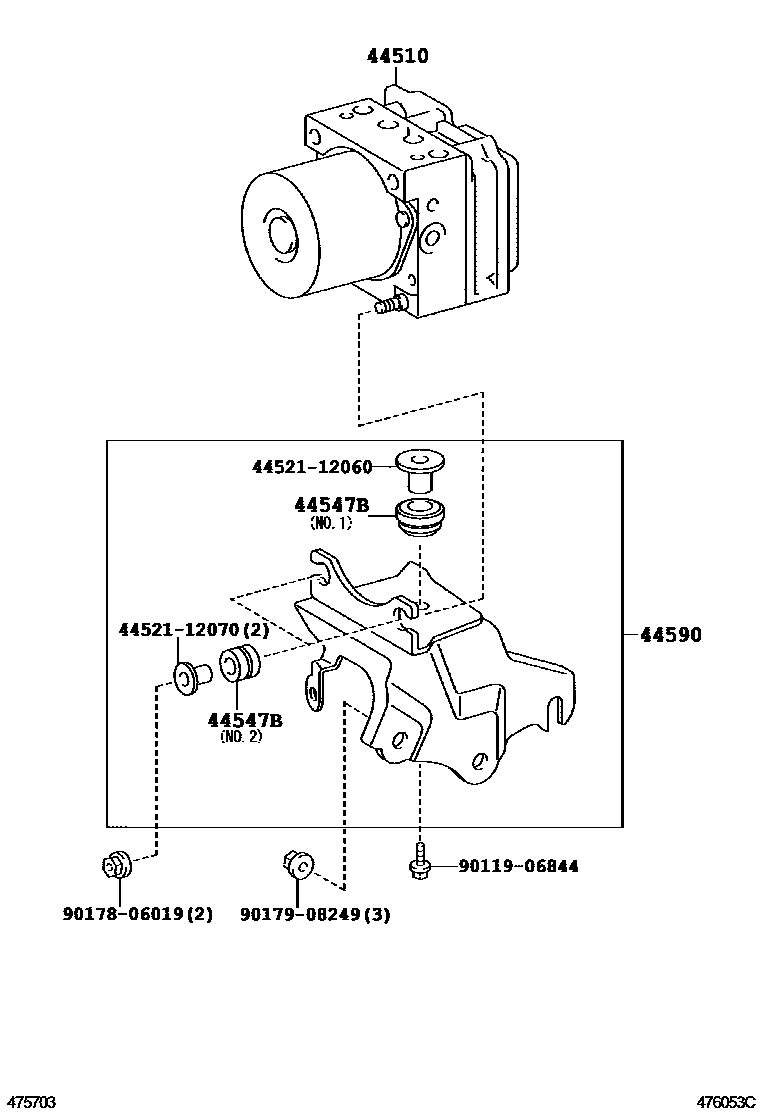

| 44510 | brake actuator assembly | 44050-02180 · 44050-02190 · 44050-02360 · 44050-02420 · 44050-02430 · 44050-02600 · 44050-02620 |
| 44547B | brake actuator bracket cushion | 44547-12010 · 44547-12030 |
| 44590 | Brake actuator bracket assembly | 44590-12120 · 44590-12130 |
| 47311 | No. 1 front brake pipe | 47311-02420 · 47311-02480 · 47311-02490 · 47311-02500 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10255 |
| 47312 | No. 2 front brake pipe | 47312-02290 · 47312-02360 · 47312-02370 · 47312-02380 |
| 47313 | No. 3 front brake pipe | 47313-02370 · 47313-02430 · 47313-02440 · 47313-02450 |
| 47313A | No. 1 front flexible hose | 90947-W2012 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2013 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02420 · 47314-02430 · 47314-02440 · 47314-02450 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-W2014 · 90947-W2015 |
| 47317 | No. 7 front brake pipe | 47317-02340 · 47317-02350 · 47317-02360 · 47317-02370 · 47317-02371 |
| 47318 | No. 8 front brake pipe | 47318-02360 · 47318-02370 · 47318-02380 · 47318-02390 · 47318-02391 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2016 |
| 47319F | Left rear flexible hose | 90947-W2016 |
| 47321 | No. 1 rear brake pipe | 47321-02210 |
| 47322 | No. 2 rear brake pipe | 47322-02210 |
| 47323 | No. 3 rear brake pipe | 47323-02090 |
| 47324 | No. 4 rear brake pipe | 47324-02090 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 · 90464-00884 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 90461-10837 |
| 47372 | No. 2 brake pipe clamp | 90464-00885 · 90464-00890 · 90464-00895 · 90464-00900 |
| 47373B | No. 3 brake pipe clamp | 90949-01D05 · 90949-01D32 · 90949-01D42 · 90949-01D69 · 90949-01D70 |
| 47374B | No. 4 brake pipe clamp | 90949-01D45 |
| 47393 | brake pipe heat shield | 47393-12020 · 47393-20030 |
