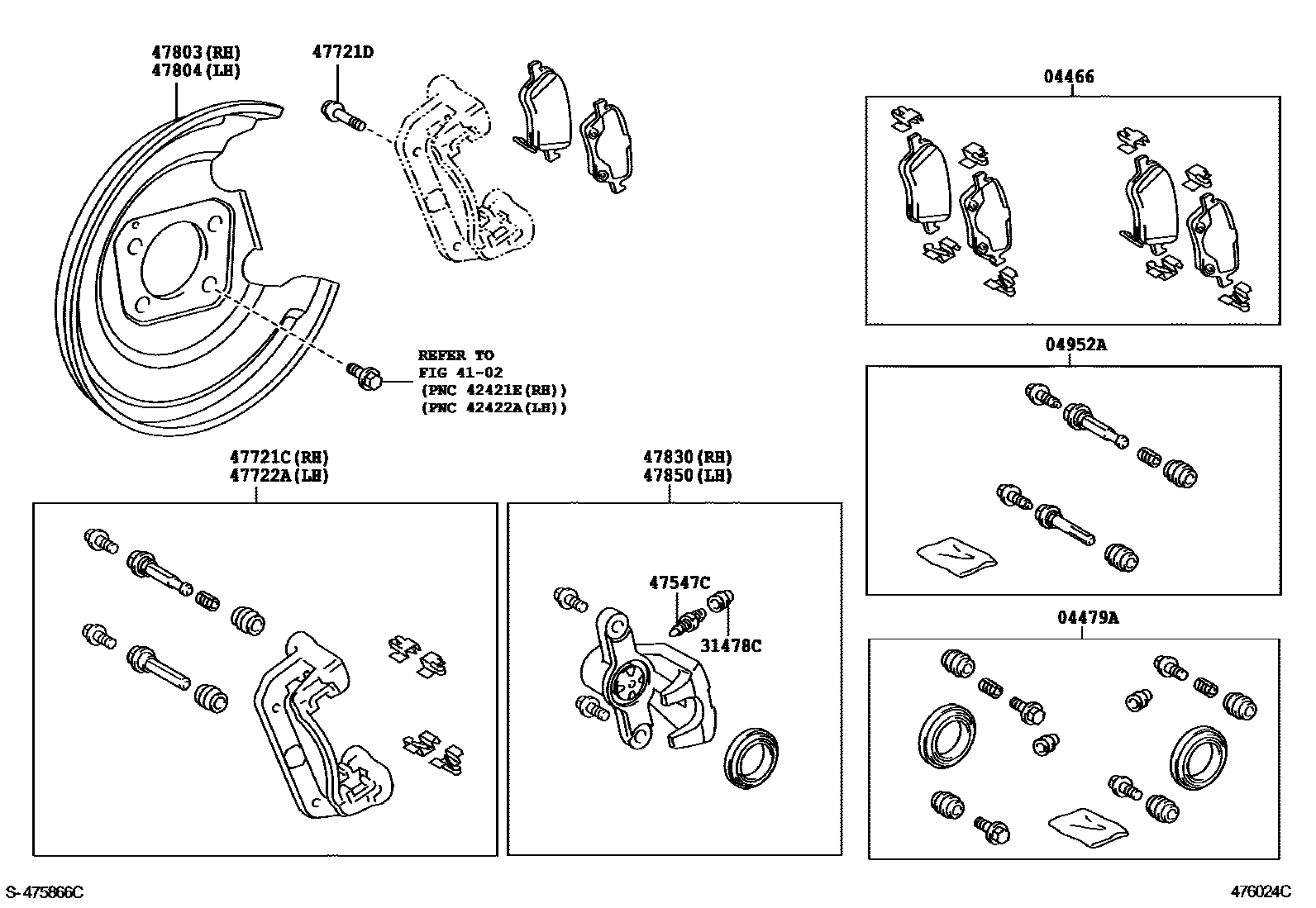

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02180 · 04466-02181 |
| 04479A | Rear disc brake cylinder assembly | 04479-02310 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-02220 |
| 31478C | Bleed plug cap (for rear disc brake) | 90069-39001 |
| 47547C | Bleed plug (for rear disc brake) | 90069-39000 |
| 47721C | Right rear disc brake cylinder retainer | 47821-09020 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90105-10404 |
| 47722A | Left rear disc brake cylinder retainer | 47822-09020 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47881-02051 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47882-02051 |
| 47830 | Right rear disc brake cylinder assembly | 47830-02100 |
| 47850 | Left rear disc brake cylinder assembly | 47850-02100 |
