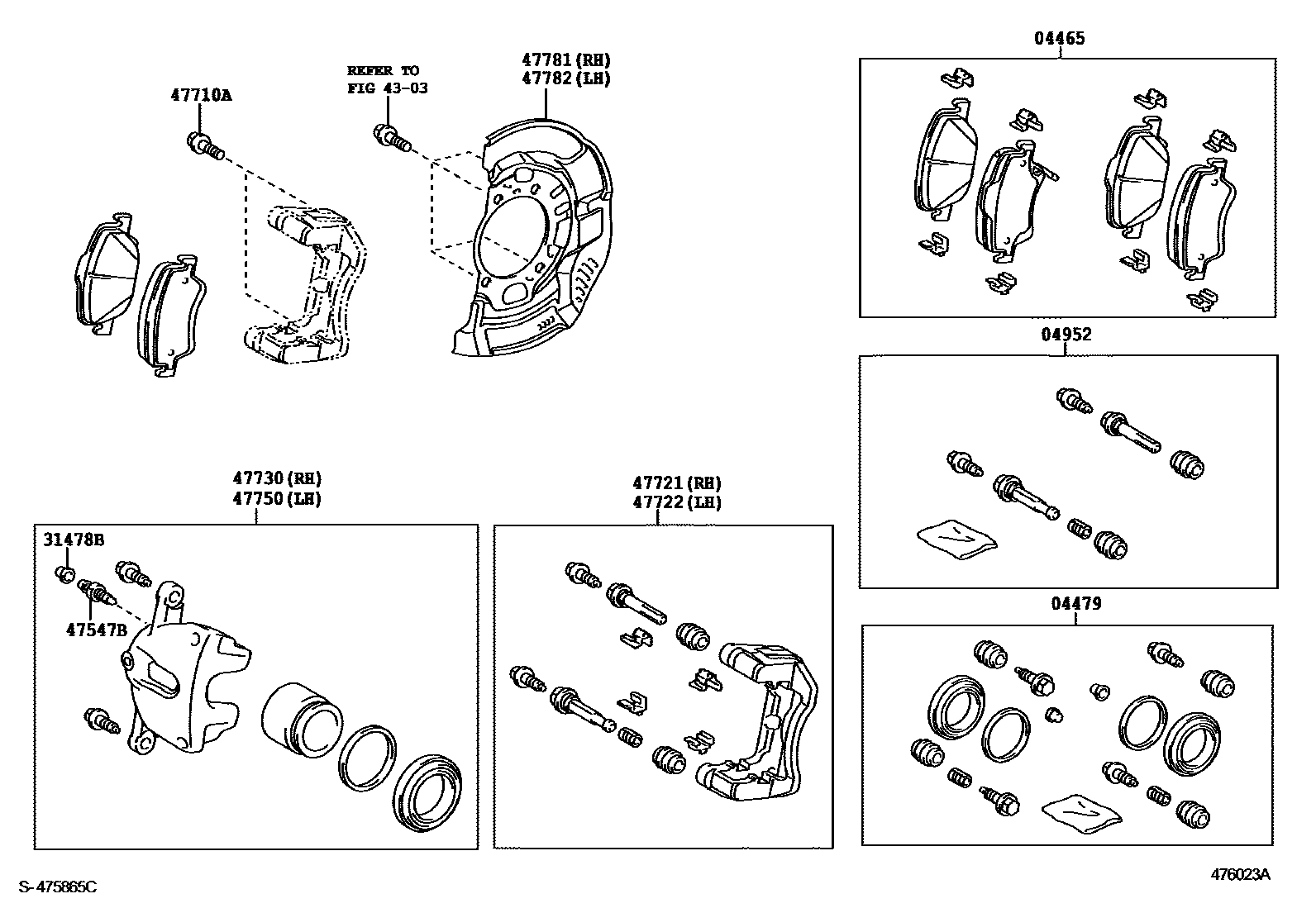

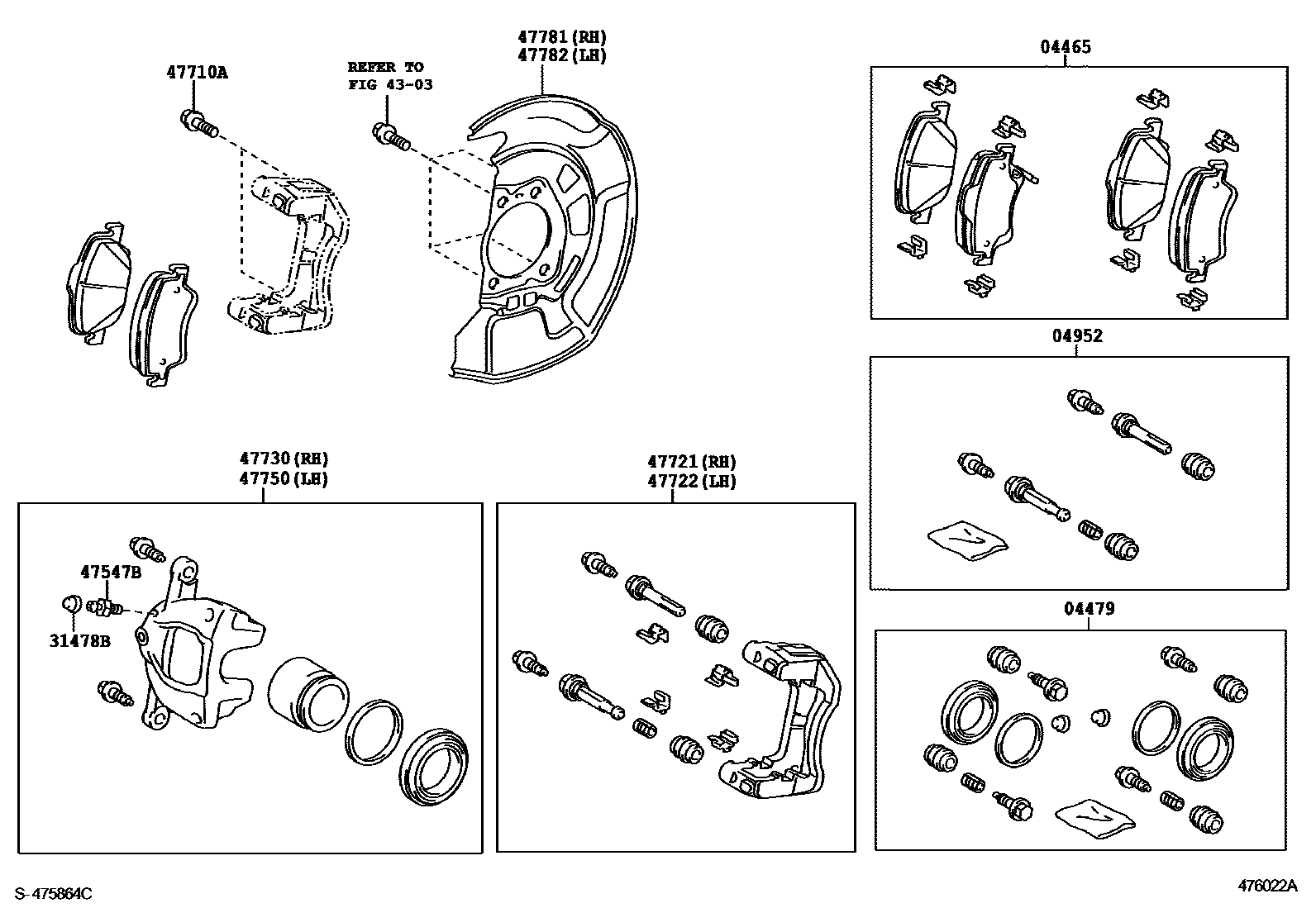

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02190 · 04465-02210 · 04465-02270 · 04465-02280 · 04465-02340 · 04465-02370 · 04465-0F010 |
| 04479 | Front disc brake cylinder assembly | 04478-02160 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-02220 |
| 31478B | Bleeder plug cap (for front disc brake) | 90069-39001 |
| 47547B | Bleed plug (for front disc brake) | 90069-39000 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47721 | Right front disc brake cylinder retainer | 47721-09360 · 47721-09370 · 47721-09480 · 47721-09490 |
| 47722 | Left front disc brake cylinder retainer | 47722-09120 · 47722-09130 · 47722-09180 · 47722-09190 |
| 47730 | Right front disc brake cylinder assembly | 47730-02340 · 47730-02341 · 47730-02360 · 47730-02361 |
| 47750 | Left disc brake cylinder assembly | 47750-02340 · 47750-02341 · 47750-02360 · 47750-02361 |
| 47781 | Right front disc brake dust cover | 47781-02110 · 47781-42040 |
| 47782 | Left front disc brake dust cover | 47782-02110 · 47782-42040 |
