Toyota COROLLA 制动助力器和真空管 — Figure 4703

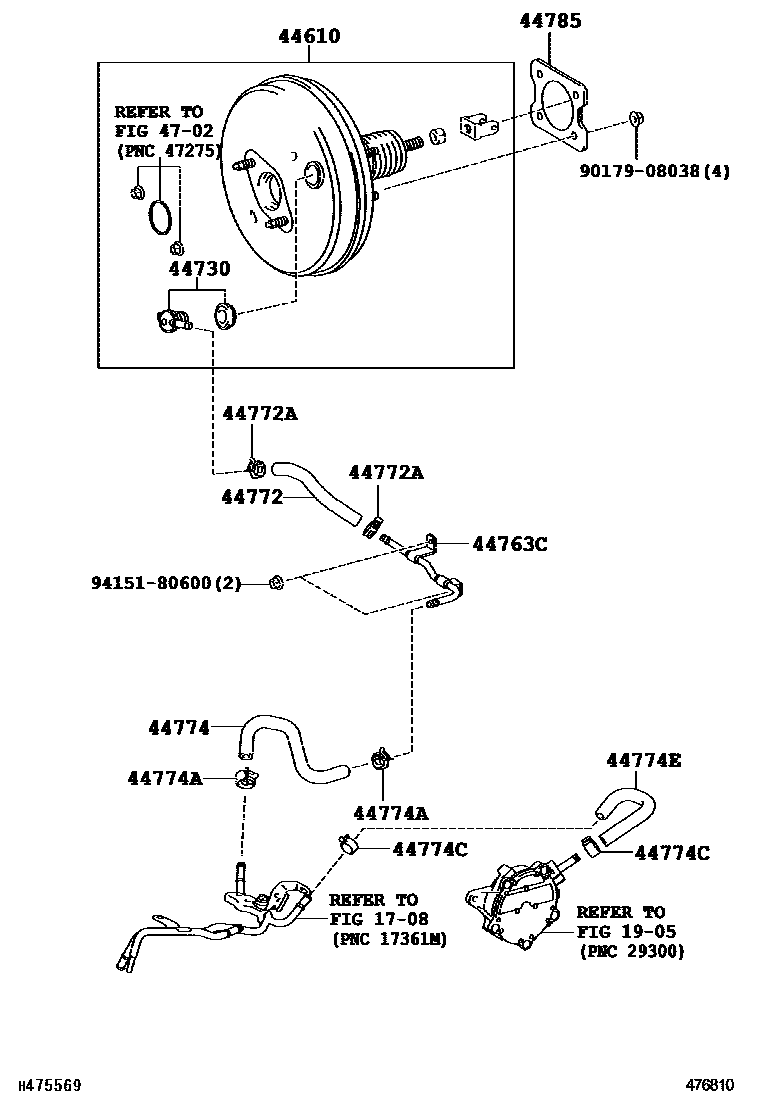

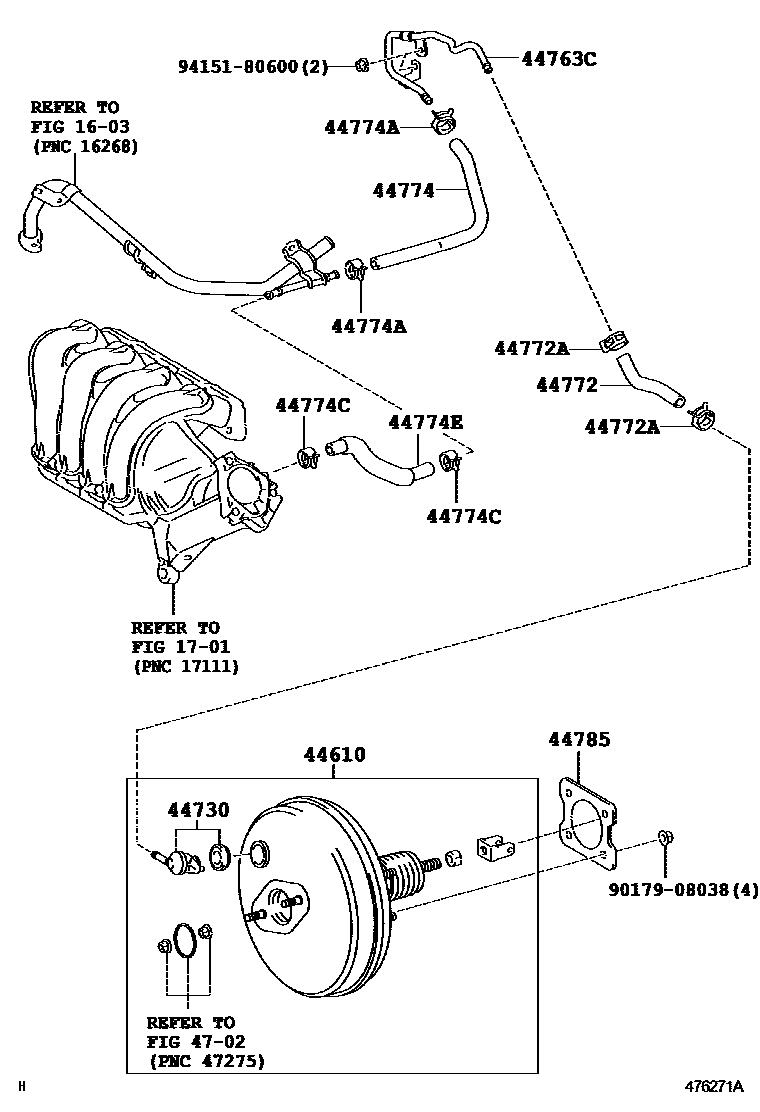

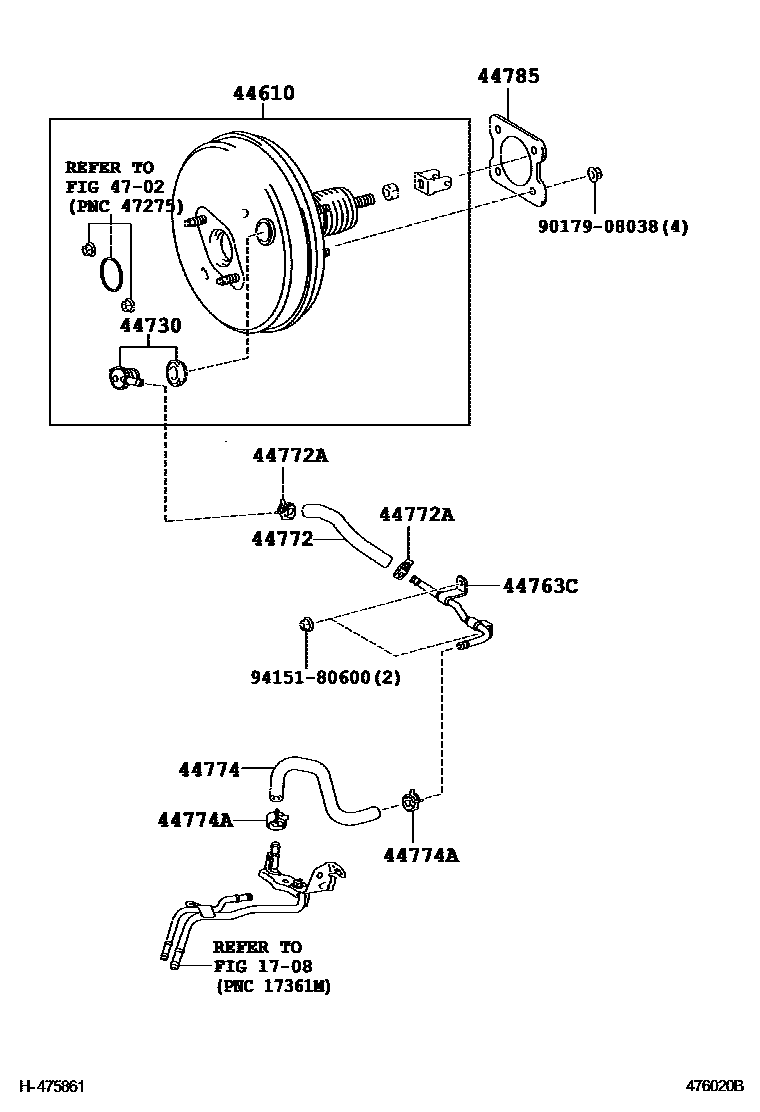

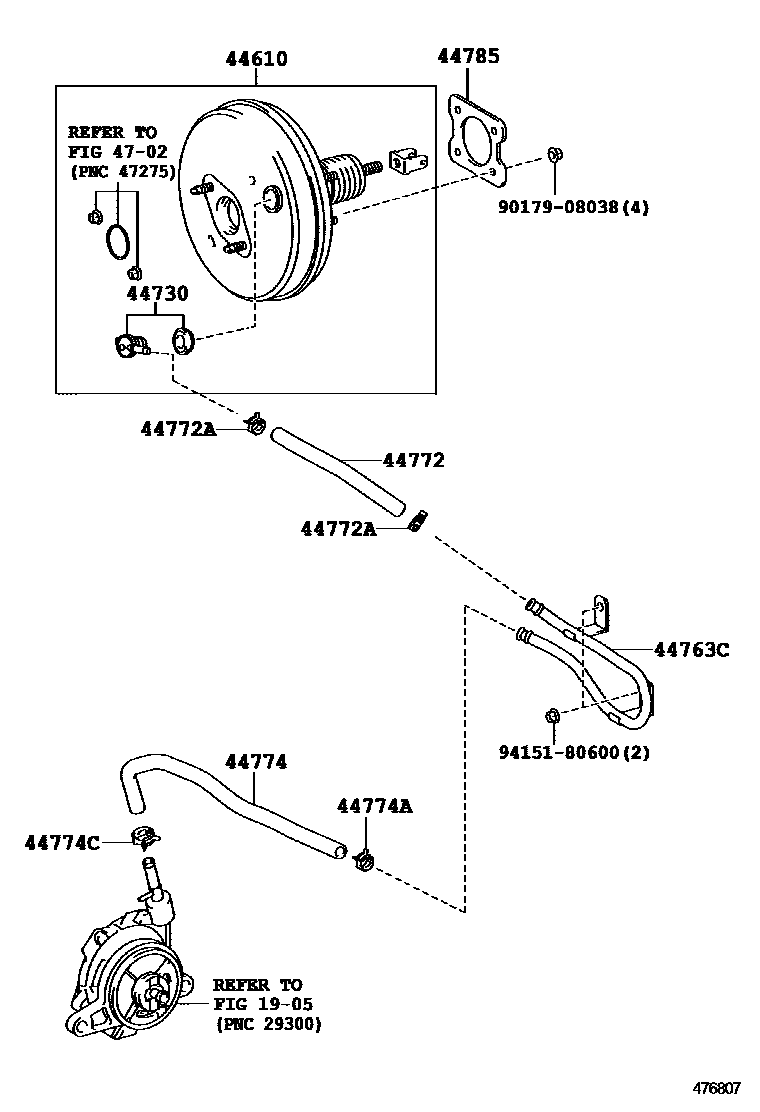

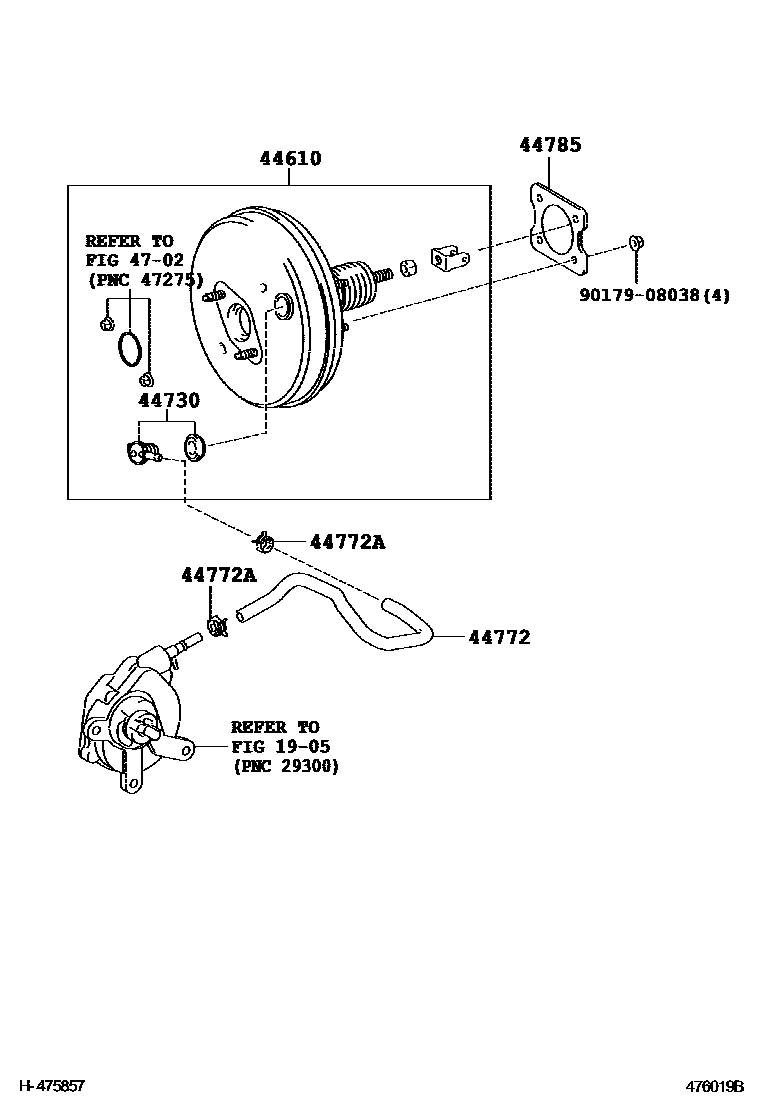

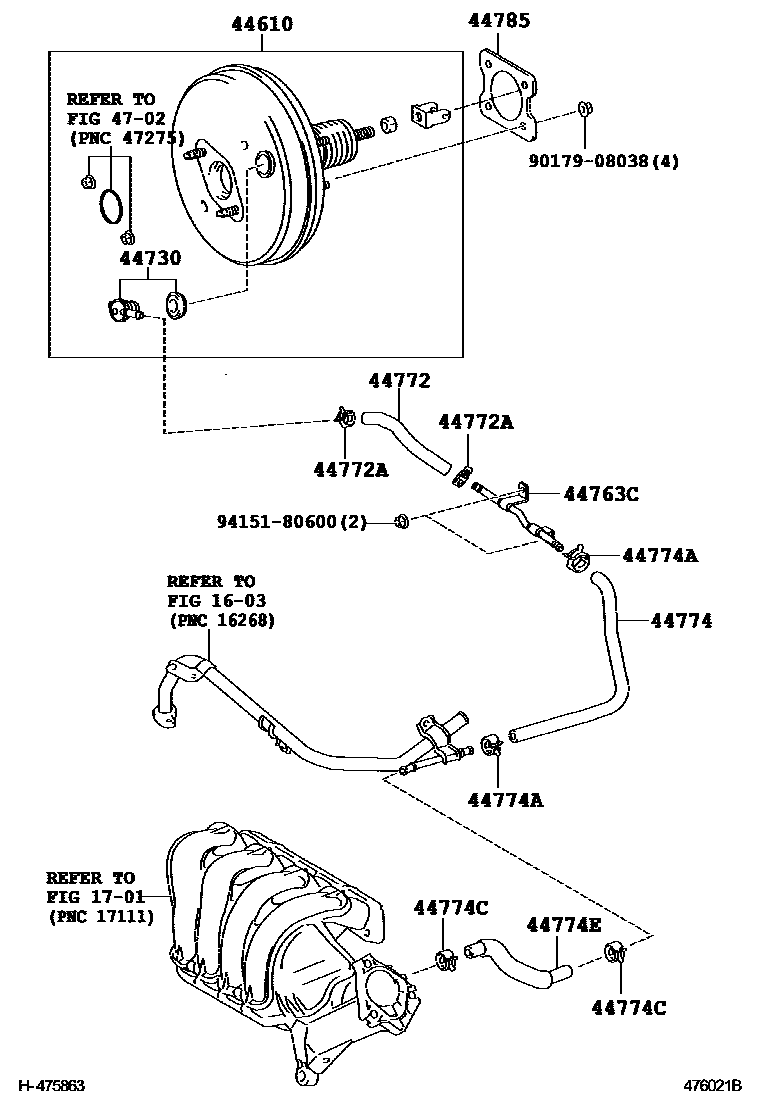

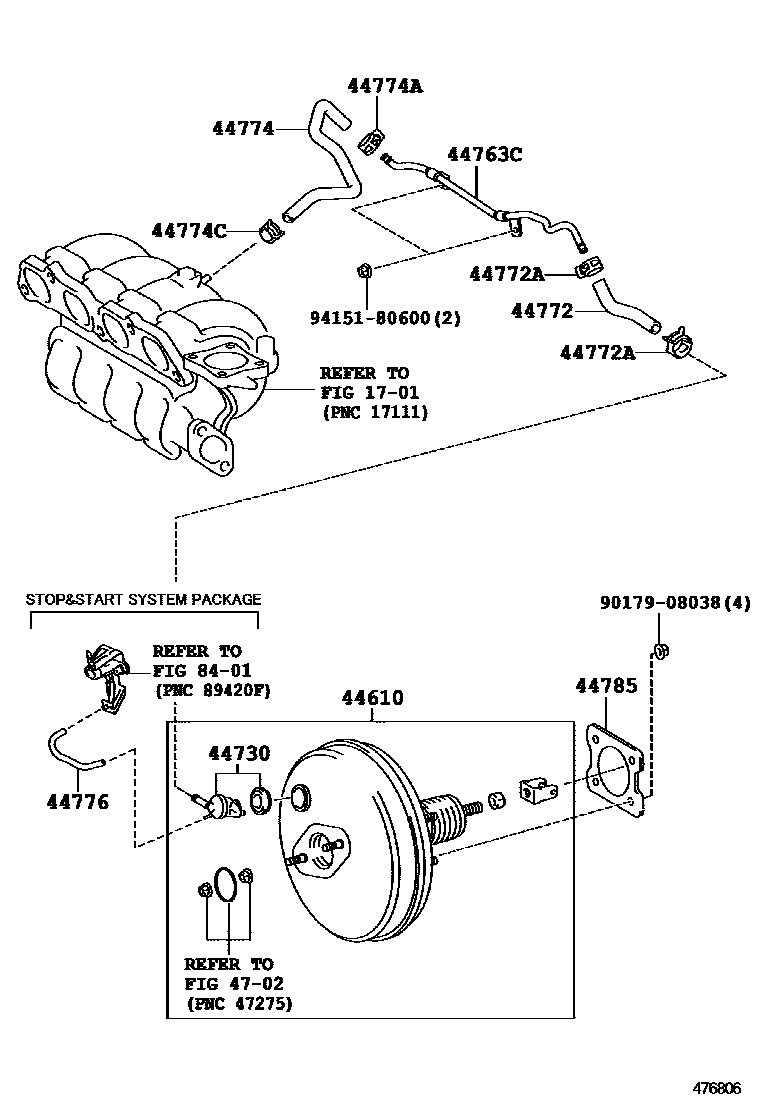

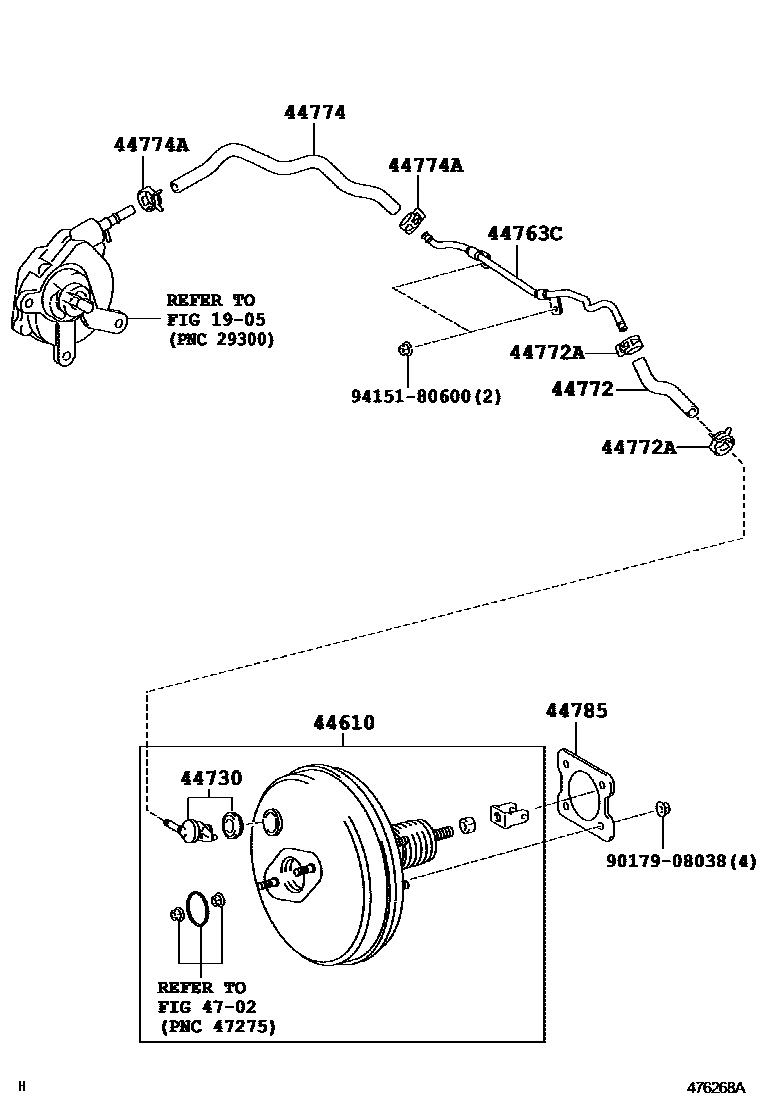

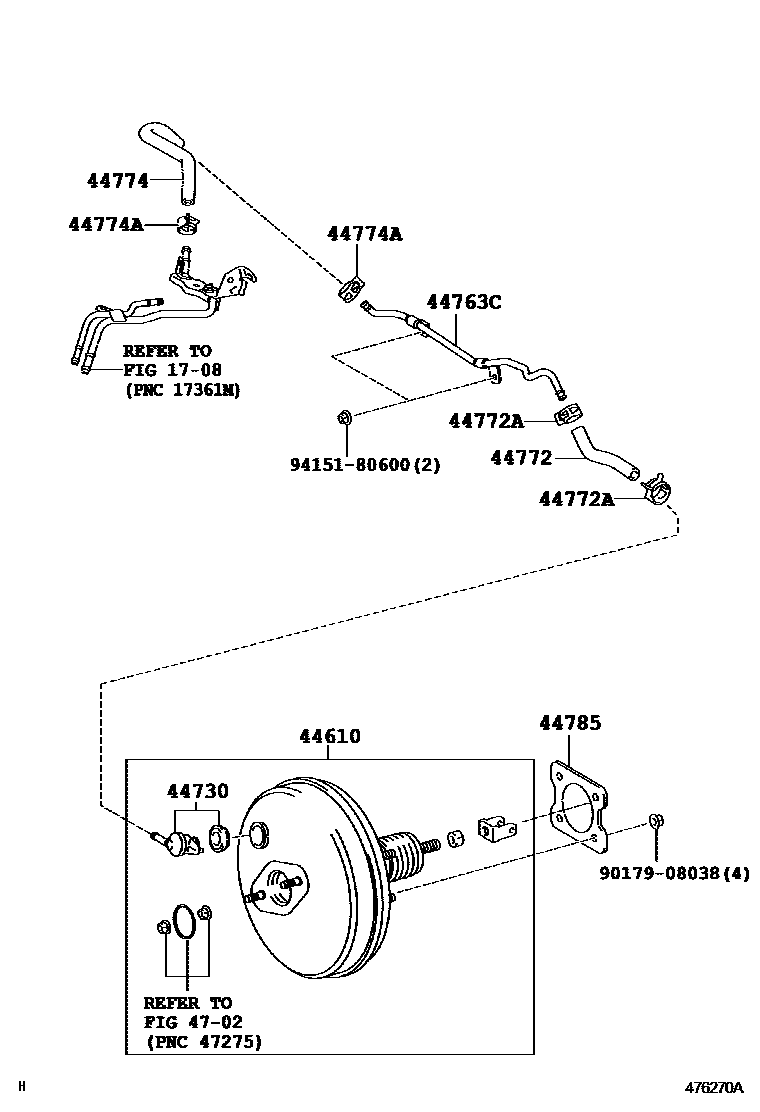

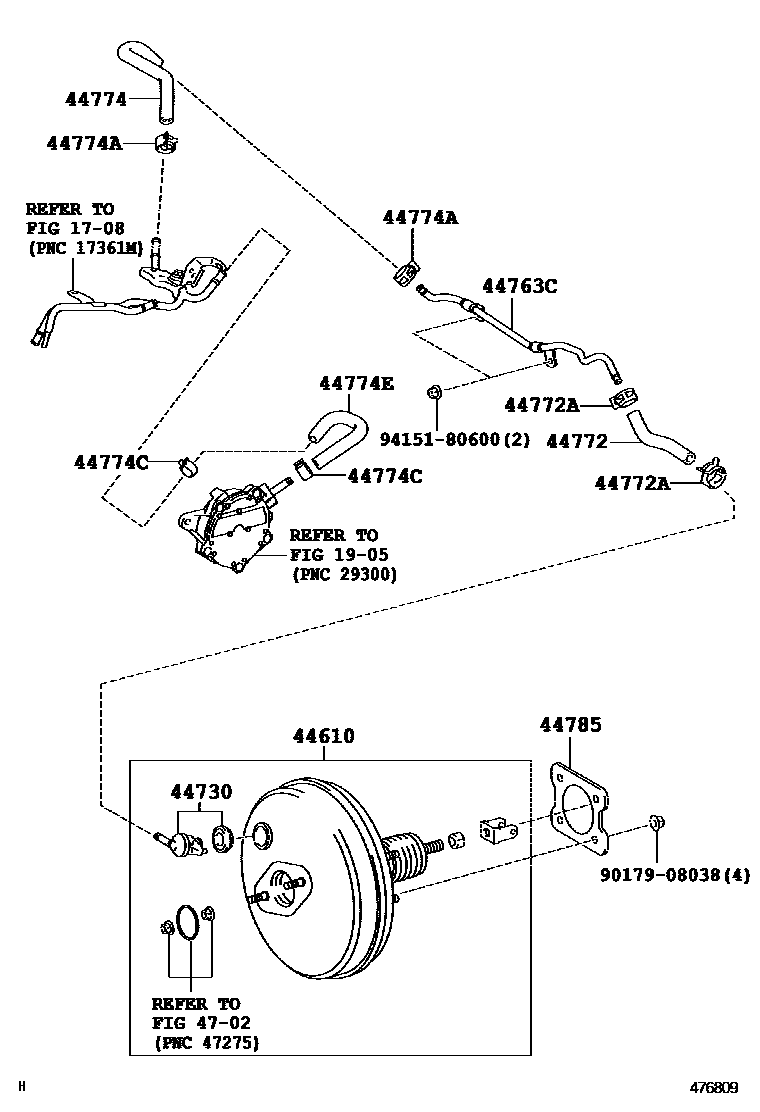

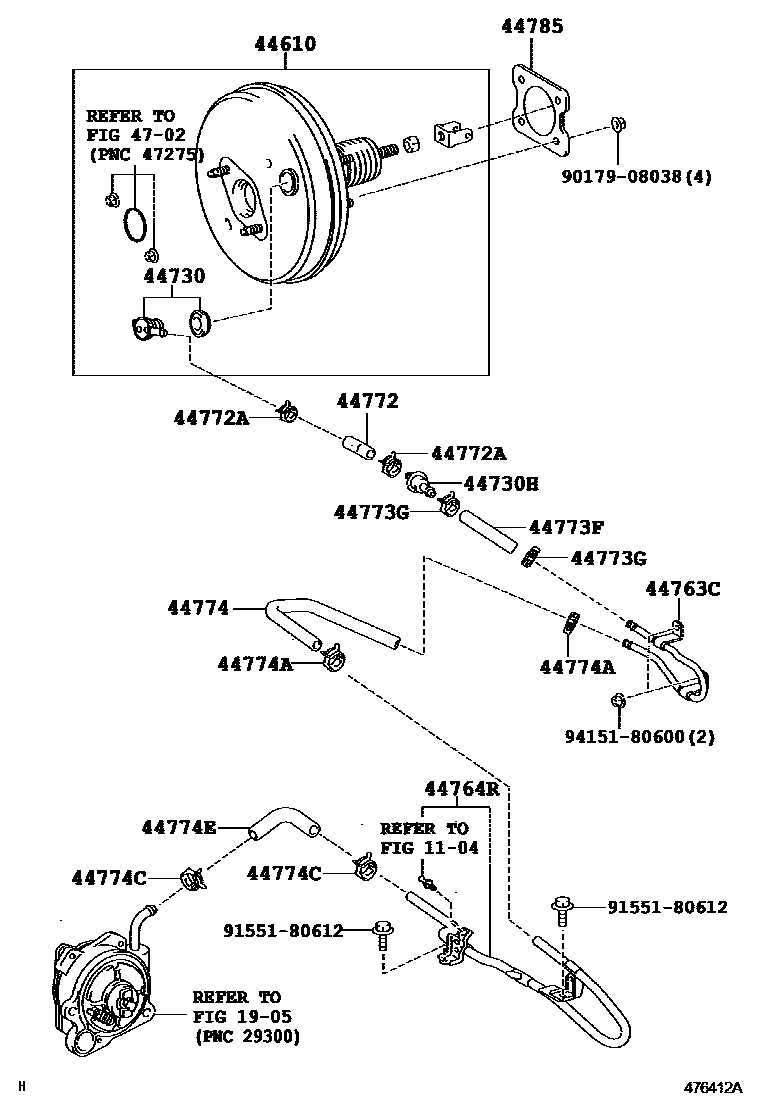

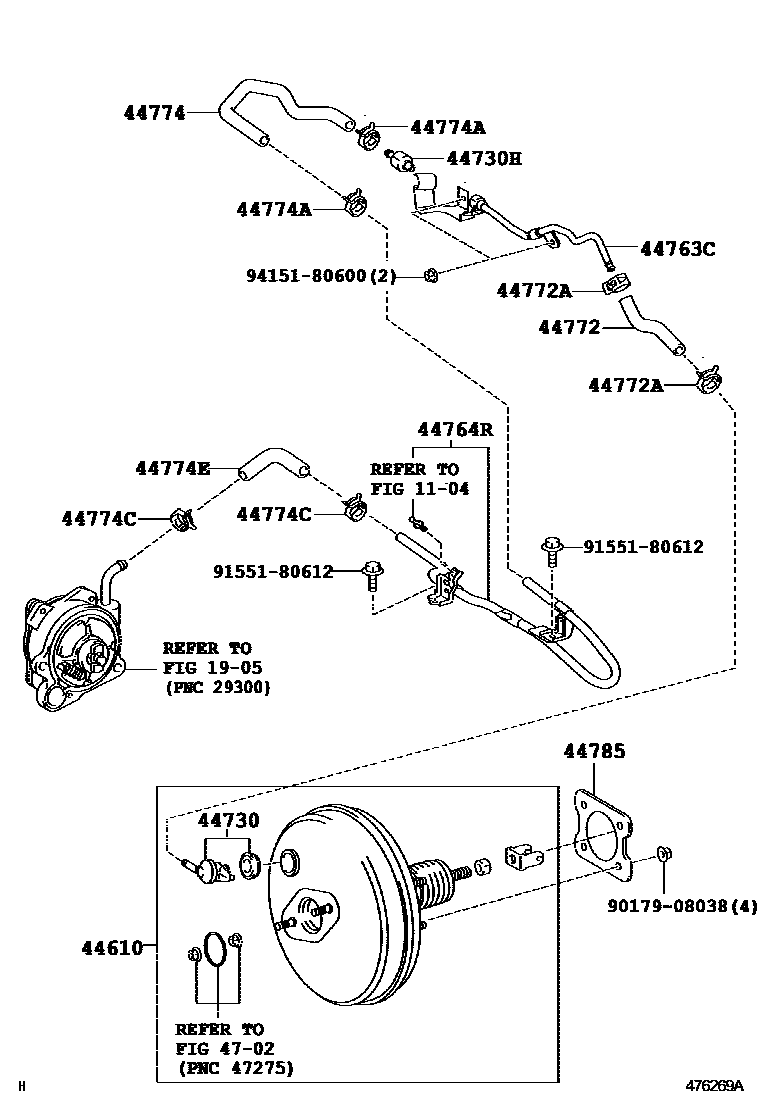

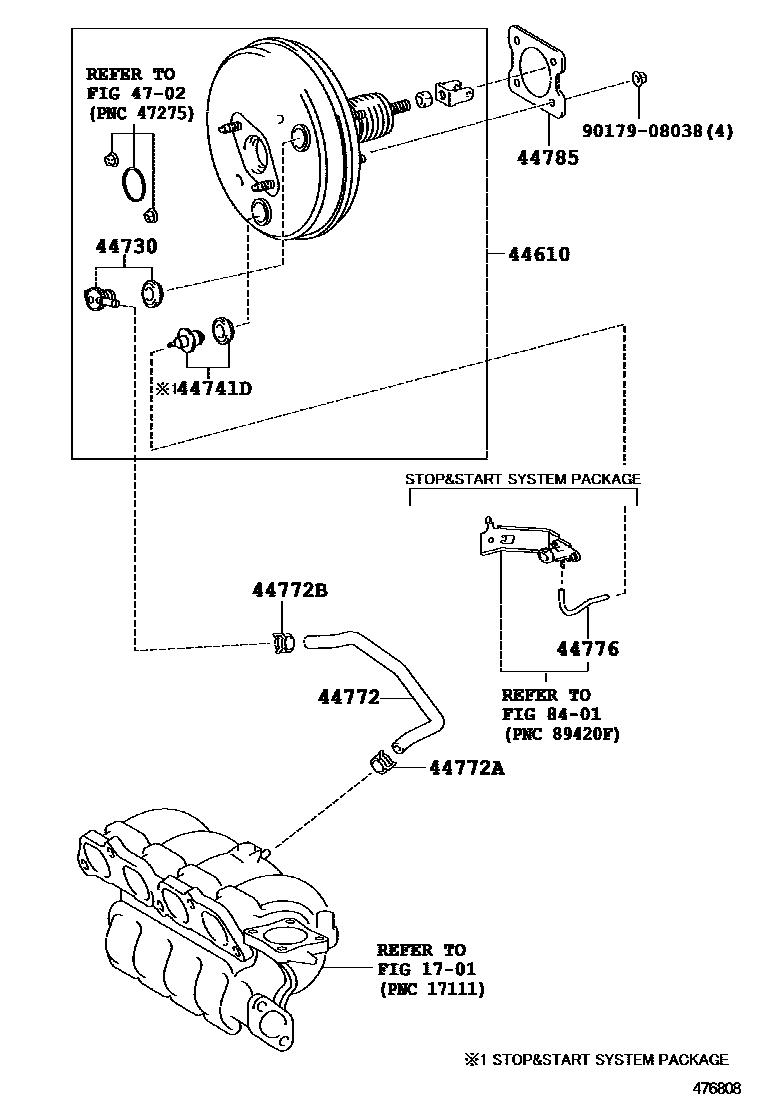

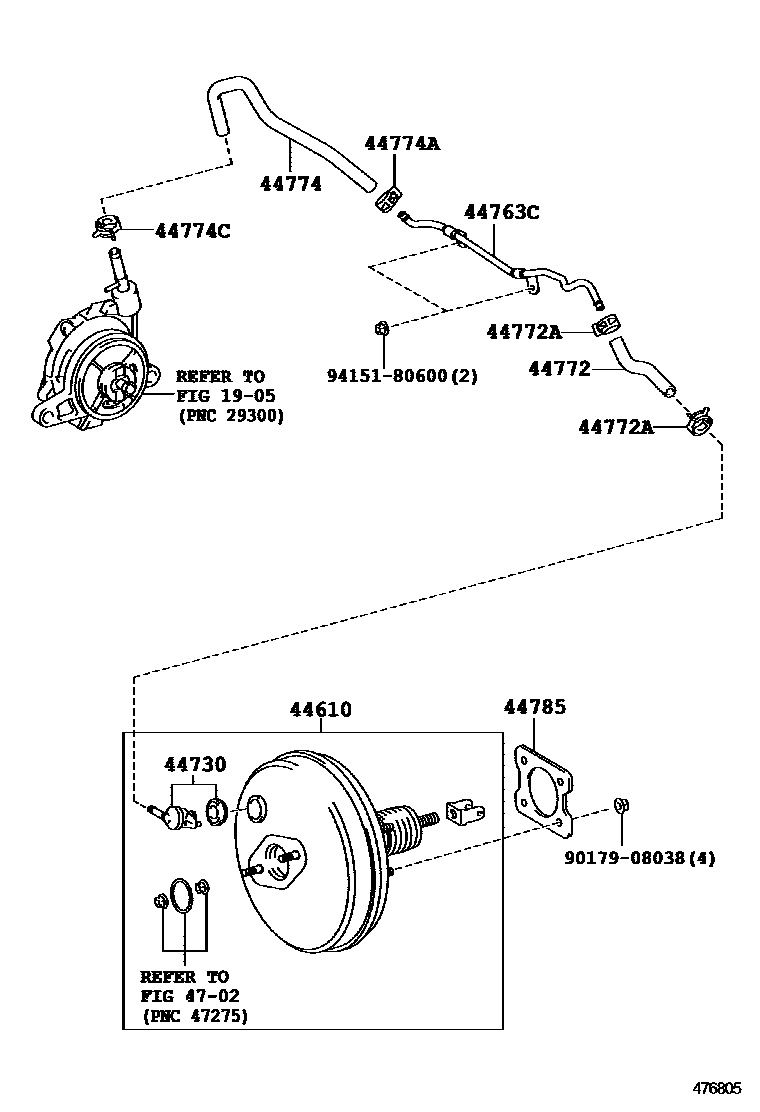

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 14 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09390 · 44610-09391 · 44610-09400 · 44610-09410 · 44610-09411 · 44610-09420 · 44610-09430 · 44610-09440 · 44610-09450 · 44610-09460 · 44610-09461 · 44610-09630 · 44610-09640 · 44610-09641 · 44610-09650 · 44610-09690 · 44610-09691 · 44610-09700 · 44610-09701 · 44610-09710 · 44610-09711 · 44610-09720 · 44610-09721 · 44610-09730 · 44610-09731 · 44610-09740 · 44610-09741 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09020 · 44730-09030 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 · 44730-35010 |
| 44741D | Vacuum one-way valve body | 44741-09010 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-12400 · 44763-12420 · 44763-12430 · 44763-12440 · 44763-12450 · 44763-12470 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-12010 |
| 44772 | Hoses (check valve to connector tube) | 44772-12580 · 44772-12610 · 44772-12620 · 44772-12640 · 44772-12700 · 44772-12710 |
| 44772A | Clip (for check valve to connector tube) | 90466-W0008 · 90467-16014 · 96133-41500 |
| 44772B | Hoses (check valve to brake booster) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-12780 |
| 44773G | Clamp (for connector to one-way valve hose) | 90466-W0008 |
| 44774 | Hoses (joints to connector tubes) | 44774-12530 · 44774-12540 · 44774-12560 · 44774-12570 · 44774-12580 · 44774-12590 · 44774-12630 · 44774-12740 · 44774-12750 · 44774-12751 · 44774-12760 · 44774-12761 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-W0008 · 96133-41500 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-28320 · 44774-52021 |
| 44776 | brake booster hose | 44776-12190 · 90999-92002 |
| 44785 | brake booster pad | 44785-12040 |
