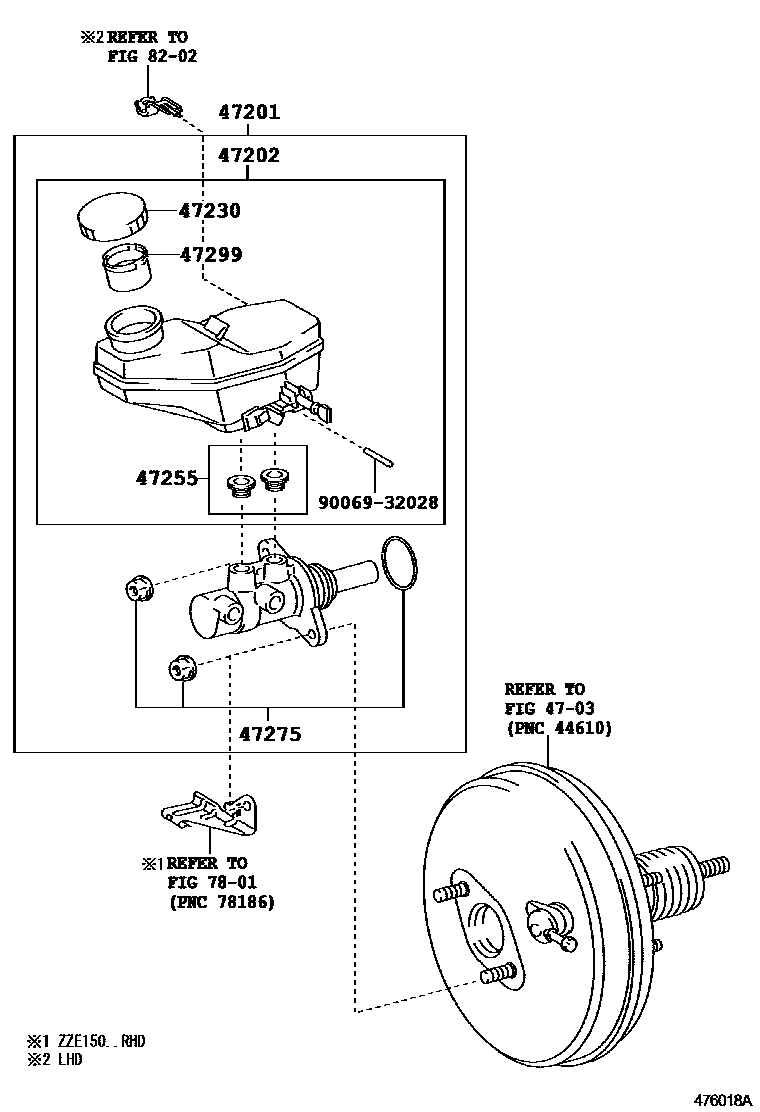

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09290 · 47201-09300 · 47201-09310 · 47201-09320 · 47201-09500 · 47201-09510 · 47201-09520 · 47201-09530 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-09090 · 47220-09100 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D010 |
| 47255 | Master pump reservoir seal | 47255-09040 |
| 47275 | brake master cylinder gasket | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 |
