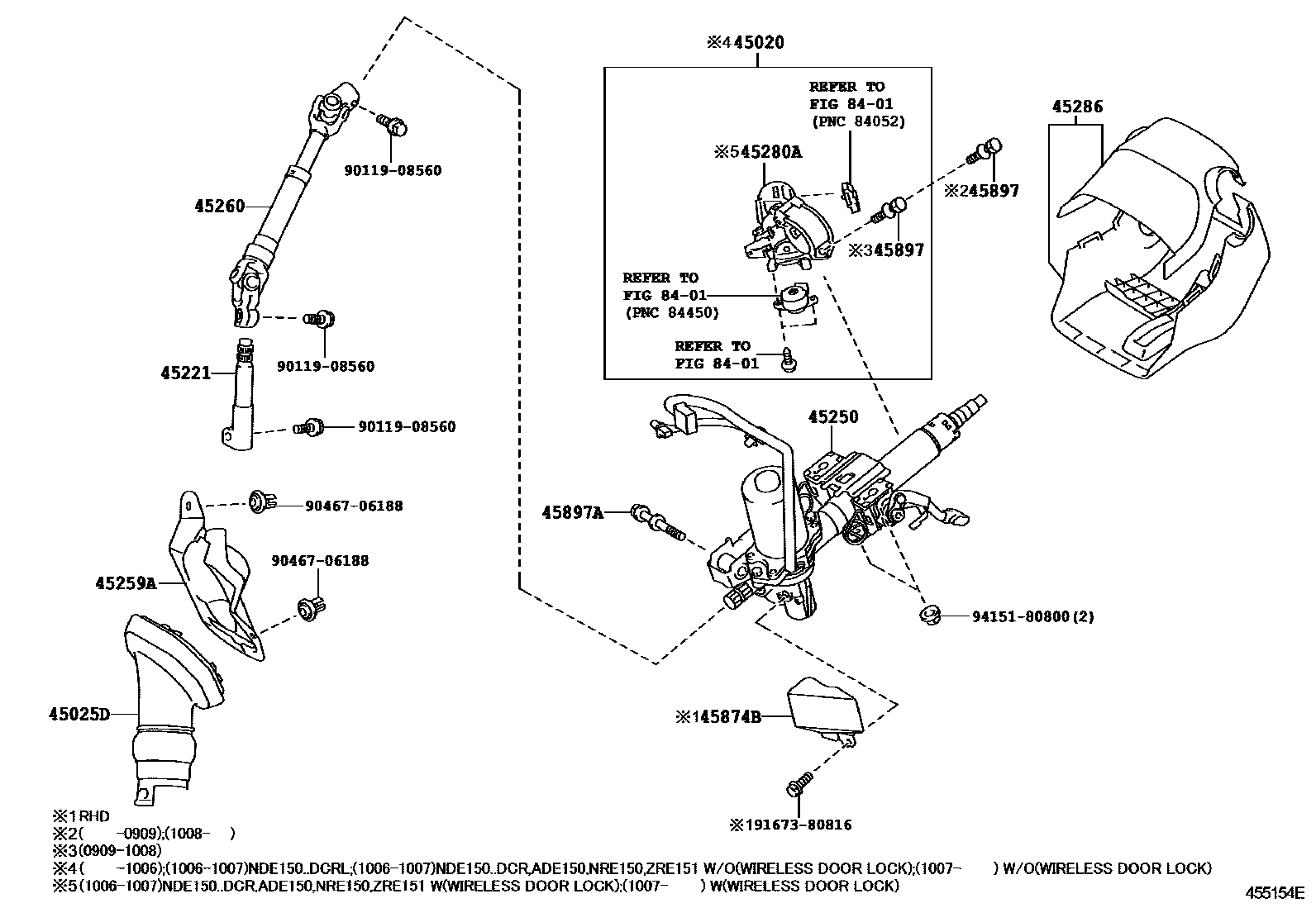

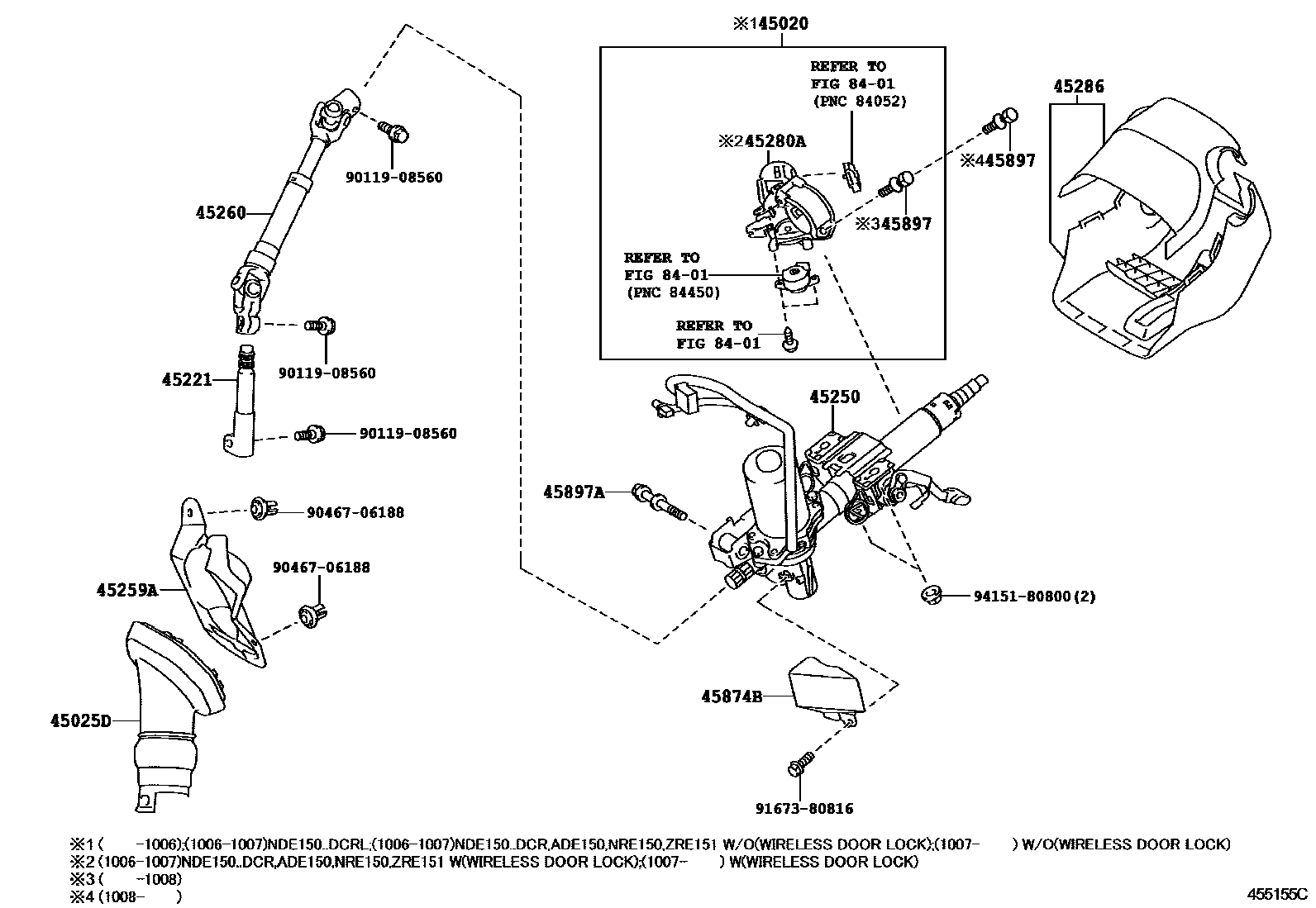

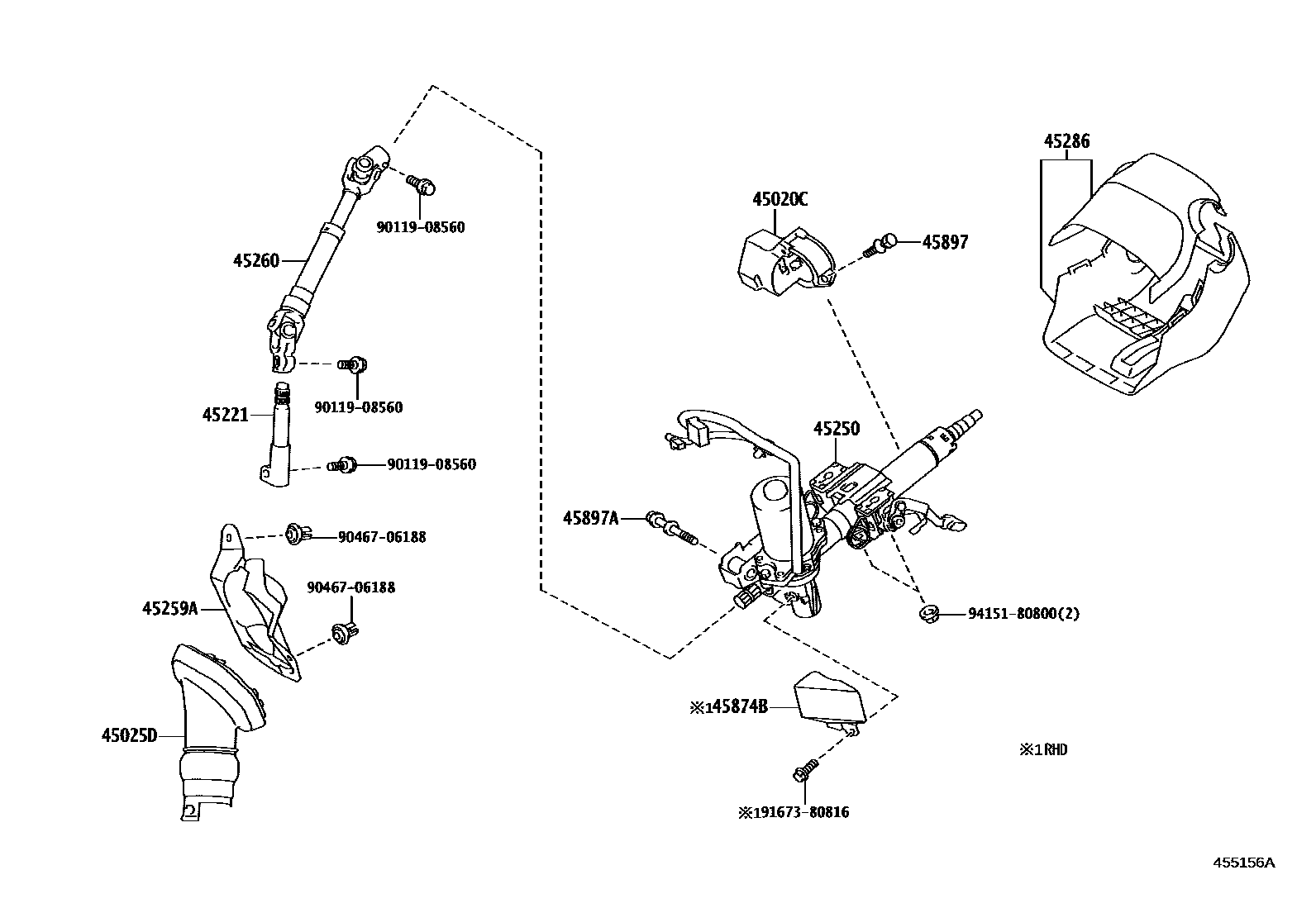

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-02230 · 45020-02240 · 45020-02390 · 45020-02400 · 45020-02410 · 45020-02411 · 45020-02440 · 45020-02450 · 45020-02451 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-42150 · 45020-42200 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02080 · 45025-02090 |
| 45221 | steering intermediate shaft | 45221-02050 |
| 45250 | Steering column assembly | 45250-02662 · 45250-02663 · 45250-02672 · 45250-02673 · 45250-02682 · 45250-02683 · 45250-02692 · 45250-02693 · 45250-02872 · 45250-02882 |
| 45259A | Steering column hole cover silencer plate | 45259-02070 · 45259-02080 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02090 |
| 45280A | Steering column upper bracket assembly | 45280-42140 · 45280-42160 |
| 45286 | steering column cover | 45286-02937 · 45286-02938 |
| 45874B | No. 1 steering column guard | 45874-12090 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
