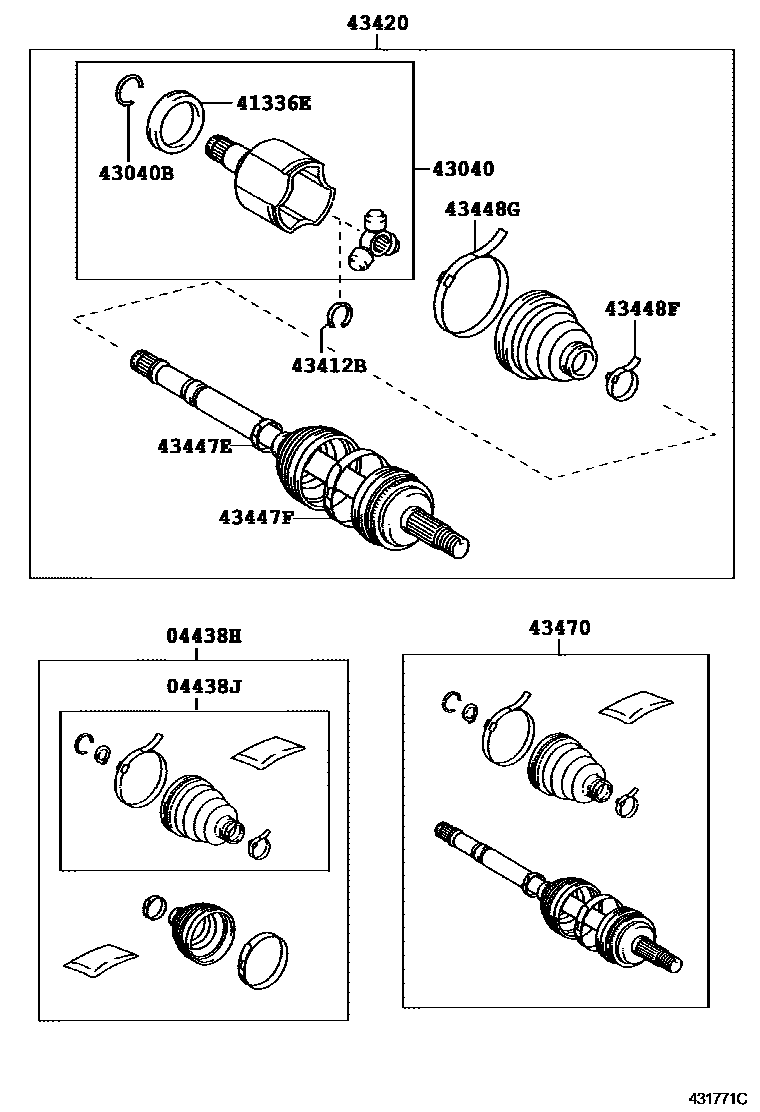

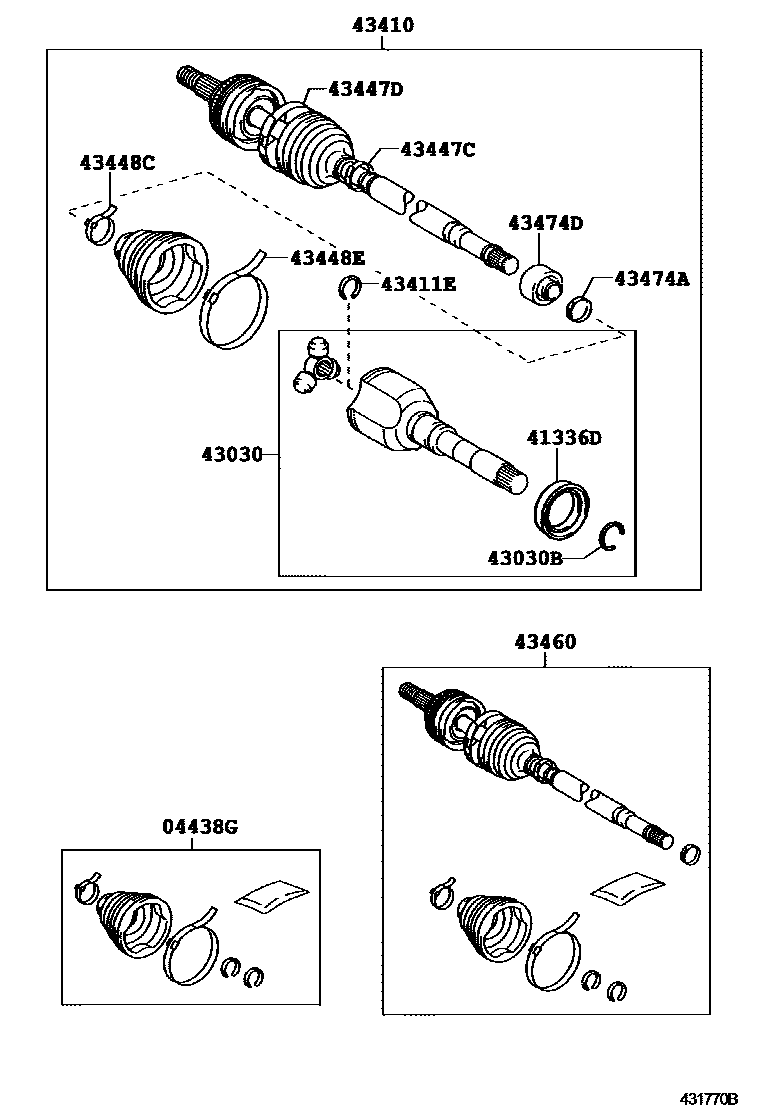

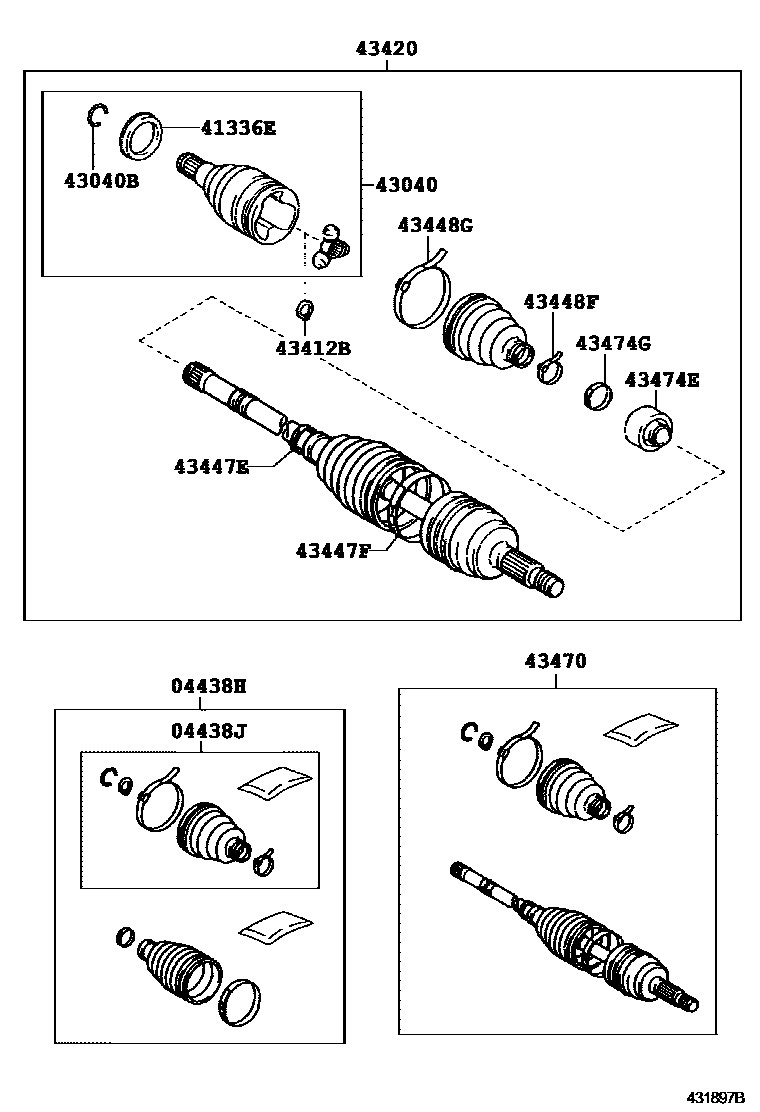

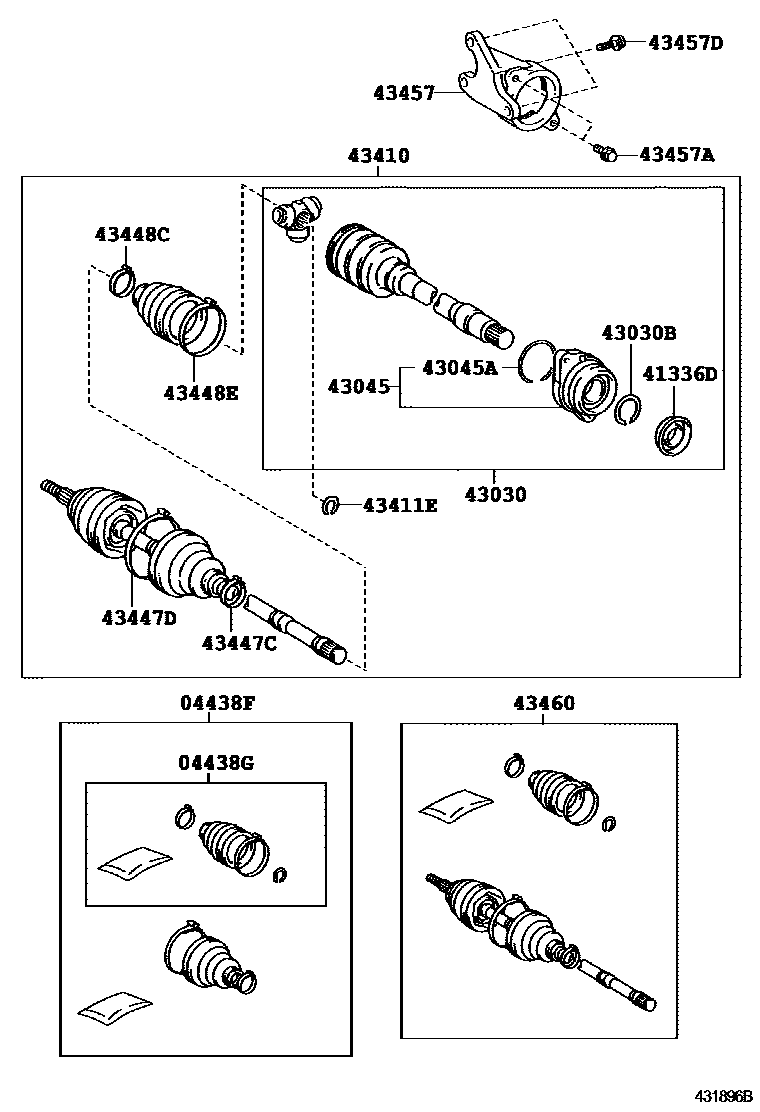

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02410 · 04427-02411 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02280 · 04437-02290 · 04437-02330 · 04437-02340 · 04437-05070 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02410 · 04428-02420 · 04428-02440 · 04428-02441 · 04428-02490 · 04428-02500 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02280 · 04437-02290 · 04437-02330 · 04437-02340 · 04438-05320 |
| 41336D | Right front driveshaft dust cover | 41336-02090 · 41336-02100 · 41336-05010 · 41336-05100 · 41336-05140 |
| 41336E | Left front driveshaft dust cover | 41336-02090 · 41336-02100 · 41336-05010 · 41336-05130 · 41336-05140 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-05200 · 43040-02030 · 43040-02070 · 43040-02080 · 43040-05110 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 43425-02110 · 43425-02140 · 43425-05050 · 90080-52055 · 90080-52056 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02030 · 43040-02070 · 43040-02080 · 43040-05110 · 43040-05141 · 43040-05142 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 43425-02110 · 43425-02140 · 43425-05070 · 90080-52055 · 90080-52056 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-02570 · 43410-02571 · 43410-02580 · 43410-02581 · 43410-02590 · 43410-02591 · 43410-02600 · 43410-02610 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02130 · 43425-05040 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02130 · 43425-05040 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-02610 · 43420-02611 · 43420-02620 · 43420-02621 · 43420-02630 · 43420-02631 · 43420-02640 · 43420-02650 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02250 · 42345-05140 · 42345-05280 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02220 · 42345-02260 · 42345-05270 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02250 · 42345-05140 · 42345-05280 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02220 · 42345-02260 · 42345-05270 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02240 · 42345-02280 · 42345-05250 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02270 · 42345-05030 · 42345-05210 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02240 · 42345-02280 · 42345-05250 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02270 · 42345-05030 · 42345-05210 |
| 43457 | drive shaft bearing bracket | 43457-05050 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09R20 · 43460-09R21 · 43460-09R30 · 43460-09R31 · 43460-09S40 · 43460-09S50 · 43470-09S90 · 43470-09S91 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09S50 · 43470-09S51 · 43470-09S60 · 43470-09S61 · 43470-09T00 · 43470-09T01 · 43470-09U80 · 43470-09U90 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02230 · 42345-02290 |
| 43474D | Right front driveshaft shock absorber | 43474-02150 · 43474-02190 |
| 43474E | Left front driveshaft shock absorber | 43474-02180 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02320 |
