Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

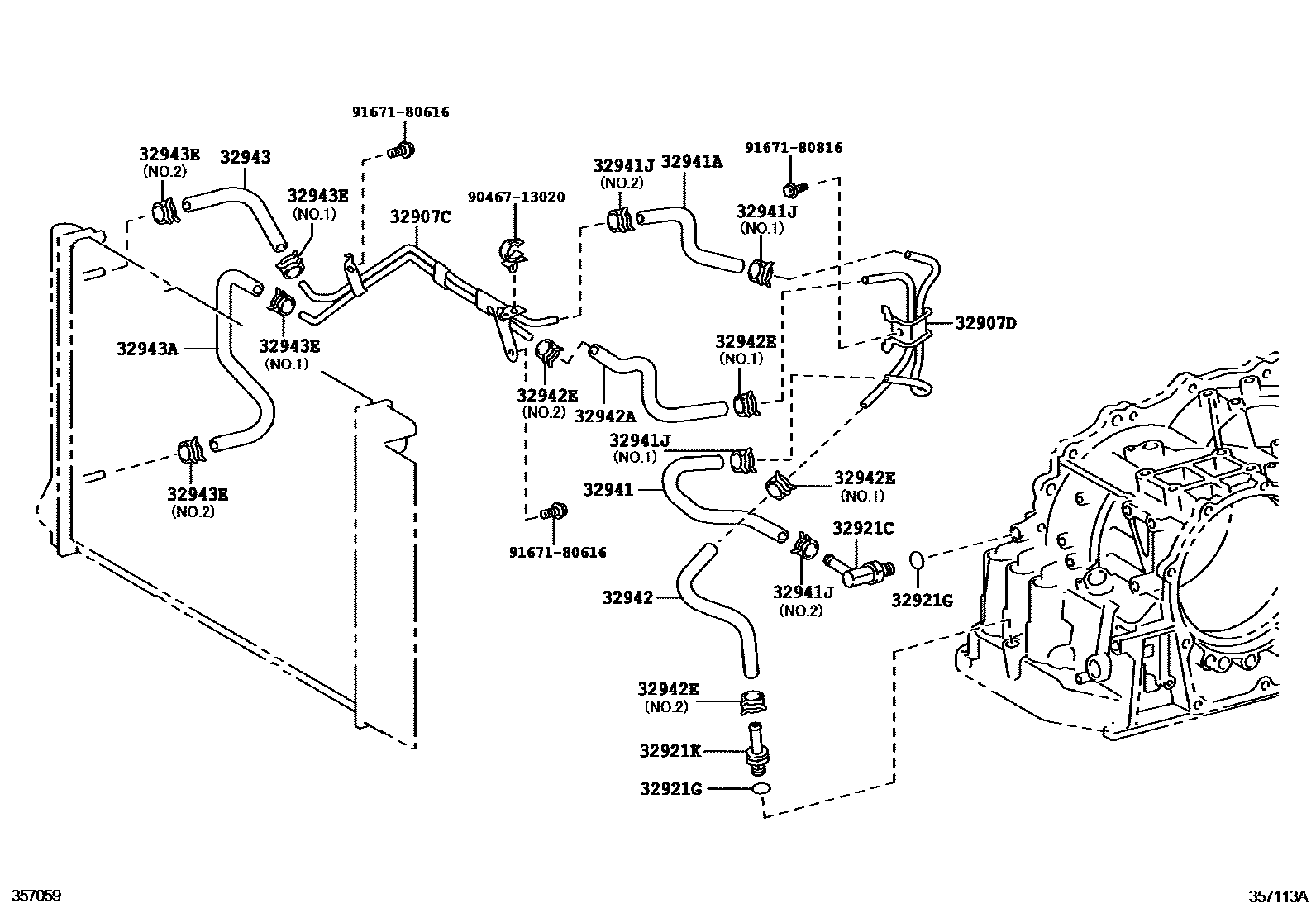

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-12241 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-12230 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13005 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921K | Connector No. 2 (for transmission oil cooler pipe) | 90404-13007 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-12060 · 32943-12061 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 90445-15044 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 96135-51300 · 96137-41501 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-12050 · 32943-12051 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90445-15016 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 96135-51300 · 96137-41501 |
| 32943 | No. 1 transmission oil cooler hose | 32943-12070 · 32943-12071 |
| 32943A | No. 2 transmission oil cooler hose | 32943-12080 · 32943-12081 |
| 32943E | Clamp No. 3 (for transmission oil cooler hose) | 96135-51300 · 96137-41501 |
