Toyota COROLLA 泵和执行器、顺序变速器或多模式手动传动桥 — Figure 3107

Toyota COROLLA EPC diagram 3107, 泵和执行器、顺序变速器或多模式手动传动桥, with 2 images and 6 PNC and OE references.

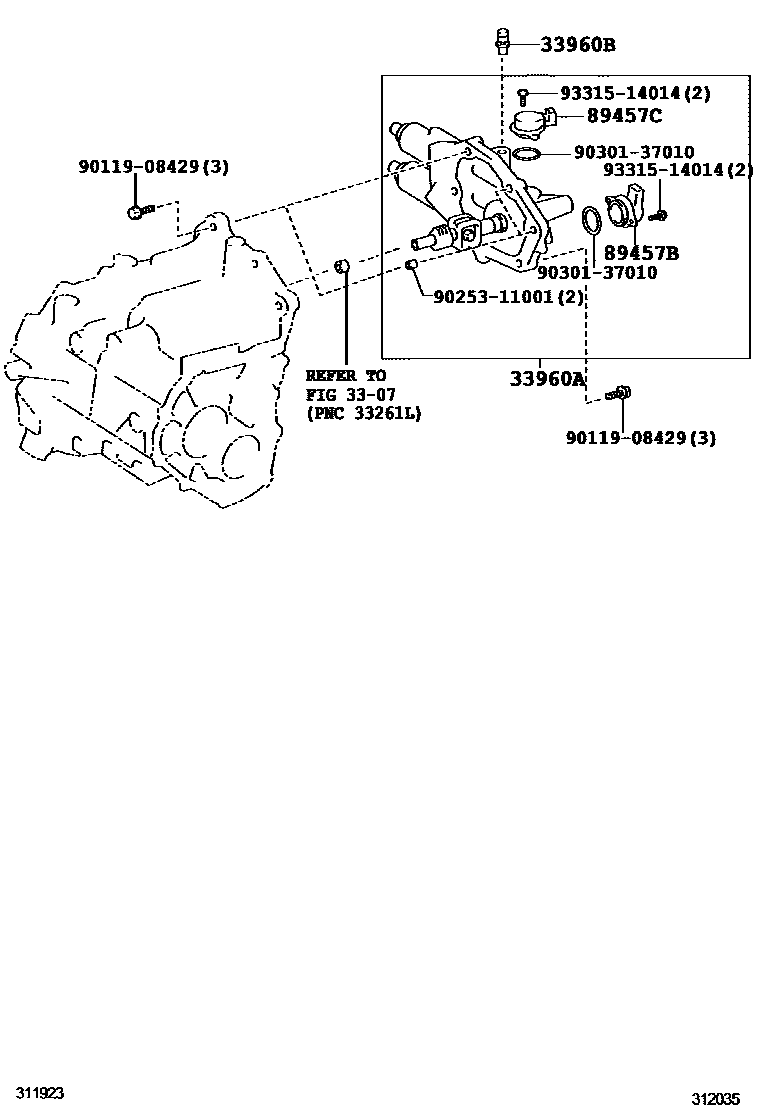

Toyota COROLLA 泵和执行器、顺序变速器或多模式手动传动桥 EPC diagram — 312035
泵和执行器、顺序变速器或多模式手动传动桥 — 312035 (200802 – 999999)

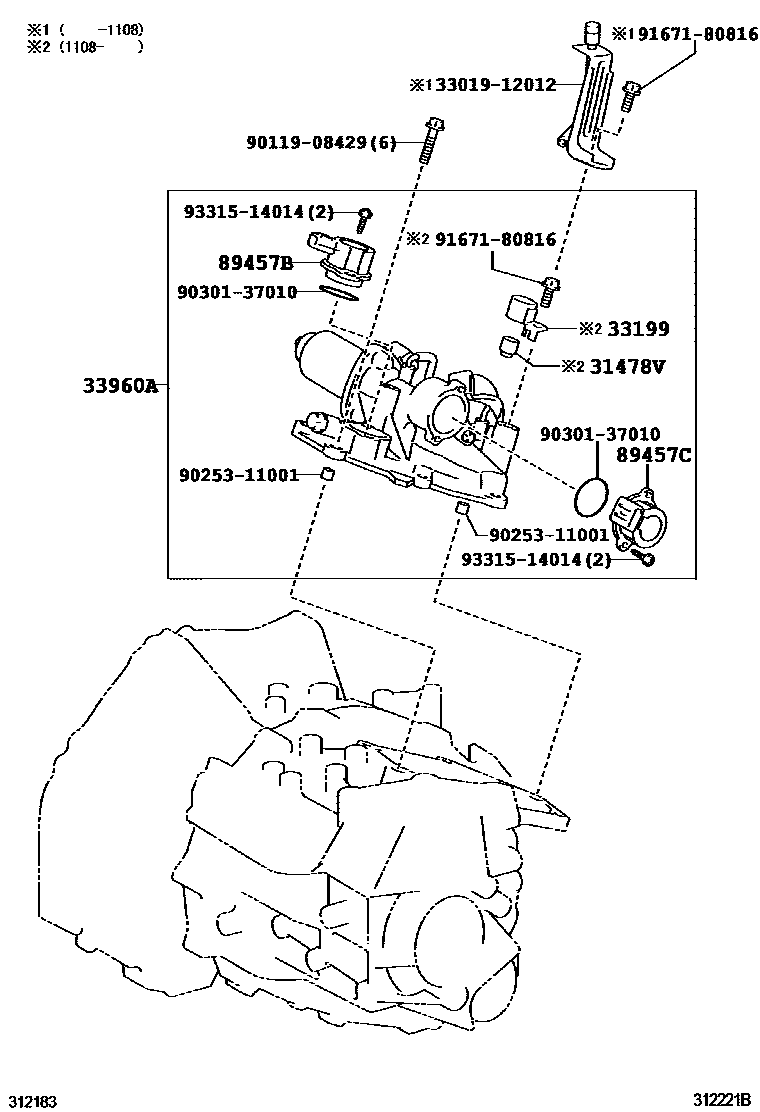

Toyota COROLLA 泵和执行器、顺序变速器或多模式手动传动桥 EPC diagram — 312221B
泵和执行器、顺序变速器或多模式手动传动桥 — 312221B (200902 – 999999)

PNC and OE references

PNCPart nameOE numbers
31478VVent plug cover31478-30020
33199ventilation shield33199-12010
33960AShift lever actuator assembly33960-12010 · 33960-12022 · 33960-12024 · 33960-12025
33960BShift lever actuator breather plug90930-03133
89457Bgear shift sensor89457-52010 · 89457-52020
89457Cgear selector travel sensor89457-12020 · 89457-12021
