Toyota COROLLA 文氏管 — Figure 2606

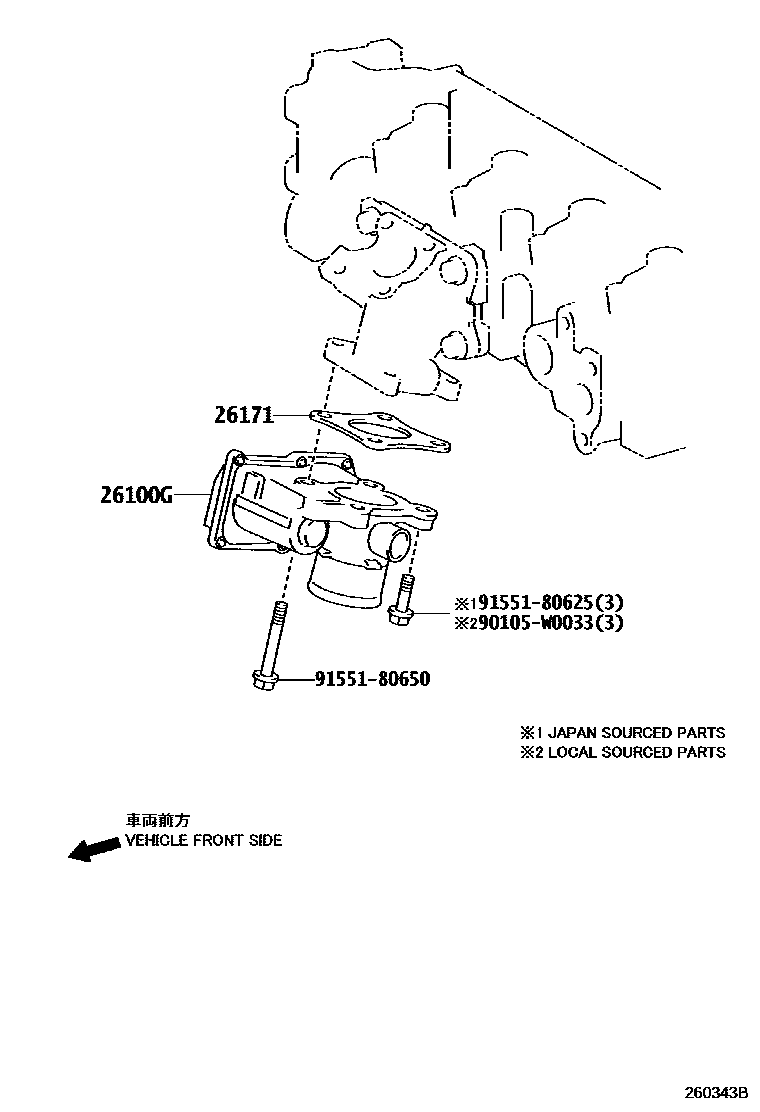

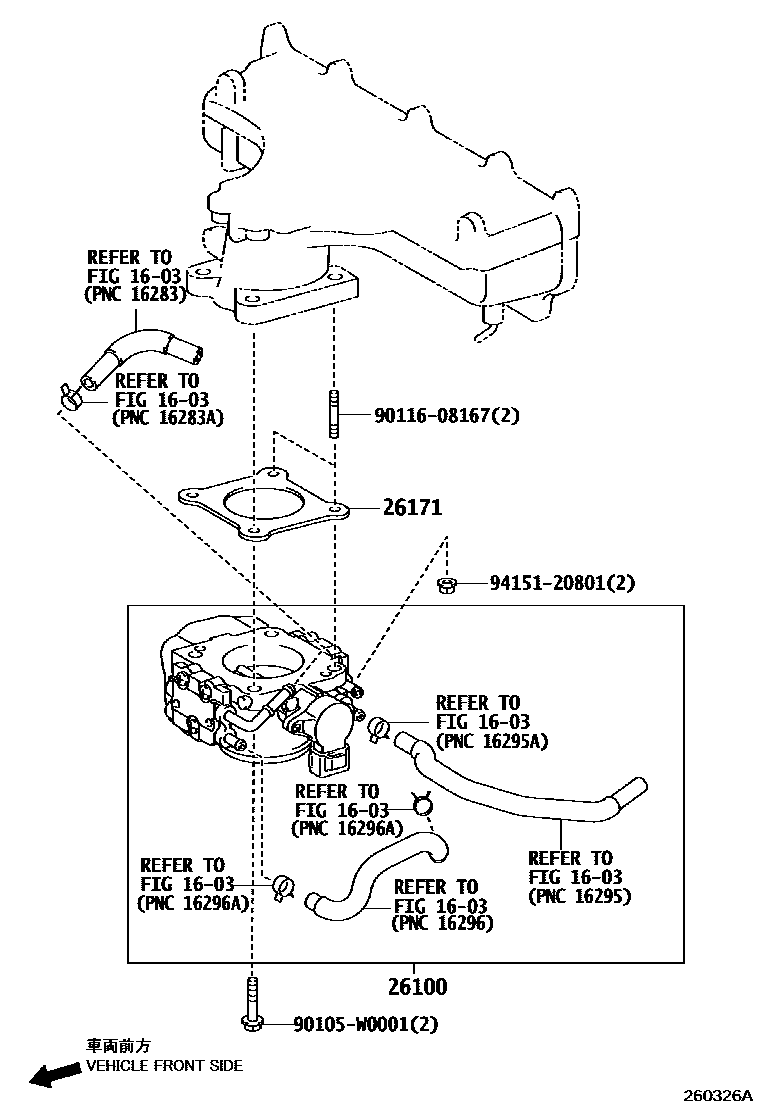

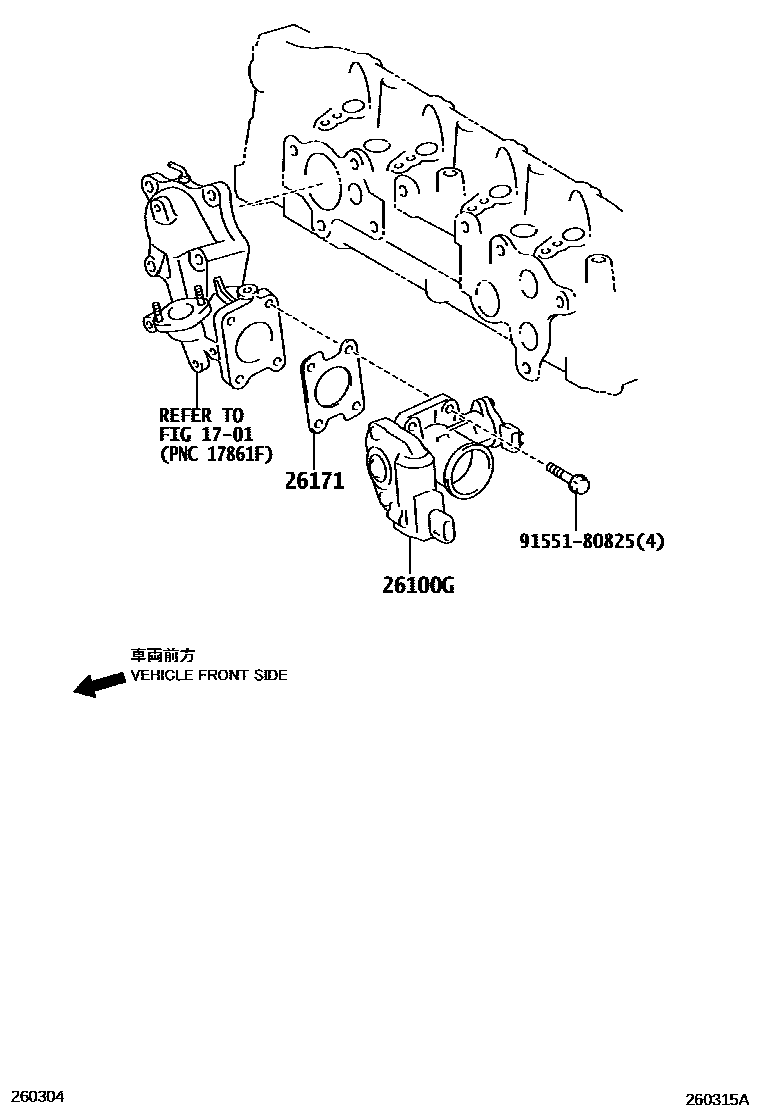

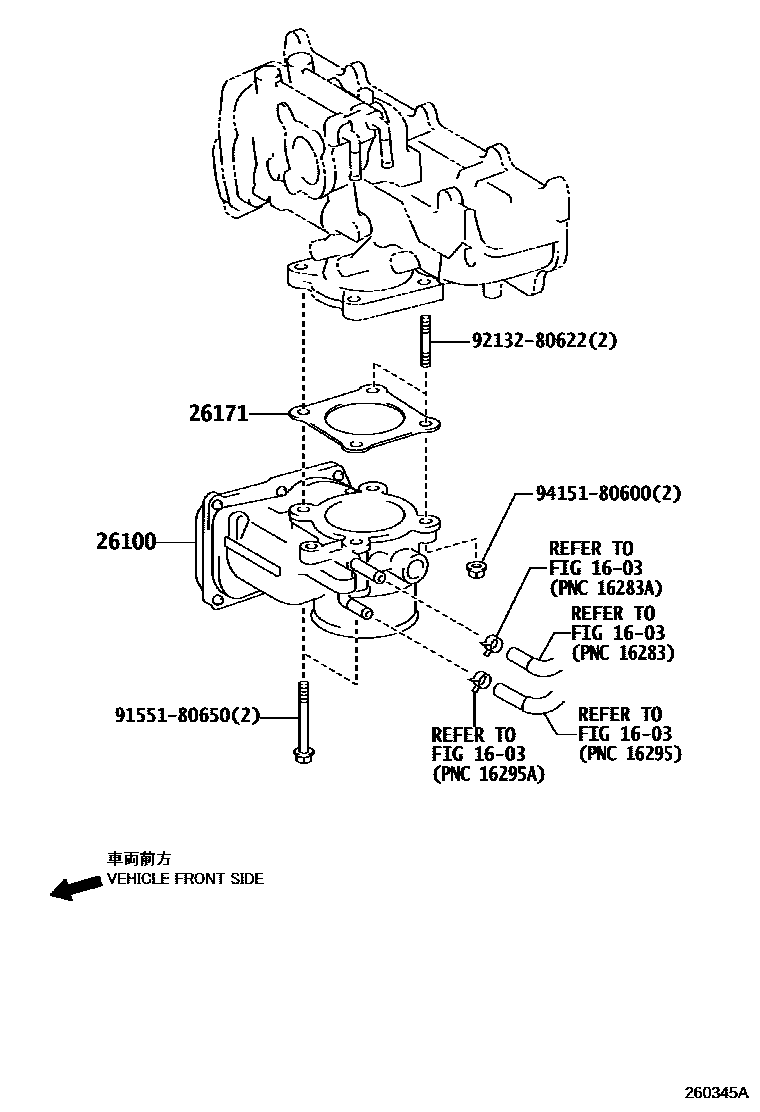

Toyota COROLLA EPC diagram 2606, 文氏管, with 4 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 26100 | Venturi assembly | 26100-0R011 · 26100-0R020 · 26100-26020 |
| 26100G | Diesel engine throttle body assembly | 26100-0N030 · 26100-33040 |
| 26171 | Venturi gasket | 26171-0R010 · 26171-26010 · 26171-33030 · 26171-33040 |
