Toyota COROLLA 喷油泵总成 — Figure 2202

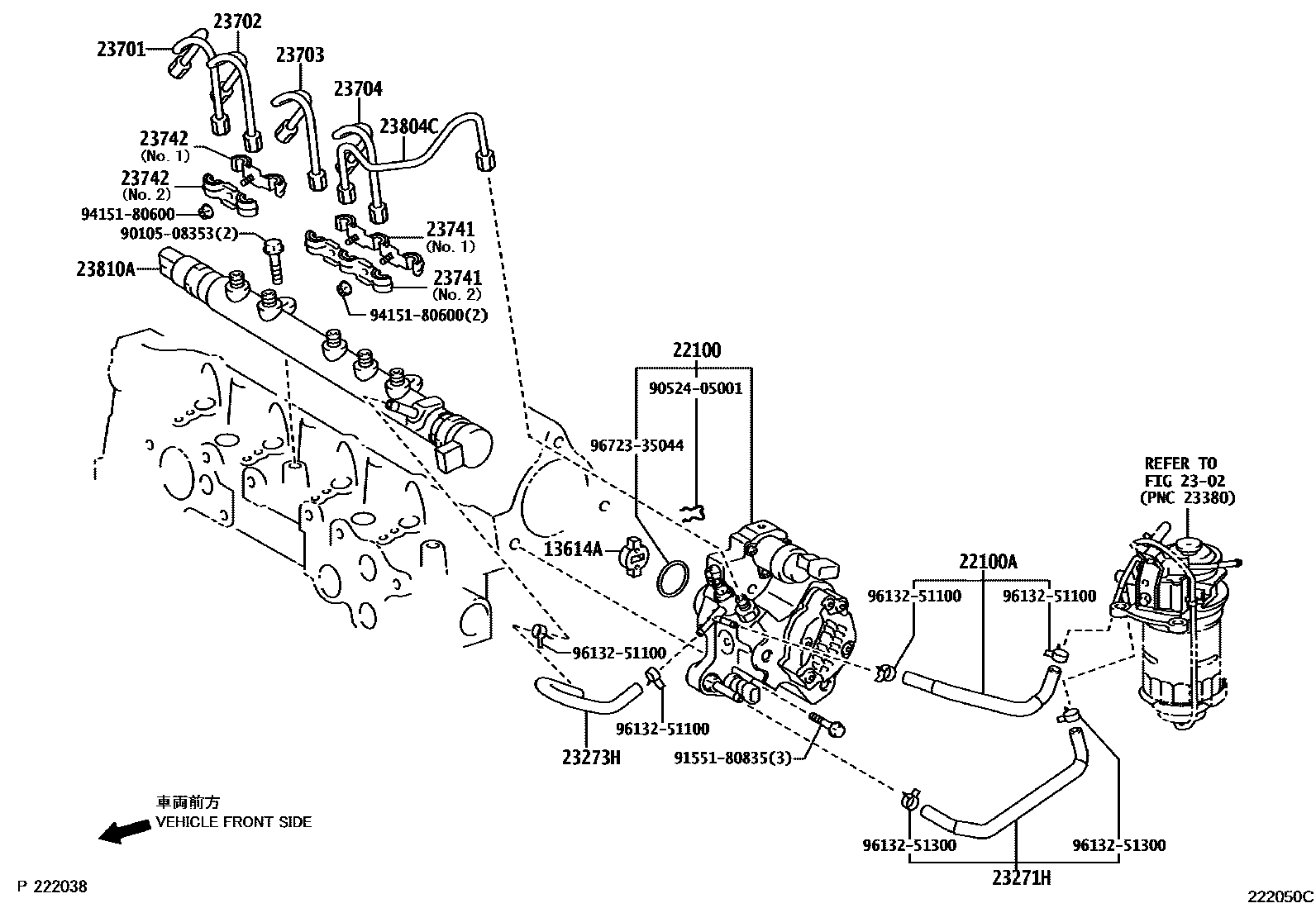

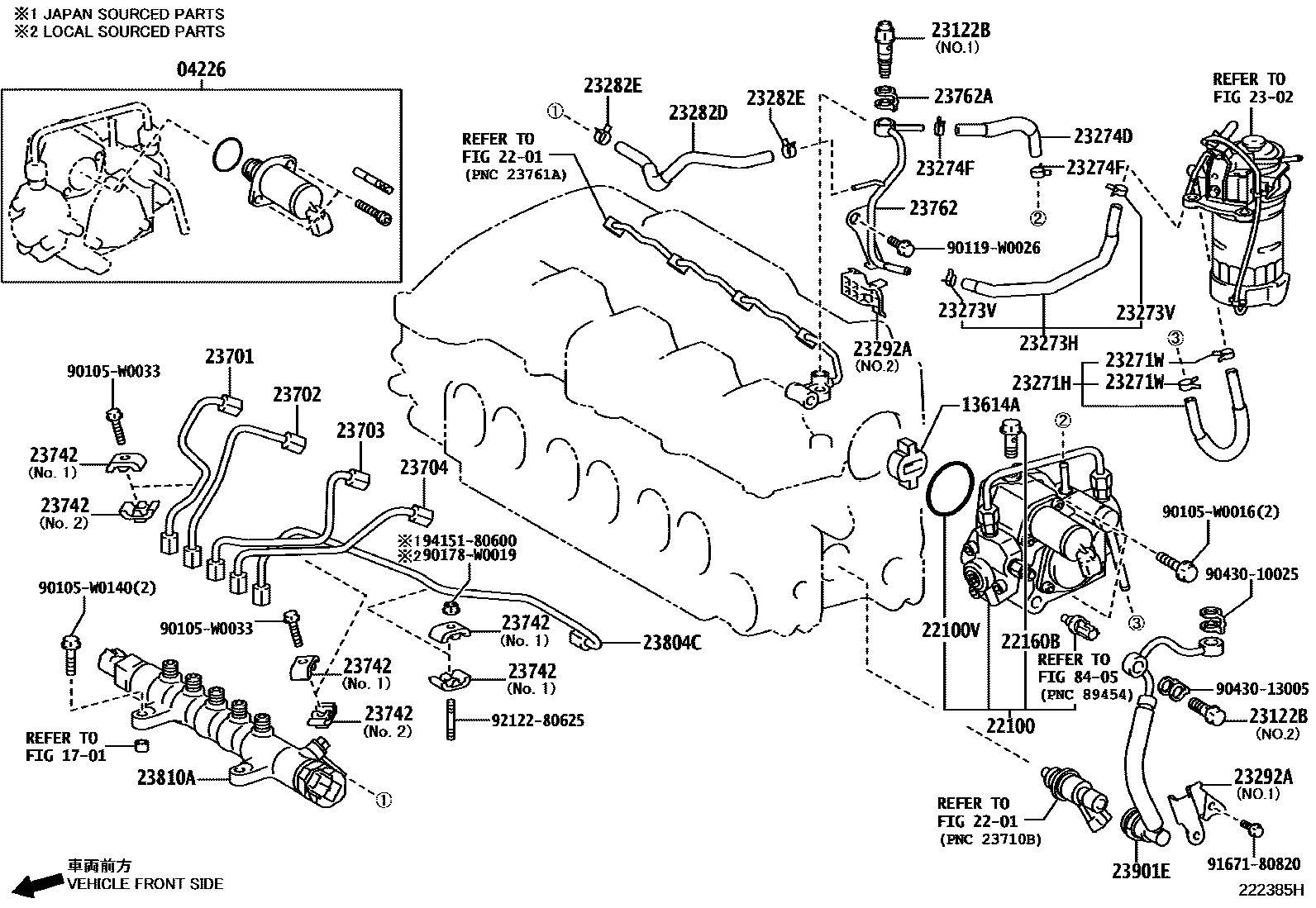

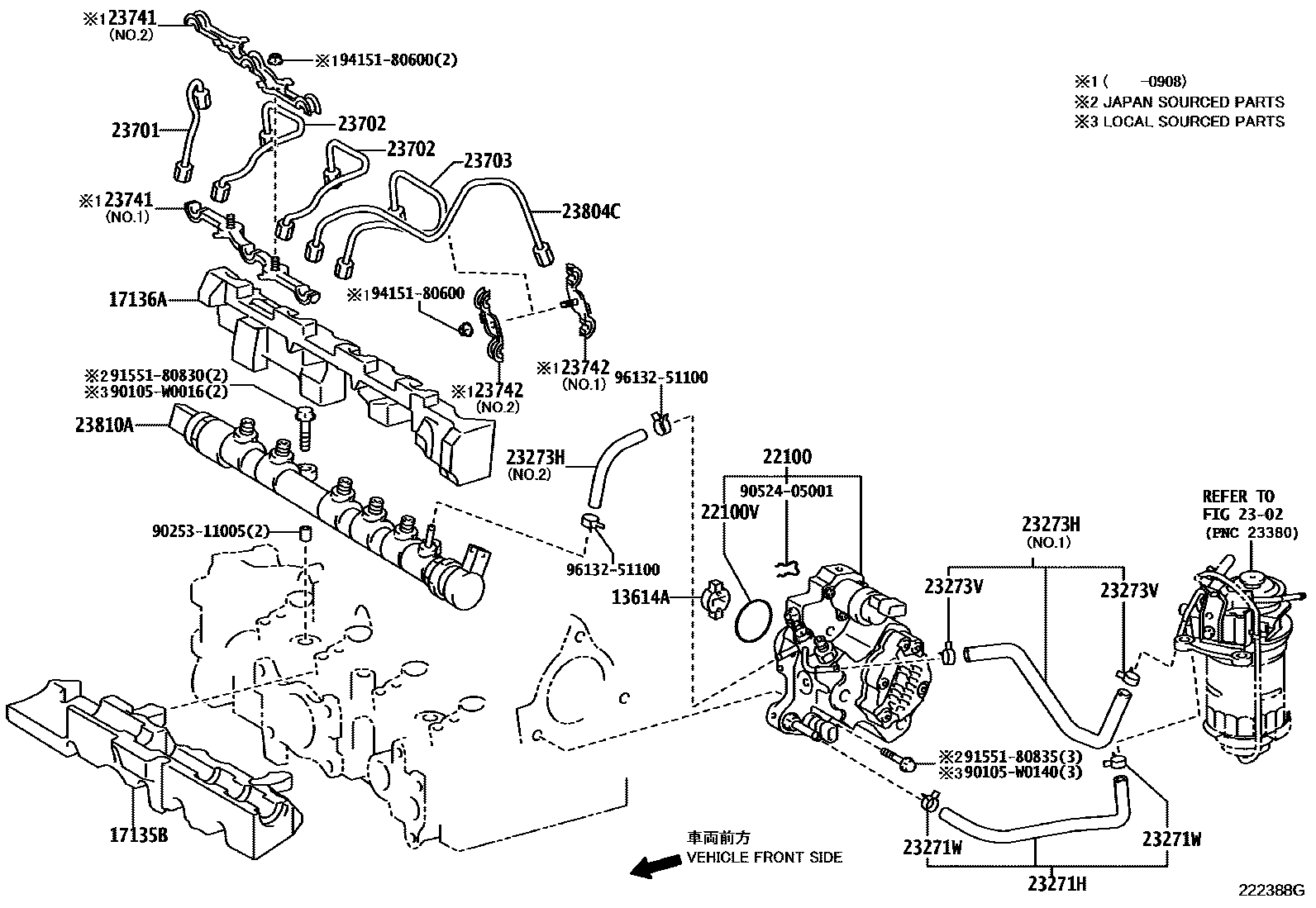

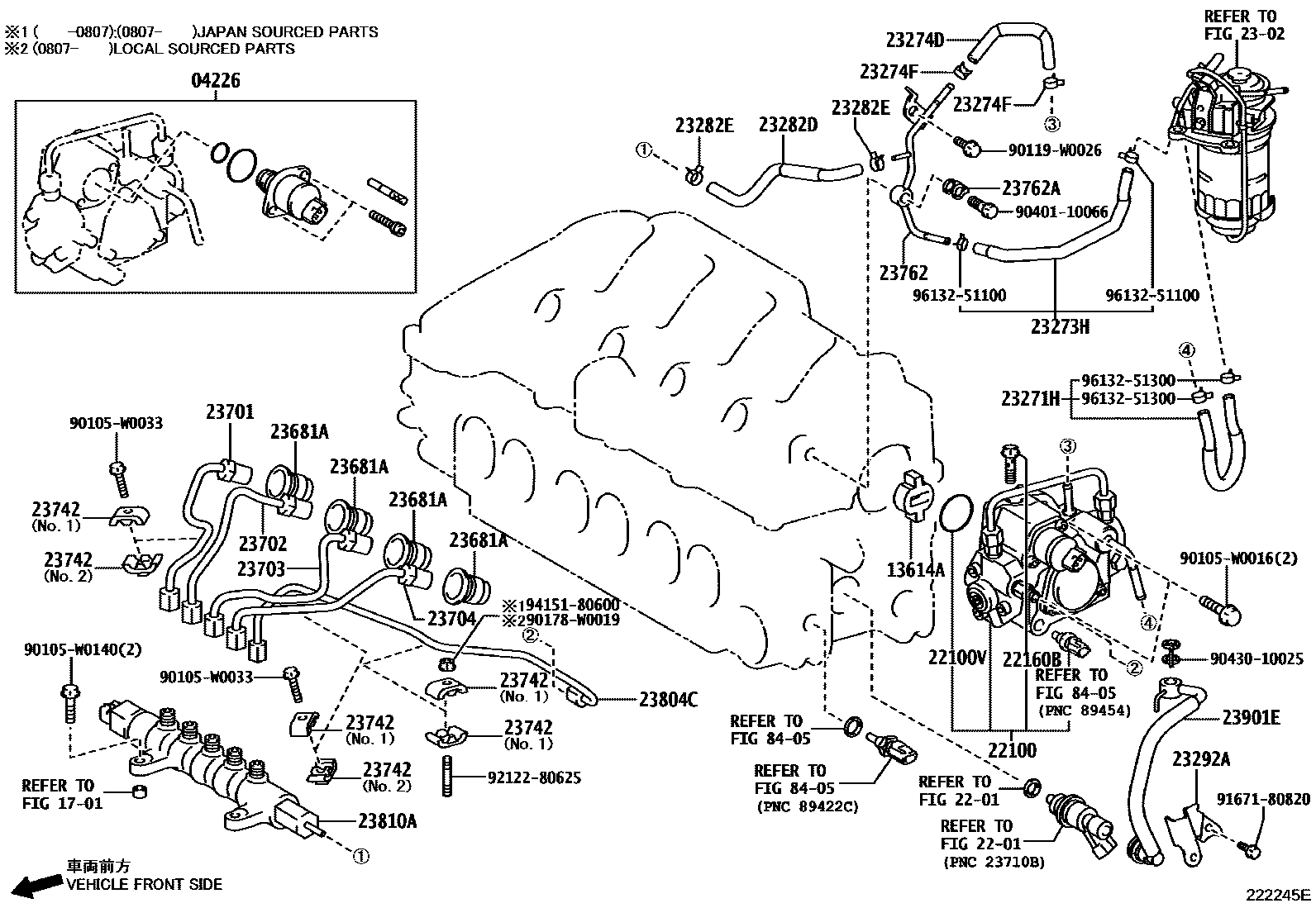

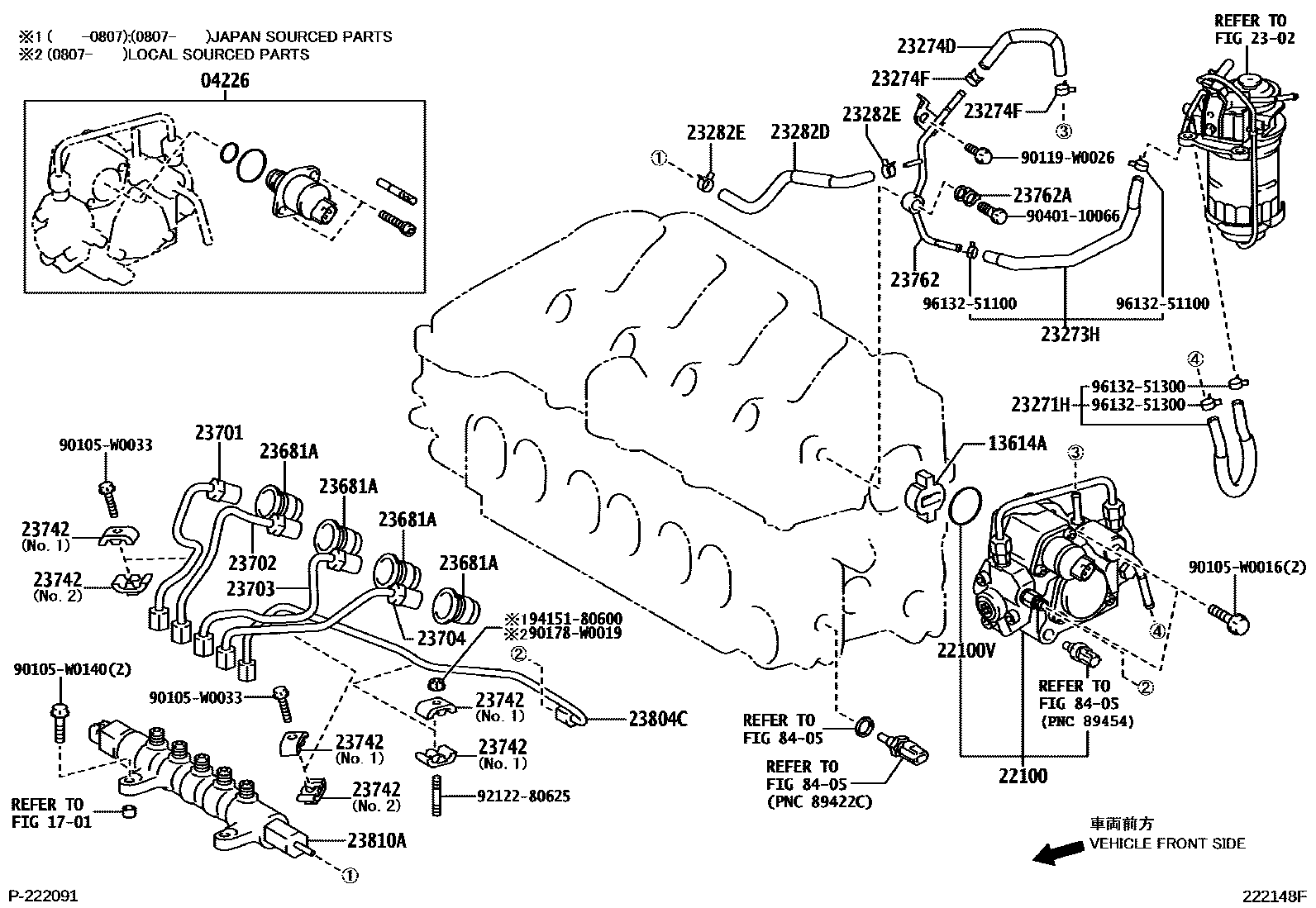

Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-0L030 · 04226-26010 |
| 13614A | No. 1 oil supply pump active coupling | 13614-0N010 · 13614-26010 · 13614-33010 |
| 17135B | Intake manifold No. 1 heat shield | 17135-0N010 · 17135-33010 · 17135-33011 |
| 17136A | Intake manifold No. 2 heat shield | 17136-0N010 · 17136-33010 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0R011 · 22100-0R021 · 22100-0R040 · 22100-0W010 · 22100-33040 · 22100-33050 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23273-33080 |
| 22100V | O-ring (for fuel injection pump) | 22193-0R020 · 96723-35044 |
| 22160B | screws | 22569-0R020 |
| 23122B | One-way valve | 23769-26030 · 2376A-26010 · 2376A-26020 · 2376A-26030 |
| 23271H | No. 1 fuel hose | 23271-0N030 · 23271-0R030 · 23271-26060 · 23271-26190 · 23271-33050 · 23271-33090 |
| 23271W | Clamp (for No. 1 fuel hose) | 96132-51300 |
| 23273H | No. 2 fuel hose | 23273-0N020 · 23273-0N030 · 23273-0R010 · 23273-26040 · 23273-26070 · 23273-33060 · 23273-33090 · 23273-33120 |
| 23273V | Clamp (for No. 2 fuel hose) | 96132-51100 |
| 23274D | No. 3 fuel hose | 23274-26020 · 23274-26080 |
| 23274F | Clamp (for No. 3 fuel hose) | 96135-51100 |
| 23282D | No. 4 fuel hose | 23282-26030 · 23282-26070 |
| 23282E | Clamp (for No. 4 fuel hose) | 90467-11076 |
| 23292A | Fuel hose protector | 23292-0R010 · 23292-26030 |
| 23681A | Injector body seal | 23681-17010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0R010 · 23701-0R030 · 23701-26030 · 23701-33010 · 23701-33040 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23701-33020 · 23702-0R010 · 23702-0R030 · 23702-26030 · 23702-33010 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23701-33020 · 23703-0R010 · 23703-0R030 · 23703-26030 · 23703-33010 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23701-33020 · 23704-0R010 · 23704-0R030 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-33010 · 23741-33020 · 23741-33030 · 23741-33040 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-27010 · 23742-33010 · 23742-33020 · 23742-33030 · 23742-33040 · 23742-58020 |
| 23762 | No. 2 fuel injector overflow pipe | 23762-0R011 · 23762-26021 |
| 23762A | No. 2 fuel injector overflow pipe gasket | 90430-10025 · 90904-30012 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0R010 · 23804-0R020 · 23804-33010 · 23804-33020 |
| 23810A | Common rail assembly | 23810-0R010 · 23810-0R040 · 23810-0R041 · 23810-33021 · 23810-33030 |
| 23901E | Fuel pipe sub-assembly | 23901-26030 · 23901-26040 |
