Toyota COROLLA 喷油嘴 — Figure 2201

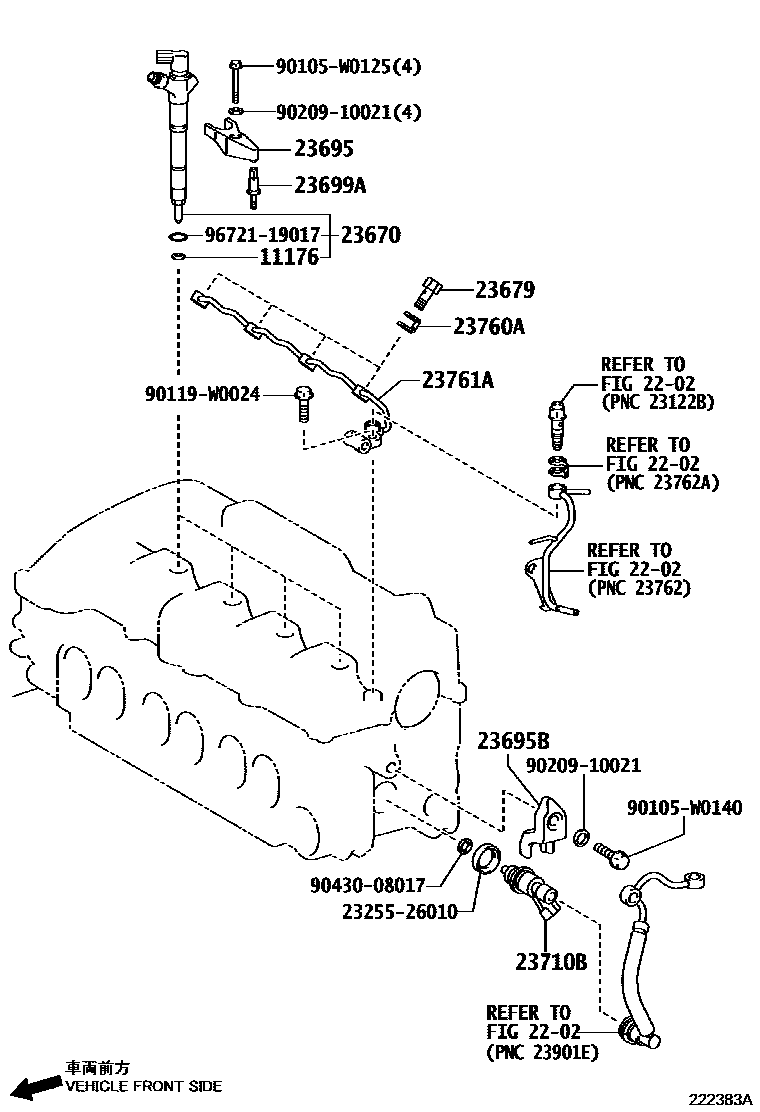

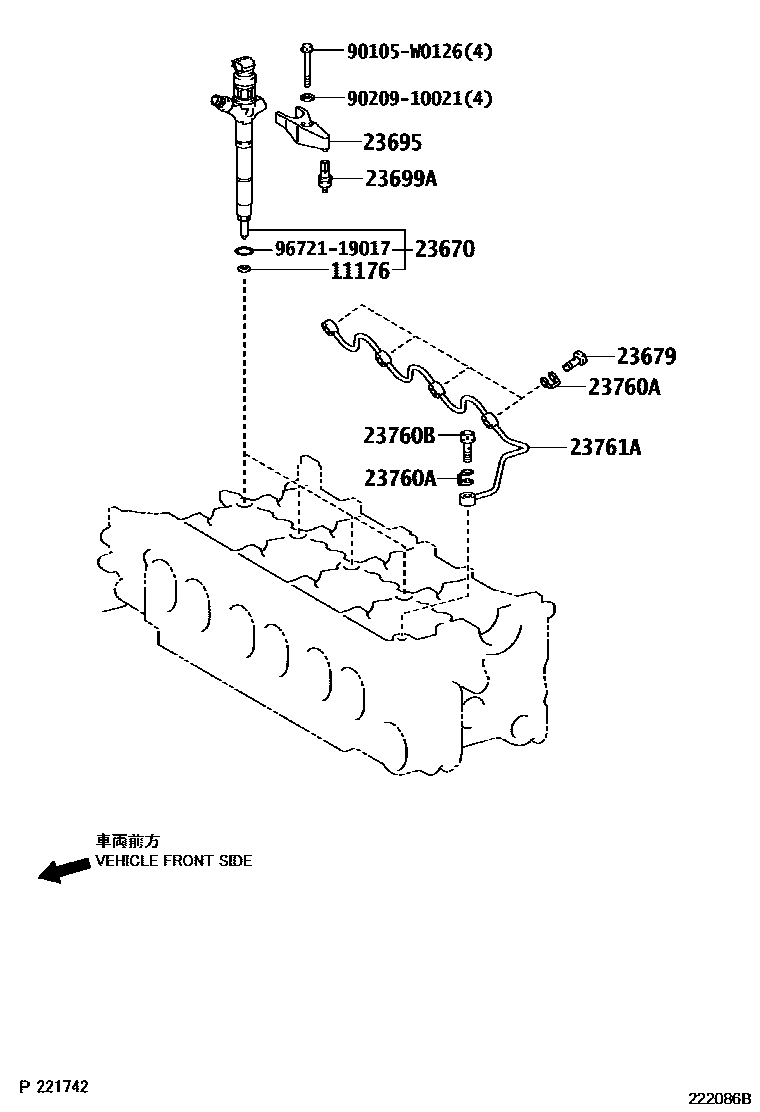

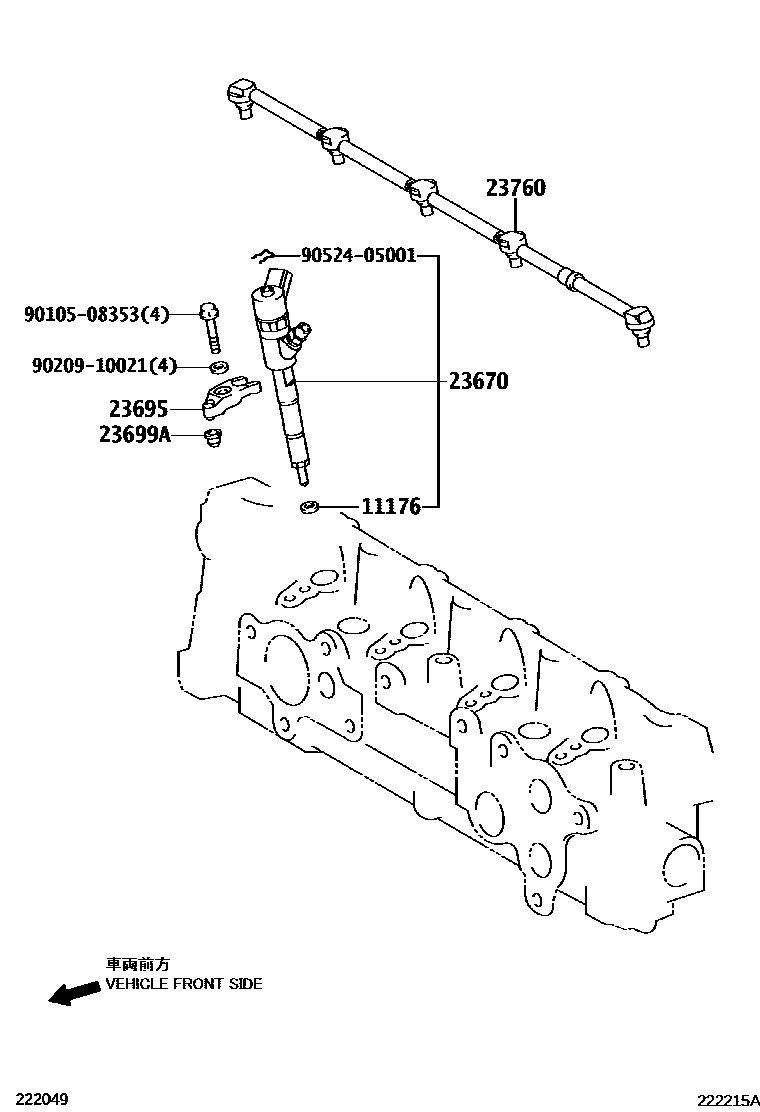

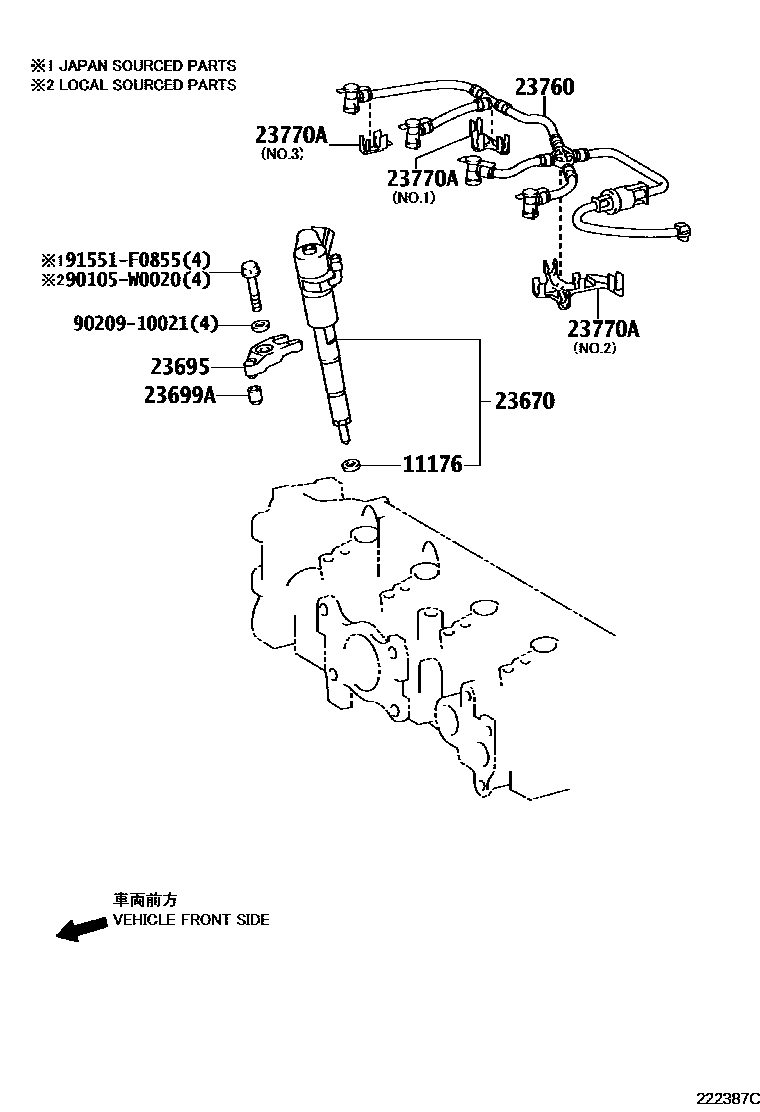

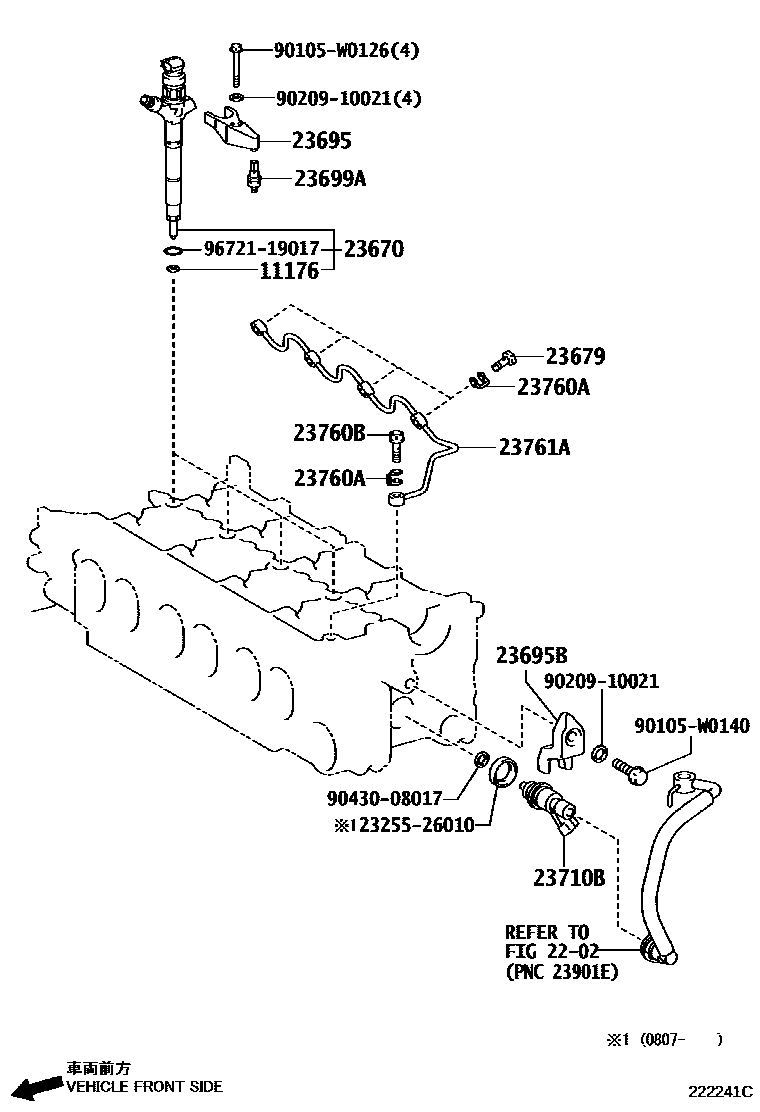

Toyota COROLLA EPC diagram 2201, 喷油嘴, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-26010 · 11176-26020 · 11176-26030 · 11176-33010 |
| 23670 | Fuel injector assembly | 23670-09270 · 23670-09280 · 23670-09370 · 23670-09390 · 23670-29115 · 23670-39105 · 23670-39325 · 23670-39405 · 23670-39415 |
| 23679 | Fuel injector hollow screw | 23679-0R010 · 23679-26020 |
| 23695 | No. 1 injector body clamp | 23695-0R012 · 23695-0R021 · 23695-33010 · 23695-33020 |
| 23695B | No. 2 injector body clamp | 23695-26011 |
| 23699A | Injector body clamp seat | 23699-0R010 · 23699-0R021 · 23699-33010 · 23699-33020 |
| 23710B | Exhaust fuel addition injector assembly | 23710-26011 · 23710-26012 |
| 23760 | Fuel injector overflow pipe assembly | 23760-0W010 · 23760-33020 · 23760-33030 |
| 23760A | padding | 90904-30008 |
| 23760B | Joint bolt (for injector overflow pipe) | 90401-08016 |
| 23761A | No. 1 fuel injector overflow pipe | 23761-0R011 · 23761-0R040 · 23761-26010 · 23761-26030 |
| 23770A | Clip or clip (for injector overflow pipe assembly) | 23841-33030 · 23841-33040 · 23841-33050 |
