Toyota COROLLA 真空泵 — Figure 1905

Toyota COROLLA EPC diagram 1905, 真空泵, with 4 images and 1 PNC and OE references.

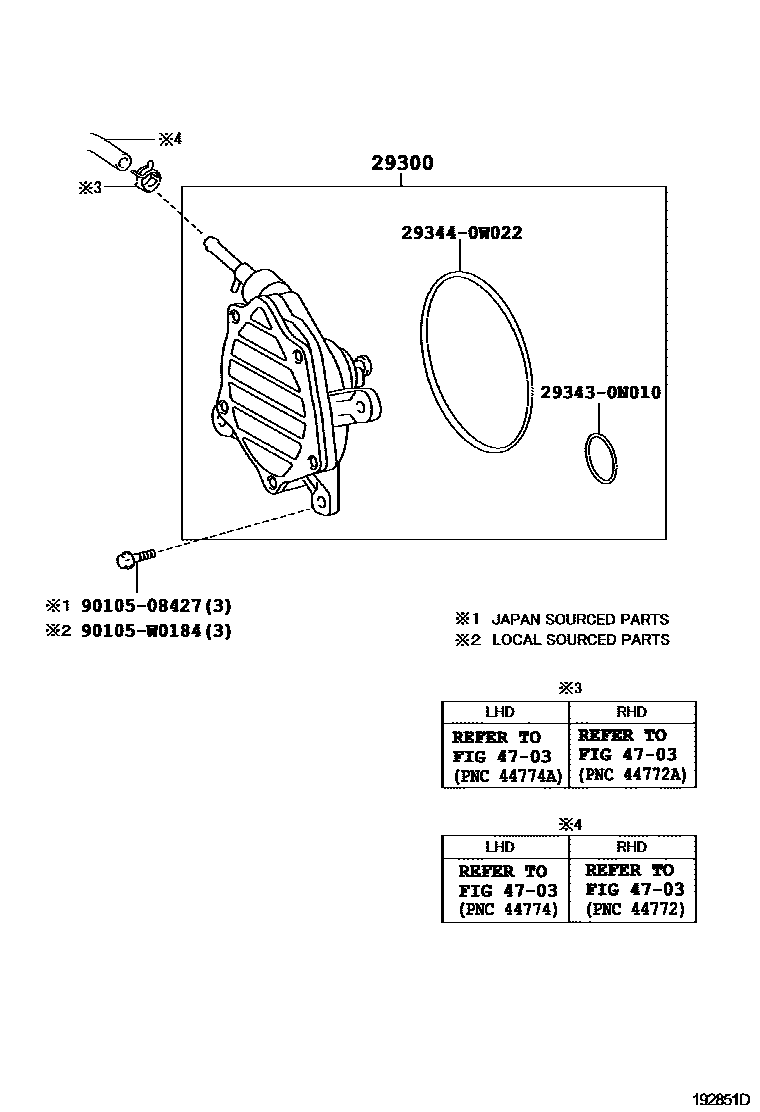

Toyota COROLLA 真空泵 EPC diagram — 192851D — 真空泵 — 192851D (200802 – 999999)

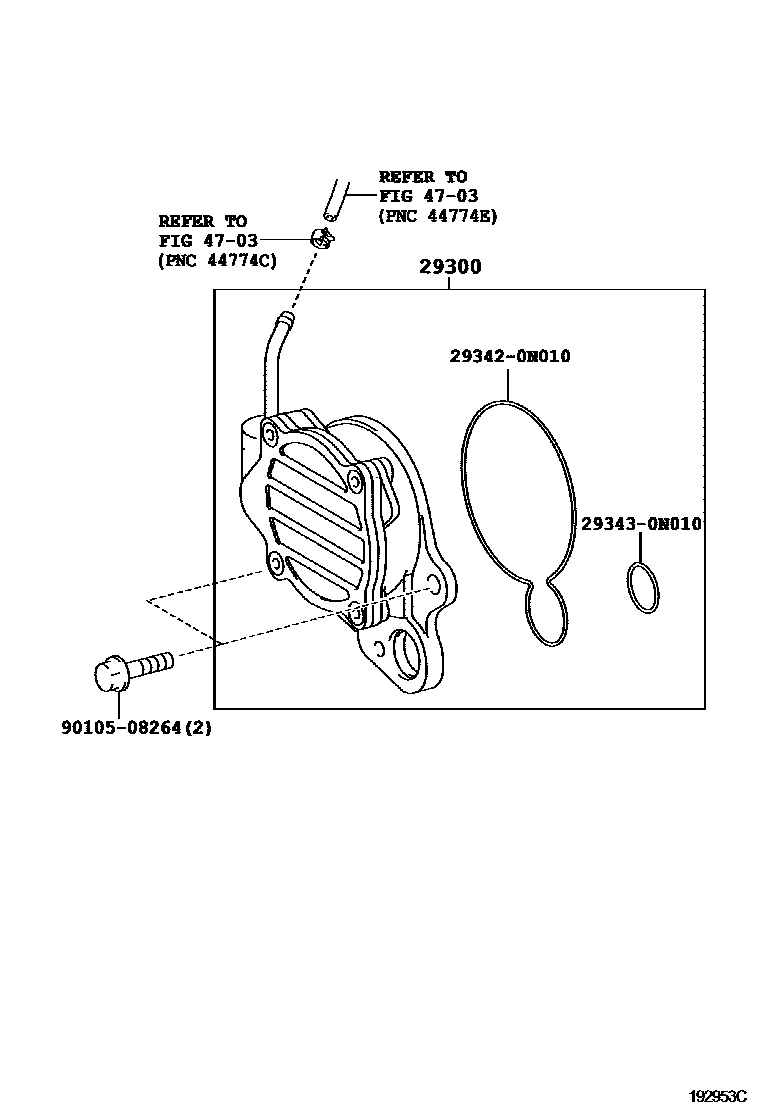

Toyota COROLLA 真空泵 EPC diagram — 192953C — 真空泵 — 192953C (200802 – 200902)

Toyota COROLLA 真空泵 EPC diagram — 193222A — 真空泵 — 193222A (200902 – 999999)

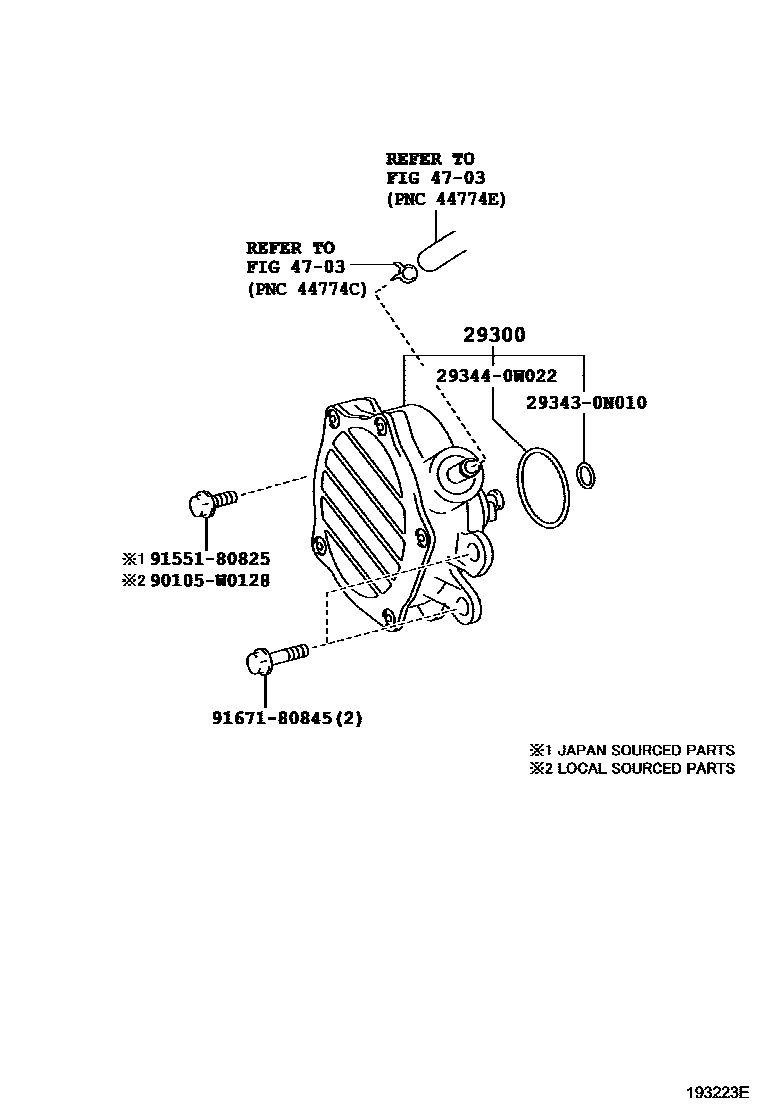

Toyota COROLLA 真空泵 EPC diagram — 193223E — 真空泵 — 193223E (200902 – 999999)

PNC and OE references

PNC	Part name	OE numbers
29300	Vacuum pump assembly	29300-0N010 · 29300-0T020 · 29300-0W022 · 29300-0W030 · 29300-0W070 · 29300-0W072 · 29300-0W090
