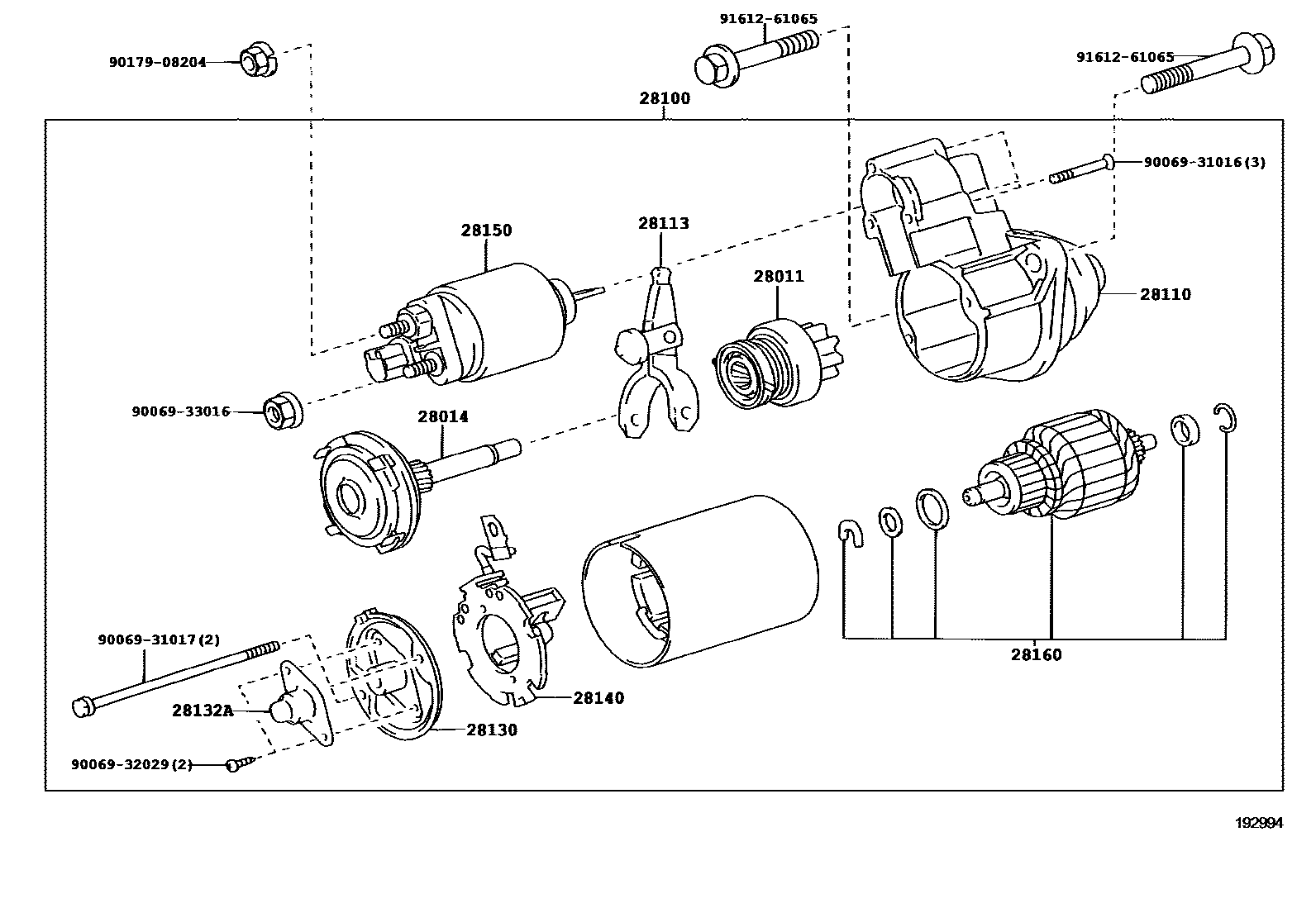

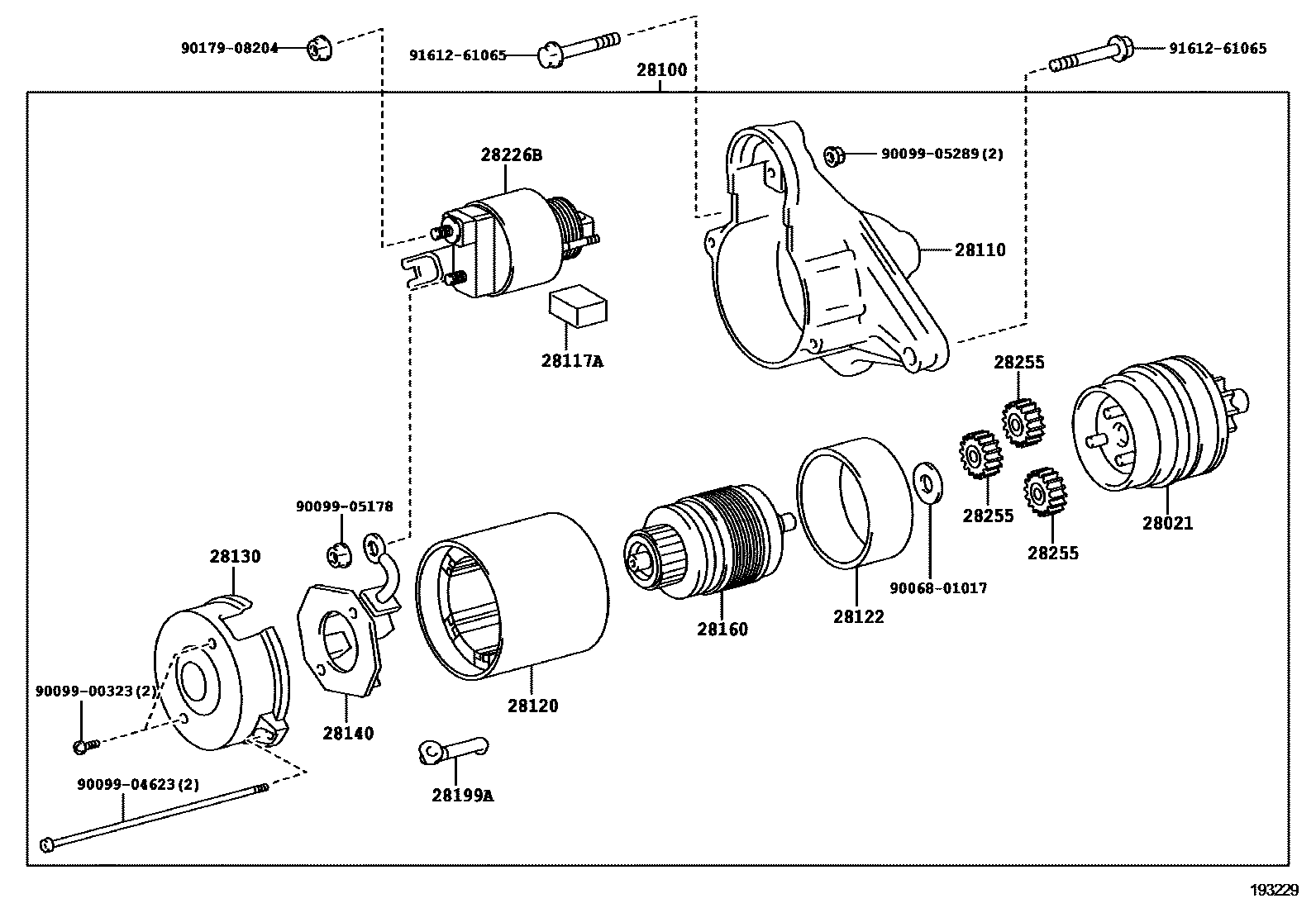

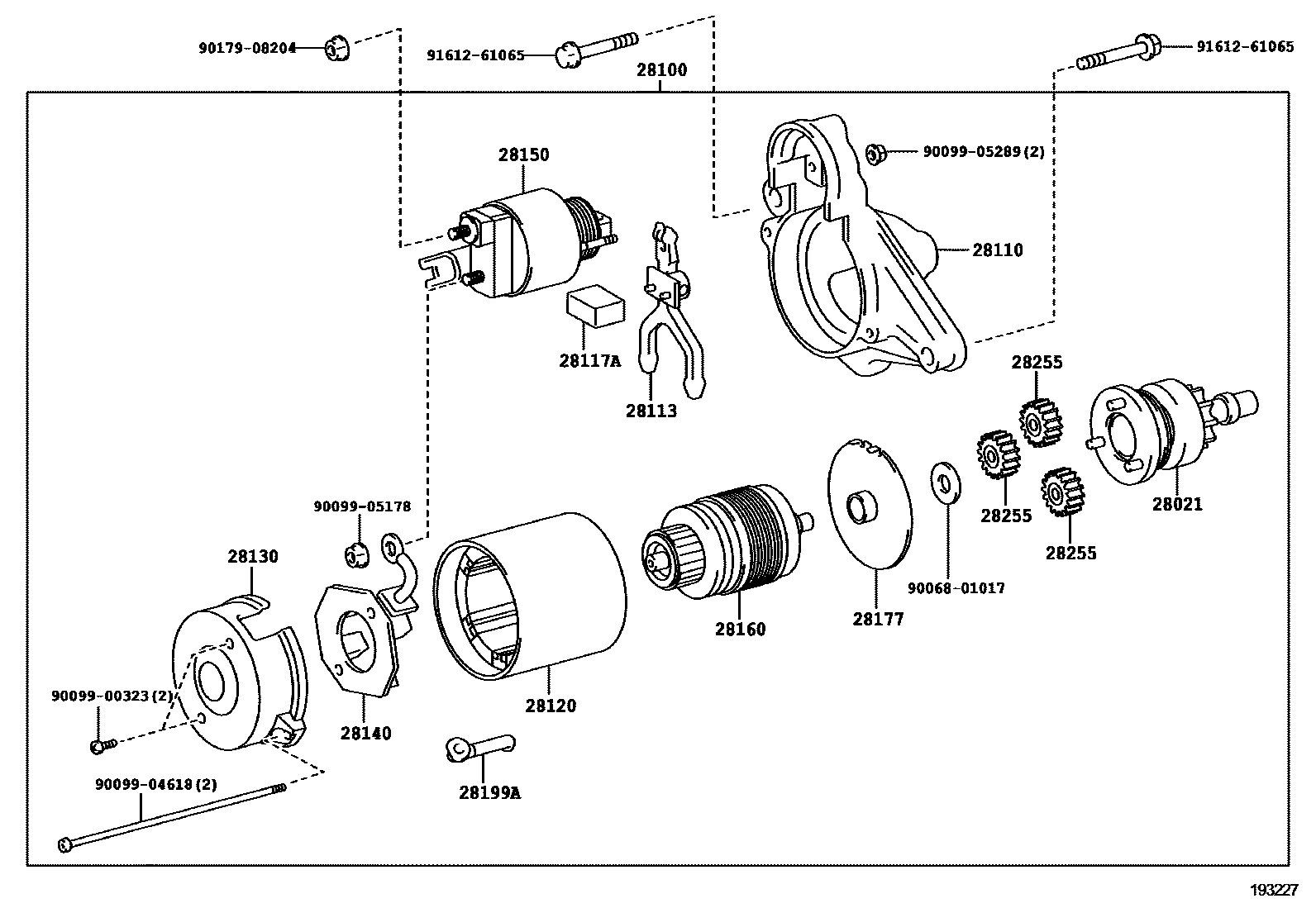

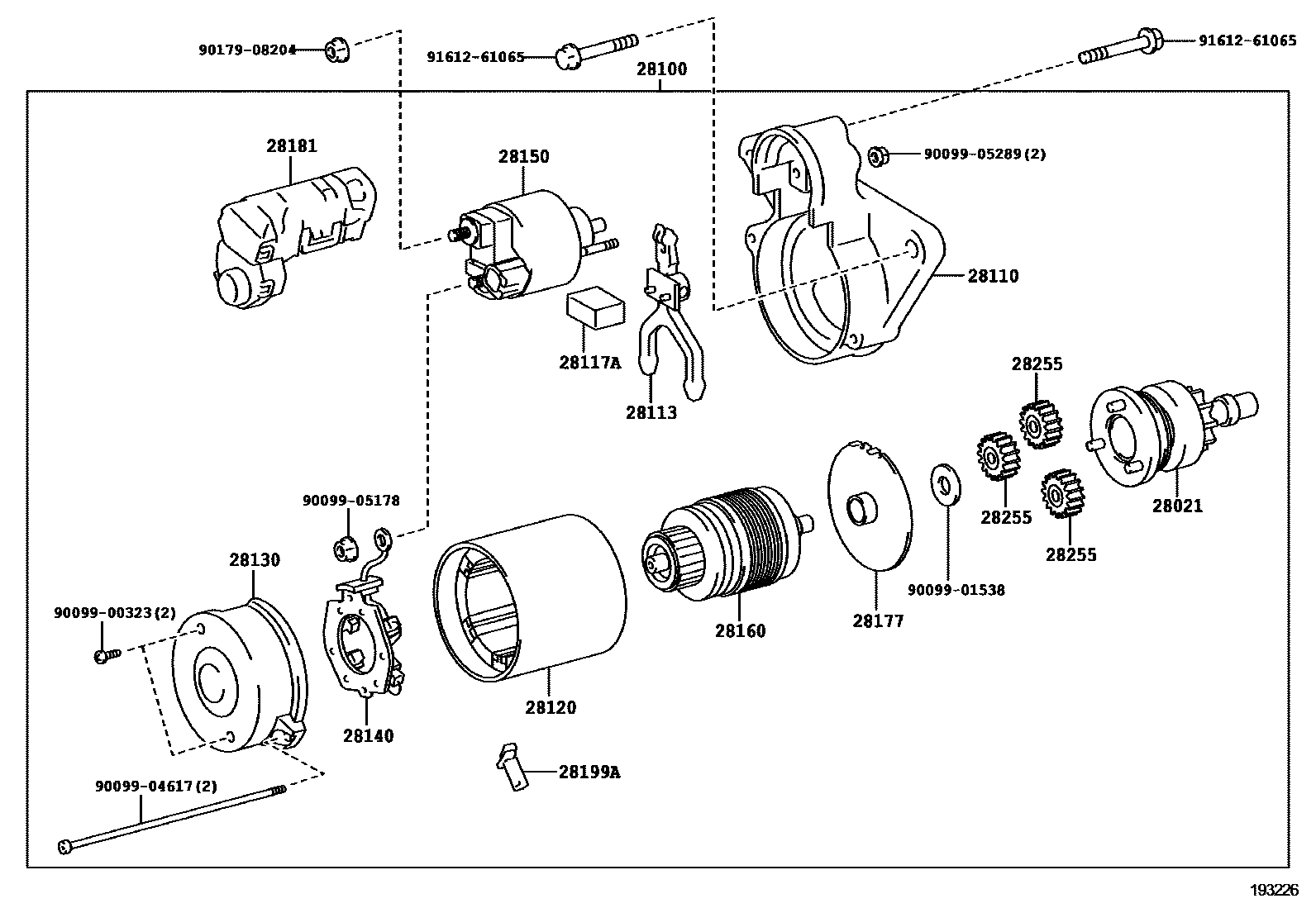

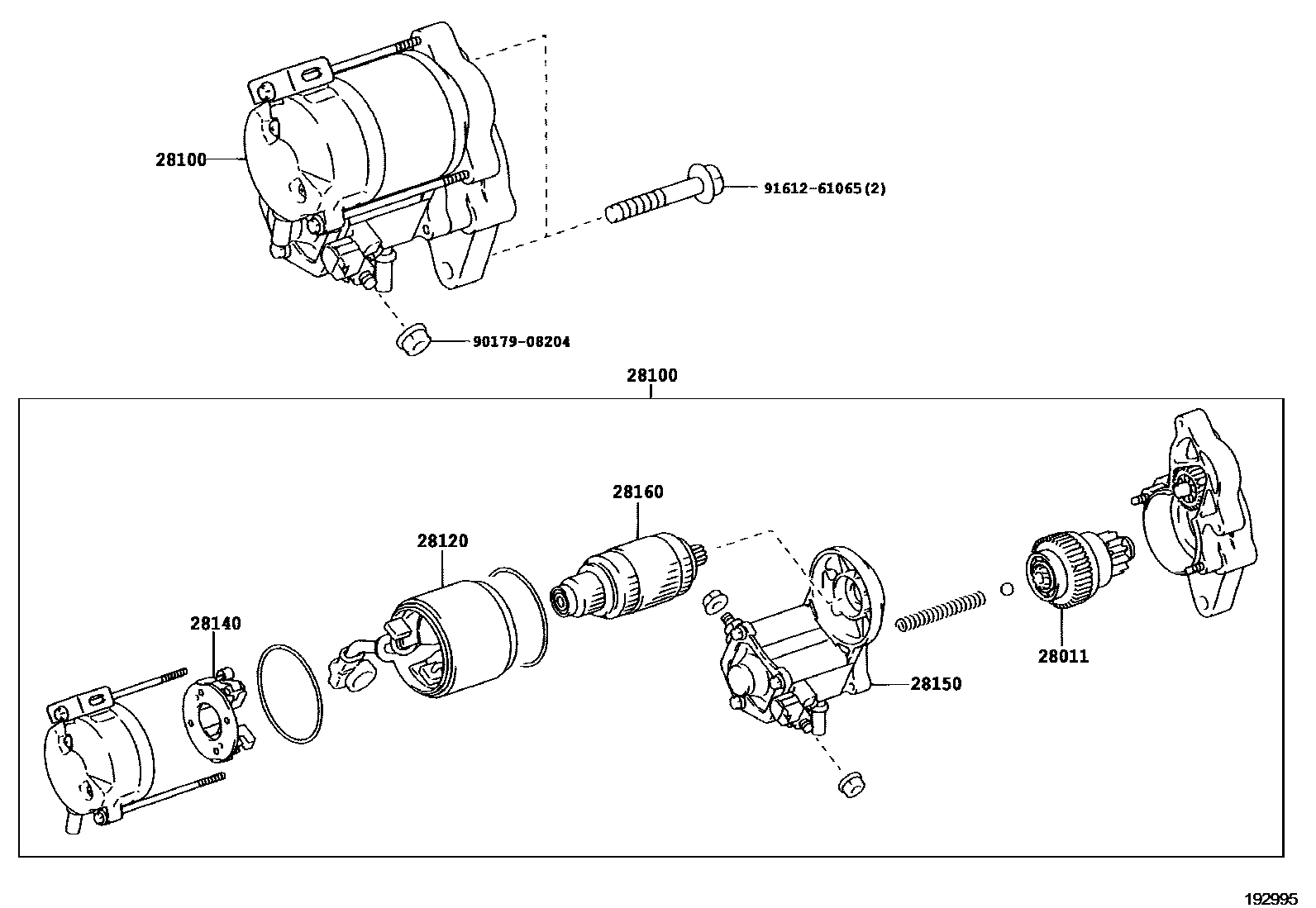

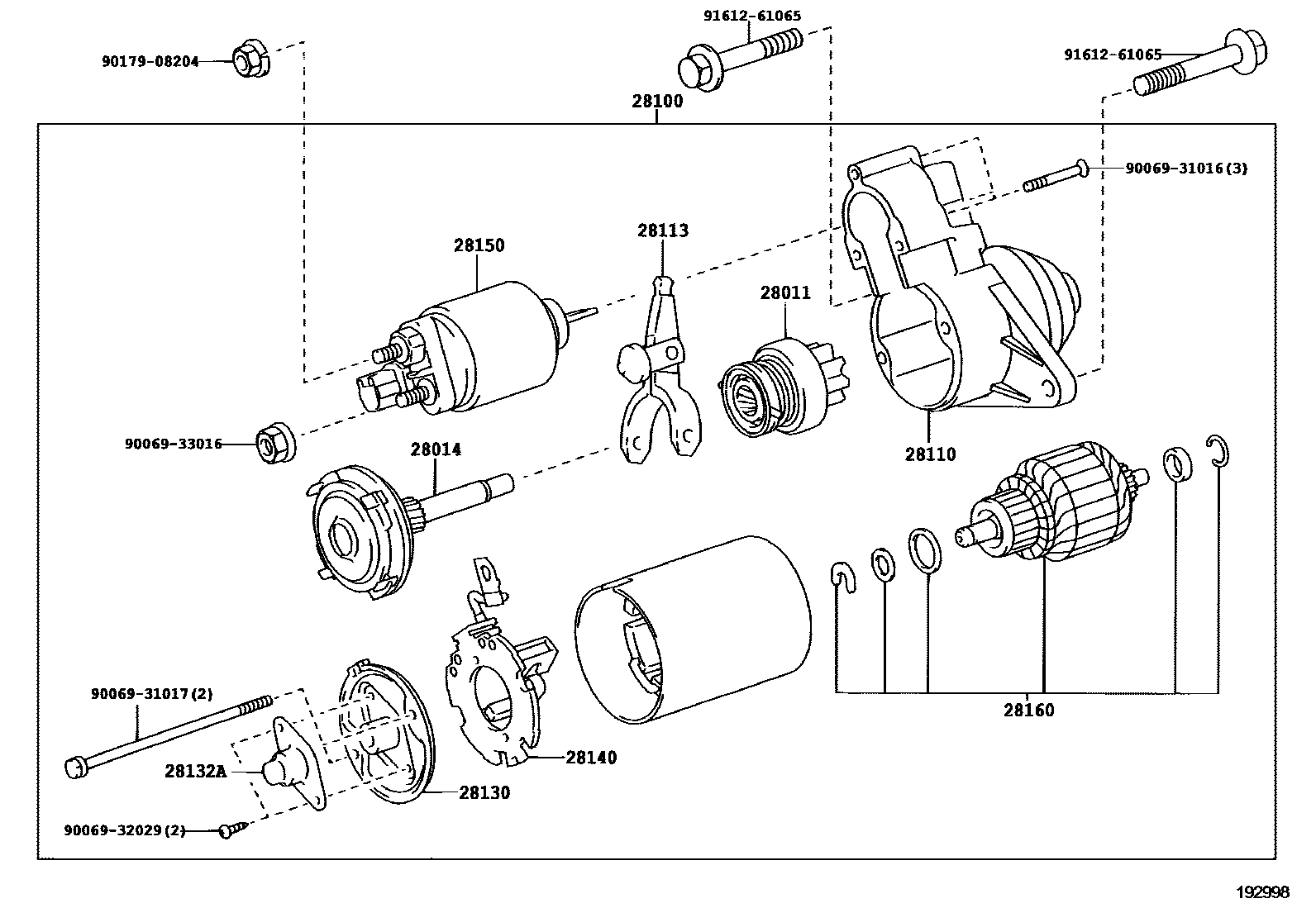

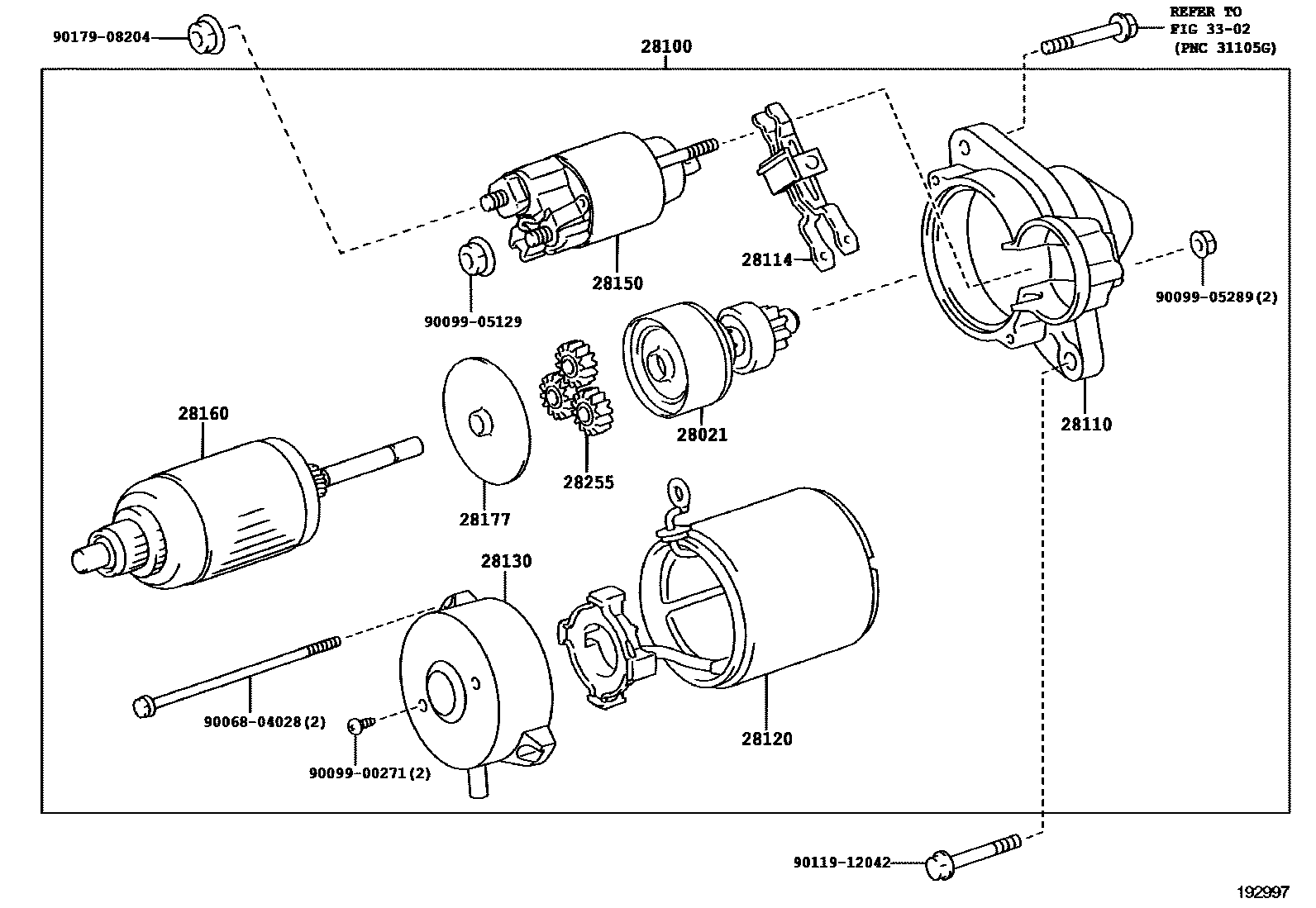

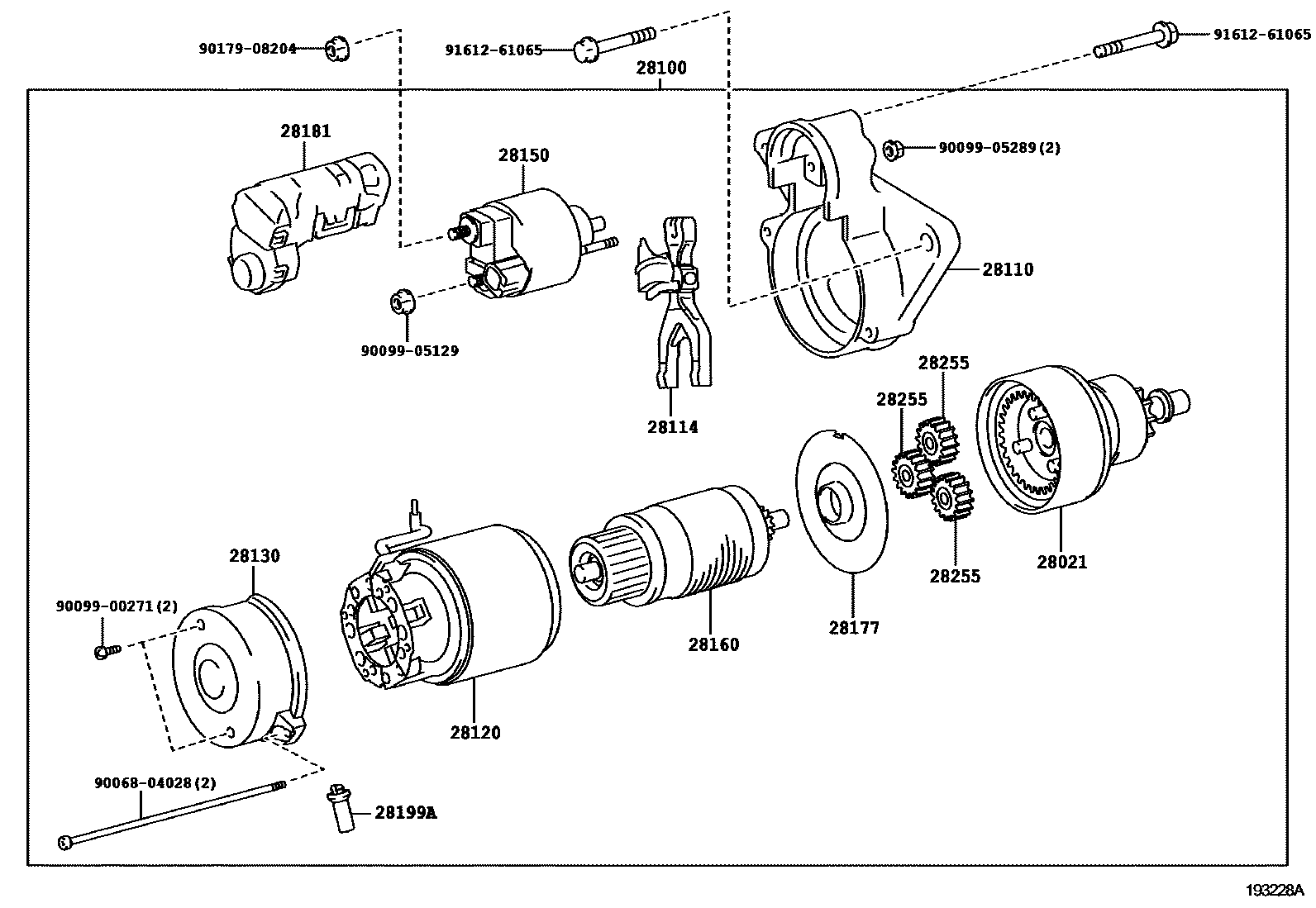

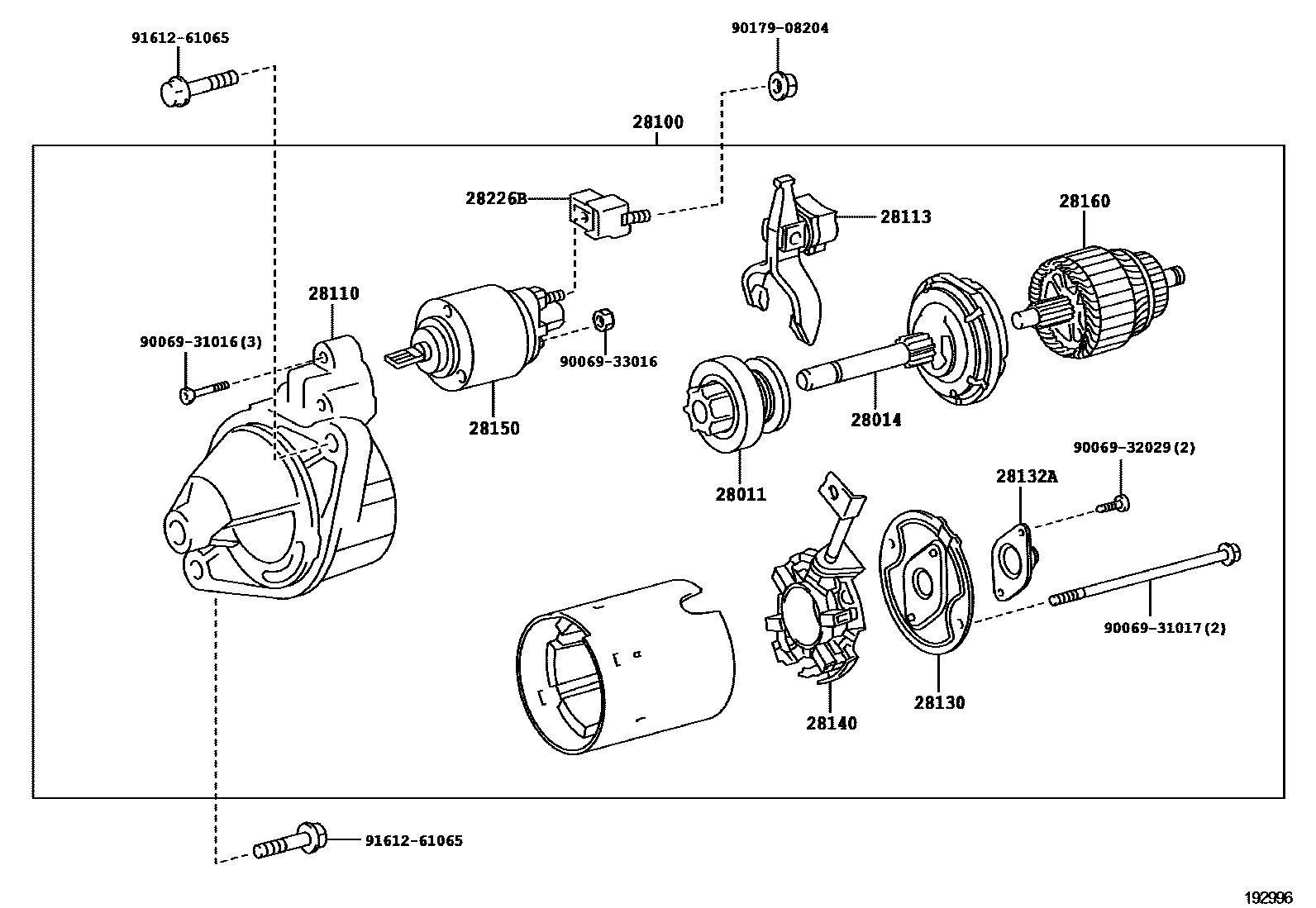

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 9 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0D160 · 28011-0N020 · 28011-55060 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0D160 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0N050 · 28021-0R010 · 28021-33090 · 28021-37050 · 28021-47110 |
| 28100 | Starter assembly | 28100-0D160 · 28100-0N020 · 28100-0N030 · 28100-0N050 · 28100-0N060 · 28100-0R010 · 28100-0T010 · 28100-0Y030 · 28100-0Y040 · 28100-0Y041 · 28100-0Y042 |
| 28110 | Starter drive end housing assembly | 28110-0D160 · 28110-0N020 · 28110-0N050 · 28110-0R010 · 28110-0T010 · 28110-0Y010 · 28110-33110 · 28110-47110 |
| 28113 | starter pinion drive rod | 28113-0D160 · 28113-37050 |
| 28114 | starter drive lever | 28114-0R010 · 28114-33100 |
| 28117A | Rubber seal | 28117-37050 · 28117-47110 |
| 28120 | Starter yoke assembly | 28120-0J050 · 28120-33110 · 28120-38020 · 28120-47110 · 28120-54380 |
| 28122 | isolation collar | 28122-47110 |
| 28130 | Starter commutator end frame assembly | 28130-0D160 · 28130-0N050 · 28130-0R010 · 28130-0Y010 · 28130-33110 · 28130-47110 |
| 28132A | Starter commutator end frame cover | 28132-0D160 |
| 28140 | Starter brush holder assembly | 28140-0D160 · 28140-37050 · 28140-47110 · 28140-54380 |
| 28150 | Starter electromagnetic switch assembly | 28150-0D160 · 28150-33040 · 28150-37020 · 28150-40090 |
| 28160 | Starter armature assembly | 28160-0D160 · 28160-0D180 · 28160-0G020 · 28160-33090 · 28160-37060 · 28160-54380 · 28180-47110 |
| 28177 | Plate (for starter armature) | 28177-0G020 · 28177-37050 |
| 28181 | starter terminal | 28181-33010 |
| 28199A | Starter dust protection device | 28199-31090 · 28199-33110 · 28199-46080 |
| 28226B | starter magnetic switch | 28226-0N020 · 28226-47110 · 28226-47111 · 28226-47190 |
| 28255 | Planetary gear | 28255-0G040 · 28255-33090 · 28255-37050 · 28255-47110 |
