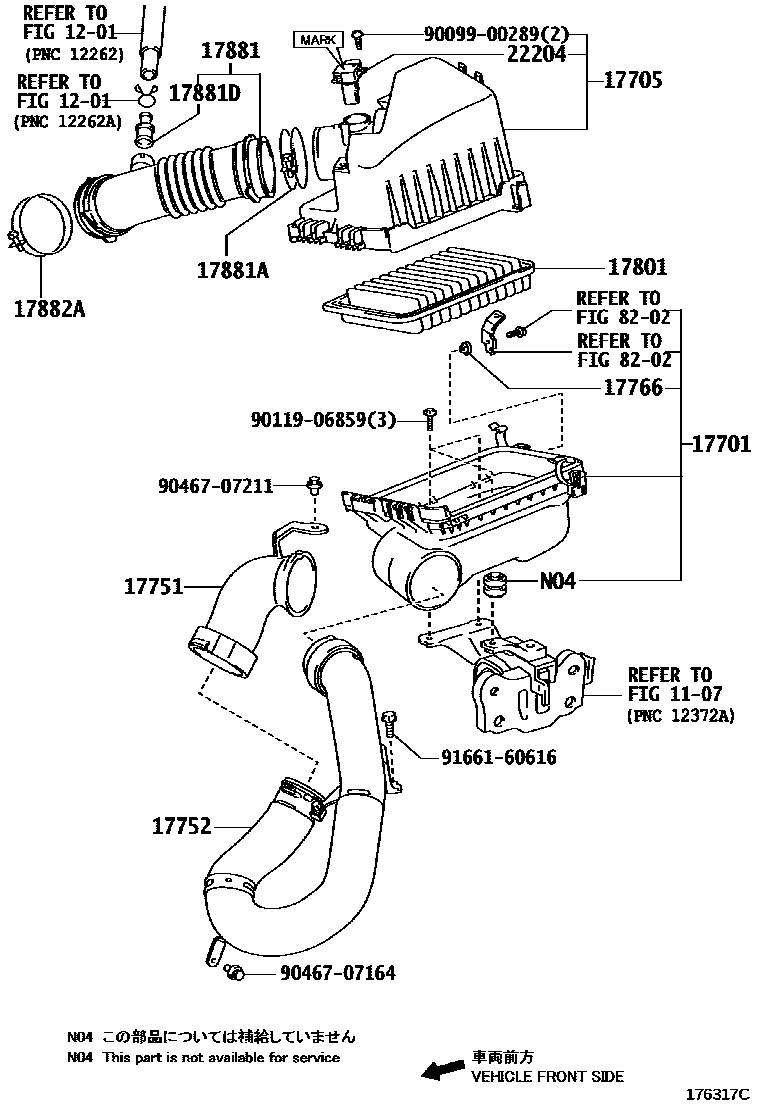

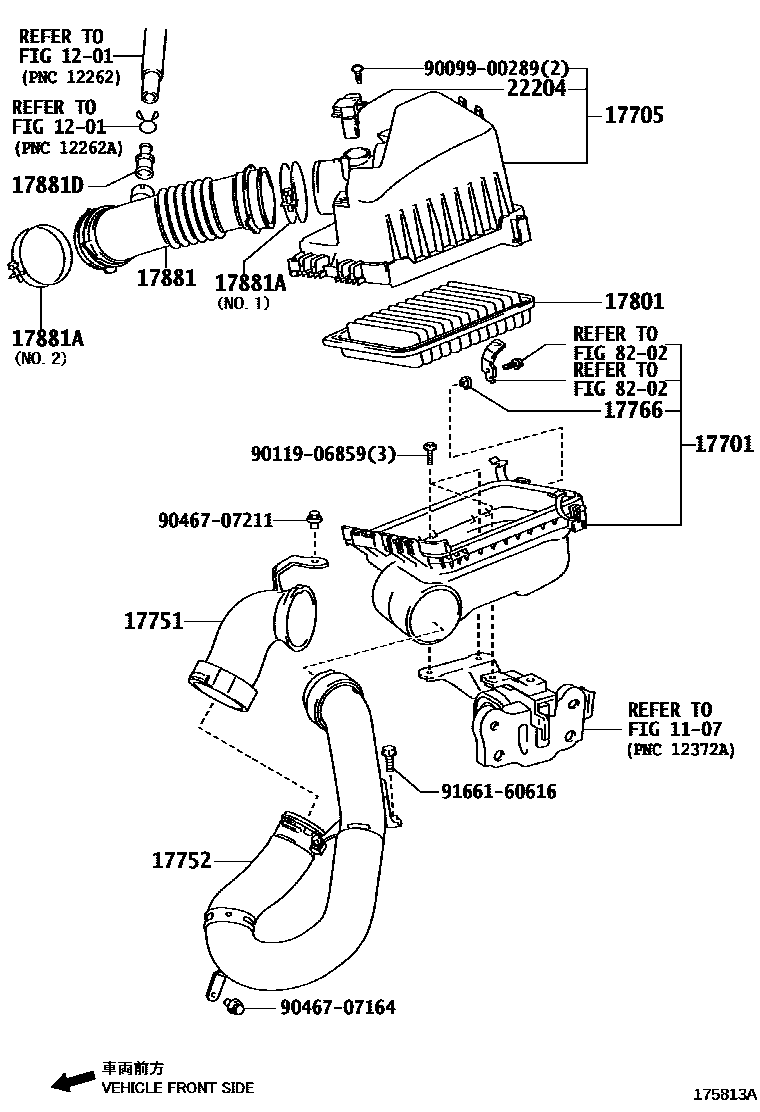

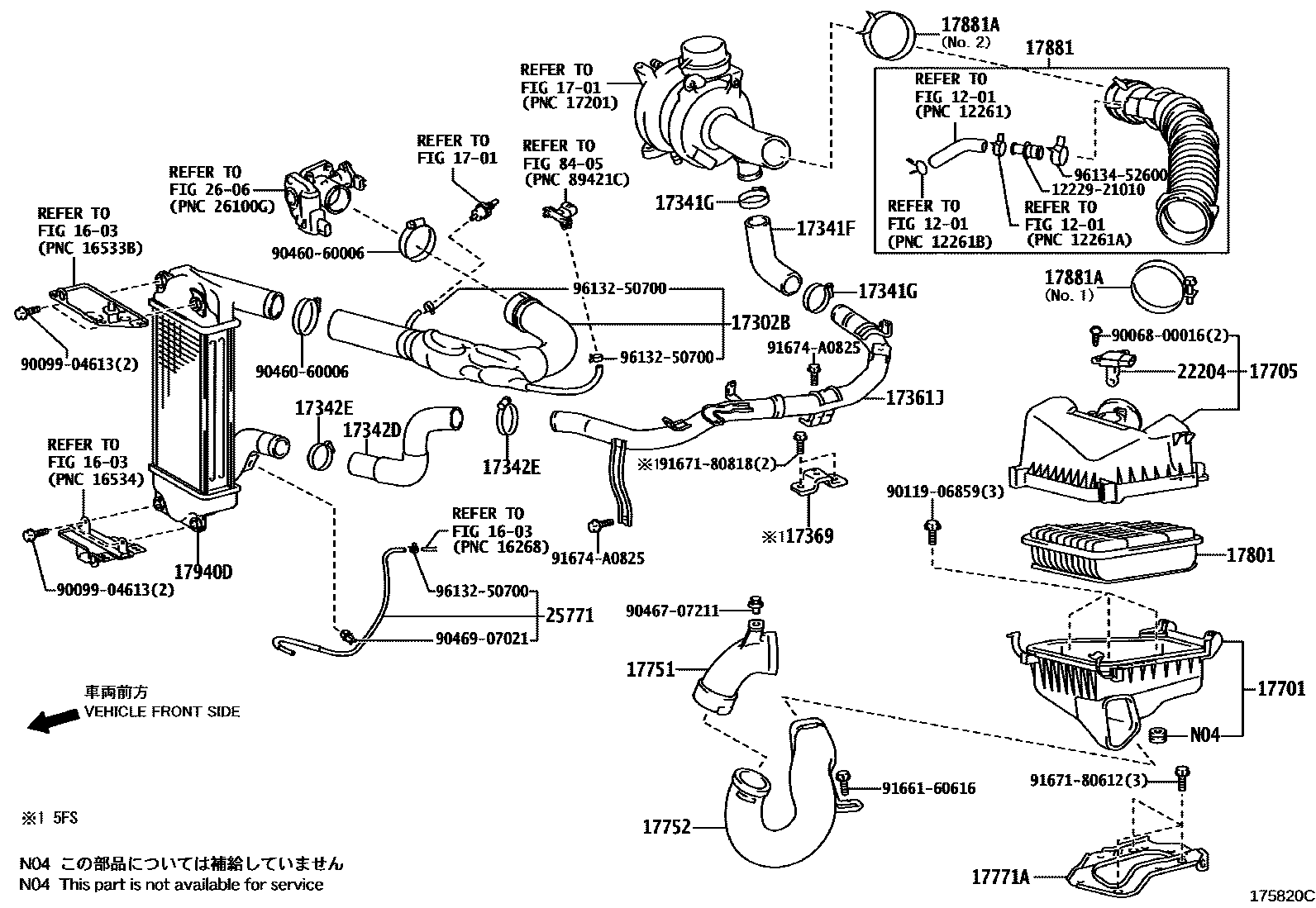

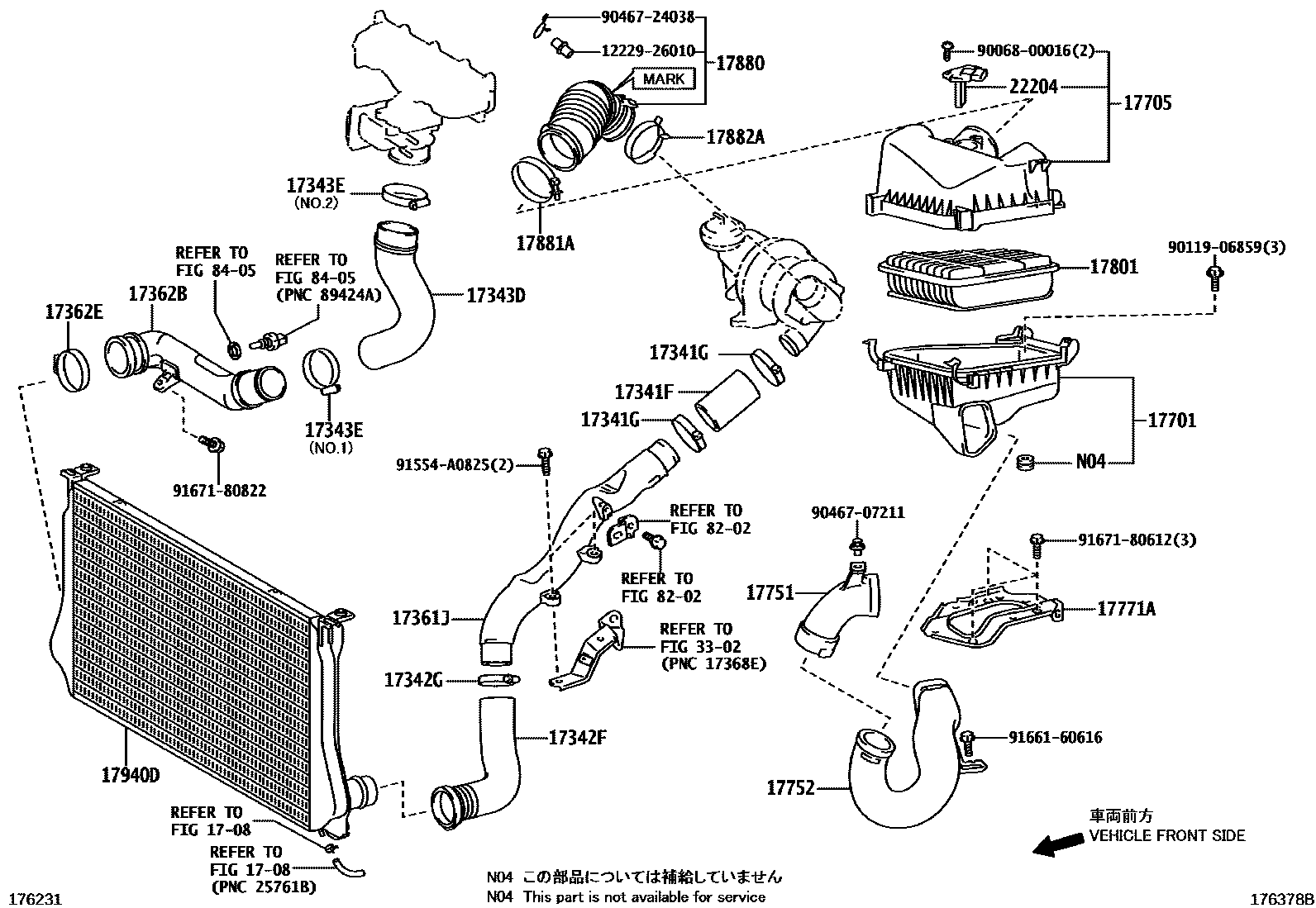

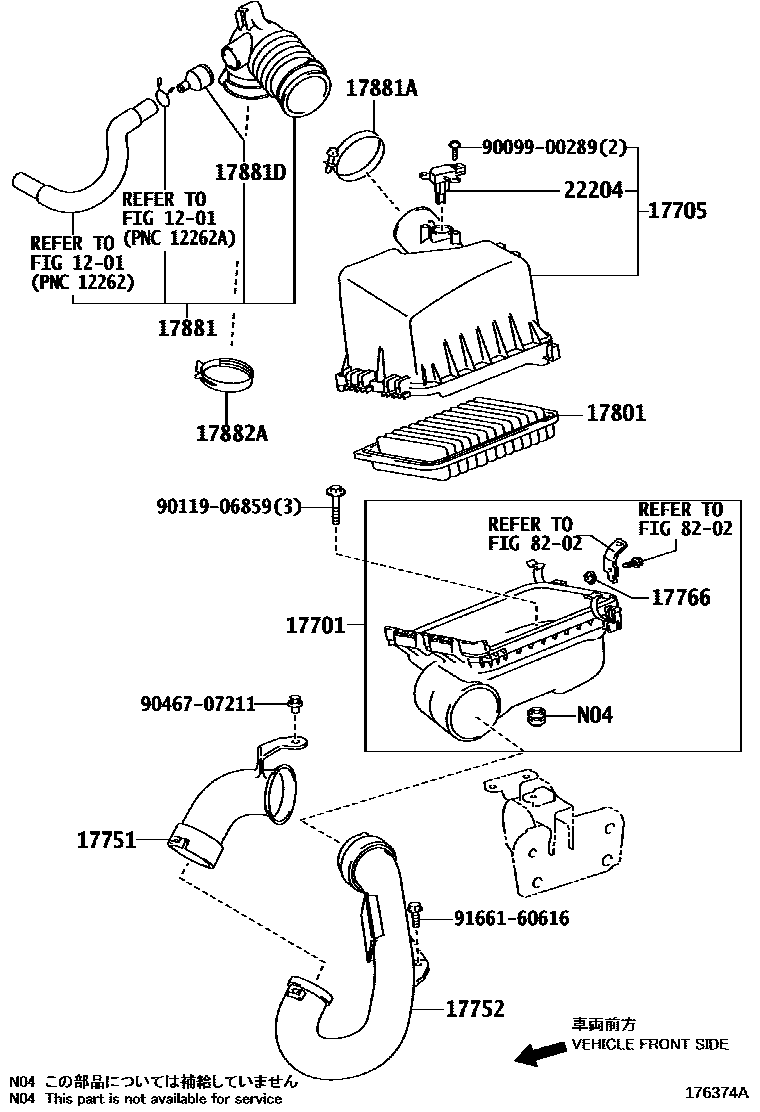

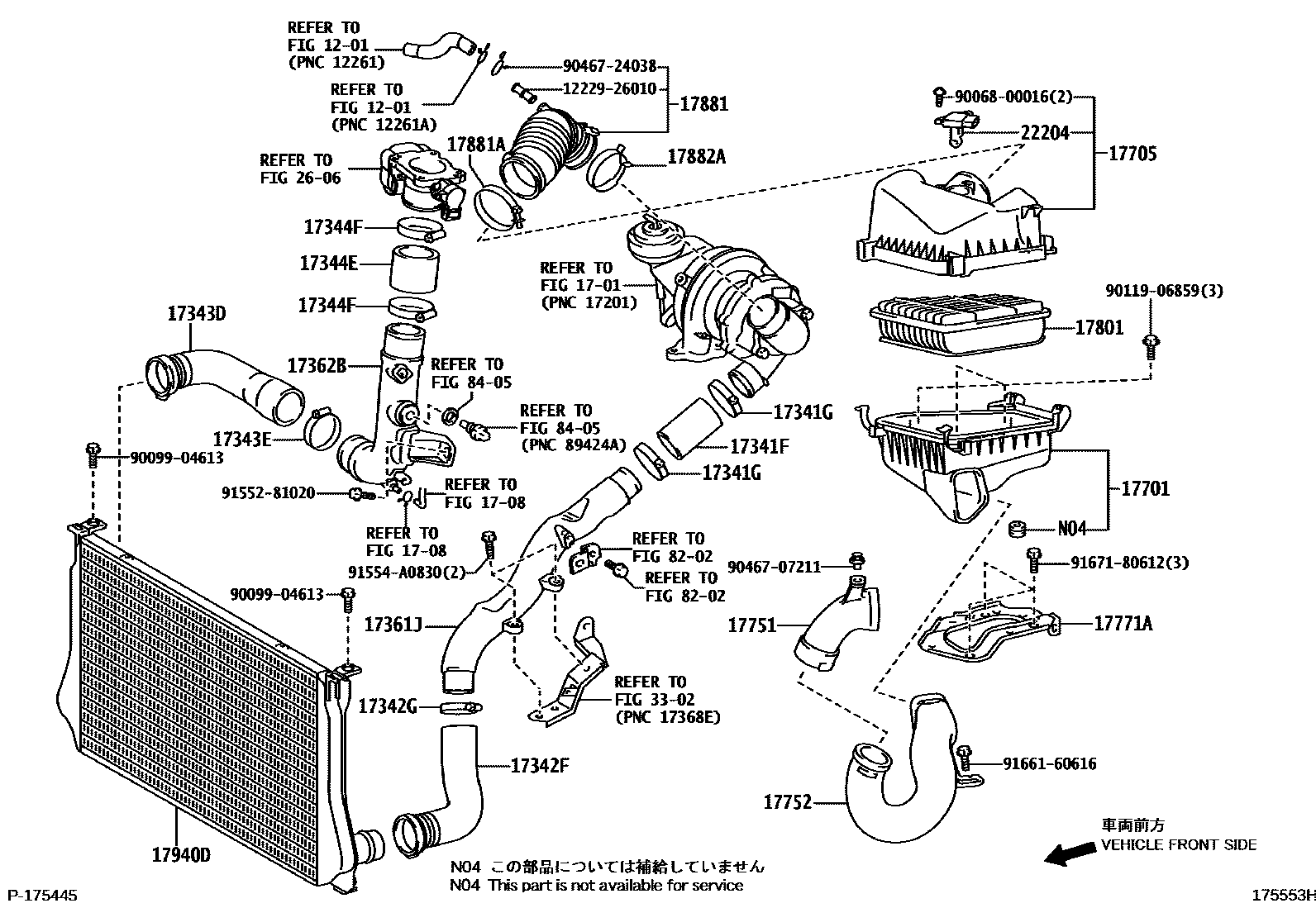

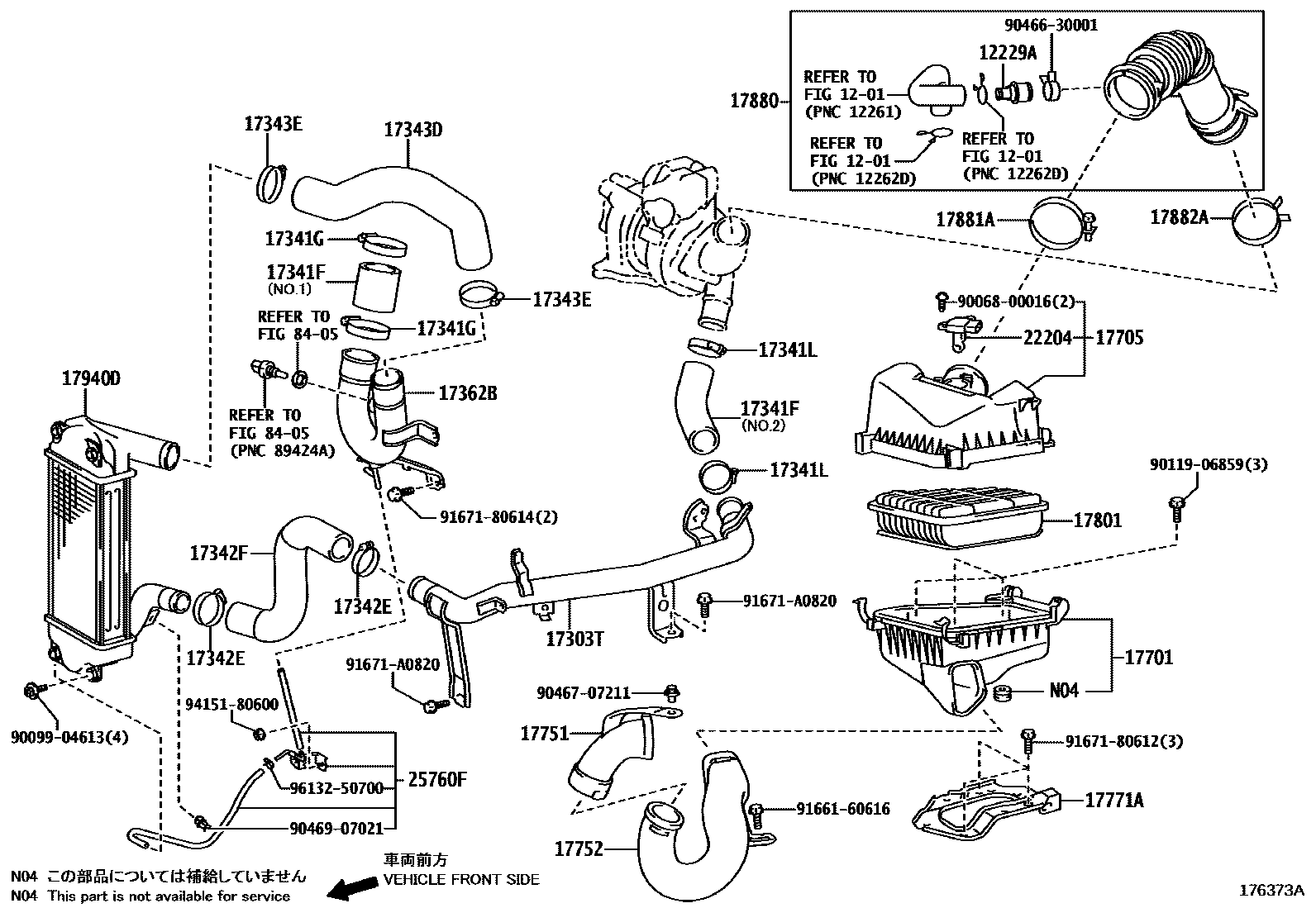

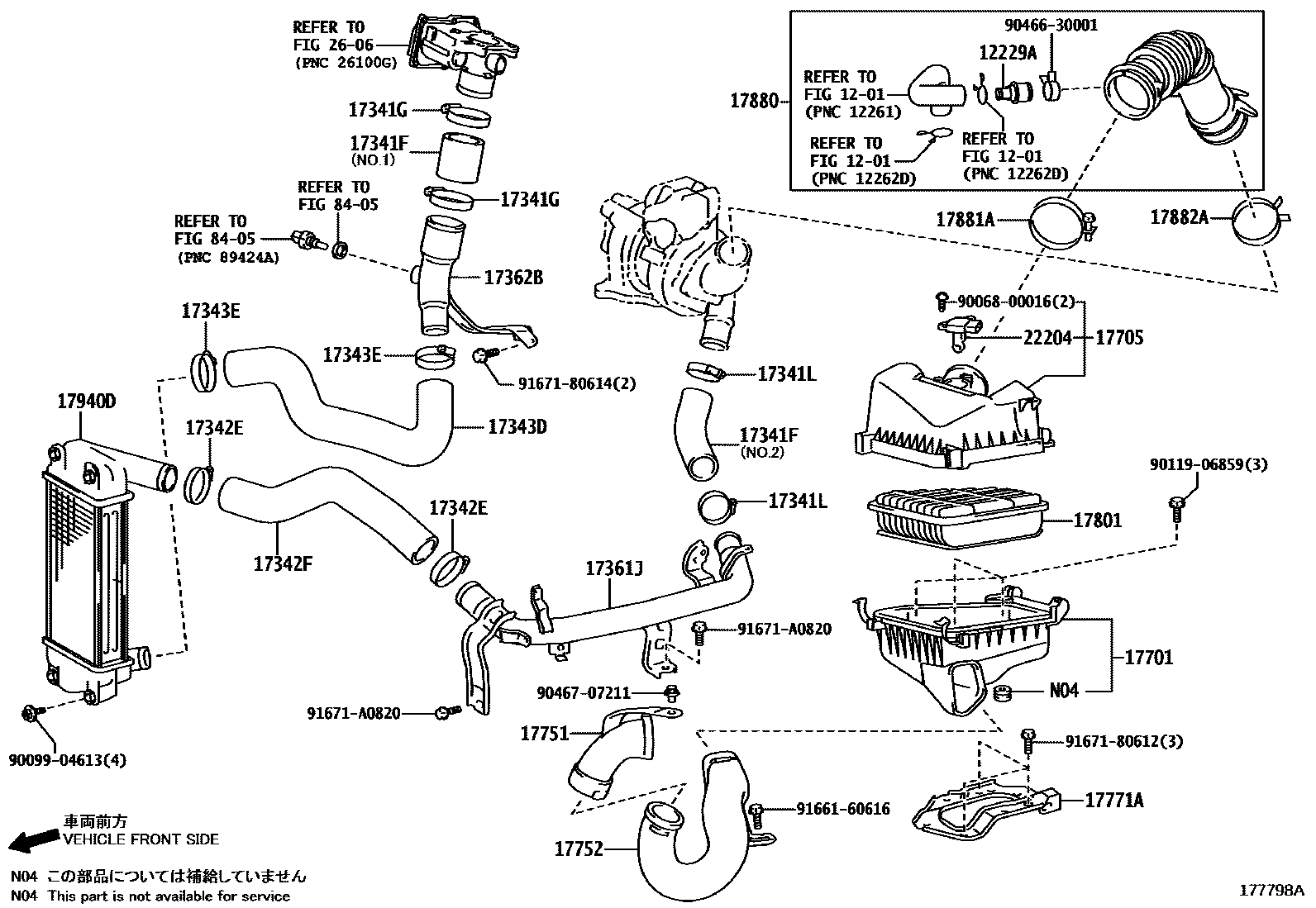

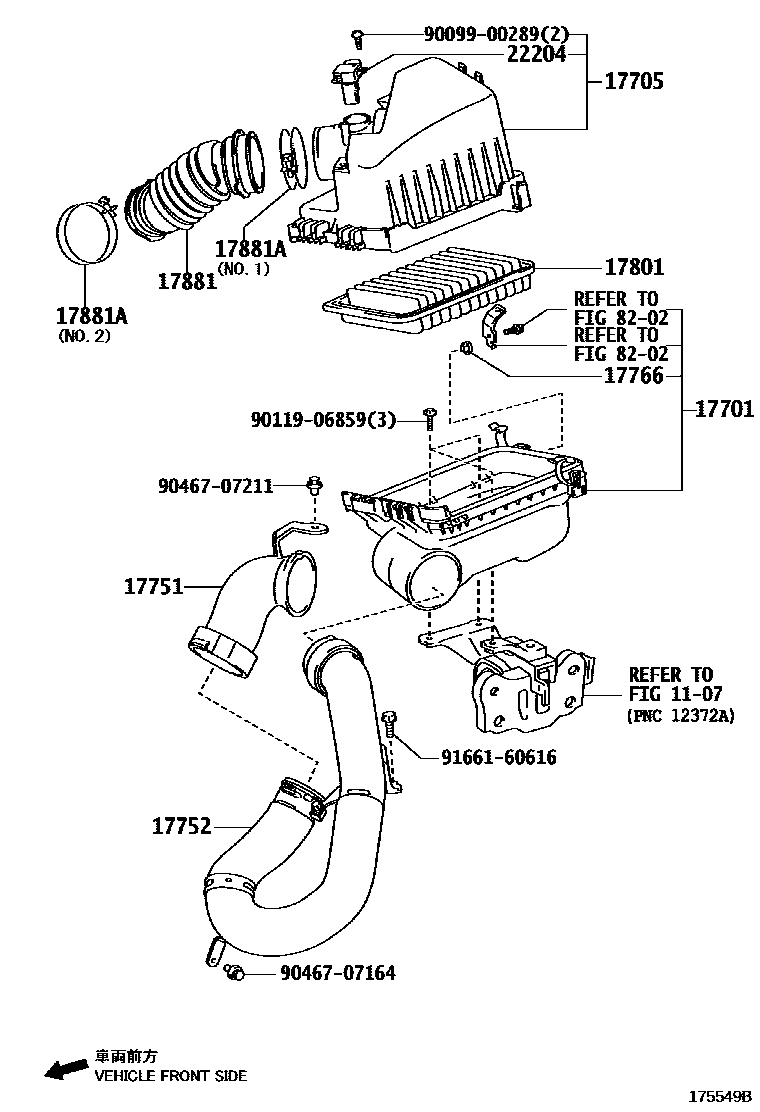

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 9 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-33010 |
| 17302B | Air hose sub-assembly | 17302-33010 |
| 17303T | Air pipe subassembly | 17303-33020 |
| 17341F | Air hose No. 1 | 17341-26100 · 17341-26101 · 17341-33040 · 17341-33070 · 17341-33080 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-50005 · 90460-63011 · 90460-65012 |
| 17341L | hose clamp | 90460-50005 |
| 17342D | Air hose No. 2 | 17342-33040 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-50005 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-26110 · 17342-33080 · 17342-33120 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-70003 |
| 17343D | No. 3 air hose | 17343-26050 · 17343-26060 · 17343-26090 · 17343-33070 · 17343-33100 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-60006 · 90460-73011 · 90460-77002 |
| 17344E | No. 4 air hose | 17344-0R010 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-77002 |
| 17361J | Air tube No. 1 | 17361-26050 · 17361-33050 · 17361-33100 |
| 17362B | No. 2 air pipe | 17362-0R021 · 17362-0R030 · 17362-33050 · 17362-33080 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-73012 |
| 17369 | Air tube bracket | 17369-33010 |
| 17701 | Air filter housing sub-assembly | 17701-0D160 · 17701-0R020 |
| 17705 | Air filter cover sub-assembly | 17705-0D170 · 17705-0D220 · 17705-0N030 · 17705-0N070 · 17705-0R021 · 17705-0R022 · 17705-0R040 · 17705-0T090 · 17705-0T091 · 17705-0Y040 · 17705-0Y041 |
| 17751 | No. 1 air filter air inlet | 17751-22180 · 17751-26050 · 17751-37020 · 17751-47030 |
| 17752 | No. 2 air filter air inlet | 17752-21060 · 17752-26030 · 17752-37030 · 17752-47010 |
| 17766 | No. 2 air filter stay | 17706-21010 · 17706-22010 |
| 17771A | air filter bracket | 17771-0R010 · 17771-0R020 |
| 17801 | Air filter element sub-assembly | 17801-0D090 · 17801-0R030 |
| 17880 | Air cleaner hose assembly | 17880-0R040 · 17880-0R050 · 17880-33060 |
| 17881 | No. 1 air cleaner hose | 17880-0D090 · 17880-0D230 · 17880-0N040 · 17880-0R020 · 17880-0T070 · 17880-0Y020 · 17881-0D220 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90466-54002 · 96111-10730 · 96111-10750 · 96111-10780 · 96111-10800 · 96111-10830 · 96111-10850 |
| 17881D | Connector tube (for air cleaner hose) | 12229-21010 · 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-54002 · 90466-62002 · 96111-10780 |
| 17940D | Intercooler assembly | 17900-0N020 · 17900-0N040 · 17940-0N080 · 17940-0R020 · 17940-0R040 |
| 22204 | Intake air flow meter assembly | 22204-0N010 · 22204-0V020 · 22204-26010 · 22204-28010 · 22204-31020 · 22204-33010 · 22204-37010 |
| 25760F | Vacuum transfer hose assembly | 25770-33030 |
| 25771 | No. 2 vacuum transfer hose | 25770-33010 |
