Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 13 images and 57 PNC and OE references.

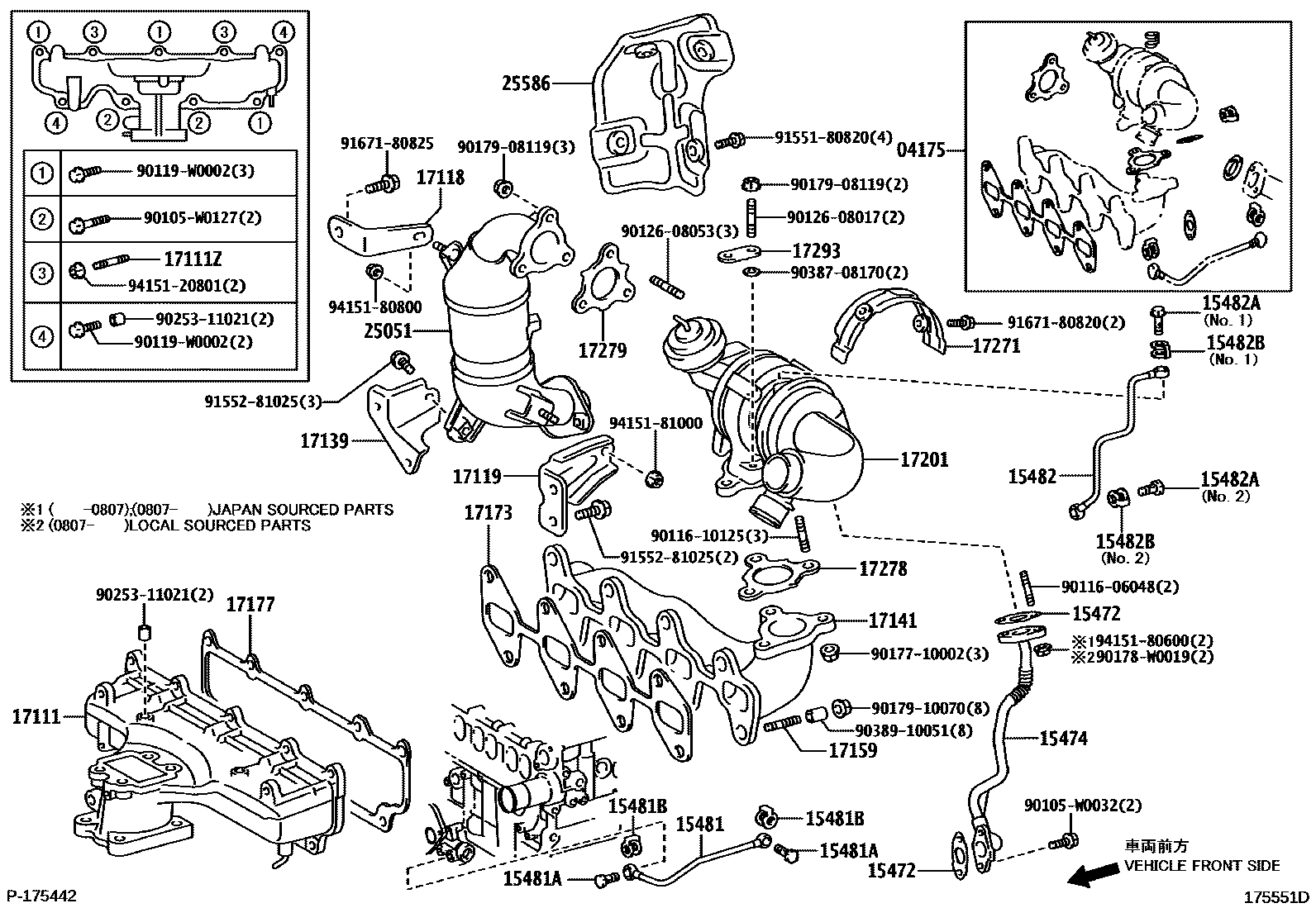

Toyota COROLLA Manifold EPC diagram — 175551D
Manifold — 175551D (200802 – 999999)

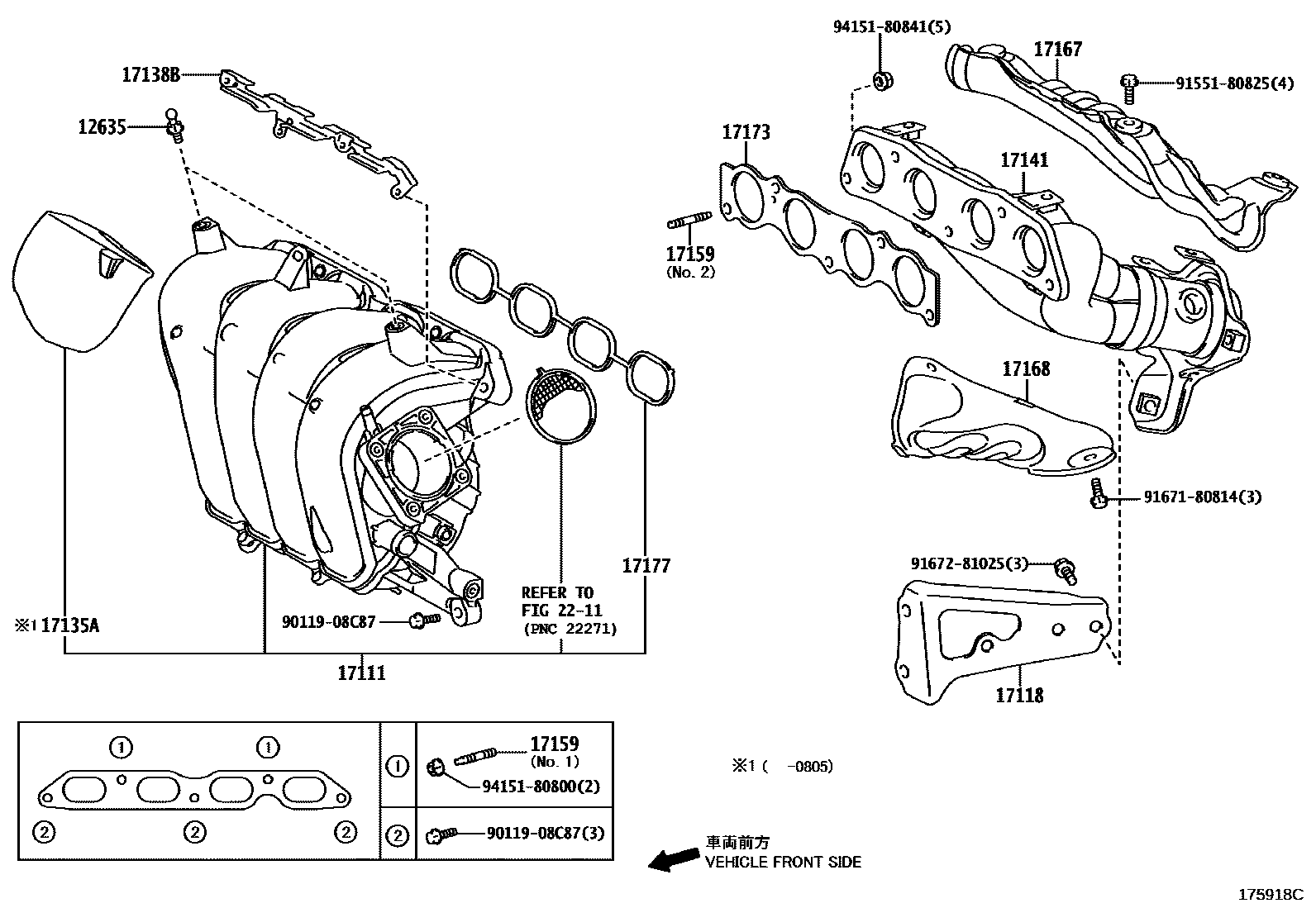

Toyota COROLLA Manifold EPC diagram — 175918C
Manifold — 175918C (200802 – 999999)

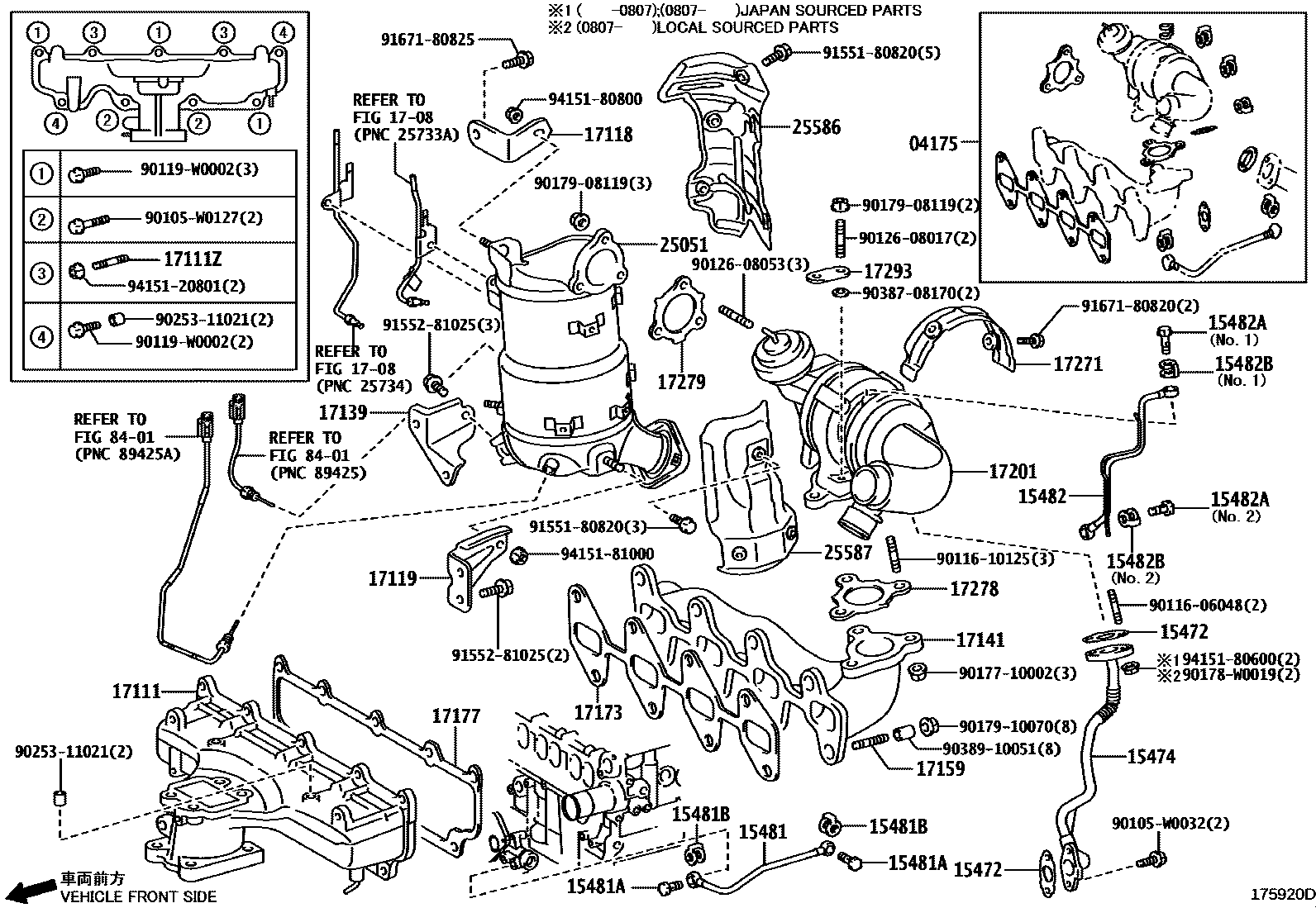

Toyota COROLLA Manifold EPC diagram — 175920D
Manifold — 175920D (200802 – 200903)

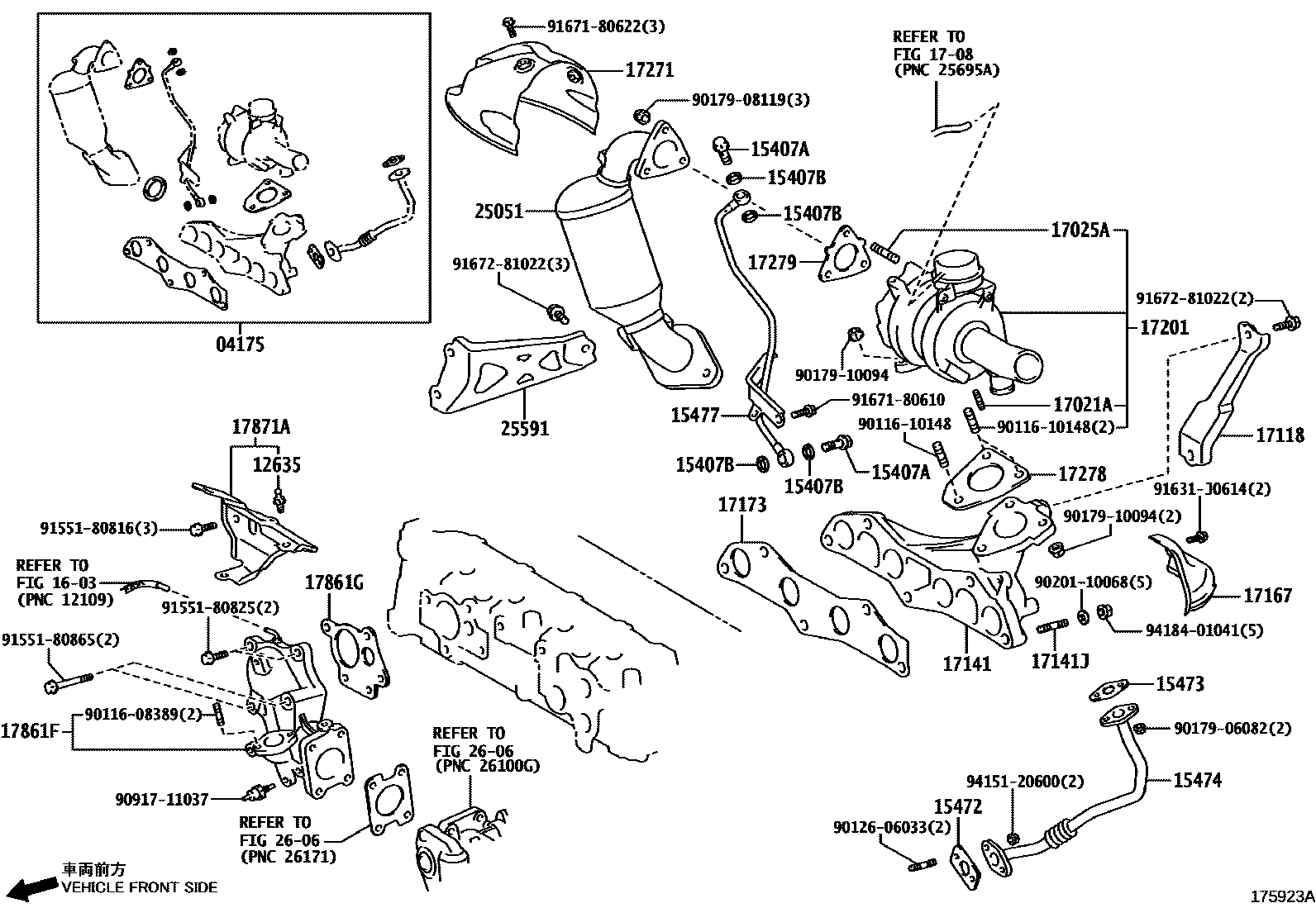

Toyota COROLLA Manifold EPC diagram — 175923A
Manifold — 175923A (200802 – 200902)

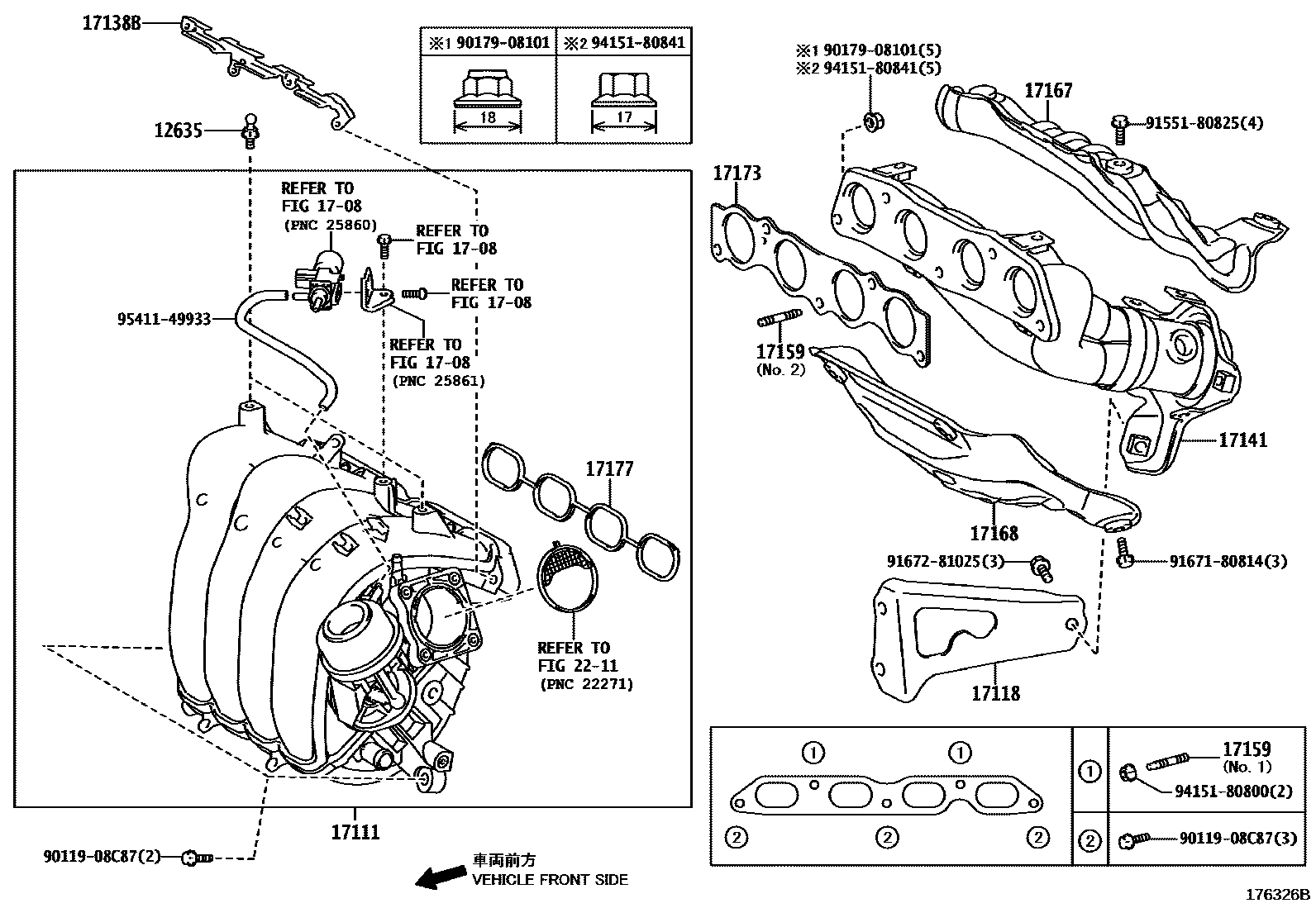

Toyota COROLLA Manifold EPC diagram — 176326B
Manifold — 176326B (200902 – 999999)

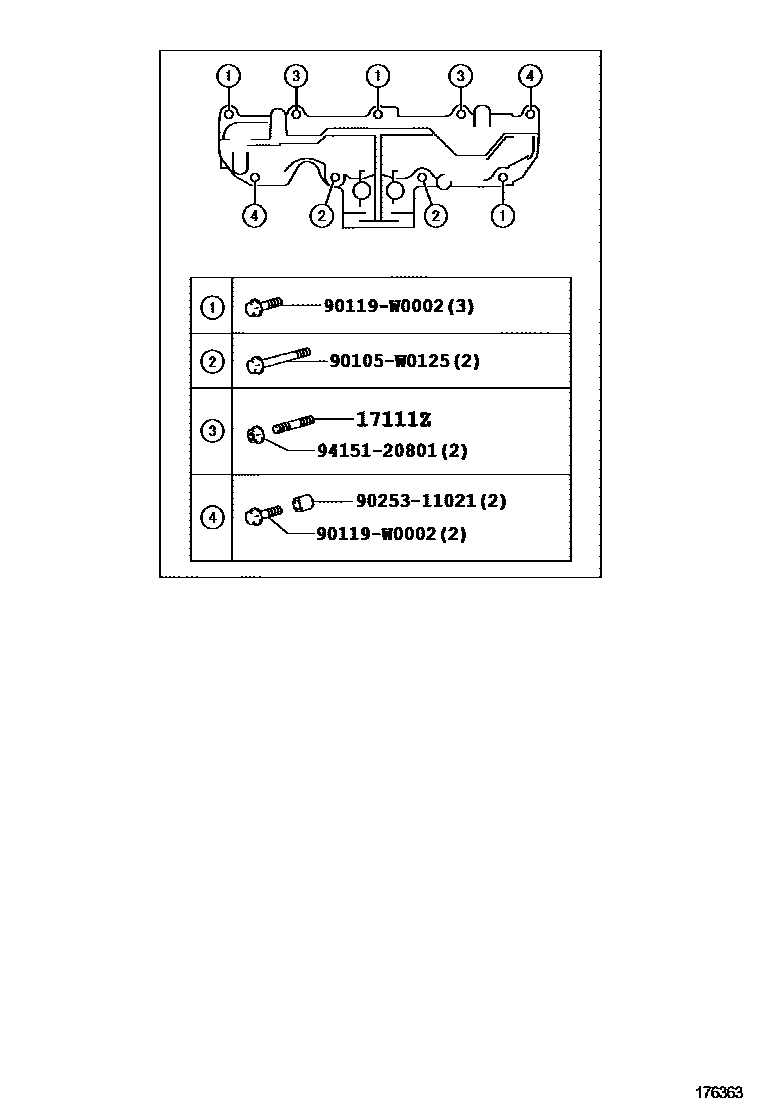

Toyota COROLLA Manifold EPC diagram — 176363
Manifold — 176363 (200903 – 999999)

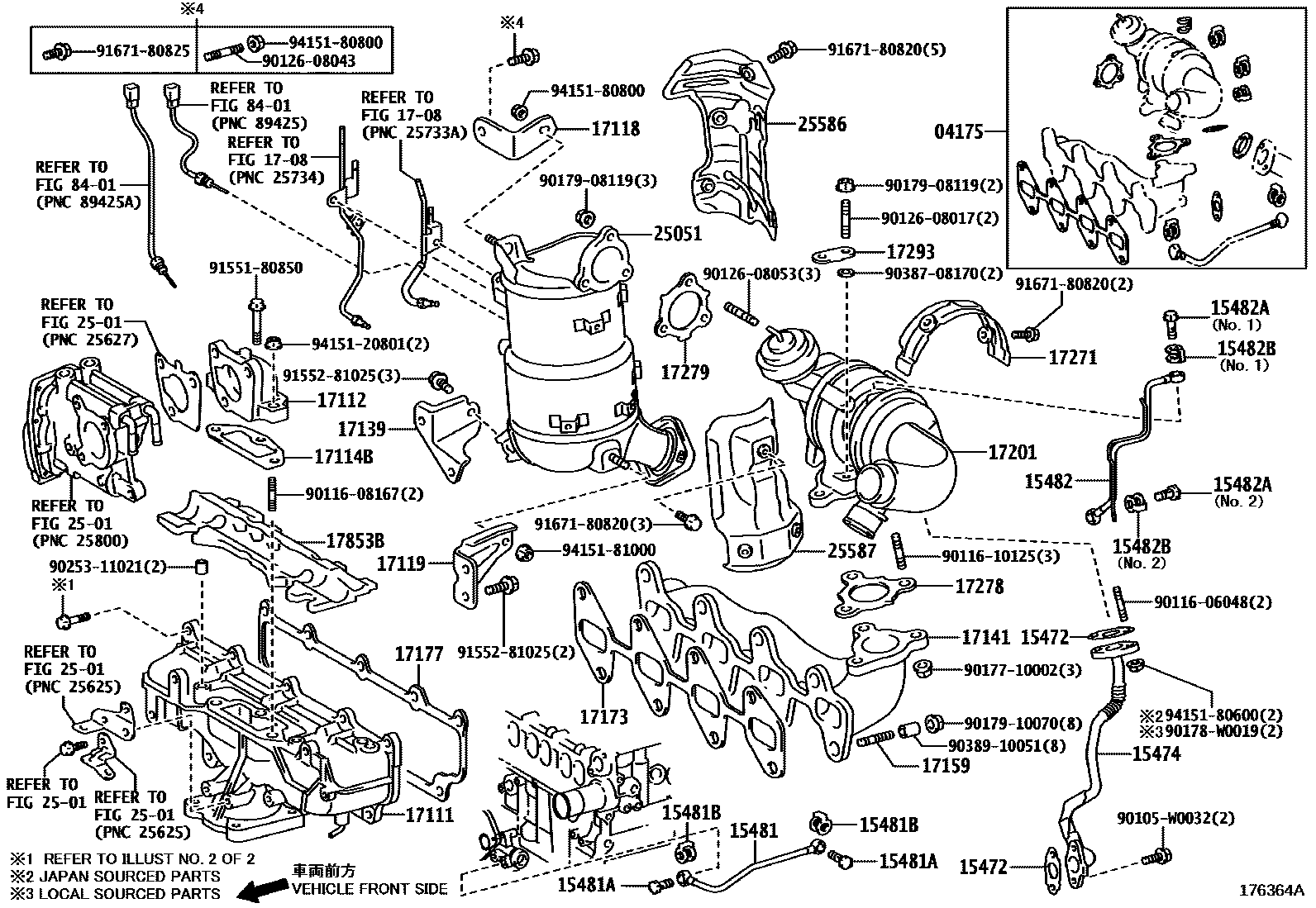

Toyota COROLLA Manifold EPC diagram — 176364A
Manifold — 176364A (200903 – 999999)

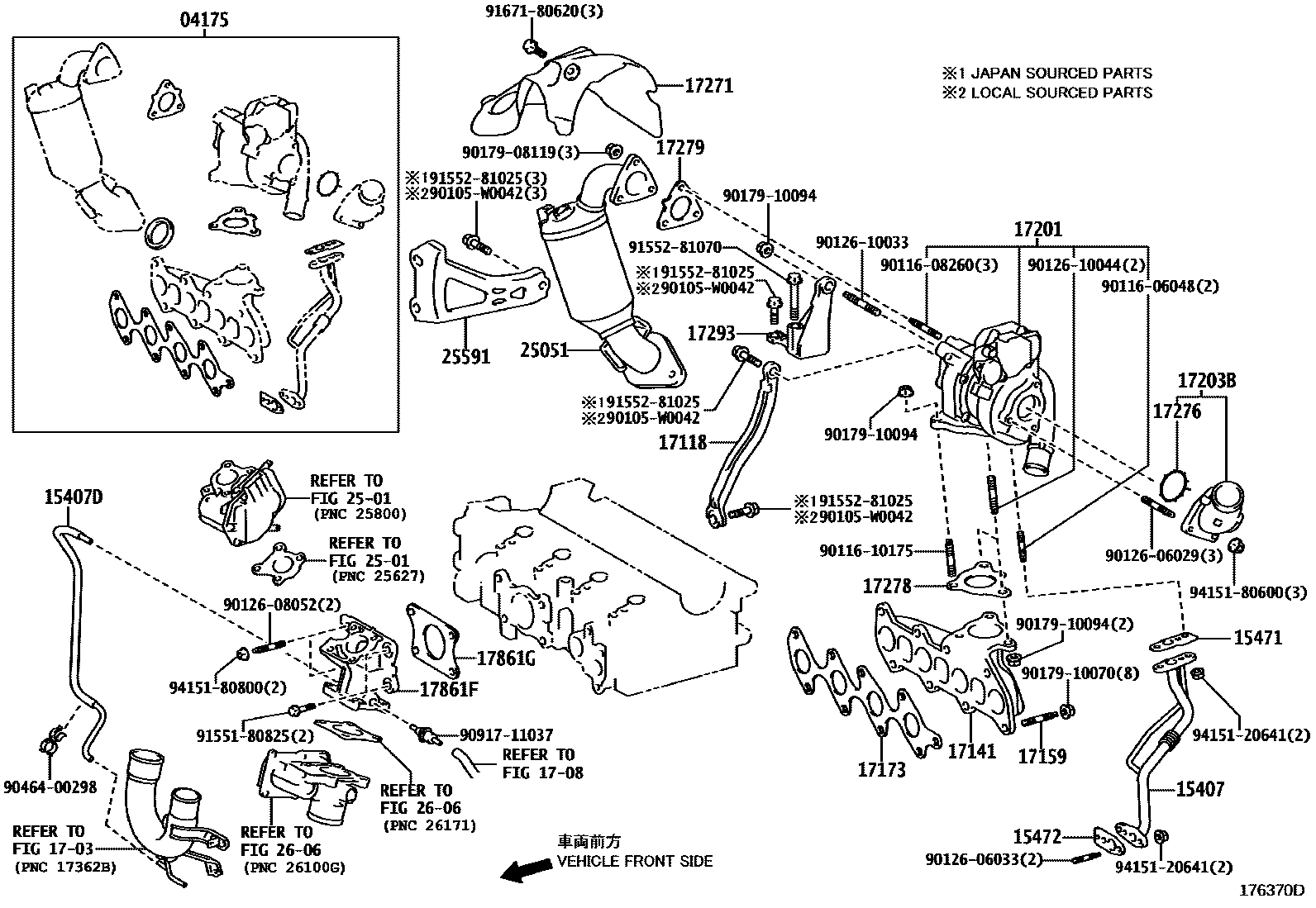

Toyota COROLLA Manifold EPC diagram — 176370D
Manifold — 176370D (200902 – 999999)

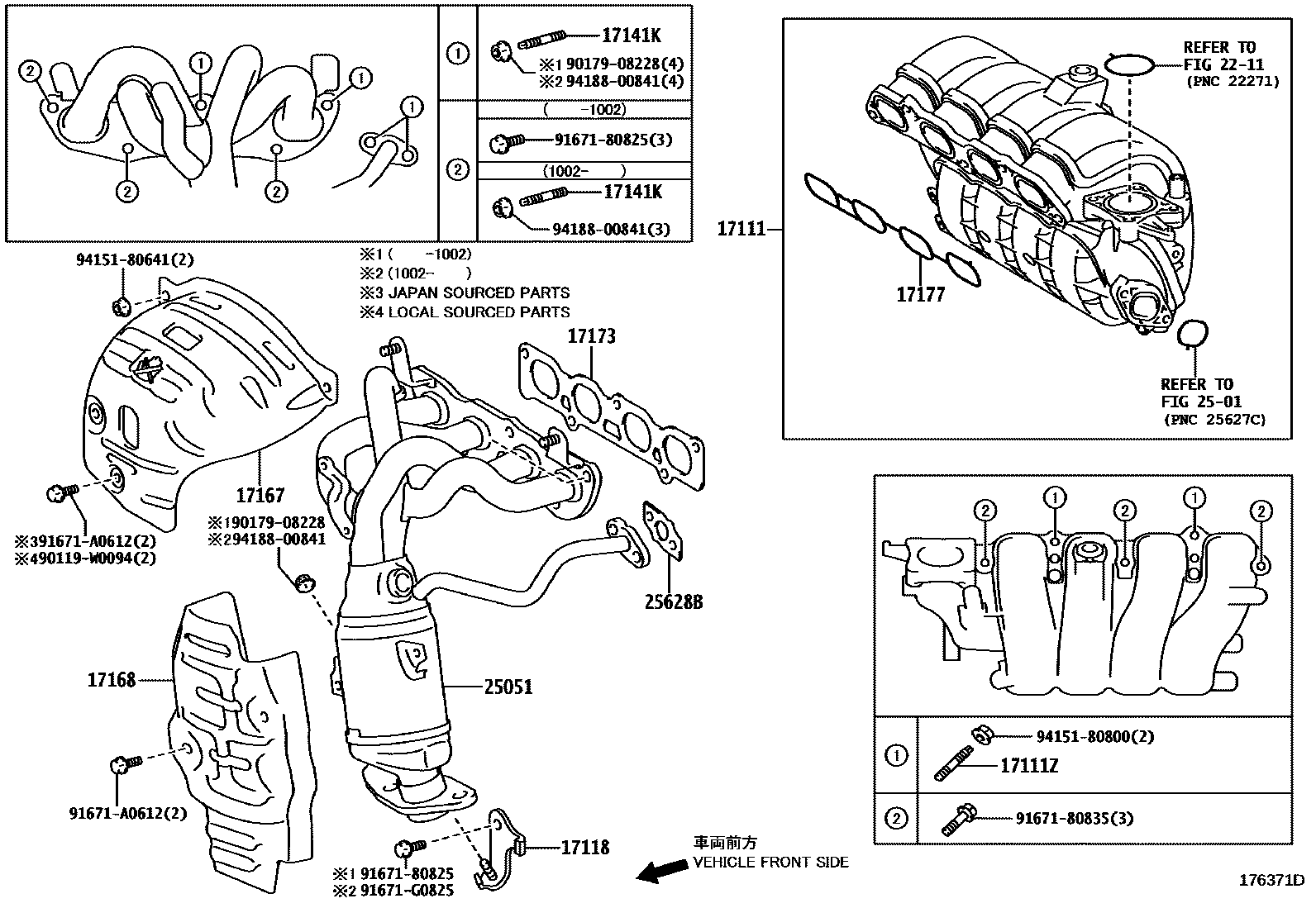

Toyota COROLLA Manifold EPC diagram — 176371D
Manifold — 176371D (200902 – 201006)

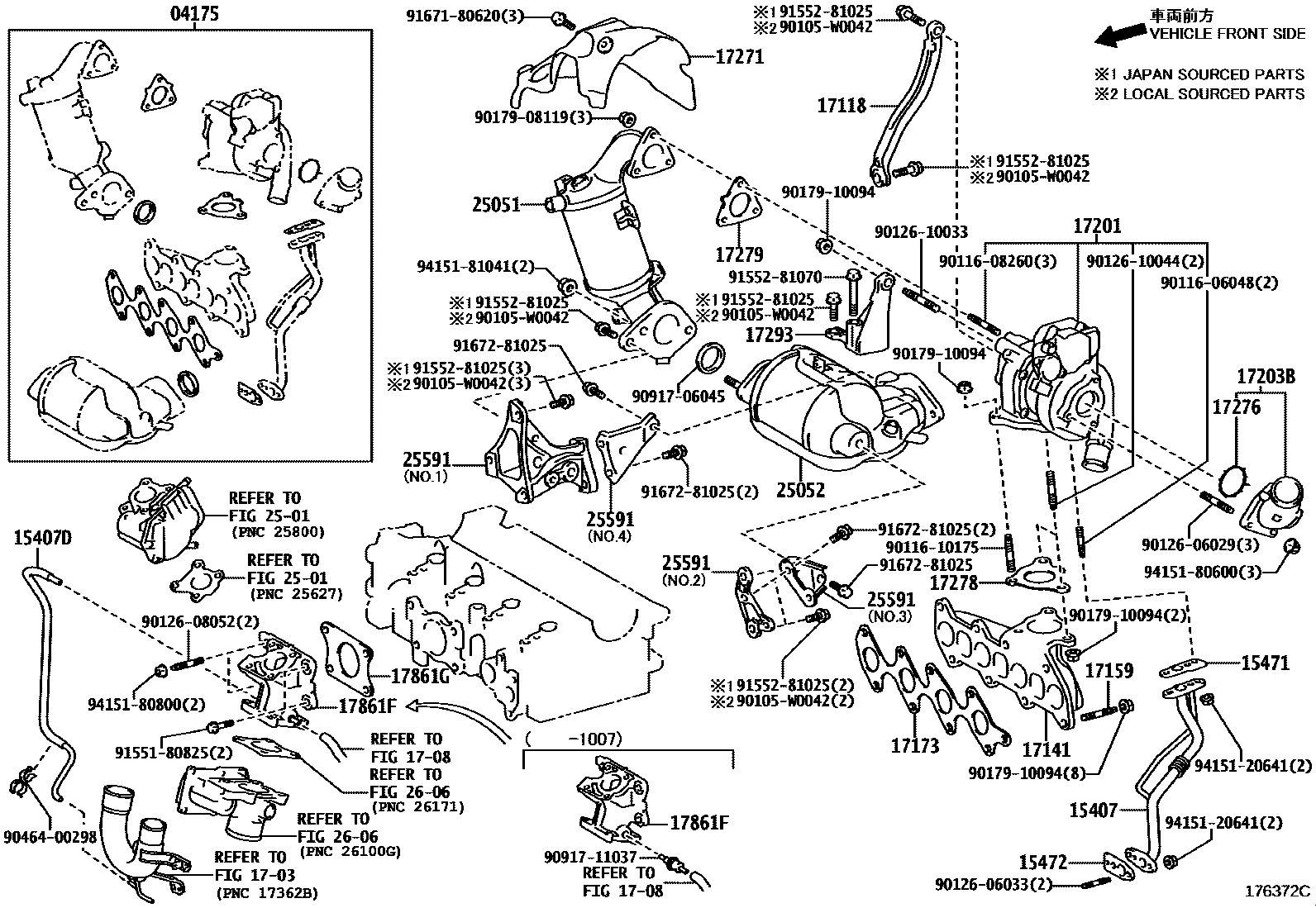

Toyota COROLLA Manifold EPC diagram — 176372C
Manifold — 176372C (200902 – 999999)

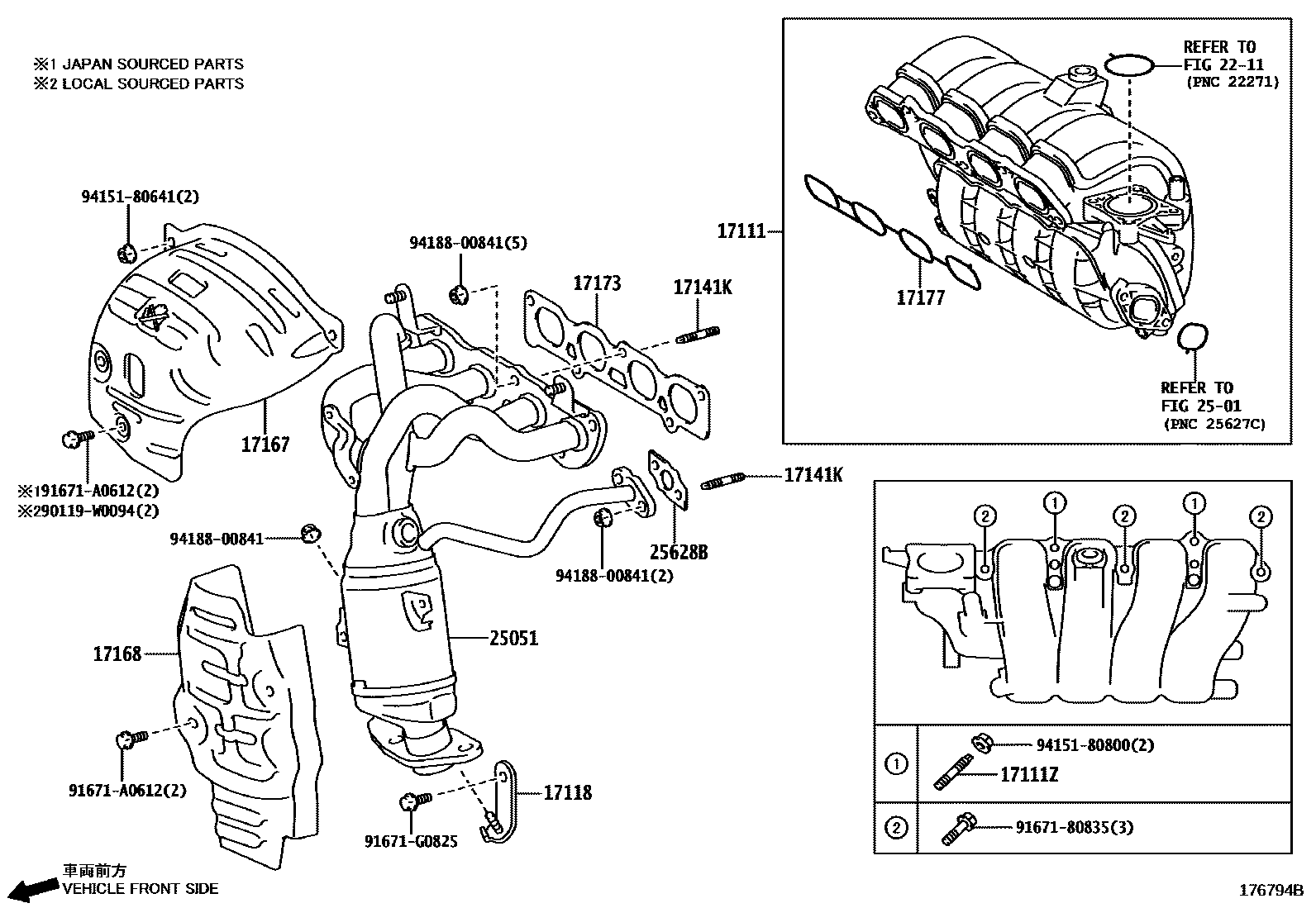

Toyota COROLLA Manifold EPC diagram — 176794B
Manifold — 176794B (201006 – 999999)

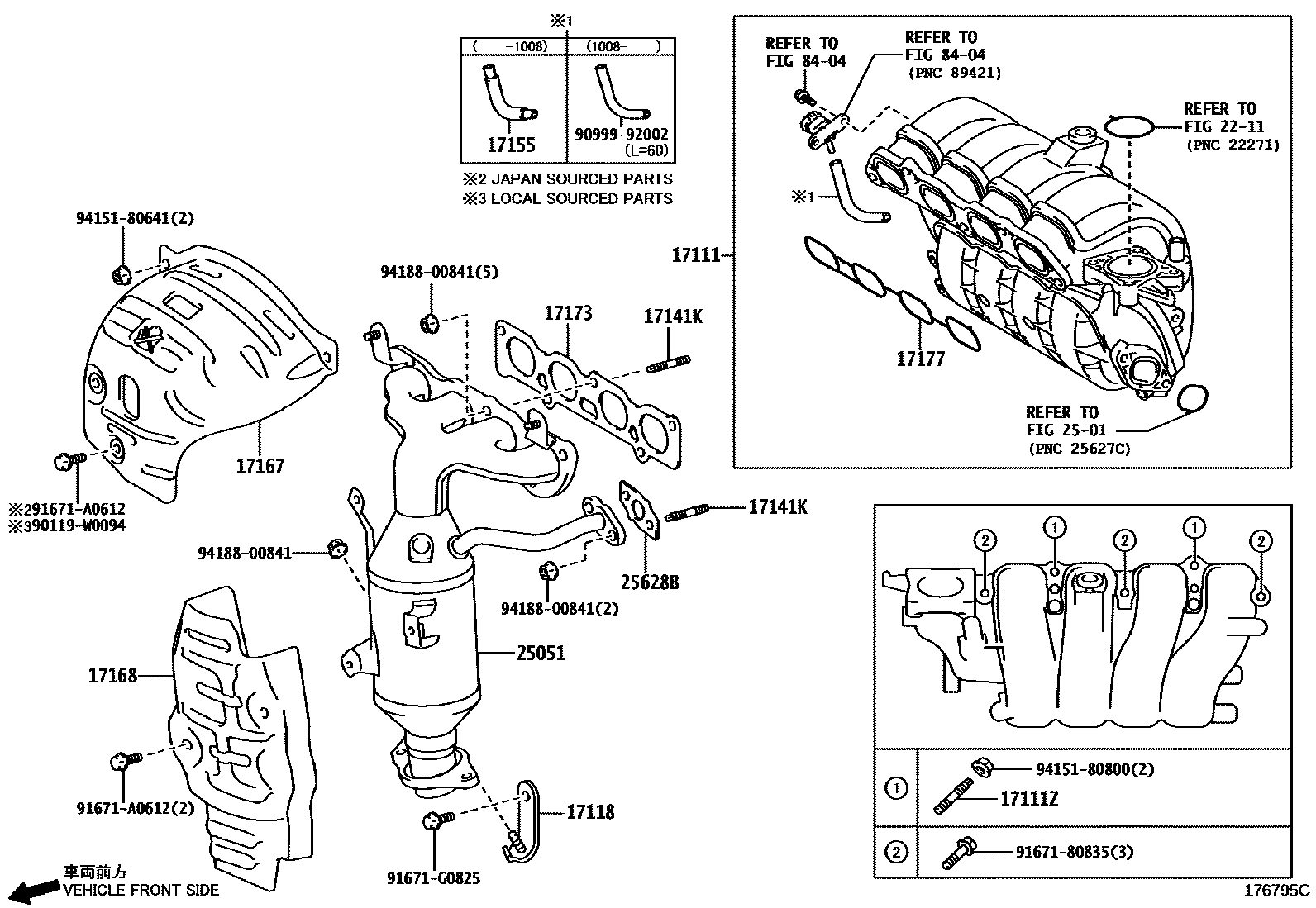

Toyota COROLLA Manifold EPC diagram — 176795C
Manifold — 176795C (201006 – 999999)

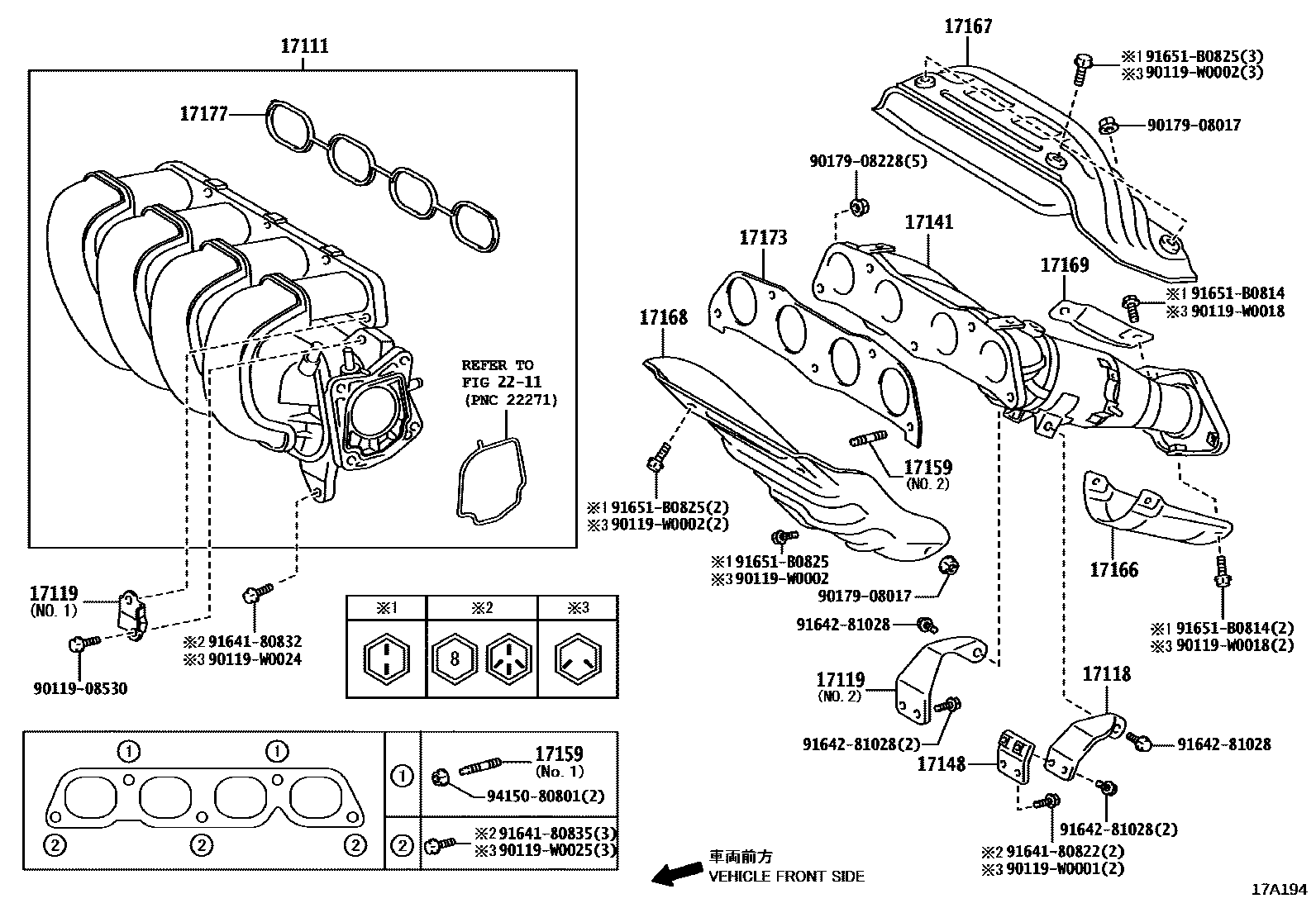

Toyota COROLLA Manifold EPC diagram — 17A194
Manifold — 17A194 (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-0R080 · 04175-0R100 · 04175-33040 · 04175-33070
12635hood connector12635-33010 · 90109-06385
15407Turbine oil inlet pipe sub-assembly15407-33020 · 15407-33021
15407AConnector bolt (for turbine oil inlet pipe)90401-10065
15407BGasket (for turbine oil inlet pipe)90430-10027
15407DNo. 1 oil hose12109-33020
15471Turbine oil inlet pipe gasket15471-33010
15472No. 1 turbine oil outlet pipe gasket15472-0R010 · 15472-33010 · 15472-33020
15473No. 2 turbine oil outlet pipe gasket15473-33010
15474Turbine oil outlet pipe15474-26010 · 15474-26030 · 15474-33020
15477Turbine oil inlet pipe15477-33010
15481No. 1 turbine oil pipe15481-0R010
15481ANo. 1 joint bolt90401-12039
15481BGasket (for No. 1 joint bolt)90430-12037
15482No. 2 turbine oil pipe15482-0R010 · 15482-0R020 · 15482-26020
15482ANo. 2 joint bolt90401-10068 · 90401-12039
15482BGasket (for No. 2 joint bolt)90430-12037 · 90904-30011
17021AStud bolts (for bearing housing)90116-06048
17025AStud bolts (for turbine housing)90116-08260
17111Intake Manifold17101-0R010 · 17101-0R011 · 17101-0R020 · 17120-0D031 · 17120-0T030 · 17120-37020 · 17120-37021 · 17120-37022 · 17120-47010 · 17120-47011 · 17120-47030 · 17120-47031 · 17120-47032
17111ZStud bolts (for intake manifold to cylinder head)90116-08167 · 90126-08060
17112No. 2 intake manifold17112-26010
17114BIntake flange gasket17116-26010
17118Manifold stays17118-0R010 · 17118-0T020 · 17118-22090 · 17118-26030 · 17118-26060 · 17118-33030 · 17118-33040 · 17118-37010 · 17118-47010
17119No. 2 manifold stay17119-0R010 · 17119-0R020 · 17119-22070 · 17119-26010 · 17139-22050
17135AIntake manifold No. 1 heat shield17135-37010
17138BIntake manifold stay17138-37010
17139No. 2 manifold stay17139-0R010 · 17139-0R020 · 17139-26010
17141exhaust manifold17104-0D101 · 17141-0R010 · 17141-0T050 · 17141-26100 · 17141-33040 · 17141-33050 · 17141-37051
17141JStuds (for right exhaust manifold)90126-10018
17141KStud bolts (for exhaust manifold to cylinder head)90126-08052 · 90126-08063
17148Exhaust manifold plate (for EGR intake)17148-22030
17155Hoses (for manifolds)17308-47010
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08043 · 90126-08052 · 90126-10024 · 90126-10033
17166Exhaust manifold No. 4 heat shield17166-22011
17167Exhaust manifold No. 1 heat shield17167-0D052 · 17167-0T020 · 17167-33010 · 17167-37011 · 17167-47010 · 17167-47011
17168Exhaust manifold No.2 insulation pad17168-0T030 · 17168-22120 · 17168-37100 · 17168-47010
17169Exhaust manifold No. 3 heat shield17169-0D010
17173Gasket (exhaust manifold to cylinder head)17173-0R010 · 17173-0T020 · 17173-22010 · 17173-33010 · 17173-33030 · 17173-37010 · 17173-47020 · 17173-47021
17177No. 1 gasket (intake manifold to cylinder head)17171-0D030 · 17171-0R010 · 17171-22030 · 17177-0T030 · 17177-37030 · 17177-47010 · 17177-47011
17201Turbocharger sub-assembly17201-0N030 · 17201-0N041 · 17201-0N042 · 17201-0R041 · 17201-0R070 · 17201-26080
17203BCompressor oil inlet elbow sub-assembly17203-33010
17271No. 1 turbine vibration isolation pad17271-0R020 · 17271-33030 · 17271-33060 · 17271-33090
17276Compressor oil inlet gasket17276-33010
17278Gasket (turbo to exhaust manifold)17278-0R010 · 17278-0R020 · 17278-27010 · 17278-33010
17279Turbine outlet elbow gasket17279-0R010 · 17279-27020
17293Turbocharger stay17293-26010 · 17293-33010
17853BIntake manifold heat shield17853-26030
17861FIntake connecting pipe17861-33020 · 17861-33040 · 17861-33060 · 17861-33070 · 17861-33080
17861GIntake connecting pipe gasket26171-33011 · 26171-33050
17871AAir intake connecting pipe stay17872-33020
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0R010 · 25051-0R060 · 25051-26031 · 25051-33051 · 25051-33060 · 25051-33090 · 25051-47010 · 25051-47040
25052No. 2 exhaust manifold three-way catalytic converter sub-assembly25052-33020 · 25052-33040
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0R011 · 25586-0R020 · 25586-26010 · 25586-26030
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-26010 · 25587-26020
25591Manifold bracket25591-0N010 · 25591-33020 · 25591-33030 · 25591-33050 · 25592-33020 · 25593-0N010 · 25593-33010 · 25594-0N010 · 25594-33010
25628BEGR air intake gasket25628-47010
