Toyota COROLLA Engine Oil Cooler — Figure 1503

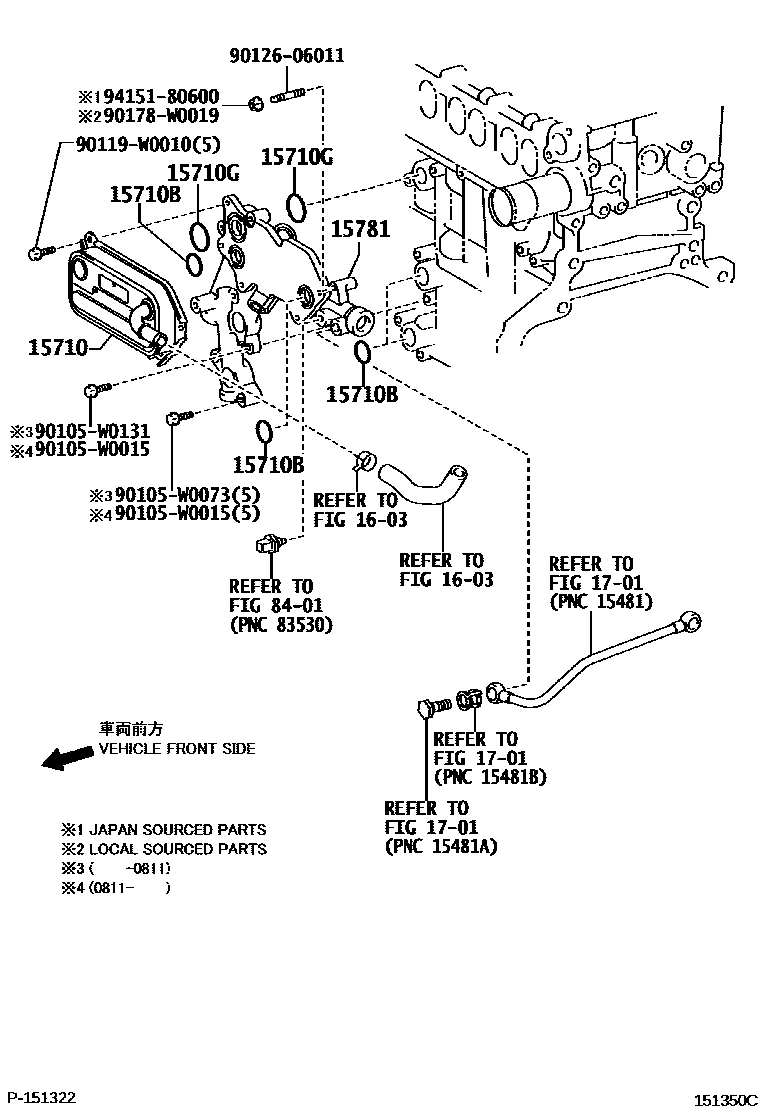

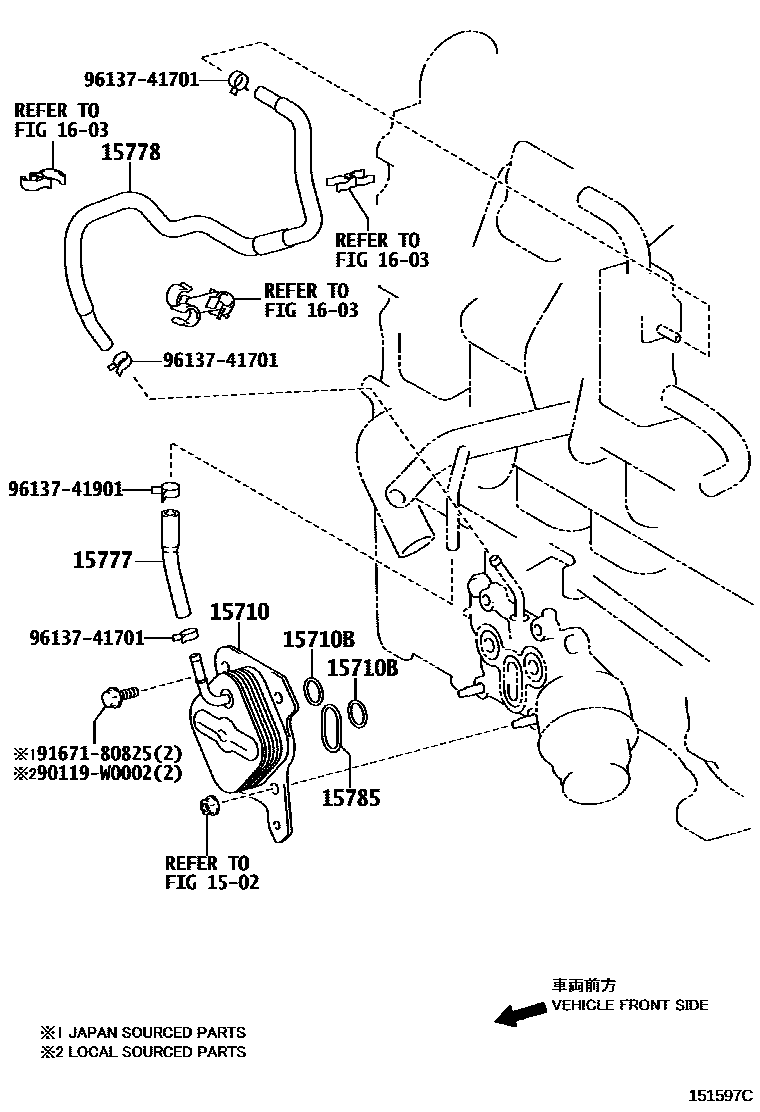

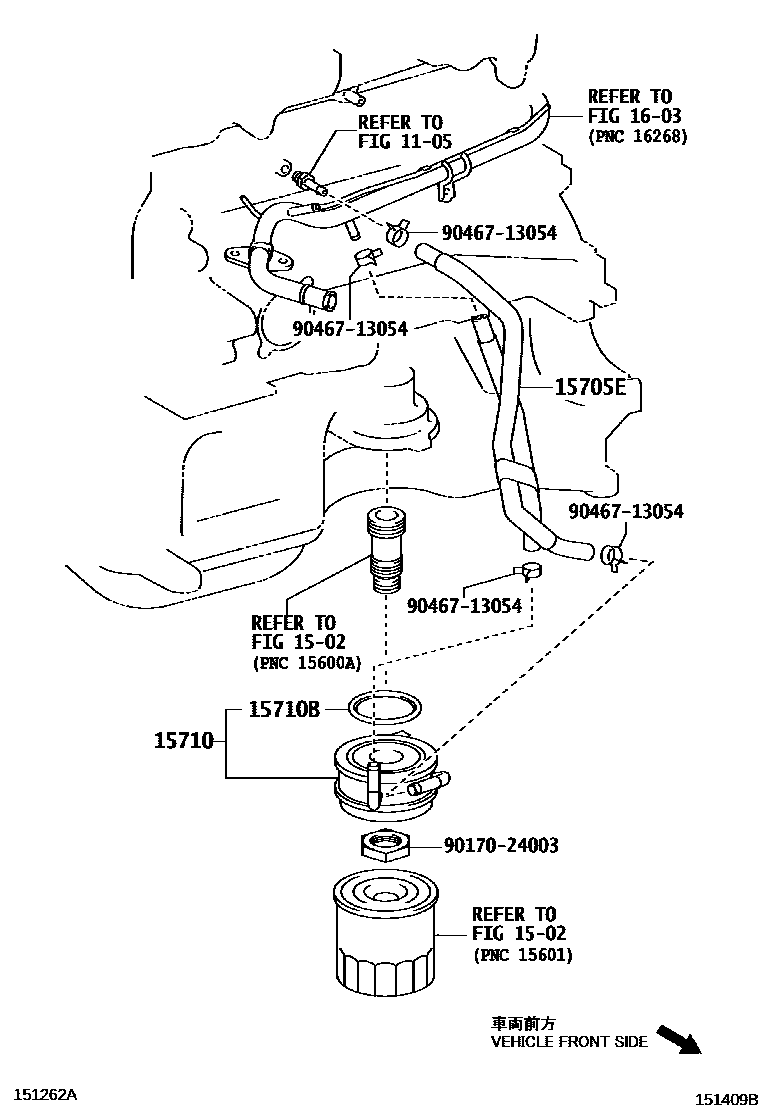

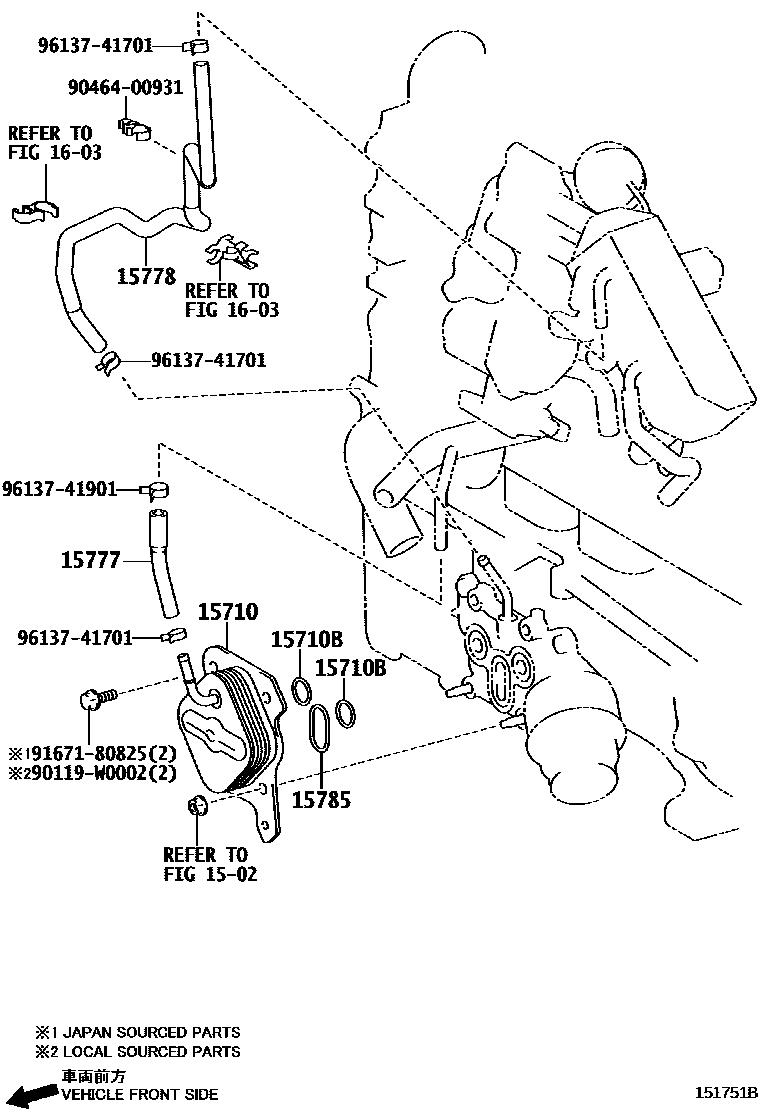

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15705E | Oil cooler hose sub-assembly | 15705-33040 |
| 15710 | Oil cooler assembly | 15710-0R010 · 15710-0R011 · 15710-33030 · 15710-33050 |
| 15710B | O-ring (for oil cooler) | 90301-24018 · 90301-58002 · 96723-35024 |
| 15710G | No. 2 O-ring | 90301-29013 |
| 15777 | oil cooler hose | 15777-0N010 · 15777-33010 |
| 15778 | No. 2 oil cooler hose | 15778-0N010 · 15778-33010 · 15778-33030 · 15778-33060 |
| 15781 | No. 1 oil cooler bracket | 15781-26011 · 15781-26030 · 15781-26031 |
| 15785 | oil cooler gasket | 15785-33010 |
