Toyota COROLLA Engine Oil Pump — Figure 1501

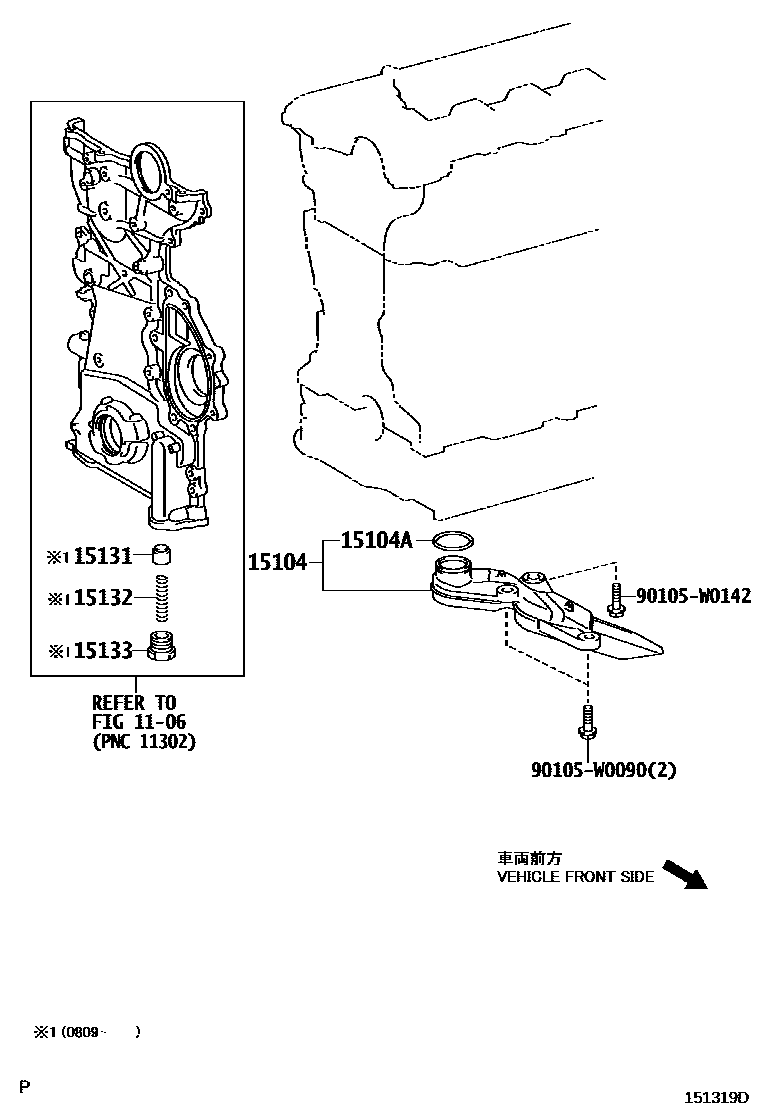

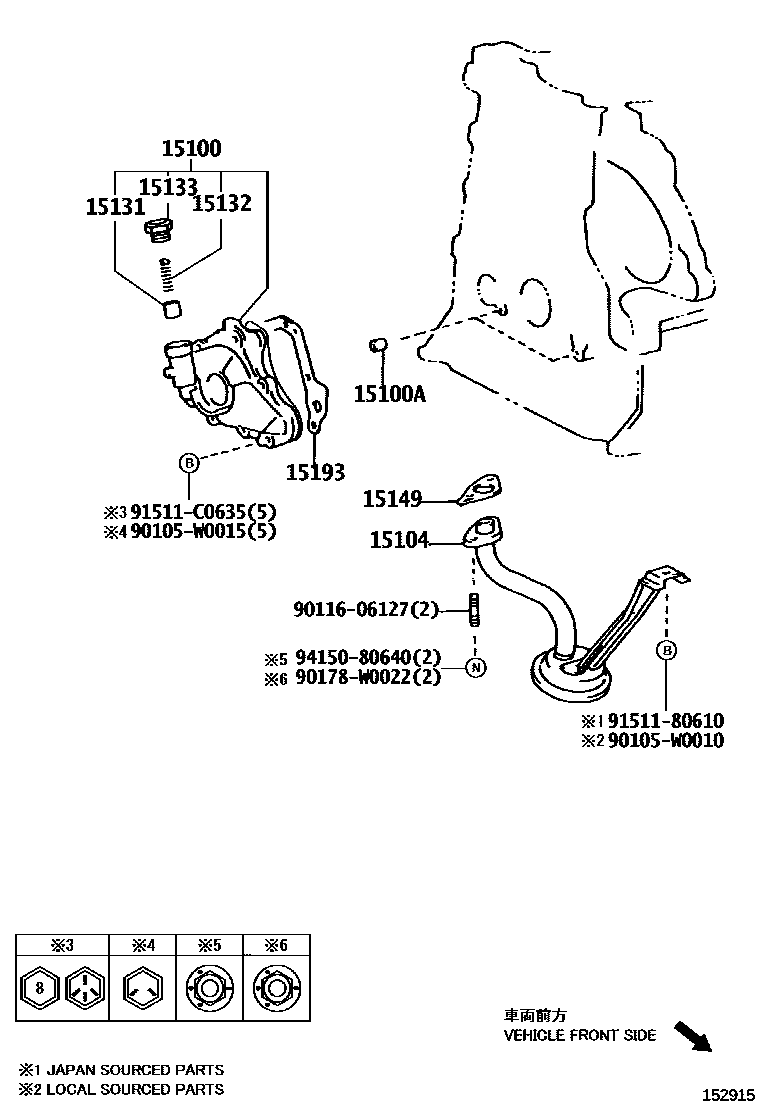

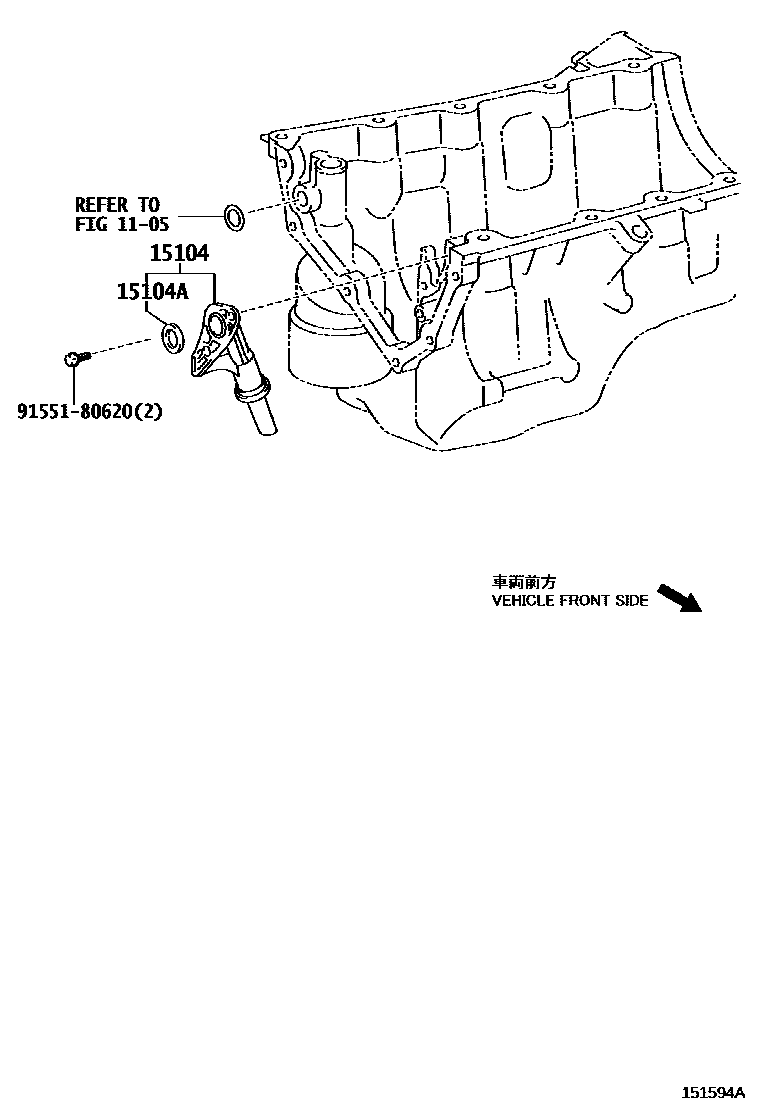

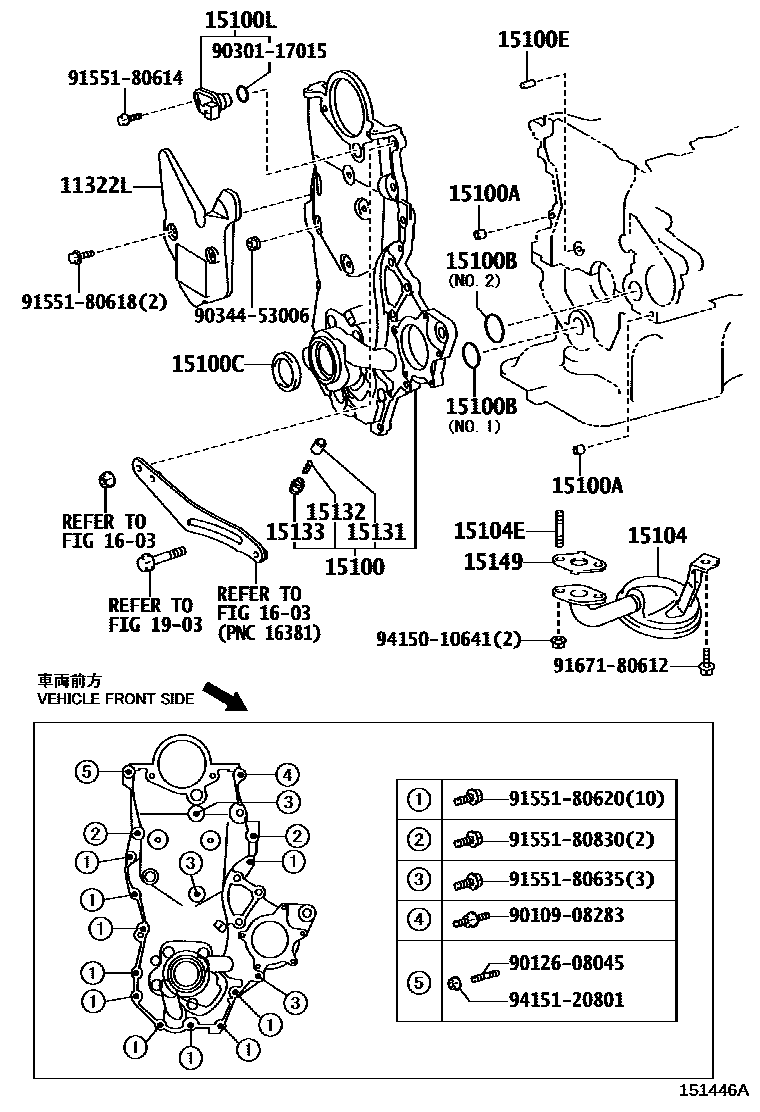

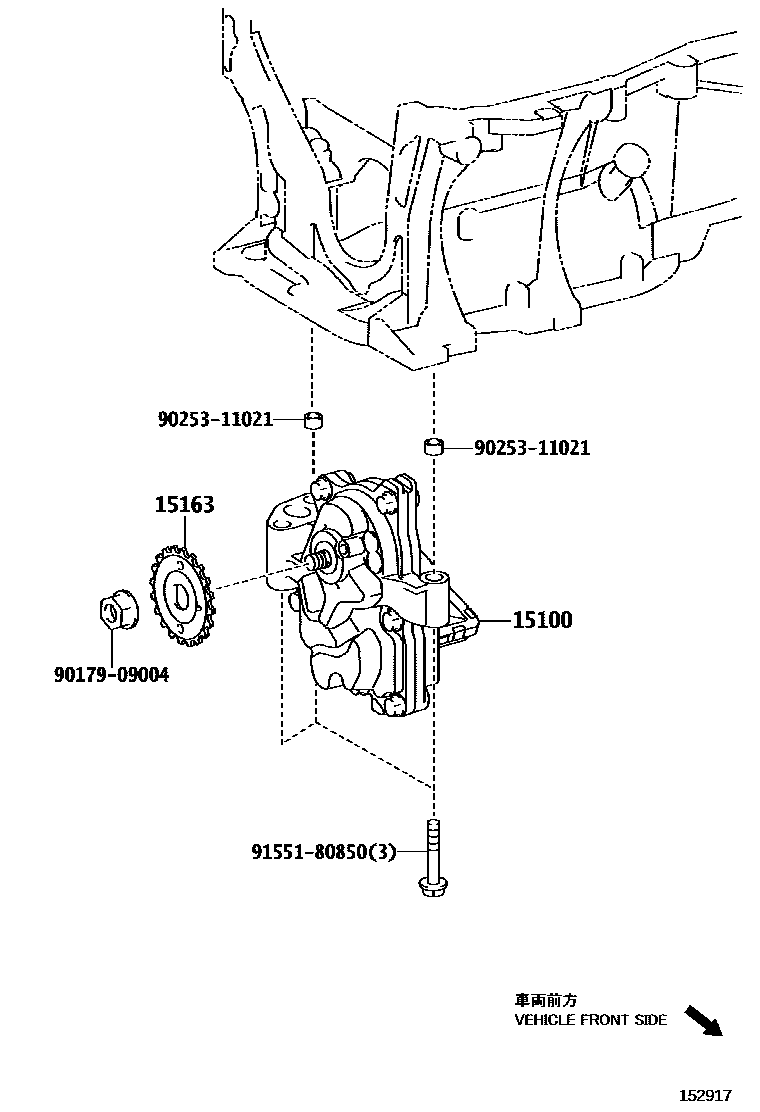

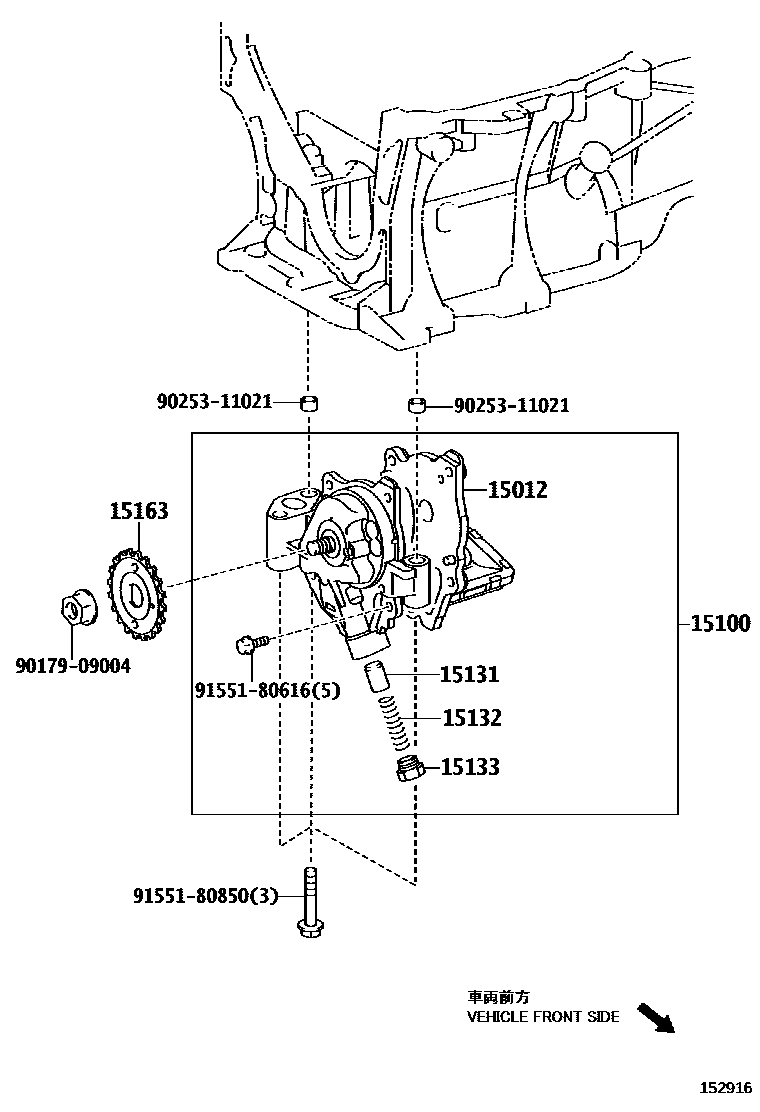

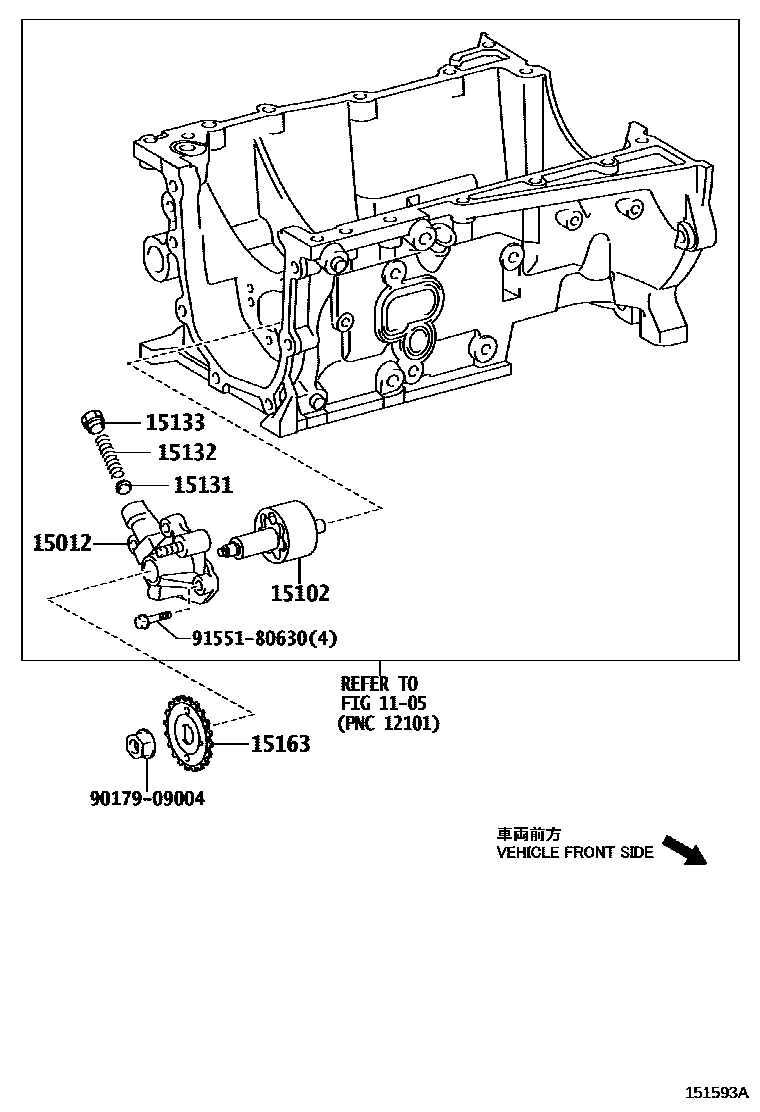

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11322L | No. 2 timing chain cover | 11322-33010 |
| 15012 | Oil pump cover sub-assembly | 15012-0T030 · 15012-33060 · 15012-37010 |
| 15100 | Oil pump assembly | 15100-0D031 · 15100-0T030 · 15100-0T040 · 15100-22041 · 15100-33040 · 15100-37020 · 15100-37030 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 · 90253-09003 |
| 15100B | O-ring (for oil pump) | 90301-31012 · 90301-42006 |
| 15100C | Seals (for oil pump) | 90311-38084 |
| 15100E | Direct sales (for oil pump components) | 90250-10030 |
| 15100L | Cam position sensor | 90919-05055 |
| 15102 | Oil pump rotor assembly | 15102-33060 |
| 15104 | Oil filter sub-assembly | 15104-0D030 · 15104-22023 · 15104-26030 · 15104-33030 · 15104-47040 |
| 15104A | O-ring (for oil filter) | 90301-22018 · 90301-27013 |
| 15104E | Stud bolts (for oil filter) | 90126-06021 |
| 15131 | Oil pump pressure reducing valve | 15131-03010 · 15131-0A040 · 15131-24010 · 15131-38010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-22040 · 15132-26030 · 15132-33020 · 15132-33040 · 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-28020 · 15133-33040 |
| 15149 | Oil filter flange gasket | 15149-22010 · 16258-21030 |
| 15163 | Oil pump drive shaft gear | 15163-28010 · 15163-33010 |
| 15193 | oil pump gasket | 15197-22010 |
