Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 6 images and 10 PNC and OE references.

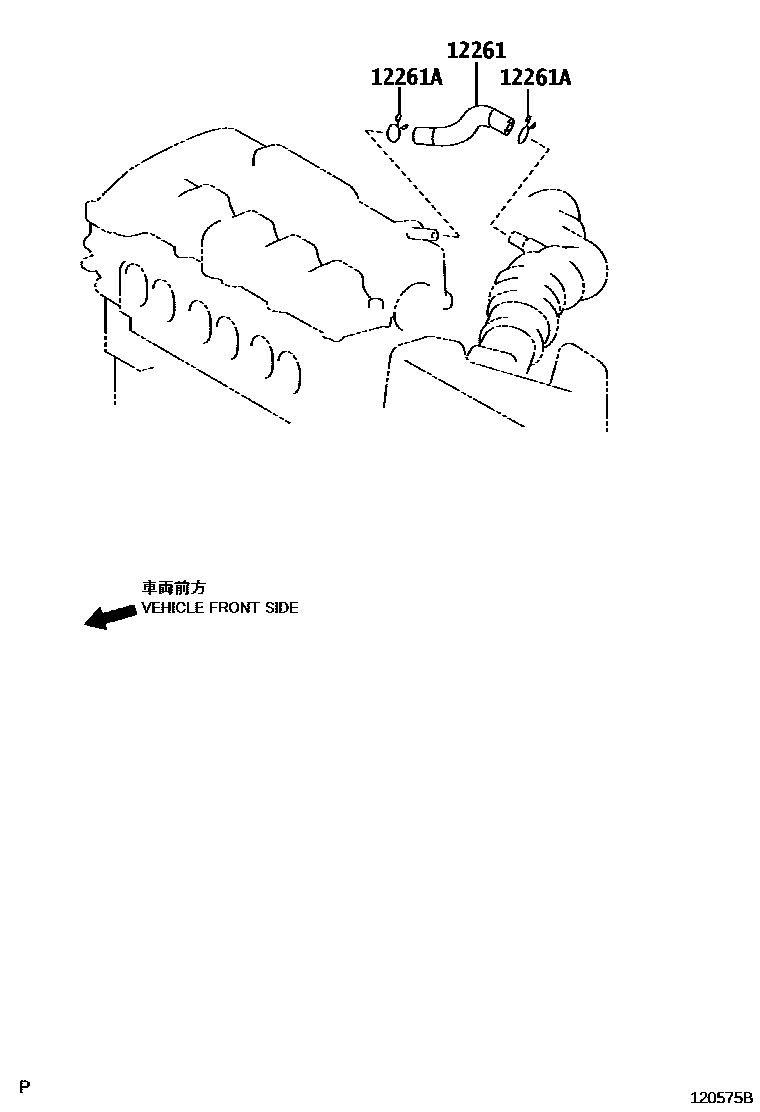

Toyota COROLLA Ventilation Hose EPC diagram — 120575B
Ventilation Hose — 120575B (200802 – 999999)

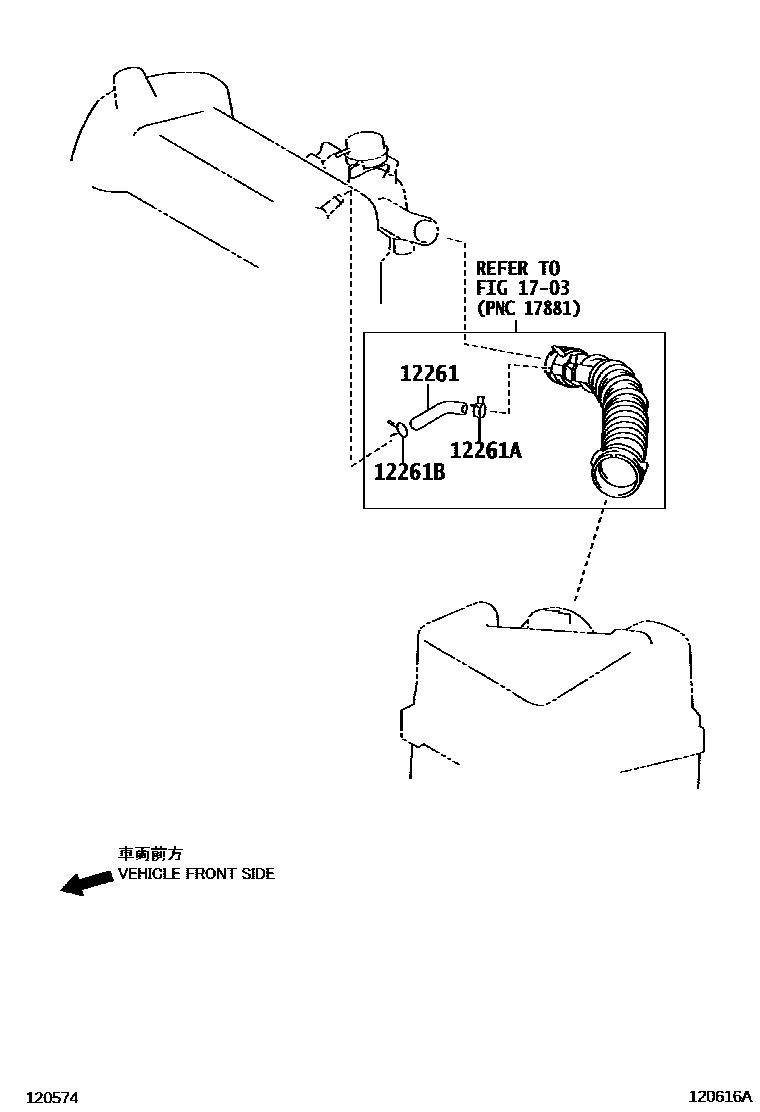

Toyota COROLLA Ventilation Hose EPC diagram — 120616A
Ventilation Hose — 120616A (200802 – 200902)

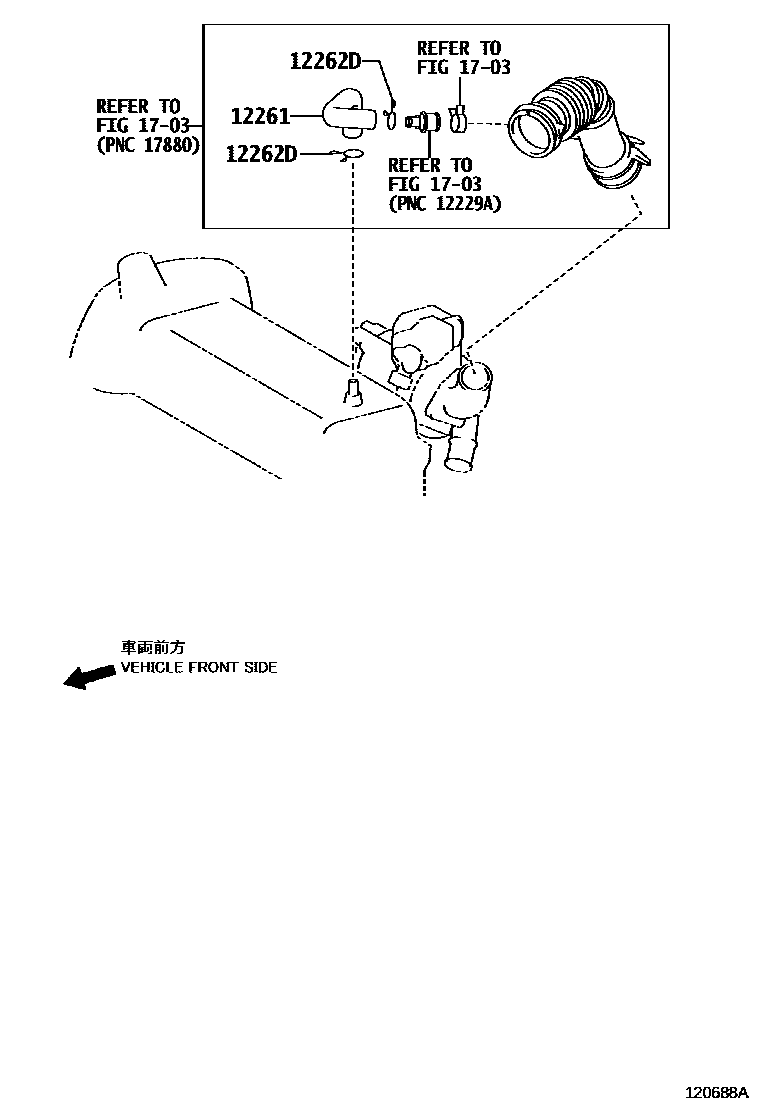

Toyota COROLLA Ventilation Hose EPC diagram — 120688A
Ventilation Hose — 120688A (200902 – 999999)

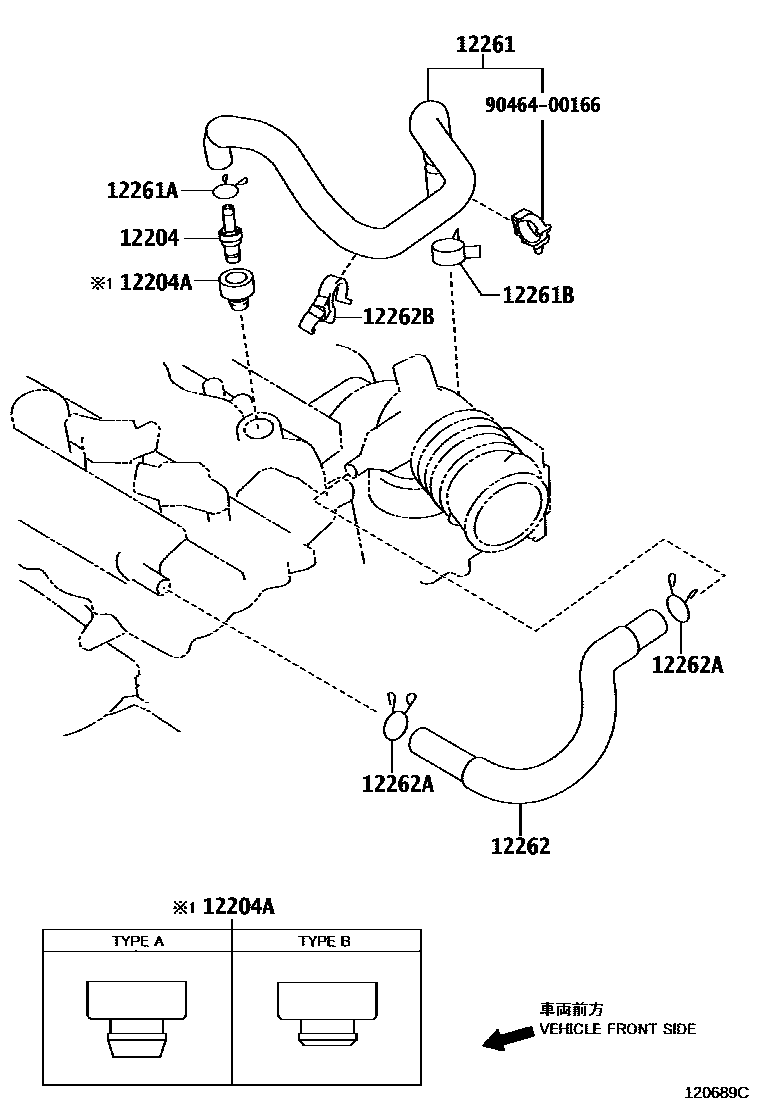

Toyota COROLLA Ventilation Hose EPC diagram — 120689C
Ventilation Hose — 120689C (200902 – 999999)

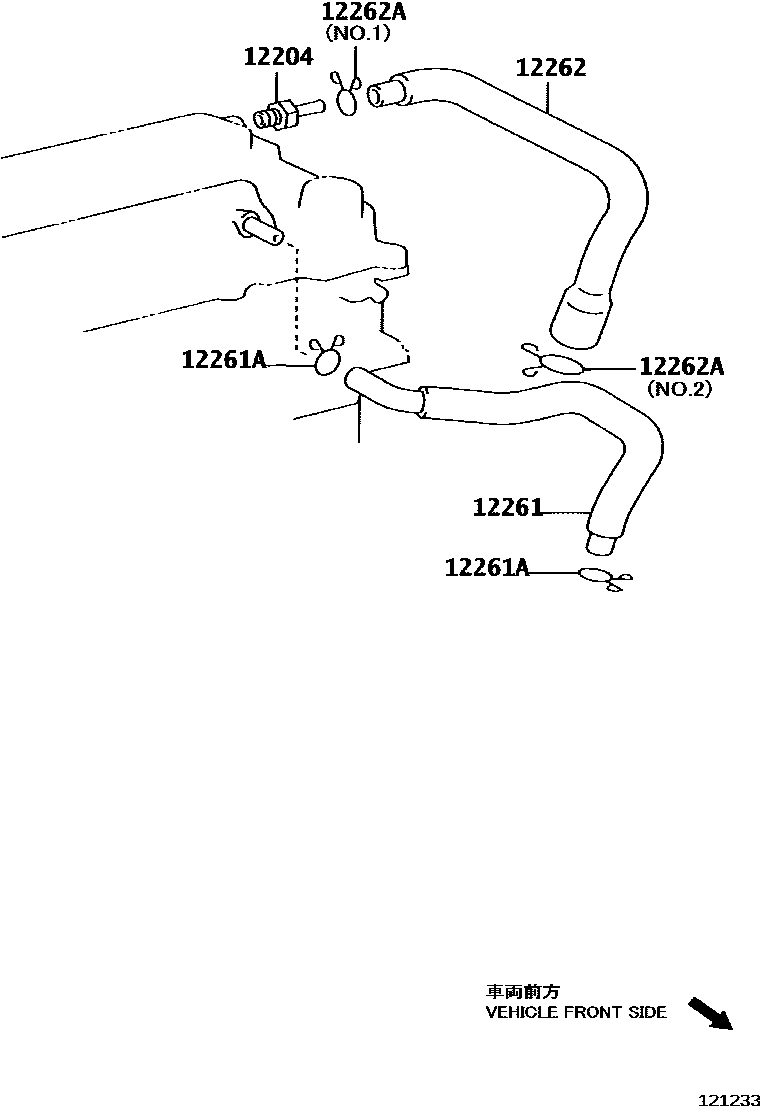

Toyota COROLLA Ventilation Hose EPC diagram — 121233
Ventilation Hose — 121233 (200802 – 999999)

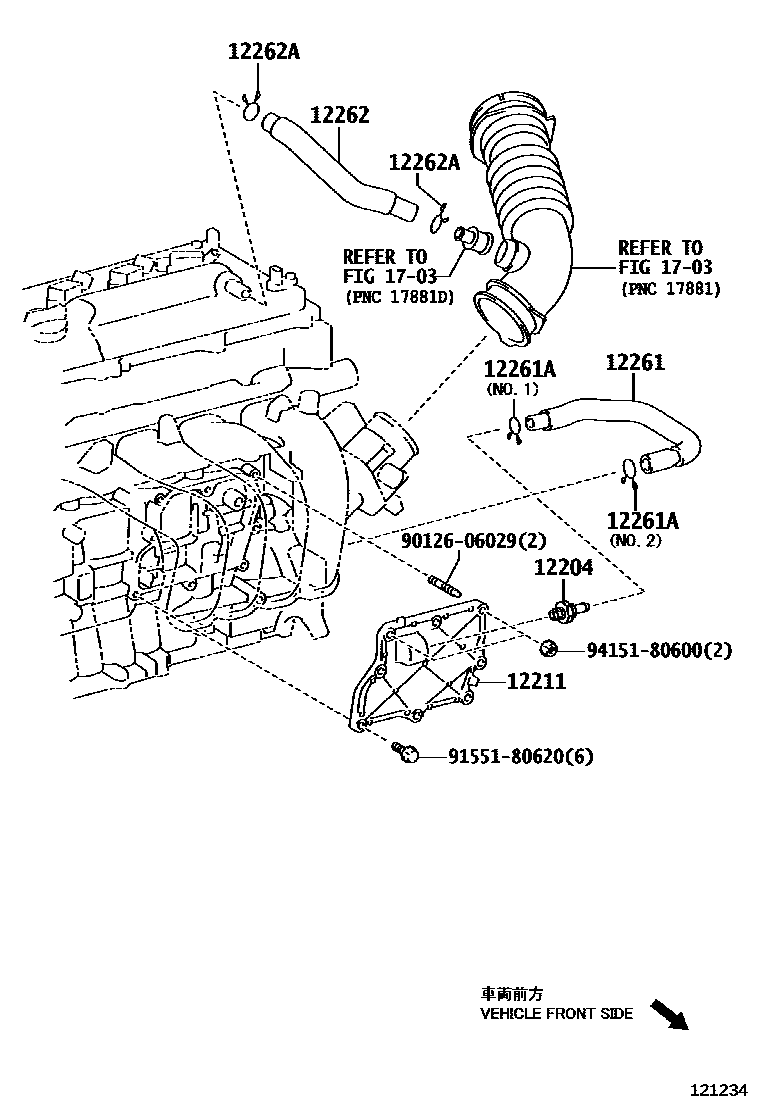

Toyota COROLLA Ventilation Hose EPC diagram — 121234
Ventilation Hose — 121234 (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22051 · 12204-37010 · 12204-47010
12204AGasket (for ventilation system)90480-18014 · 90480-18016
12211Ventilation box No. 112211-0T010 · 12211-37010
12261Ventilation Hose12261-0D070 · 12261-0R020 · 12261-0R030 · 12261-22050 · 12261-33060 · 12261-33120 · 12261-37040 · 12261-37050 · 12261-47010
12261AClip or clip (for vent hose)90466-23003 · 90467-15120 · 90467-16035 · 90467-20009 · 90467-21152 · 90467-22010 · 90467-23002
12261BClip or clip (for vent hose)90467-21004 · 90467-22010 · 96137-52501
12262Ventilation hose No. 212262-0D080 · 12262-0Y010 · 12262-22060 · 12262-37020 · 12262-37030
12262AClamp (for vent hose No. 2)90467-13103 · 90467-19003 · 90467-21004
12262BClamp (for ventilation hose)16581-47020
12262DClamp (for vent hose No. 2)90467-21004
