Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 8 images and 15 PNC and OE references.

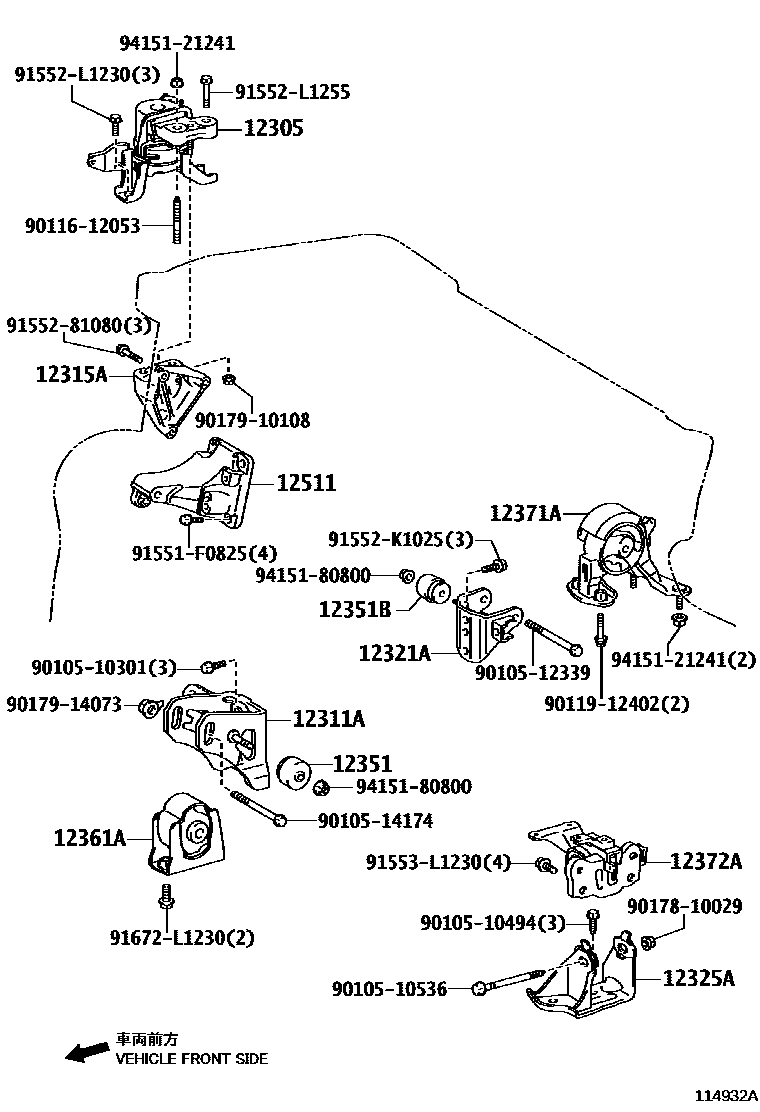

Toyota COROLLA Engine Mounting EPC diagram — 114932A — Engine Mounting — 114932A (200802 – 200902)

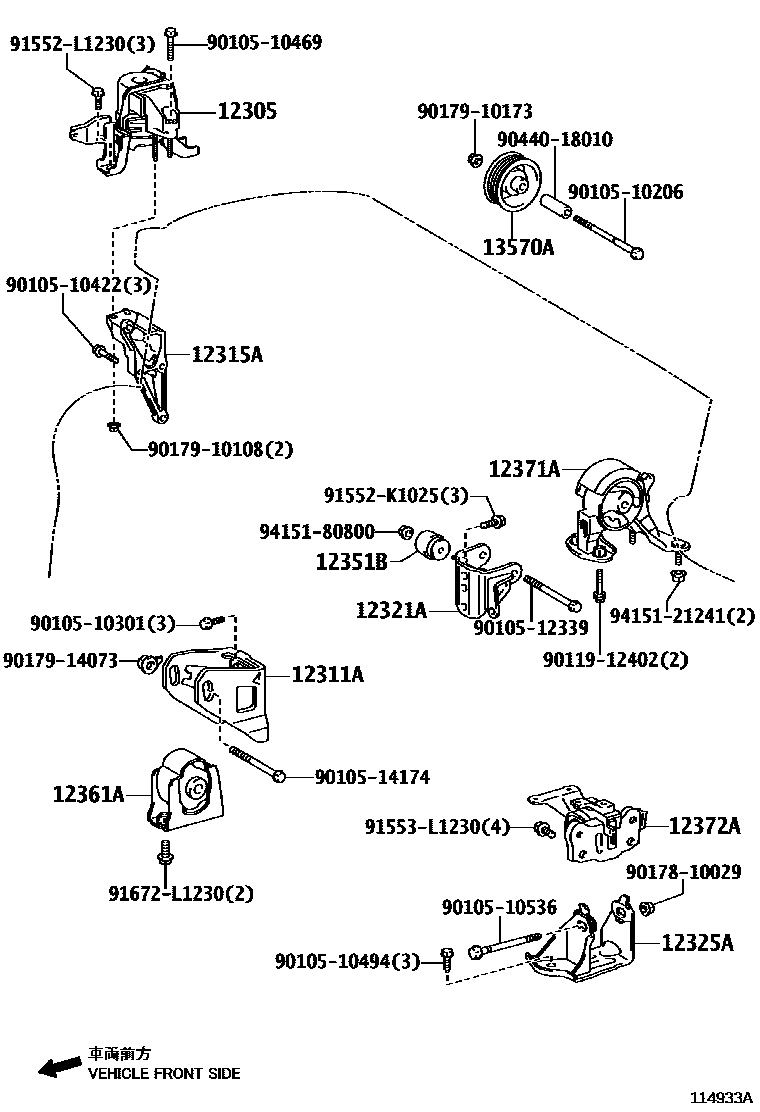

Toyota COROLLA Engine Mounting EPC diagram — 114933A — Engine Mounting — 114933A (200802 – 999999)

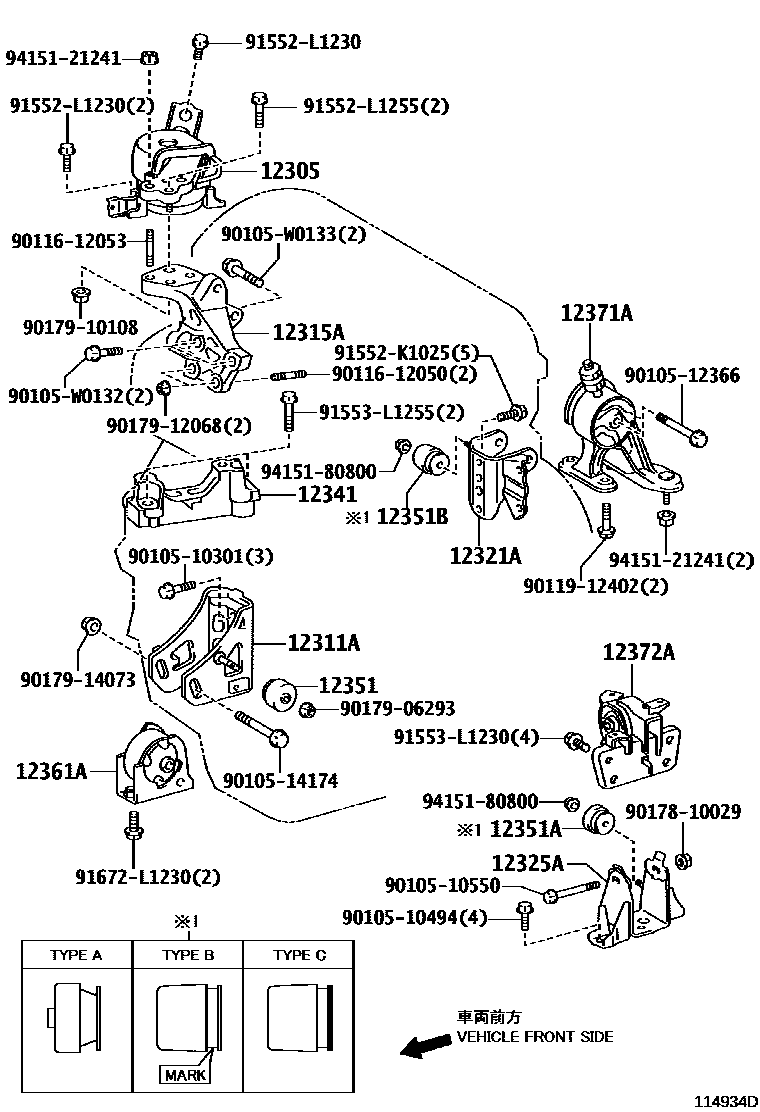

Toyota COROLLA Engine Mounting EPC diagram — 114934D — Engine Mounting — 114934D (200802 – 999999)

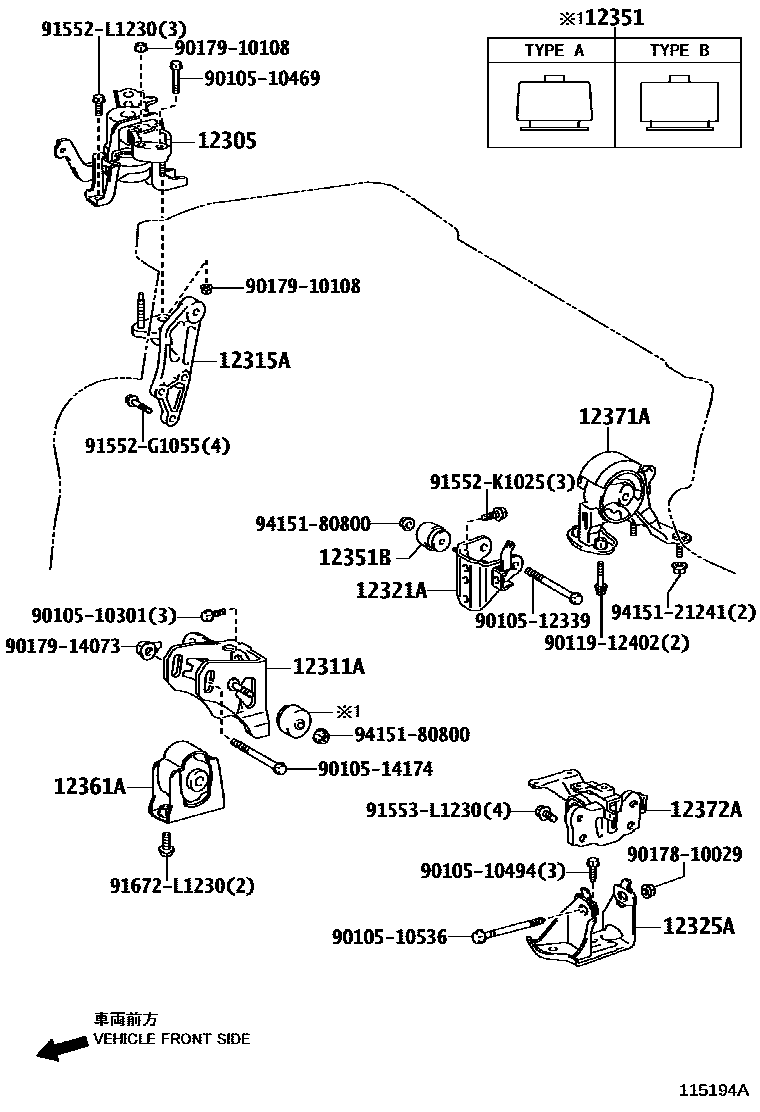

Toyota COROLLA Engine Mounting EPC diagram — 115194A — Engine Mounting — 115194A (200802 – 200902)

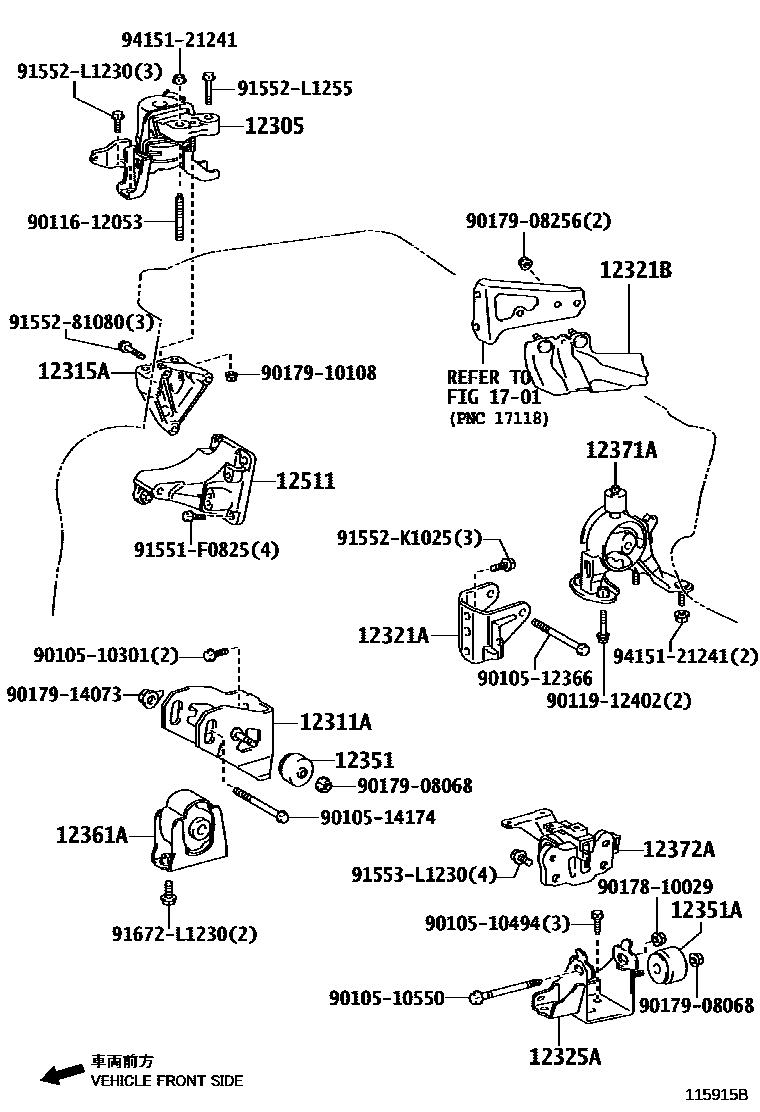

Toyota COROLLA Engine Mounting EPC diagram — 115915B — Engine Mounting — 115915B (200902 – 999999)

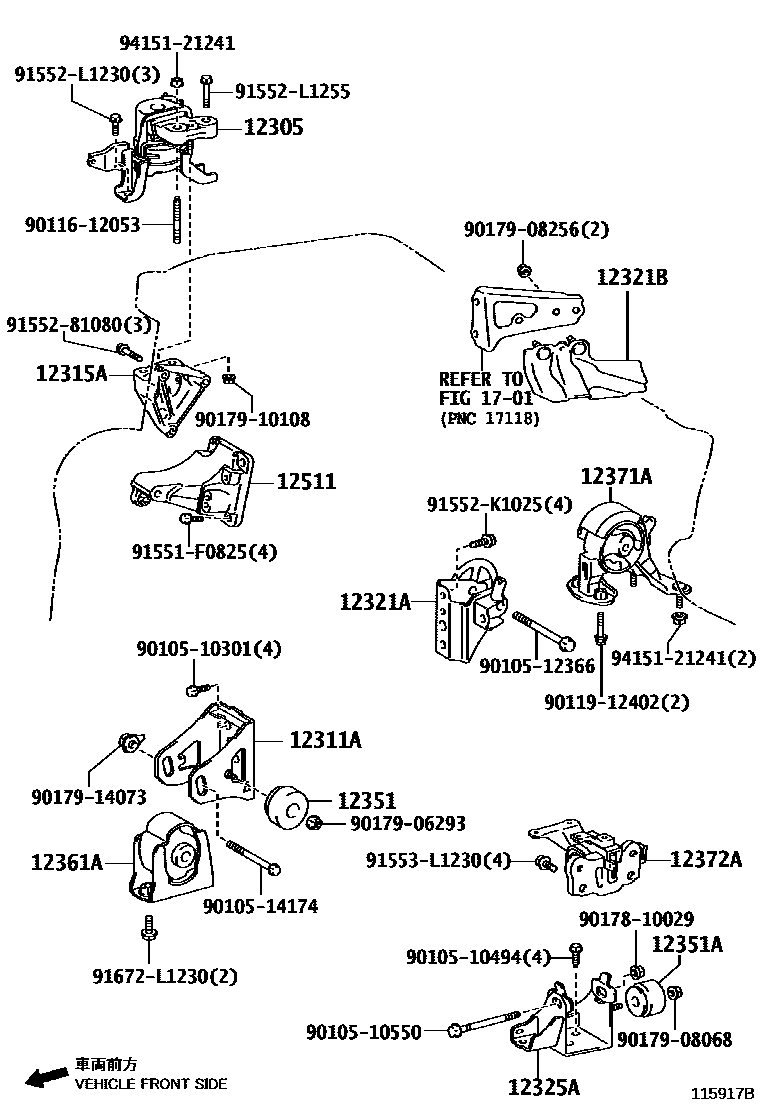

Toyota COROLLA Engine Mounting EPC diagram — 115917B — Engine Mounting — 115917B (200902 – 999999)

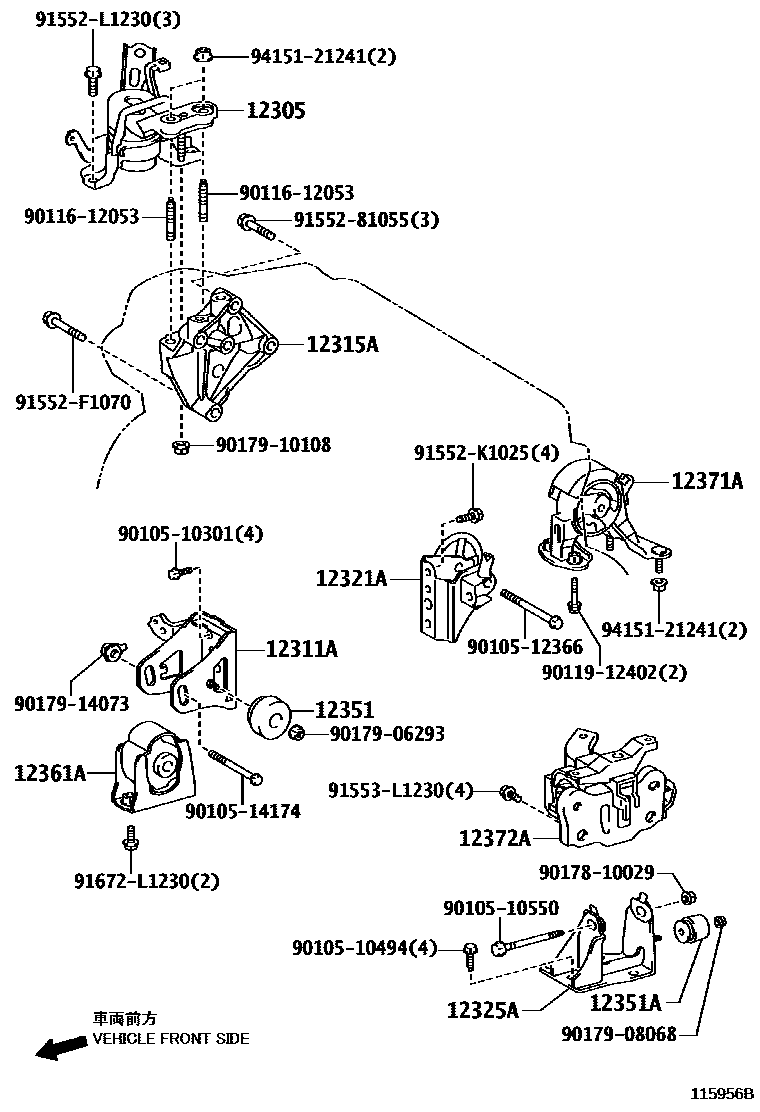

Toyota COROLLA Engine Mounting EPC diagram — 115956B — Engine Mounting — 115956B (200902 – 999999)

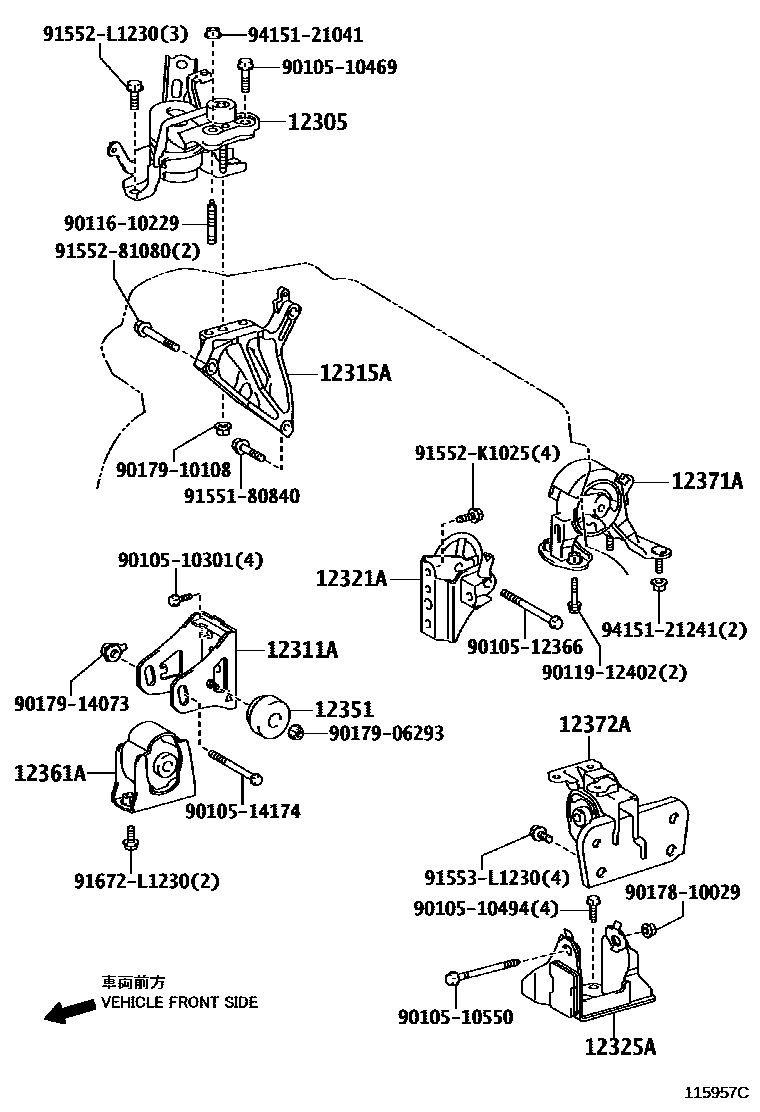

Toyota COROLLA Engine Mounting EPC diagram — 115957C — Engine Mounting — 115957C (200902 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12305	Engine right side mounting vibration isolation pad sub-assembly	12305-0D070 · 12305-0N030 · 12305-0N050 · 12305-0N060 · 12305-0R020 · 12305-0T070 · 12305-0Y020
12311A	Engine front mounting bracket (for transverse engine)	12311-0D160 · 12311-0N020 · 12311-0N040 · 12311-0N090 · 12311-0R030 · 12311-0T040 · 12311-0Y010 · 12311-37130
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-0N010 · 12315-0R020 · 12315-22020 · 12315-33040 · 12315-33050 · 12315-37030 · 12315-47040
12321A	Rear engine mounting bracket (for transverse engine)	12321-0D230 · 12321-0D240 · 12321-0R030 · 12321-0T020 · 12321-0T150 · 12321-0Y020
12321B	Drive shaft heat insulation pad sub-assembly	43409-20031
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-0D070 · 12325-0R030 · 12325-0T020 · 12325-0T160 · 12325-0Y030
12341	engine mounting spacer	12341-26011
12351	engine mount shock absorber	12351-0D080 · 12351-27050 · 12351-28060 · 12351-37060 · 12351-63010
12351A	Engine mount shock absorber (for vibration isolation pad)	12351-0R010 · 12351-0T020 · 12351-26010
12351B	engine mount shock absorber	12351-0D060 · 12351-0R010 · 12351-22110 · 12351-26010
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-0D180 · 12361-0R050 · 12361-28240
12371A	Engine rear mount vibration isolation pad	12371-0D180 · 12371-0R020 · 12371-22240
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-0D140 · 12372-0N020 · 12372-0N040 · 12372-0N050 · 12372-0R020 · 12372-0T070 · 12372-0T130 · 12372-0Y021 · 12372-22180 · 12372-47040
12511	No. 1 generator bracket	12511-0T020 · 12511-37010
13570A	No. 1 poly-ribbed belt idler assembly	13570-22010
