Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 10 PNC and OE references.

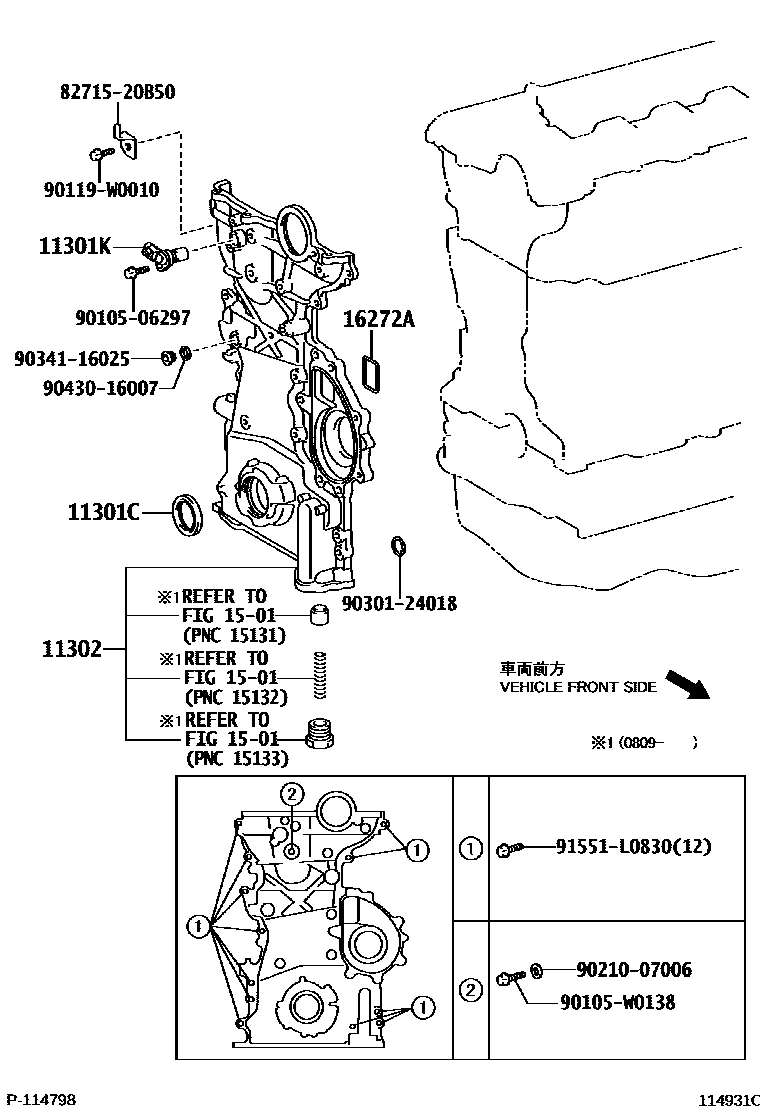

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 114931C
Timing Gear Cover & Rear End Plate — 114931C (200802 – 999999)

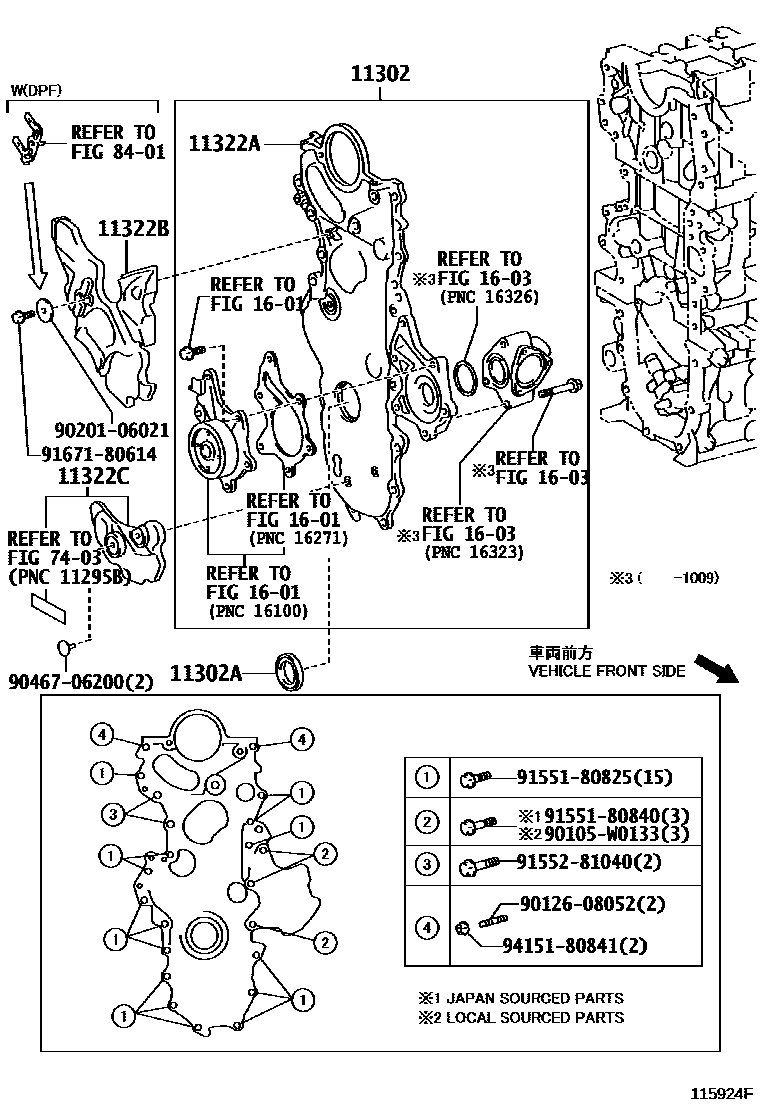

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 115924F
Timing Gear Cover & Rear End Plate — 115924F (200902 – 999999)

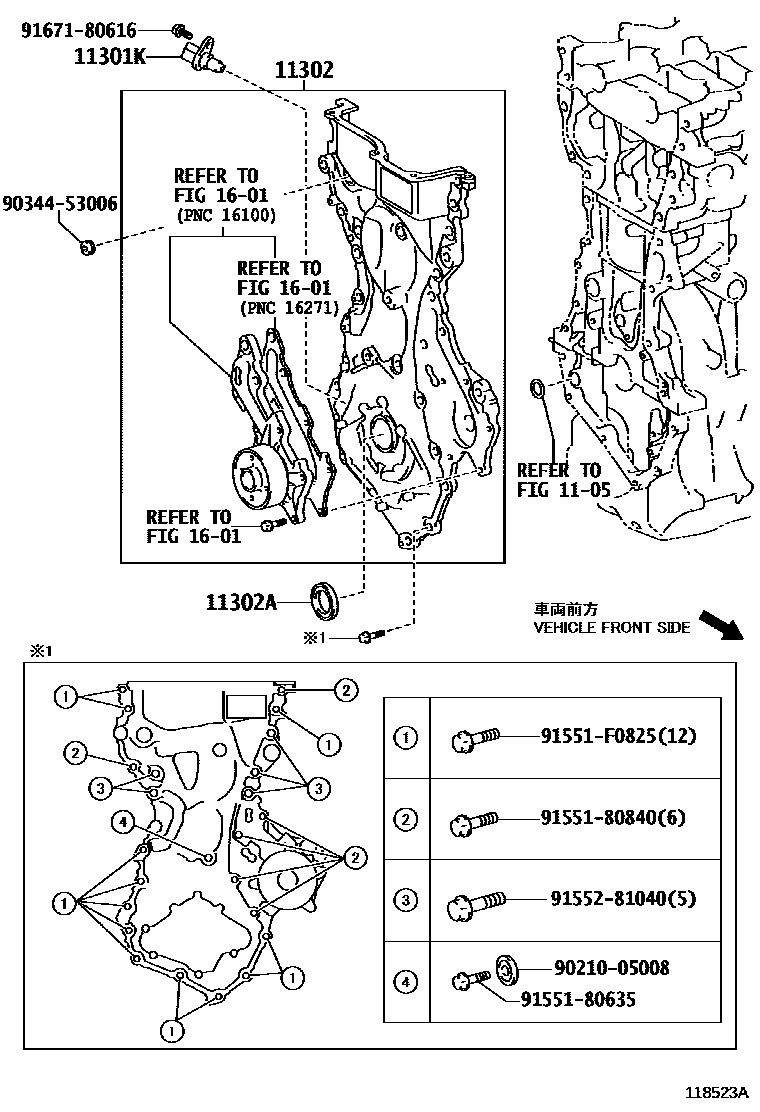

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 118523A
Timing Gear Cover & Rear End Plate — 118523A (200902 – 999999)

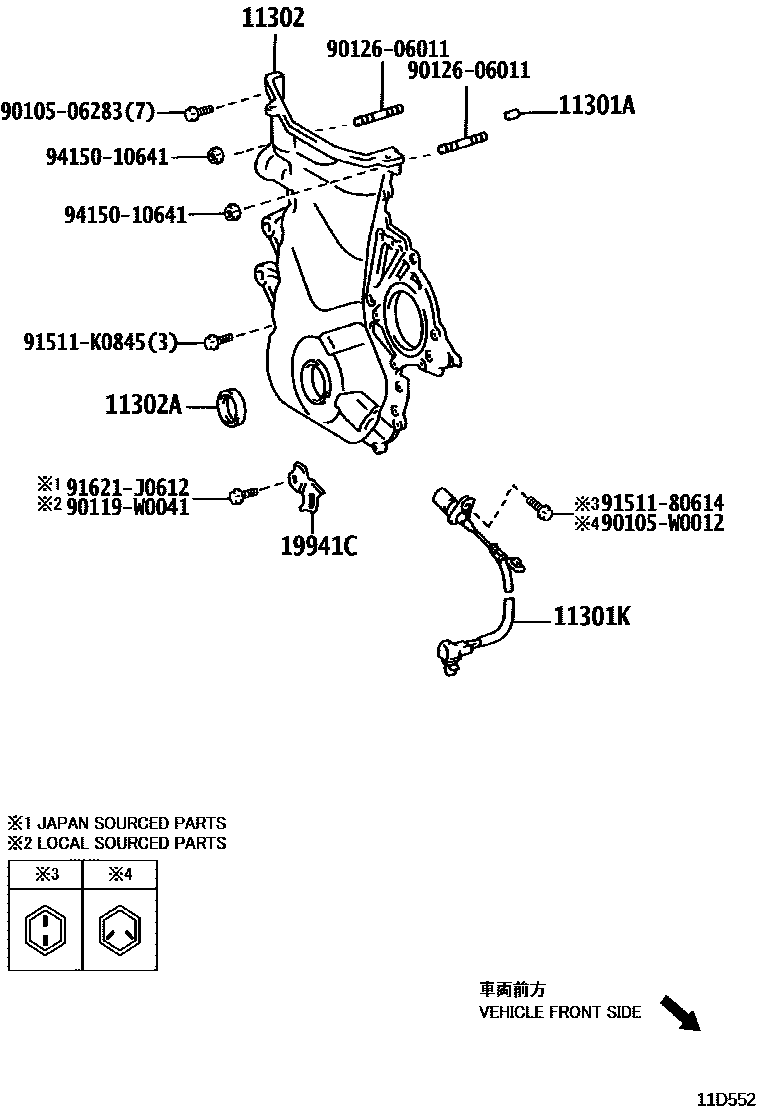

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D552
Timing Gear Cover & Rear End Plate — 11D552 (200802 – 999999)

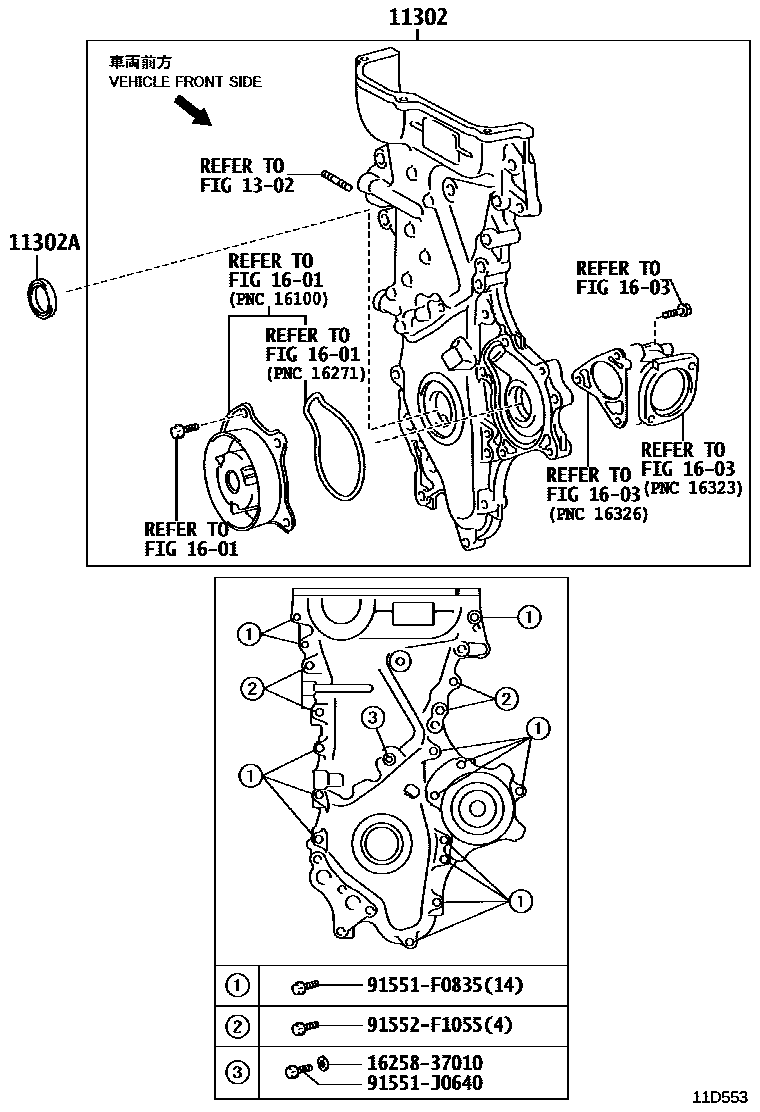

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D553
Timing Gear Cover & Rear End Plate — 11D553 (200802 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-W0005 · 90311-W0009
11301Kcrankshaft position sensor90919-05029 · 90919-05030 · 90919-05073
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-0R011 · 11302-0R020 · 11310-0T070 · 11310-33010 · 11310-33011 · 11310-37010 · 11310-37011 · 11310-47010 · 11310-47011 · 11321-0D020 · 11321-22021
11302AOil seal (for timing chain or timing belt cover)90080-31060 · 90311-25021 · 90311-25031 · 90311-25032 · 90311-38059 · 90311-38089 · 90311-40033 · 90311-40040 · 90311-W0012
11322ANo. 1 timing belt cover11321-33020
11322BNo. 2 timing belt cover11322-33020
11322CNo. 3 timing belt cover11323-33010
16272ANo. 2 water pump gasket16272-26010
19941CWire clamp (for crankshaft position sensor)19941-22010
